Craftsman 917376234 lawn mower Parts

For Craftsman model 917376234, the fastest way to get the correct mower blade part number is to look it up by model in the parts list, then match it to the blade description (size and style). Your owner's manual also shows blade service details that help confirm you have the right blade setup.

Best ways to identify the correct blade

• Use the model number 917376234 to look up the blade in the parts diagram and parts list (most accurate).
• Check the blade itself for any stamped numbers near the center mounting area (helpful cross-check).
• Confirm deck size and blade type; this mower uses a 22-inch blade style.
• Compare the mounting pattern (center hole shape and any side holes) to the replacement listing.
• Avoid “close enough” blades; the manual warns to use a manufacturer-approved replacement blade.

What the manual tells you (useful for matching)

The manual’s repair parts list identifies the blade as a 22-inch blade and provides key service specs like blade bolt torque.

Item to match	What to look for	Why it matters
Blade length	22 inches	Ensures proper cut and safe clearance
Center hole / mounting	Matches your blade adapter	Prevents wobble and crankshaft damage
Blade bolt torque	35 to 40 ft-lbs	Keeps the blade secure without stripping

Quick safety and removal tips (so you can read the blade markings)

• Disconnect the spark plug wire before tipping the mower.
• Tip the mower with the air filter and carburetor facing up.
• Block the blade with a wood block before loosening the blade bolt.
• Turn the blade bolt counterclockwise to remove.
• If the blade adapter key is damaged, replace the adapter before installing a new blade.

Why it matters

Using the correct, approved blade for Craftsman 917376234 protects the blade adapter and crankshaft, keeps cutting performance consistent, and helps prevent vibration from an unbalanced or incorrect blade.

Last updated: February 2026

No. For your Craftsman lawn mower model 917376234, use the exact spark plug type and gap listed in the owner's manual; the wrong thread reach, seat style, or heat range can cause hard starting, misfires, overheating, and engine damage.

What to match (and why)

When you replace the plug, these specs must match the engine requirements:

• Thread diameter and pitch: prevents stripped threads and poor seating
• Thread reach (length): too long can contact internal parts; too short reduces spark quality
• Seat type (gasket vs. taper): wrong seat can leak compression
• Heat range: wrong range can foul quickly or run too hot
• Gap setting: affects starting and power (set to the manual spec)

When to replace the spark plug

Our manual guidance for this mower is straightforward:

• Replace the spark plug at the beginning of each mowing season, or
• Replace it every 100 hours of operation, whichever comes first
• If the mower will not start, a bad spark plug is a common cause listed in the troubleshooting chart

Quick check before you buy a plug

Use this checklist so you get the correct replacement the first time:

• Confirm the spark plug type and gap in the Product Specifications section of the owner's manual
• Compare the new plug to the old one for reach and seat style
• Inspect the plug wire connection; a disconnected wire can mimic a bad plug
• Avoid “close enough” cross-references unless every spec matches

Symptoms: correct plug vs. wrong plug

What you notice	More likely cause
Starts, then runs rough or misfires	Wrong gap, wrong heat range, fouled plug
Hard to start, especially cold	Wrong plug type, worn plug, weak spark
Knocking, overheating, loss of power	Incorrect heat range or reach

Why it matters

The spark plug is part of your mower’s ignition system; using the correct plug and gap helps the engine start reliably, run cooler, and deliver full cutting power while protecting internal components.

Last updated: February 2026

You can buy replacement parts for your Craftsman walk-behind mower model 917376234 directly from the parts list for this model, using the exact part ID to match what is on your mower. For diagrams, part locations, and maintenance guidance, use the owner's manual.

Best way to buy the right part for model 917376234

We recommend matching by model number + part ID (not just a description) because many Craftsman mowers use similar-looking hardware and controls.

• Find your mower’s model and serial decal on the rear of the mower housing.
• Use the parts diagrams in the manual to identify the correct key number.
• Match the key number to the part listing and confirm the part ID.
• Order common wear or damage items by exact match (blade, cables, wheels, deflectors).
• If you are replacing drive components, inspect related items (belt, pulley, pawls) at the same time.

Common parts customers order for this mower

These are examples of parts available for Craftsman 917376234 that customers often replace:

What you’re fixing	Part to look for	What it does
Poor cutting or vibration	Lawn mower 22-in deck 3-in-1 blade 532420463	Cuts grass; a bent or dull blade reduces cut quality
Self-propel won’t pull	Lawn mower drive control cable 588479201	Transfers handle input to the drive system
Side/rear discharge issues	Lawn mower clipping deflector 532426129	Helps direct clippings safely out of the discharge area
Bagging problems	Lawn mower grass bag frame 585054702	Supports the grass bag so it holds shape

Why it matters

Buying by the correct part ID helps you avoid returns and downtime. It also ensures the part fits the deck, handle controls, and drive system designed for Craftsman model 917376234.

Last updated: February 2026

To find the right parts for your Craftsman walk-behind mower model 917376234, match the model number from the mower’s ID label to the parts list and diagrams in the owner's manual. Once you have the model number and the part name, you can select the exact replacement by part ID.

Where to find the model number on the mower

On Craftsman walk-behind mowers like 917376234, the model/serial label is typically on the rear frame between the wheels. Use that exact model number when searching parts so you get the correct handle, wheel, cable, and deck components.

Fast way to identify the exact part you need

We recommend using a simple “look up, confirm, then order” process:

• Find the model number on the rear frame label (between the wheels).
• Open the repair parts diagrams in the owner's manual.

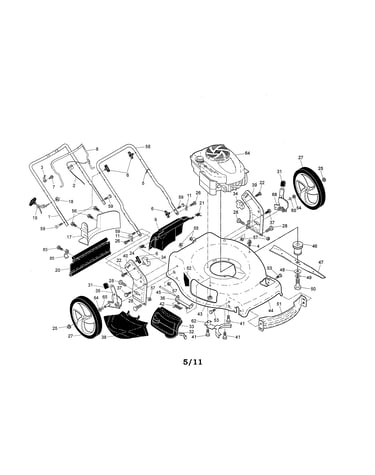

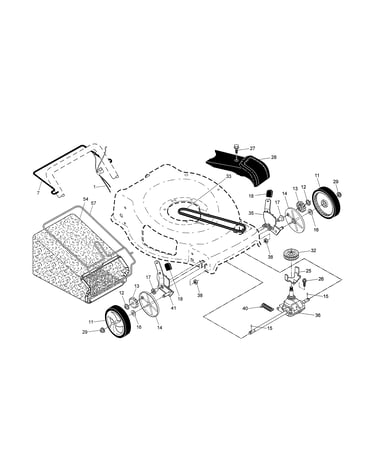

• Locate the part in the exploded view (by key number).
• Match the key number to the parts list description.
• Confirm the part ID before ordering (example: 532420463 for a blade).

Common parts customers replace on model 917376234

These are frequently searched items for this mower; using the exact part ID prevents ordering the wrong version.

What you’re fixing	Part to look for	Example part ID on this model
Poor cut quality or vibration	Blade	Lawn mower 22-in deck 3-in-1 blade 532420463
Self-propel not pulling	Drive cable or transmission	Lawn mower drive control cable 588479201, lawn mower transmission assembly 589600601
Safety/engine shutoff issues	Zone control cable	Husqvarna lawn mower zone control cable 532420939

Why it matters

Craftsman model numbers can look similar, but small design changes affect fit (handle hardware, wheel adjusters, drive system parts). Using the 917376234 diagrams and part IDs helps ensure correct fit, safe operation, and reliable performance.

Last updated: February 2026

The most common repairs on the Craftsman walk-behind mower model 917376234 involve basic tune-up and drive/cutting issues: getting the engine to start and run smoothly, restoring cutting performance, and fixing self-propel movement problems. Our 917376234 owner's manual troubleshooting chart covers many of these symptoms and the quickest checks.

Most common repairs (and what usually causes them)

• Won’t start or hard to start: control bar not held to the handle, dirty air filter, incorrect oil level, or blade drag in grass.
• Runs rough, surges, or lacks power: restricted airflow (air filter), old fuel, or heavy grass load.
• Poor cut quality or vibration: worn, bent, or loose blade; uneven wheel height; grass buildup under the deck.
• Self-propel won’t move or slips: worn belt, belt off the pulley, worn/broken drive cable, or a loose drive control system.
• Grass clumps or discharge problems: cutting height too low, wet/overgrown grass, or packed debris under the housing.

Quick checks we recommend before replacing parts

1. Safety first: shut the engine off and let moving parts stop; disconnect the spark plug wire before working near the blade.
2. Confirm the control bar is engaged before pulling the starter rope (a common no-start cause).
3. Inspect the blade and hardware; tighten or replace if bent/worn. If you’re replacing the blade, the lawn mower 22-in deck 3-in-1 blade 532420463 is a common wear item for this model.
4. Clean the underside of the deck to reduce drag and improve cut quality.
5. For drive problems, check belt routing and cable condition; if the drive system is worn out, the lawn mower transmission assembly 589600601 is the core self-propel component.

Symptom-to-repair guide

Symptom	Most likely fix	Common parts involved
Vibration	Replace/tighten blade	Blade, blade hardware
Uneven cut	Set wheels to same height; clean deck	Wheels, height adjusters
Won’t move (self-propel)	Reinstall/replace belt; replace cable; adjust drive	Belt, drive cable, transmission
Stalling in thick grass	Raise cutting height; slow walking speed	Blade, deck cleaning

Why it matters

Catching blade, deck, and drive issues early prevents bigger failures (like damaged blade adapters or drive components) and keeps the mower cutting cleanly with less strain on the engine.

Last updated: February 2026
