Model # NPHAD42N1K2 Official ICP heat pump

Here are the diagrams and repair parts for Official ICP NPHAD42N1K2 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 79 parts |

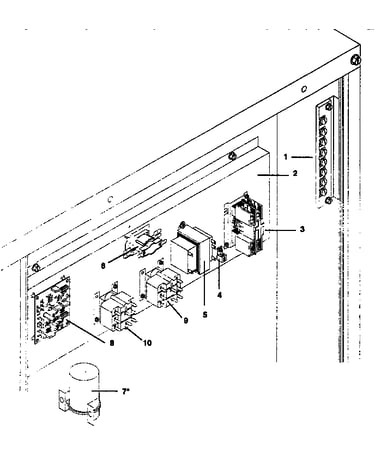

Control plate - all models diagram

Contactor

Part #1050839

Replaced by #94-394

$25.67 |

16% OFF Phone Price : $30.67

In Stock

Qty

Control plate - all models diagram

Relay time d

Part #1054372

$39.56 |

11% OFF Phone Price : $44.56

In Stock

Qty

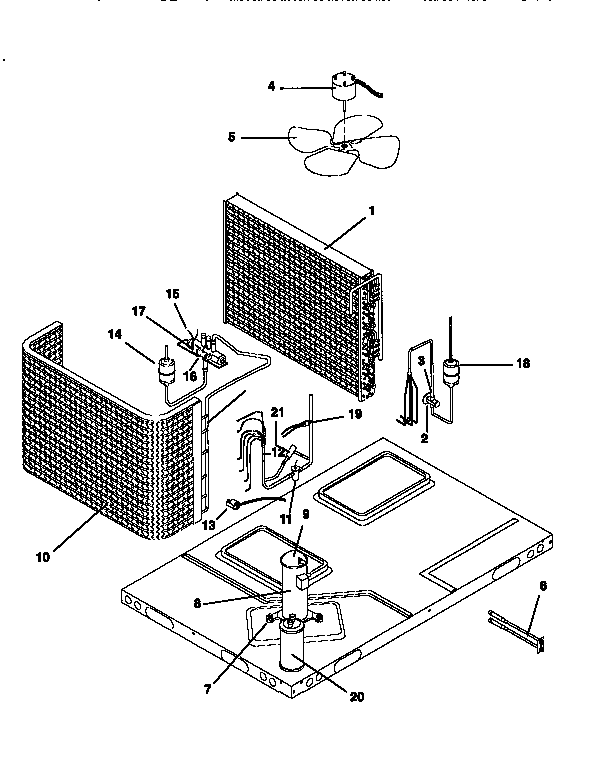

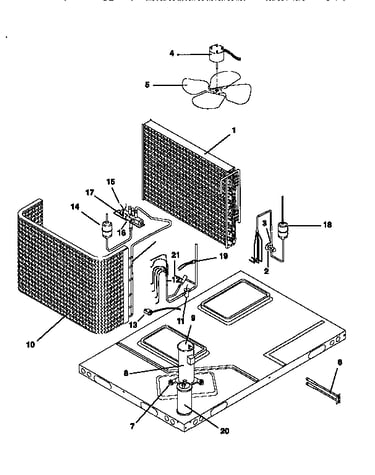

Functional - 3.5 thru 5 ton diagram

Motor

Part #1066470

$491.37

In Stock

Qty

Control plate - all models diagram

Central air conditioner heat pump defrost control board

Part #1093410

The manufacturer no longer makes this part, and there's no substitute part

#38

Non-functional - 3.5 thru 5 ton diagram

Condenser fan orifice

Part #1065725

$62.73

In Stock

Qty

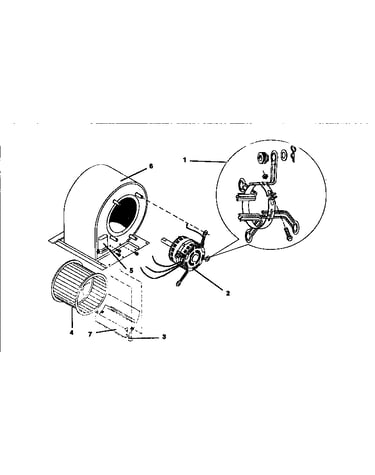

Blower - all models diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |

7% OFF Phone Price : $140.20

In Stock

Qty

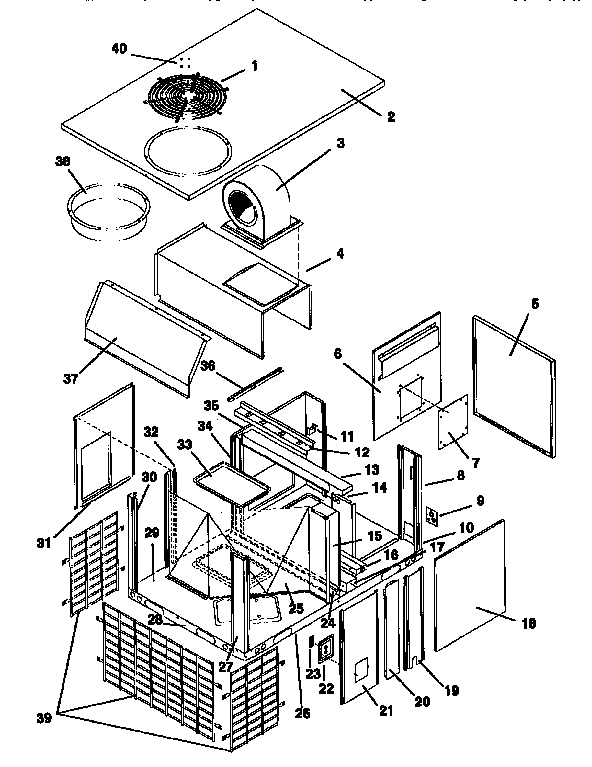

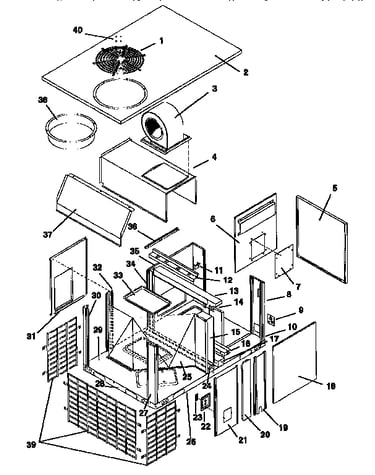

Non-functional - 3.5 thru 5 ton diagram

Grille

Part #1064542

$258.13

In Stock

Qty

Blower - all models diagram

Mtr blr / /

Part #1054583

$516.10

In Stock

Qty

#15

Functional - 3.5 thru 5 ton diagram

Harness rev

Part #1066711

$101.58

In Stock

Qty

Non-functional - 3.5 thru 5 ton diagram

Plate block

Part #1066107

$20.49

In Stock

Qty
