Frigidaire
Top-Mount Refrigerator

Model # FPD19TFH0 Official Frigidaire top-mount refrigerator - lf30588380

Here are the diagrams and repair parts for Official Frigidaire FPD19TFH0 top-mount refrigerator - lf30588380, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |

Drier 3007351
#1

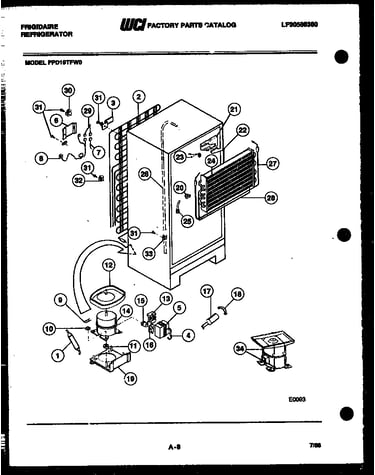

System and automatic defrost parts diagram

Drier

Part #3007351

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 3007351. Substitute parts can look different from the original.
BEST SELLER
$12.71
22% OFF MSRP : $16.34
In Stock
Refrigerator Gasket 3018238
#18

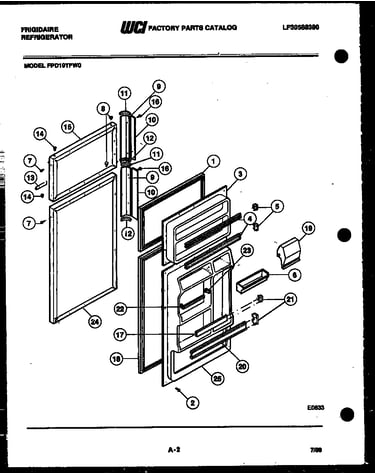

Door parts diagram

Refrigerator gasket

Part #3018238

Replaced by #218730609

?
Manufacturer substitution
This part replaces 3018238. Substitute parts can look different from the original.
$107.82
8% OFF Phone Price : $117.82
In Stock
Refrigerator Hinge Screw 8000123
#13A

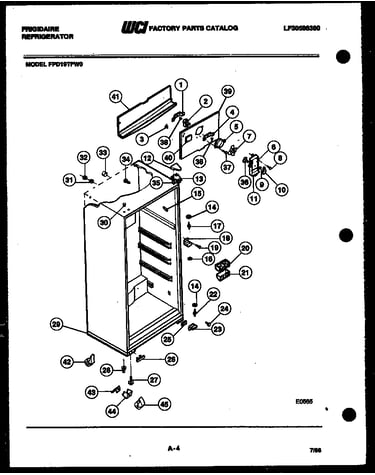

Cabinet parts diagram

Refrigerator hinge screw

Part #8000123

Replaced by #241710601

?
Manufacturer substitution
This part replaces 8000123. Substitute parts can look different from the original.
This item is not returnable
$14.19
12% OFF Phone Price : $16.19
In Stock
Refrigerator Condenser Bracket 8003600
#3

System and automatic defrost parts diagram

Refrigerator condenser bracket

Part #8003600

Replaced by #5308000296

?
Manufacturer substitution
This part replaces 8003600. Substitute parts can look different from the original.
In Stock
Refrigerator Timer 8006992
#10

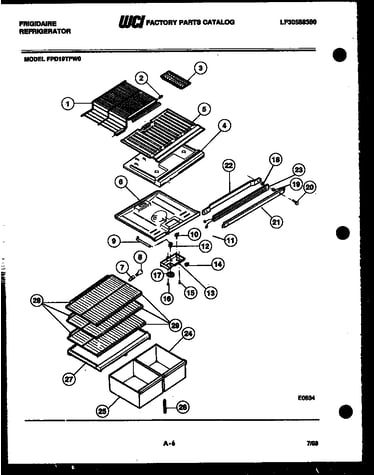

Shelves and supports diagram

Refrigerator timer

Part #8006992

Replaced by #215846602

?
Manufacturer substitution
This part replaces 8006992. Substitute parts can look different from the original.
$29.40
15% OFF Phone Price : $34.40
In Stock
Refrigerator Timer Screw 8000008
#16

Shelves and supports diagram

Refrigerator timer screw

Part #8000008

Replaced by #5304455649

?
Manufacturer substitution
This part replaces 8000008. Substitute parts can look different from the original.
In Stock
Refrigerator Door Rack 3019018
#17

Door parts diagram

Refrigerator door rack

Part #3019018

Replaced by #215516220

?
Manufacturer substitution
This part replaces 3019018. Substitute parts can look different from the original.
$39.02
11% OFF Phone Price : $44.02
In Stock
Grommet 8008778
#11

System and automatic defrost parts diagram

Grommet

Part #8008778

Replaced by #218513300

?
Manufacturer substitution
This part replaces 8008778. Substitute parts can look different from the original.
$36.56
12% OFF Phone Price : $41.56
In Stock
Refrigerator Door Support 3018870
#21A

Door parts diagram

Refrigerator door support

Part #3018870

Replaced by #5303325991

?
Manufacturer substitution
This part replaces 3018870. Substitute parts can look different from the original.
This item is not returnable
In Stock
Refrigerator Front 3018975
#20

Door parts diagram

Refrigerator front

Part #3018975

Replaced by #215516220

?
Manufacturer substitution
This part replaces 3018975. Substitute parts can look different from the original.
$39.02
11% OFF Phone Price : $44.02
In Stock
