Model # JGP336WEV3WW Official GE gas cooktop

Here are the diagrams and repair parts for Official GE JGP336WEV3WW gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Cooktop Burner Knob (replaces Wb03k5296) WB3K5296
#29

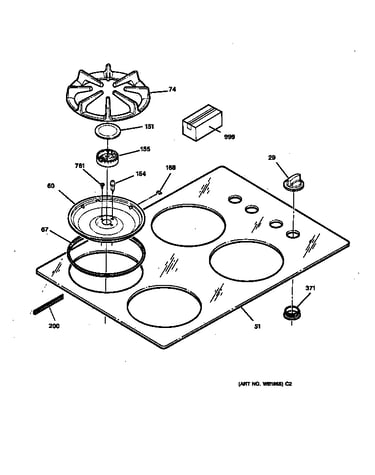

Cooktop diagram

Cooktop burner knob (replaces wb03k5296)

Part #WB3K5296

BEST SELLER
$28.89
15% OFF Phone Price : $33.89
In Stock
Gas Valve Switch WB24K5047
#323

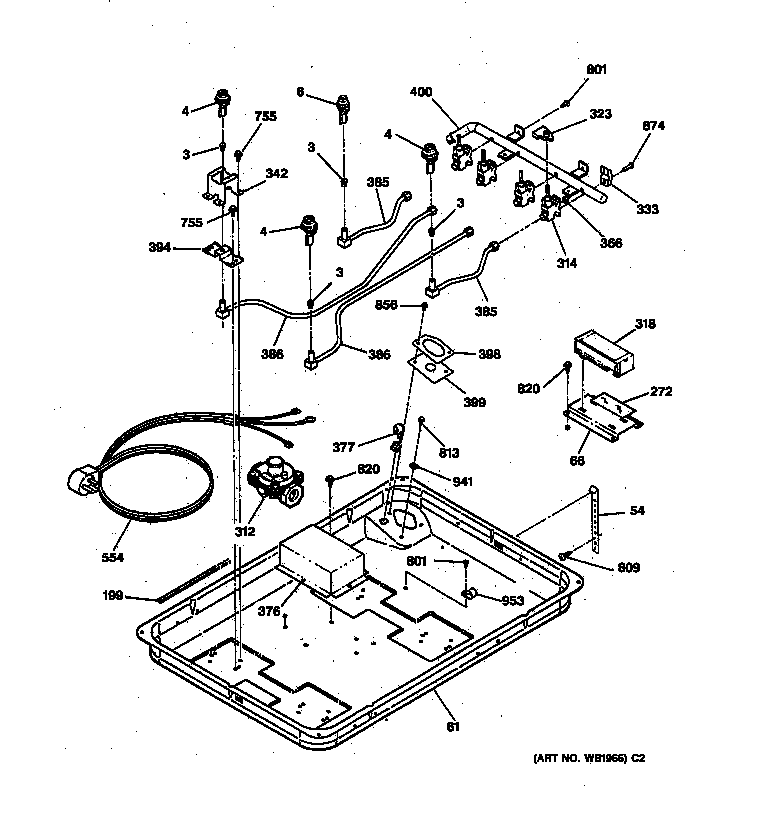

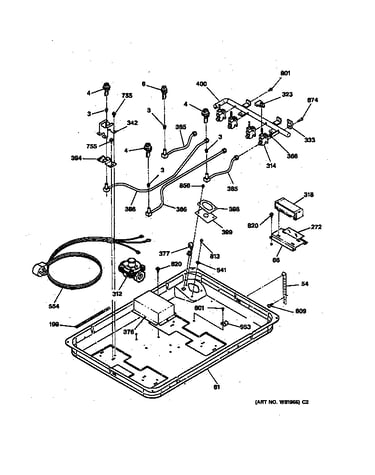

Burner parts diagram

Gas valve switch

Part #WB24K5047

Replaced by #WB24T10071

?
Manufacturer substitution
This part replaces WB24K5047. Substitute parts can look different from the original.
BEST SELLER
$24.02
17% OFF Phone Price : $29.02
In Stock
Range Drip Pan (white) WB31K5079
#60A

Cooktop diagram

Range drip pan (white)

Part #WB31K5079

BEST SELLER
$26.39
16% OFF Phone Price : $31.39
In Stock
Range Surface Burner Igniter (replaces Wb13k0018) WB13K18
#154

Cooktop diagram

Range surface burner igniter (replaces wb13k0018)

Part #WB13K18

BEST SELLER
$37.91
12% OFF Phone Price : $42.91
In Stock
Screw-4-pk WB1M01
#801

Burner parts diagram

Screw-4-pk

Part #WB1M01

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1M01. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Foam Tape WB6K5042
#200

Cooktop diagram

Foam tape

Part #WB6K5042

Replaced by #WB02X26088

?
Manufacturer substitution
This part replaces WB6K5042. Substitute parts can look different from the original.
$51.24
9% OFF Phone Price : $56.24
In Stock
Range Drip Pan WB31K5081
#60C

Cooktop diagram

Range drip pan

Part #WB31K5081

$26.19
16% OFF Phone Price : $31.19
In Stock
Range Screw WB1X1137
#809

Burner parts diagram

Range screw

Part #WB1X1137

$7.88
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Igniter Clip WB1K56
#168

Cooktop diagram

Range surface burner igniter clip

Part #WB1K56

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Air Mixing Tube WB16K14
#6

Burner parts diagram

Range surface burner air mixing tube

Part #WB16K14

$15.92
11% OFF Phone Price : $17.92
In Stock
