How to read Kenmore refrigerator model number?
On Kenmore side-by-side refrigerators like model 10650512001, the model number is printed on the model and serial number label inside the cabinet. Use that full model number when ordering parts, checking features, or looking up service information in the 10650512001 owner's manual.
On this Kenmore 106 series design, the manual shows the model and serial number label on the side wall inside the refrigerator compartment.
Check these common spots:
- Inside the fresh food (refrigerator) section on a side wall
- Near the crisper or meat drawer area (still on an interior wall)
- Behind the base grille area (on some configurations)
- Not on the outside back panel (rare on this style)
Kenmore model numbers are typically a prefix plus a longer identifier. For this refrigerator, 106 indicates the product family; the remaining digits identify the exact configuration (doors, dispenser, ice maker setup, trim color, and internal parts).
Use the same fields the manual recommends keeping for service:
- Model number (example: 10650512001)
- Serial number
- Purchase date
| Item | What it’s used for | Example |
|---|---|---|
| Model number | Correct part fit and diagrams | 10650512001 |
| Serial number | Production details, service history | (varies) |
| Purchase date | Warranty and service reference | (your date) |

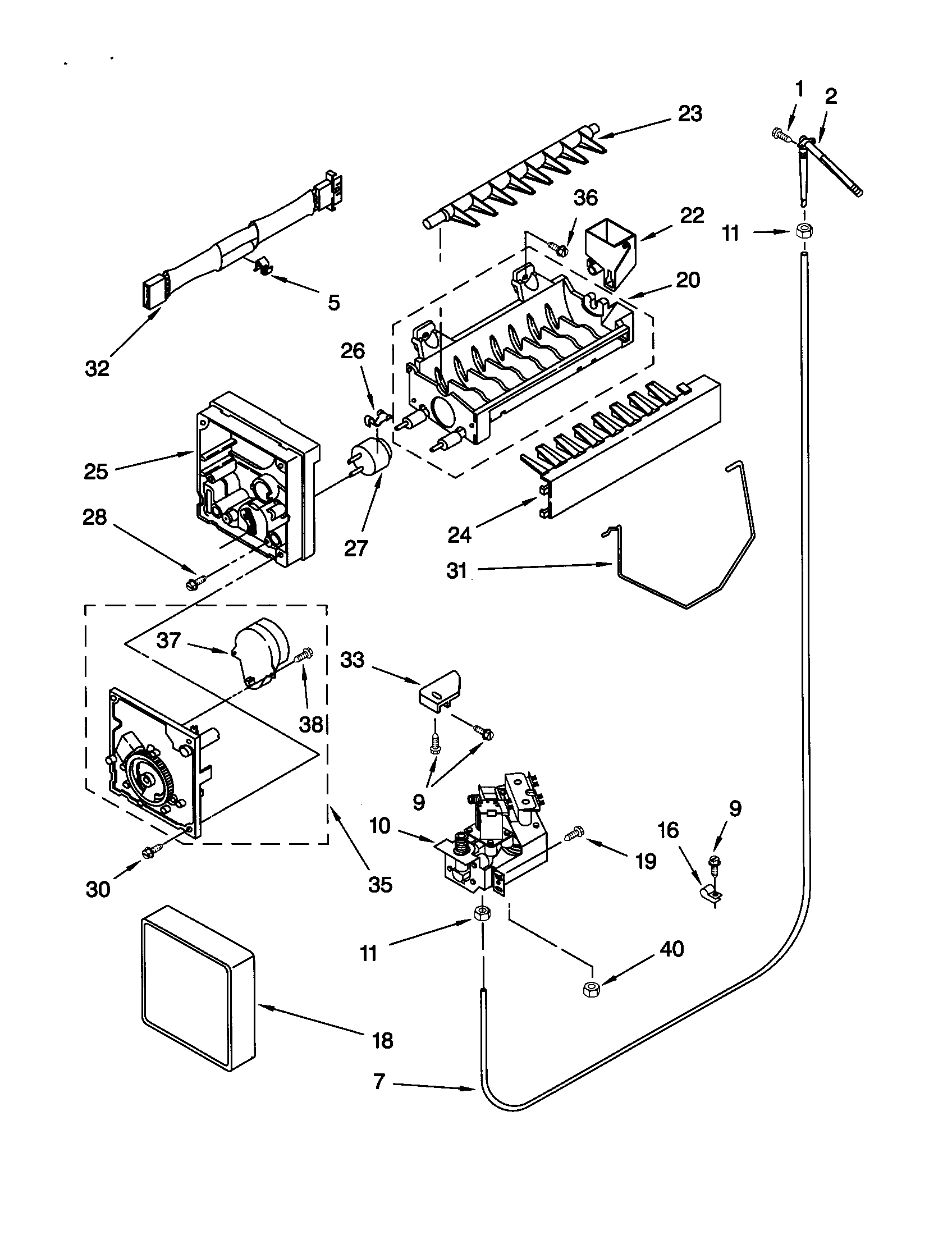

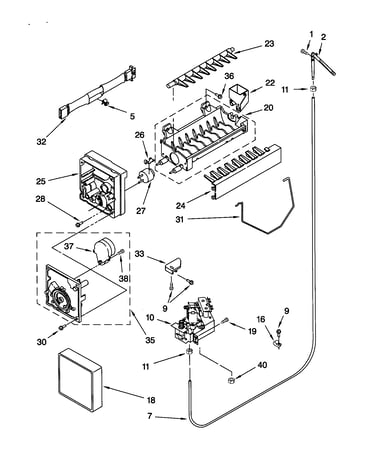

If you are troubleshooting a feature tied to a specific assembly, match parts by model first, then by symptom. For example, ice production issues often point to the ice maker assembly - refrigerator ice maker by whirlpool 4317943 on compatible builds.
A single digit difference can change the correct thermostat, ice maker, door gasket, or dispenser components. Using the exact model number from the label prevents ordering a part that looks right but does not mount or wire correctly.
Last updated: February 2026
How wide is a Kenmore side by side refrigerator?
Most Kenmore side-by-side refrigerators are about 32 to 36 inches wide; your Kenmore model 10650512001 is typically in that same range. For the exact cabinet width and required clearances for your specific unit, use the dimensions listed in the 10650512001 owner's manual.
Side-by-side refrigerator width depends on capacity and whether it is standard-depth or counter-depth.
- 32 to 33 inches: narrower side-by-side models
- 35 to 36 inches: most common full-size side-by-side models
- 36 inches+: larger-capacity or specialty configurations
Even if the cabinet width fits, we plan for airflow and door swing.
- Allow 1/2 inch space on each side and at the top for ventilation
- If the refrigerator is next to a fixed wall, allow at least 2 inches on the wall side (depending on the model) so doors can swing open
- If an ice maker is installed, leave extra space behind for the water line connection
| What you are measuring | What to include | Why it changes the “real” width |
|---|---|---|
| Cabinet width | Refrigerator box only | Base spec for fit |
| Door swing clearance | Space beside the cabinet | Prevents doors from hitting walls |
| Installation clearance | Ventilation gaps | Helps cooling performance |
A refrigerator that is “the right width” can still be hard to install if you do not account for ventilation gaps and door swing. Planning clearances helps prevent poor cooling, noisy operation, and doors that do not open fully.
Last updated: February 2026
What is code 5Y EF on Kenmore refrigerator?

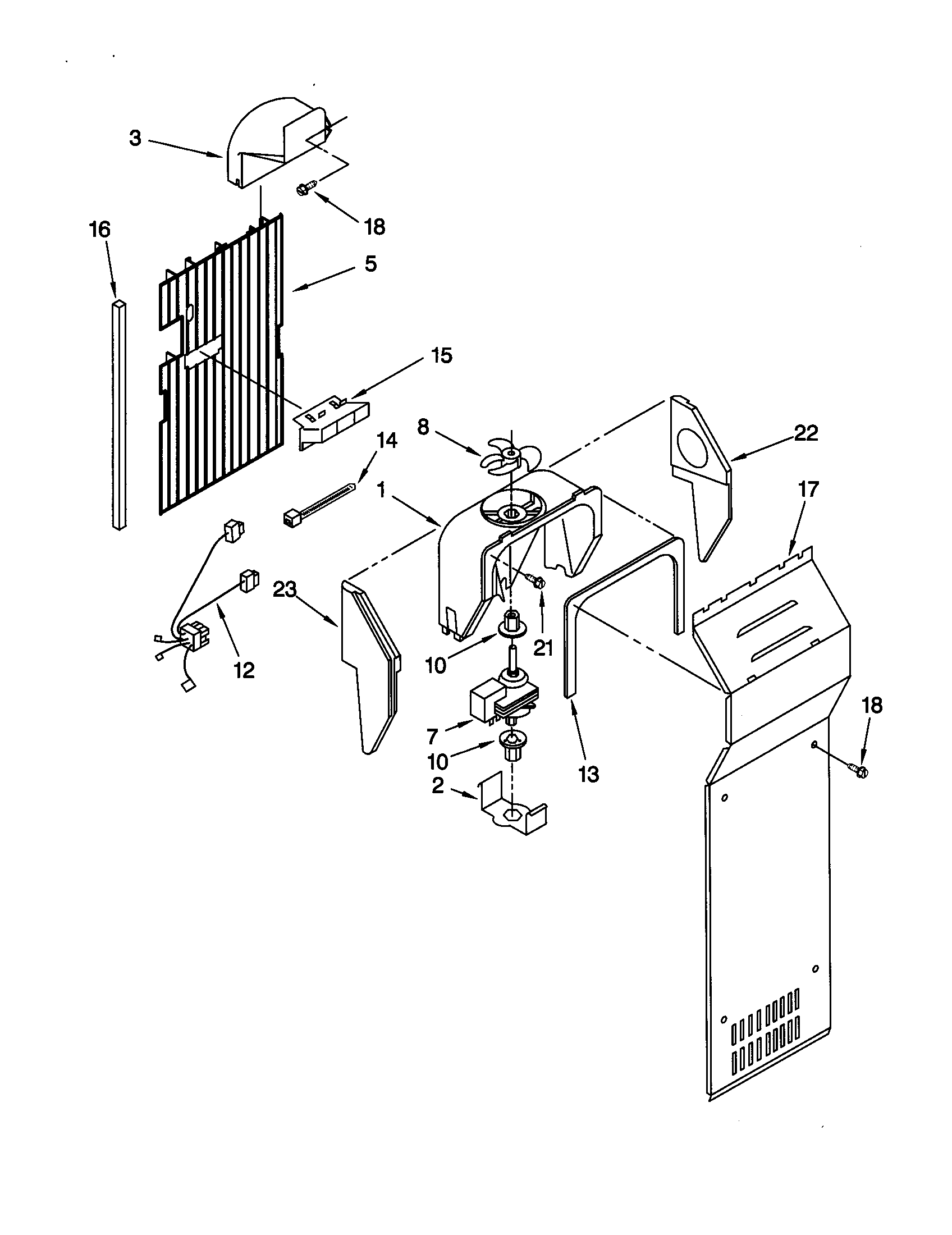

On Kenmore side-by-side refrigerator model 10650512001, a 5Y EF (sometimes shown as SY EF) display is treated as an evaporator fan airflow or fan circuit problem. The evaporator fan is the freezer fan that pushes cold air through the refrigerator; when it is blocked by ice or not running, cooling performance drops.
- Unplug the refrigerator for 5 minutes, then restore power to see if the code returns.
- Open the freezer and listen for the evaporator fan; it normally runs when the compressor is running.
- Check for heavy frost or ice on the rear freezer panel (ice can stop the fan blade).
- Make sure freezer and fresh food vents are not blocked by packages.
- Confirm the doors close fully and the gaskets seal all the way around.
For operating and troubleshooting steps specific to this refrigerator, use the 10650512001 owner's manual.
| What you notice | Most likely cause | What we recommend |
|---|---|---|
| Fan noise stops, then returns | Ice intermittently hitting the fan | Manually defrost and correct the frost source |
| No fan sound, warming temps | Fan motor or wiring issue | Inspect fan area and wiring connections |
| Heavy frost on freezer back wall | Defrost system not clearing frost | Test defrost components |
| Doors hard to close or gaps | Air leak causing excess frost | Clean/reshape gasket, level doors |
If you find heavy frost behind the freezer panel, these parts are commonly involved in restoring normal defrosting:
- Refrigerator defrost bi-metal WPW10225581 (temperature safety switch for the defrost circuit)
- Refrigerator heater WP2323198 (defrost heater that melts frost off the evaporator)
When the evaporator fan cannot move air, the freezer may warm first, the fresh food section can follow, and the compressor may run longer than normal. Fixing airflow and defrost issues prevents food spoilage and repeat icing.
Last updated: February 2026
What is the cubic foot of my Kenmore refrigerator model 10650512001?
For Kenmore side-by-side refrigerator model 10650512001, the total capacity is 21.9 cubic feet. Use this number when comparing replacement units, planning kitchen fit, or estimating usable storage space; see the 10650512001 owner's manual for model coverage details and features.
Capacity is the combined interior volume of the fresh food and freezer compartments.
- It is a total volume figure (refrigerator plus freezer).
- Usable space is slightly less once you account for shelves, bins, and the ice system.
- Storage layout varies by options such as an automatic ice maker and ice bin.
- Door bins and drawers affect how the space feels day to day.
Knowing the cubic feet helps us match the right parts and accessories (bins, drawers, ice storage) and helps you compare similar Kenmore 106-series refrigerators without guessing.
| Spec | Value | Notes |
|---|---|---|
| Total capacity | 21.9 cu. ft. | Combined refrigerator + freezer volume |
| Refrigerator type | Side-by-side | Two vertical compartments |
| Brand | Kenmore | 106-series platform |
If your storage feels tight, broken bins and drawers can reduce usable capacity even when the rated cubic feet is correct.

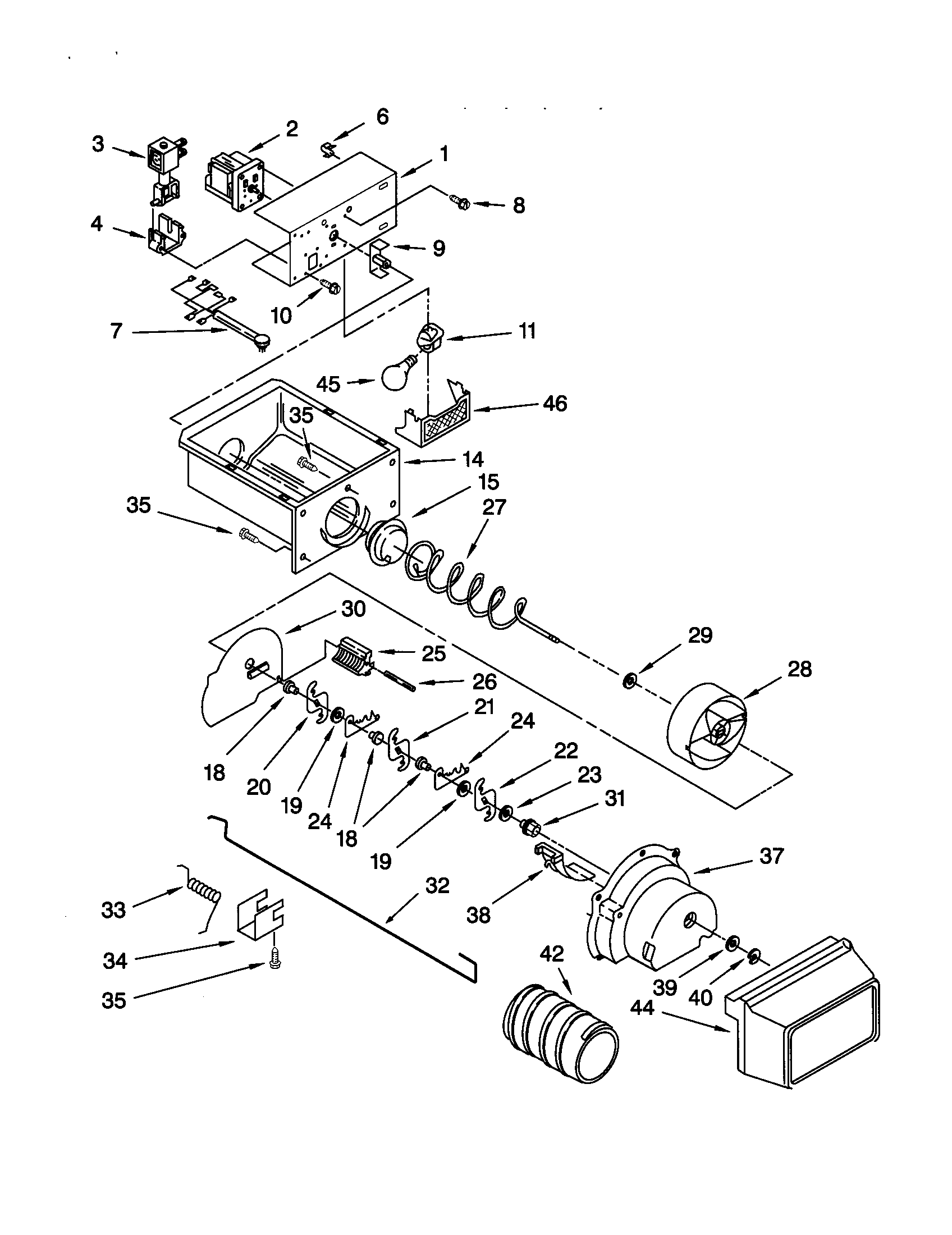

- Refrigerator ice bin WPW10670845 (ice storage in the freezer)

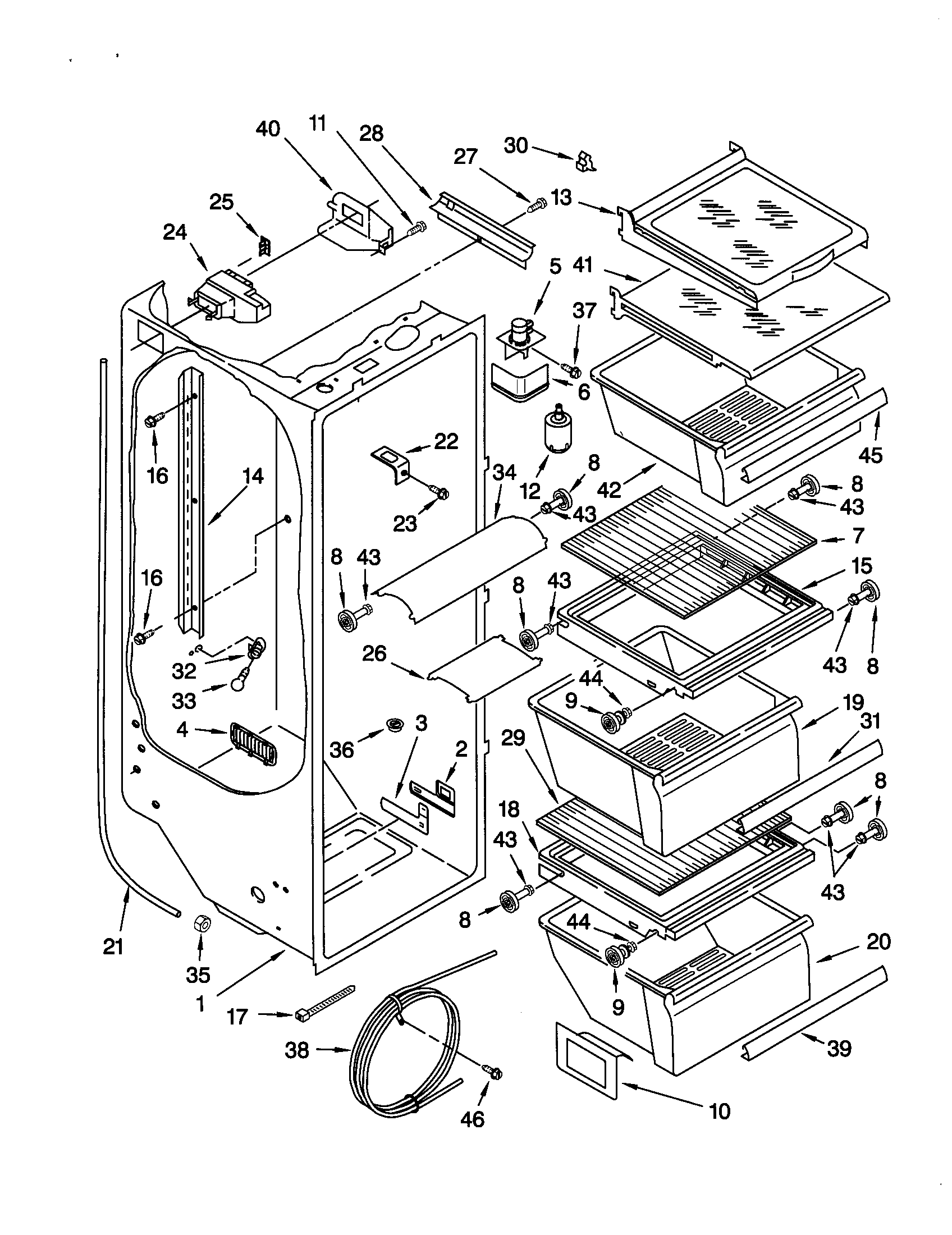

- Refrigerator meat pan WP2188664 (drawer storage in fresh food section)
Last updated: February 2026
What's the average lifespan of a Kenmore refrigerator?
Most Kenmore refrigerators average 10 to 15 years of service life; a well-maintained Kenmore 10650512001 side-by-side refrigerator often reaches the upper end of that range when it is operated and cared for as described in the 10650512001 owner's manual.
| Refrigerator type | Typical lifespan | What usually ends life first |
|---|---|---|
| Side-by-side (like 10650512001) | 10 to 15 years | Sealed system wear, cooling airflow issues |
| Top freezer | 12 to 18 years | Thermostat/control issues, door seal leaks |
| French door | 9 to 14 years | Ice maker and dispenser system problems |
- Keep door gaskets clean so doors seal and open smoothly (sticky gaskets shorten gasket life).
- Level the refrigerator so doors close correctly and do not sag over time.
- Maintain steady temperatures; avoid frequent long door openings.
- Clean dust from the condenser area regularly to reduce compressor run time.
- Fix small issues early (water leaks, warm spots, noisy fans) before they stress the sealed system.
- Food temperatures drift even after adjusting controls.
- Compressor runs almost constantly or cycles very rapidly.
- Frost buildup or repeated warm-freezer events.
- Water leaks that keep returning after basic checks.
- Door sealing problems that persist after cleaning and leveling.
A refrigerator that is struggling to cool typically runs longer and harder, which increases wear on the sealed refrigeration system. The manual for this model also emphasizes proper operation and maintenance as the basis for dependable service over time. Refer to the care and troubleshooting sections in the 10650512001 owner's manual for model-specific maintenance and checks.
Last updated: February 2026
