GE GSD900D-03 dishwasher Parts

On the GE GSD900D-03 dishwasher, we remove the lower rack first, then lift out the lower spray arm (spinner) and pull the filter screen up and out from the sump area. If parts are stuck, gentle wiggling usually frees them without cracking plastic.

1. Turn off power at the breaker (recommended) and open the door.
2. Pull the lower rack out and set it aside.
3. Remove the lower spray arm (spinner):

• Most GE designs either lift straight up or release with a center retainer; turn the retainer counterclockwise if present.

4. Remove the filter area parts:

• Lift out the coarse filter screen.
• If there is a sump cover or reservoir piece, squeeze the locking tabs and wiggle it upward to release.

5. Rinse the filter(s) under hot water; use a soft brush for grease and debris.
6. Reinstall in reverse order; make sure the spray arm spins freely by hand.

• Broken or missing spray arm retainer or hub
• Cracks or warping in the filter screen or sump cover
• Seeds, glass, labels, or bone fragments in the sump
• Sludge buildup that can cause poor wash or draining
• Spray arm holes clogged with mineral scale

A clogged filter or blocked spinner reduces water flow and pressure. That leads to poor cleaning, longer cycles, and can strain the wash system over time.

If you find damage while removing components, these model-matched parts are commonly related:

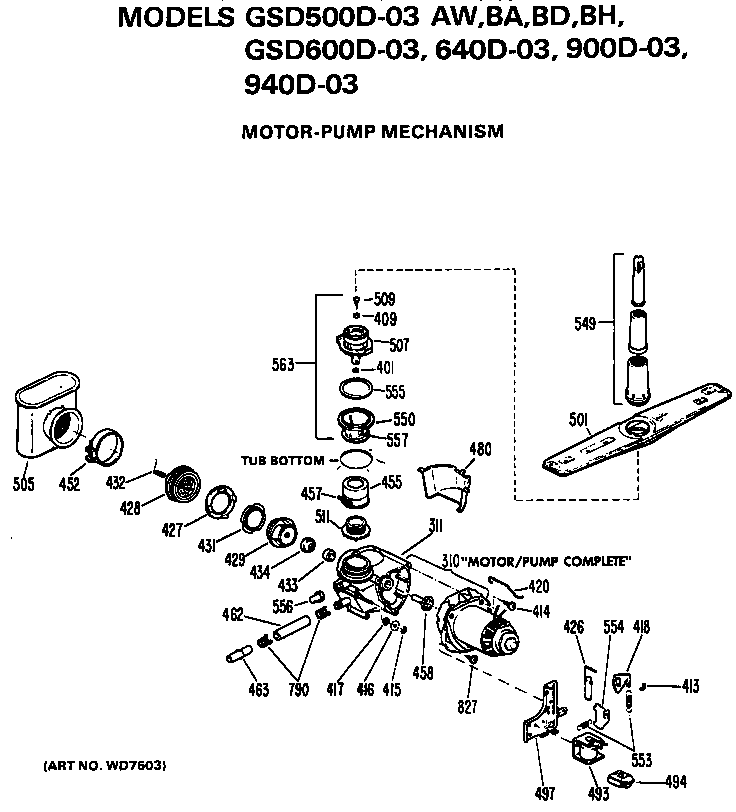

• Asm mech WD26X10013 (pump and motor assembly)
• Dishwasher door switch WD21X10261 (door interlock if the unit stops when bumped)

Last updated: February 2026

Yes, many GE GSD900D-03 dishwasher repairs are DIY-friendly if you’re comfortable using basic hand tools and you shut off power and water first. Simple mechanical parts (like rack hardware or door sealing parts) are usually straightforward; electrical and leak-related repairs take more care.

Typically DIY-friendly

• Replace a worn rack roller such as dishwasher dishrack roller, lower front WD12X271
• Replace a torn door seal such as door gasket WD8X229
• Replace a broken detergent door piece such as dishwasher detergent dispenser cover WD16X297
• Swap a door switch such as interlock WD21X10261

Usually more advanced

• Drain system repairs (solenoid, linkages, clogs) such as solenoid kit WD21X802 or dishwasher drain solenoid link WD1X1316
• Fill problems involving the water valve such as dishwasher water inlet valve WD15X93
• No-wash or loud grinding issues that point to the main wash motor such as asm mech WD26X10013

• Turn off the breaker (dishwashers are hardwired or plug-in under the sink).
• Shut off the water supply valve under the sink.
• Protect the floor; keep towels and a shallow pan ready.
• Take photos of wire and hose routing before disconnecting anything.
• Run a short test cycle after reassembly and check carefully for leaks.

Replacing the right part the right way prevents leaks, protects the control components, and restores cleaning performance. It also helps avoid repeat failures caused by pinched hoses, misrouted wiring, or a door that no longer seals evenly.

For troubleshooting help before buying parts, use GE dishwasher error codes.

Last updated: February 2026

On the GE GSD900D-03 dishwasher, the most common service issues we see are draining problems (water left in the tub), leaks around the door, and “won’t start” symptoms caused by a door switch or control-related interruption. Many cases are fixed by cleaning, checking the drain path, and verifying the door closes and latches firmly.

• Dishwasher won’t drain: clogged drain path, drain solenoid not actuating, or a pump/motor issue
• Leaking at the front: worn door seal or tub corner baffle not sealing
• Won’t start or stops mid-cycle: door switch (interlock) not closing consistently
• Poor drying: heater circuit issue, rinse aid empty, or cycle selection
• Poor cleaning: spray obstruction, low water fill, or circulation problem

1. Cancel the cycle and let it drain; then check for standing water.
2. Inspect the bottom of the tub for debris that could block the sump area.
3. Confirm the door closes squarely and the latch engages without forcing.
4. Run hot water at the sink for 30 to 60 seconds before starting a cycle.
5. Use fresh detergent and add rinse aid if your model has a dispenser.

If troubleshooting points to a failed component, these are frequent fixes for GSD900D-03:

If your GE dishwasher displays an error code, match it to the failure area before replacing parts. Use our GE dishwasher error codes guide to narrow the problem to draining, filling, heating, or door sensing.

Drain, leak, and door-switch problems can trigger safety shutoffs, leave dirty water in the tub, and cause repeat cycle failures. Catching the root cause early helps prevent pump damage and reduces the chance of water damage under the dishwasher.

Last updated: February 2026

In a GE dishwasher like model GSD900D-03, the most commonly replaced parts are the wash and drain components (pump, motor, solenoid), door sealing and safety parts (gasket, door switch), and rack hardware. These parts wear from heat, detergent, vibration, and normal use.

• Pump and motor assembly (circulation issues, loud grinding, weak spray)
• Drain solenoid and linkage (won’t drain, stuck in drain mode)
• Door switch/interlock (won’t start, stops mid-cycle)
• Door gasket and corner baffles (leaks at the door)
• Water inlet valve (won’t fill, fills slowly)
• Heating element (poor drying, water not heating)
• Rack and rack rollers (rack won’t roll, rusted or broken wheels)

• Clean the sump area and check for broken glass or food debris.
• Confirm the spray arms spin freely and aren’t clogged.
• Verify the door closes firmly and the latch area is aligned.
• Check the drain hose for kinks and the sink/disposer inlet for blockage.
• Run hot water at the sink for 30 to 60 seconds before starting a cycle.

Replacing the right part restores cleaning, draining, and leak protection while preventing secondary damage (like water leaks reaching wiring or a failing pump overheating). If your dishwasher shows a code, use GE dishwasher error codes to narrow the failure to the most likely component.
