Whirlpool EV160NZTQ01 vertical freezer Parts
Here are the diagrams and repair parts for Whirlpool EV160NZTQ01 vertical freezer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for EV160NZTQ01 Freestanding Freezers

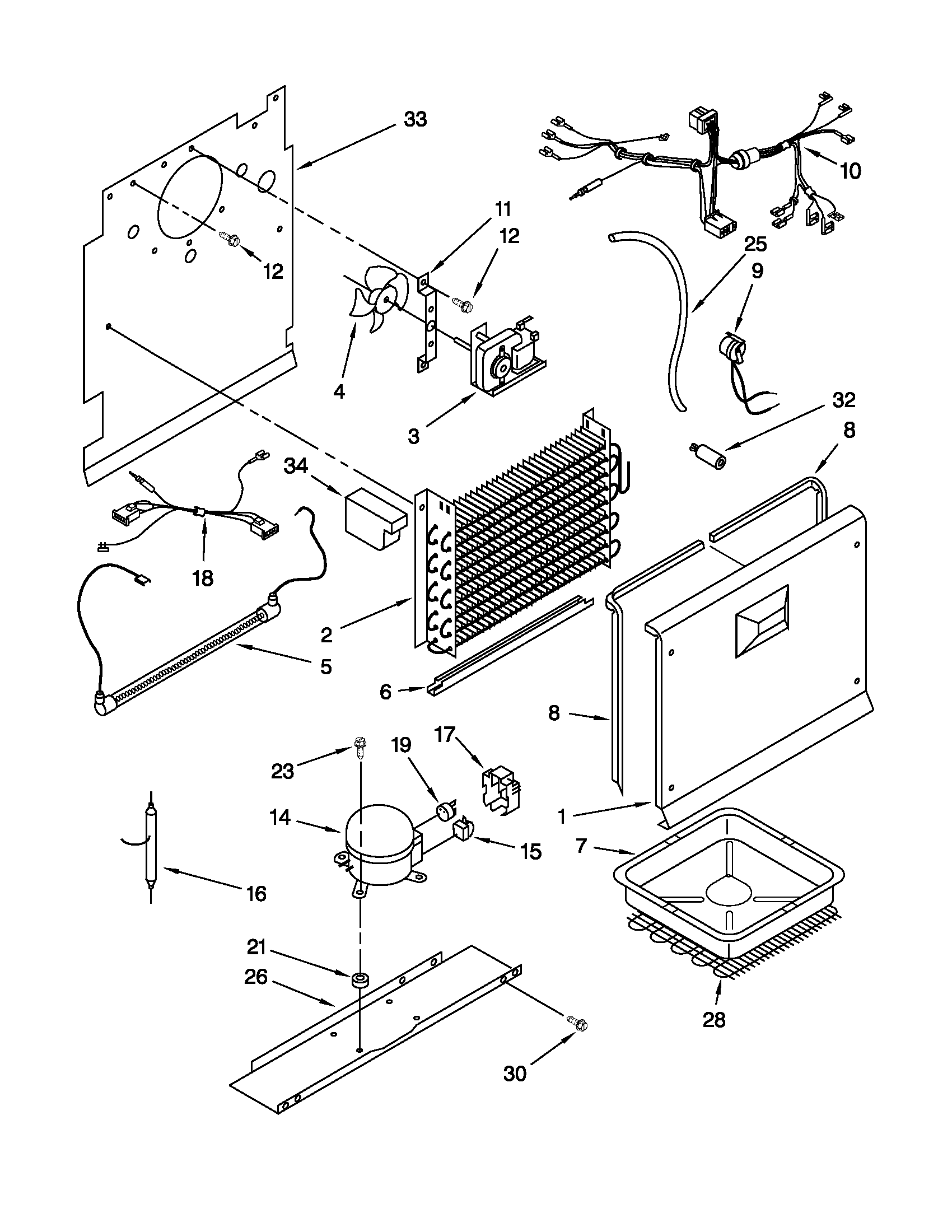

Unit parts diagram
Drier Tube
Part #W10459086Replaced by #W10843121
Manufacturer substitutionThis part replaces W10459086. Substitute parts can look different from the original.In Stock$35.6114% OFF Phone Price : $41.61
Qty

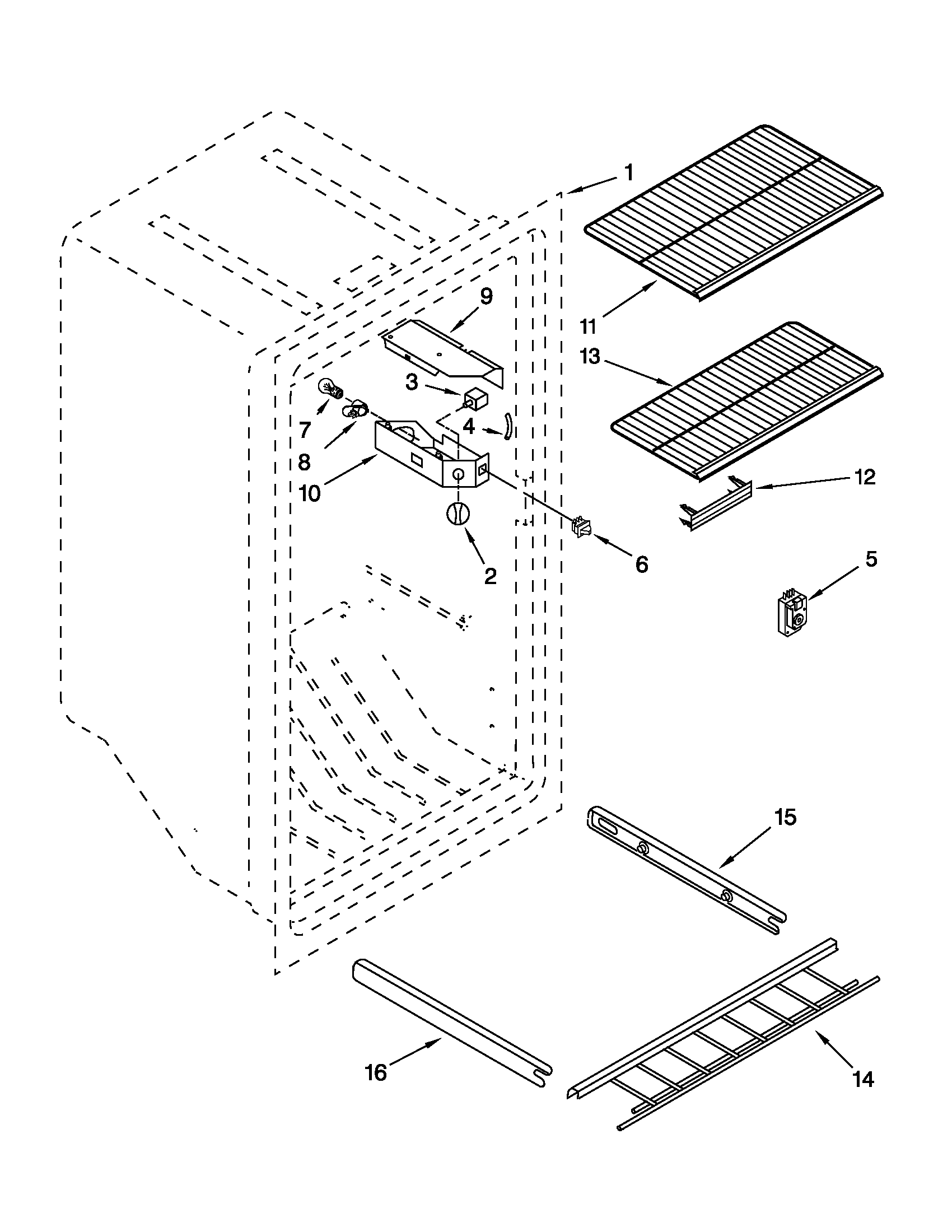

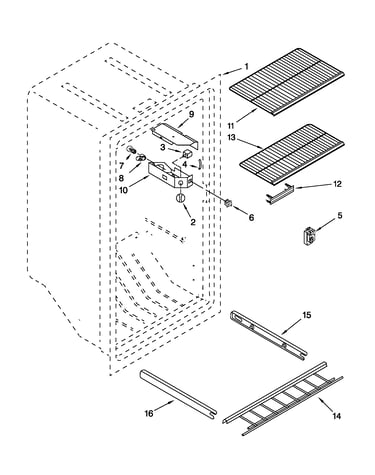

Liner parts diagram
Switch
Part #2-32164-001Replaced by #W11384469
Manufacturer substitutionThis part replaces 2-32164-001. Substitute parts can look different from the original.In Stock$22.7121% OFF Phone Price : $28.71QtyUnit parts diagram
Compressor
Part #4-32972-142Replaced by #W10309990
Manufacturer substitutionThis part replaces 4-32972-142. Substitute parts can look different from the original.In Stock$398.15$12.00 OFF Phone Price : $410.15QtyOptional parts (not included) diagram
Spray Paint (white)
Part #350930Replaced by #350930
Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.7818% OFF Phone Price : $32.78QtyLiner parts diagram
Light Socket
Part #2162085Replaced by #4387478

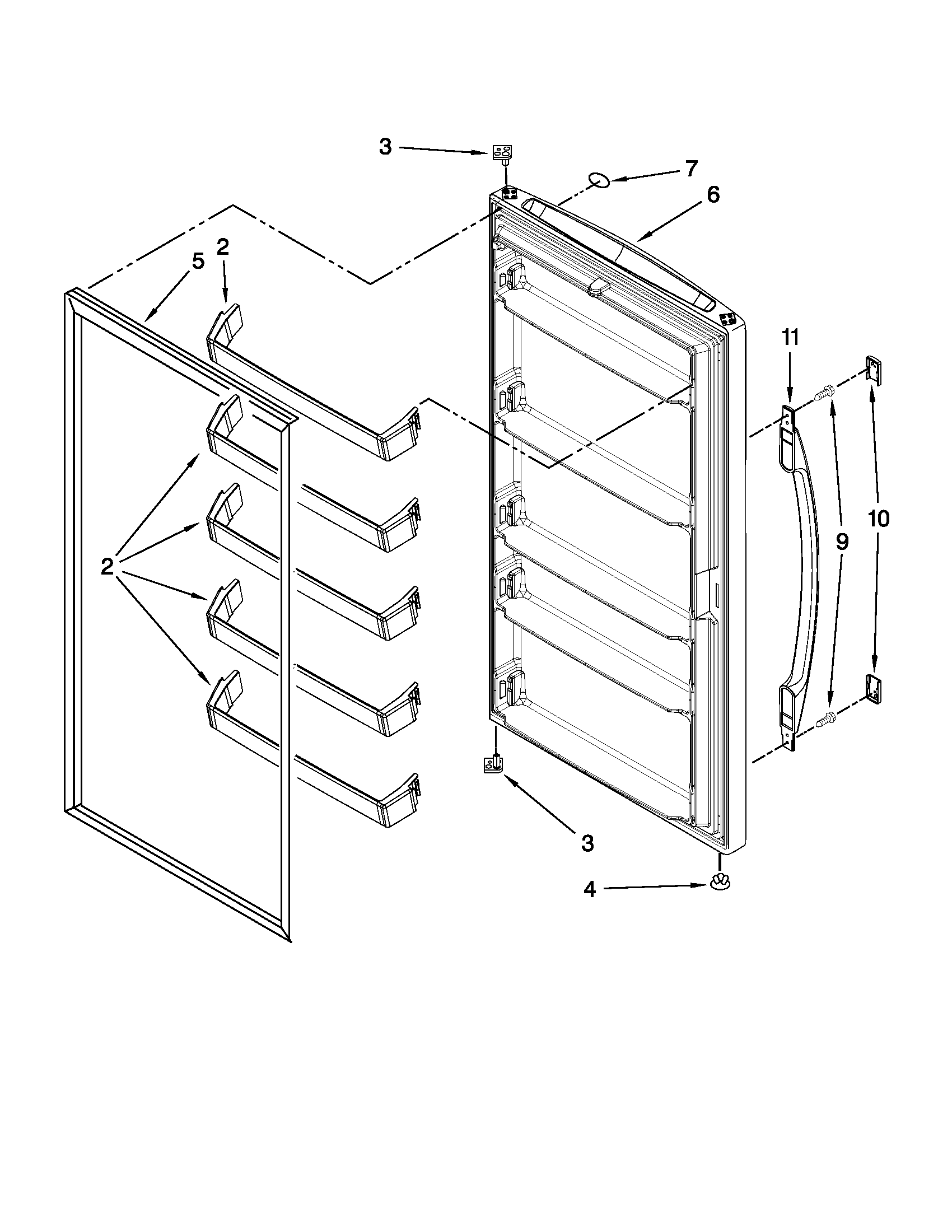

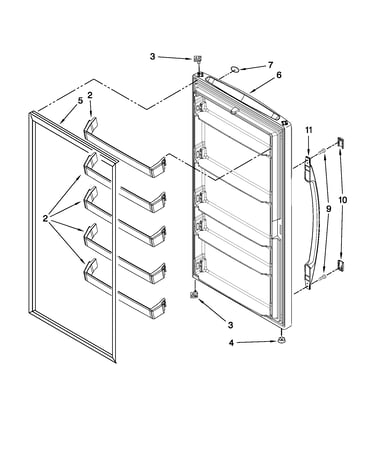

Manufacturer substitutionThis part replaces 2162085. Substitute parts can look different from the original.In Stock$49.7111% OFF Phone Price : $55.71QtyDoor parts diagram
Nameplate
Part #W10481434Replaced by #W11178521

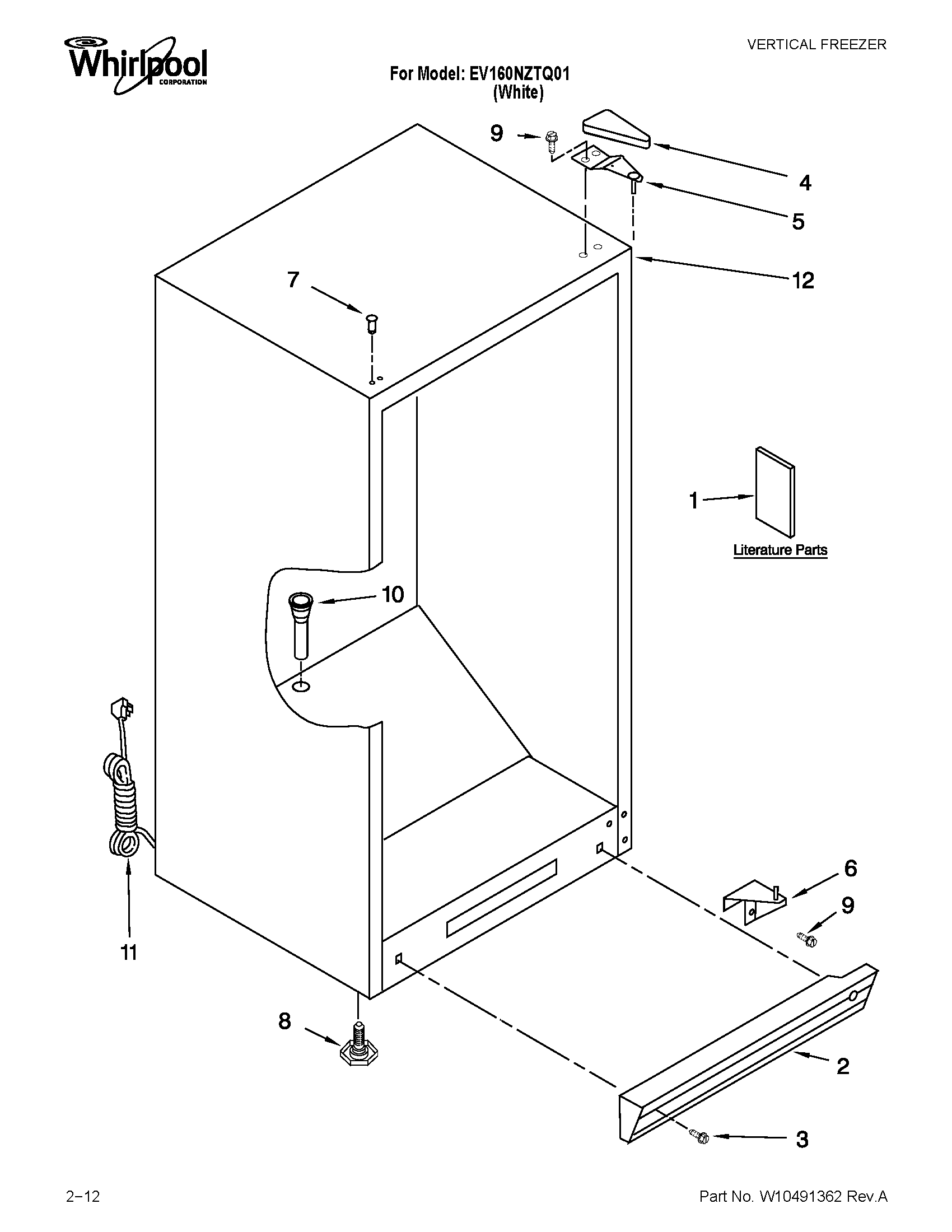

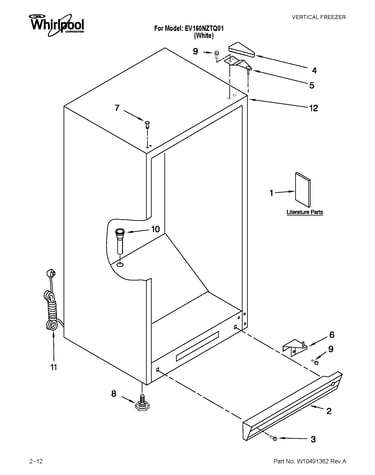

Manufacturer substitutionThis part replaces W10481434. Substitute parts can look different from the original.In Stock$41.2113% OFF Phone Price : $47.21QtyCabinet parts diagram
Screw
Part #3-24004-107Replaced by #WP489478
Manufacturer substitutionThis part replaces 3-24004-107. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0617% OFF Phone Price : $6.06QtyUnit parts diagram
Freezer Evaporator Fan Blade
Part #W10445742Replaced by #WPW10445742
Manufacturer substitutionThis part replaces W10445742. Substitute parts can look different from the original.This item is not returnableIn Stock$12.1014% OFF Phone Price : $14.10QtyUnit parts diagram
Overload
Part #2-34286-038Replaced by #WP2187145
Manufacturer substitutionThis part replaces 2-34286-038. Substitute parts can look different from the original.In Stock$80.767% OFF Phone Price : $86.76QtyCabinet parts diagram
Refrigerator Door Hinge (white)
Part #2-81016-105This item is not returnableIn Stock$27.4518% OFF Phone Price : $33.45Qty
