Model #ALLUREQS3 Broan range hood

Here are the diagrams and repair parts for Broan ALLUREQS3 range hood, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileInstallation guide

Showing 10 of 60 parts

Range Hood Charcoal Filter Kit, 2-pack

#NI

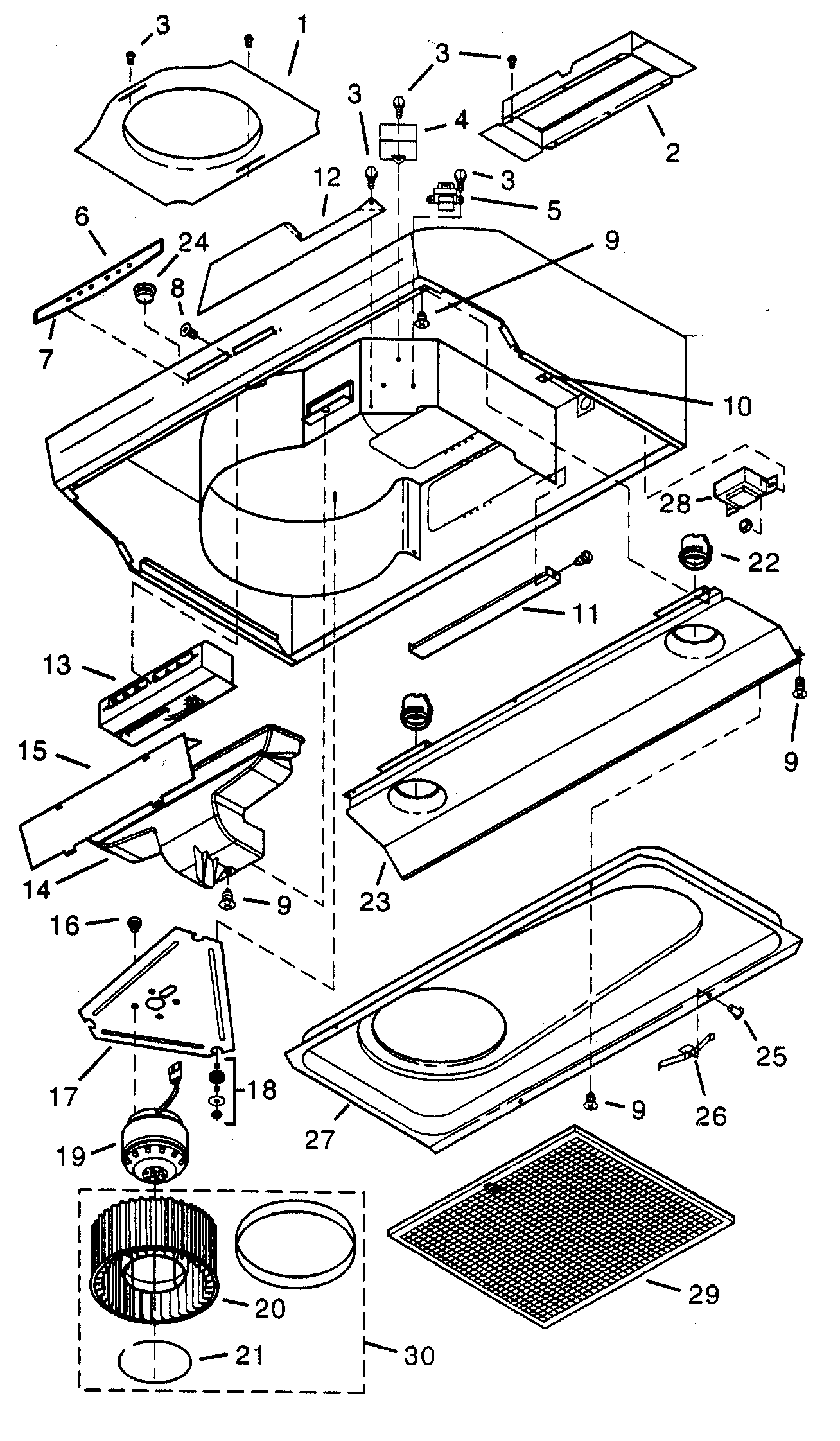

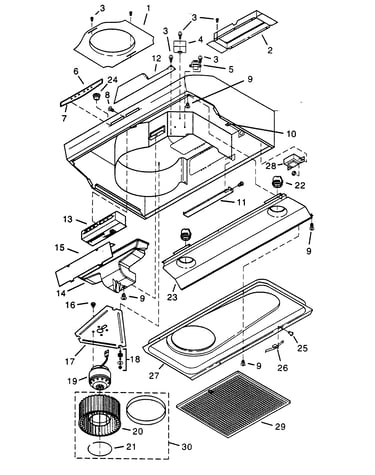

Hood assy Diagram

$34.76

In Stock

Range Hood Non-Ducted Filter Kit

#NI

Hood assy Diagram

$34.65

In Stock

Panel

#23F

Hood assy Diagram

Panel

Part #R7201734
$81.64

In Stock

Range Hood Screw

#3

Hood assy Diagram

Range hood screw

Part #R602017
This item is not returnable
$2.99

In Stock

Range Hood Charcoal Filter

#NI

Hood assy Diagram

Range hood charcoal filter

Part #S99010308
?
Manufacturer substitution
This part replaces 99010308. Substitute parts can look different from the original.
This part replaces 99010308
$46.49

In Stock

Cover

#27A

Hood assy Diagram

Cover

Part #SR680521
?
Manufacturer substitution
This part replaces R680521. Substitute parts can look different from the original.
This part replaces R680521
$108.83

In Stock

Range Hood Vent Damper

#2

Hood assy Diagram

Range hood vent damper

Part #SR740013
?
Manufacturer substitution
This part replaces R740013. Substitute parts can look different from the original.
This part replaces R740013
$28.24

In Stock

Range Hood Control Panel (White)

#7

Hood assy Diagram

Range hood control panel (white)

Part #SR169011
?
Manufacturer substitution
This part replaces R169011. Substitute parts can look different from the original.
This part replaces R169011
$20.50

In Stock

Range Hood Control Panel And Keypad (Black)

#7B

Hood assy Diagram

Range hood control panel and keypad (black)

Part #SR169013
?
Manufacturer substitution
This part replaces R169013. Substitute parts can look different from the original.
This part replaces R169013
$29.47

In Stock

Capacitor

#4

Hood assy Diagram

Capacitor

Part #SR334126
?
Manufacturer substitution
This part replaces R334126. Substitute parts can look different from the original.
This part replaces R334126
$36.77

In Stock
