Kenmore 9114028893 electric built-in oven Parts
Here are the diagrams and repair parts for Kenmore 9114028893 electric built-in oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 9114028893 Wall Ovens

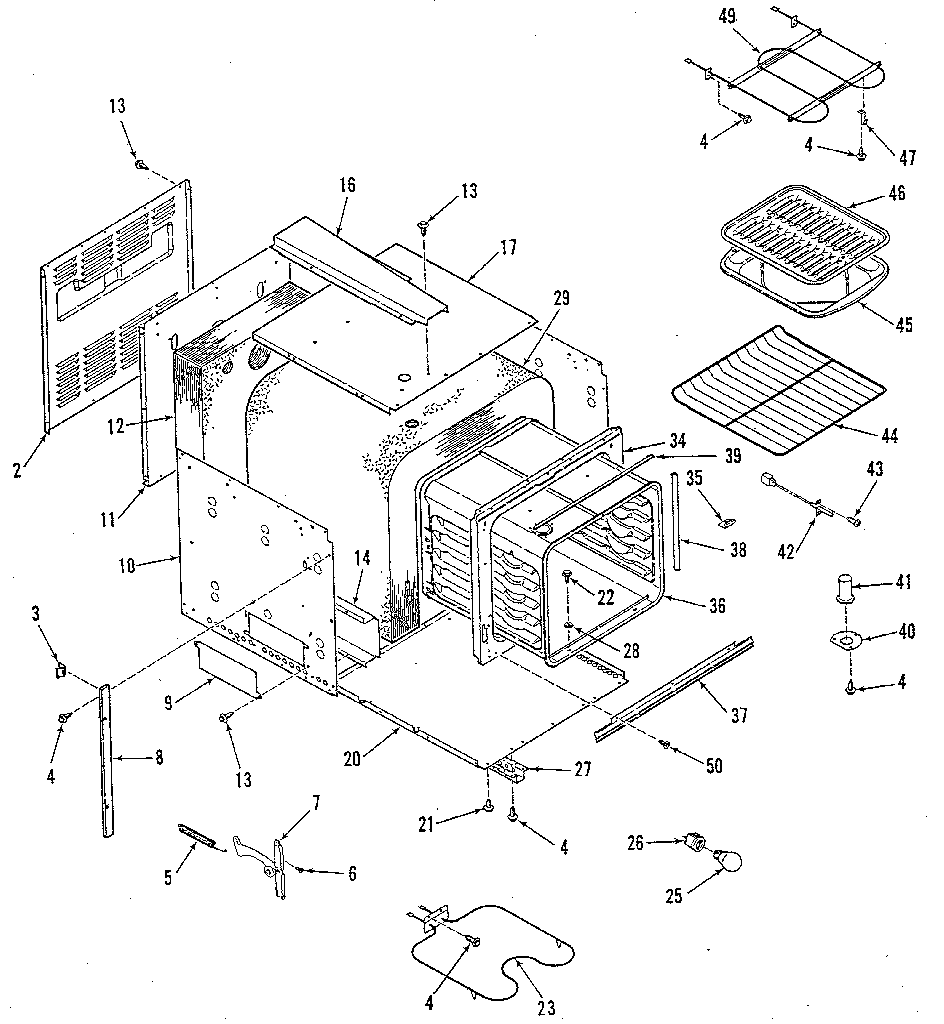

Body section diagram
Cabinet
Part #327949Replaced by #WB63K5116
Manufacturer substitutionThis part replaces 327949. Substitute parts can look different from the original.In Stock$106.92
Qty
Body section diagram
Spring
Part #328962
The manufacturer no longer makes this part, and there's no substitute part
Body section diagram
Retainer
Part #327963
The manufacturer no longer makes this part, and there's no substitute part
Body section diagram
Cover Platle
Part #328112
The manufacturer no longer makes this part, and there's no substitute part

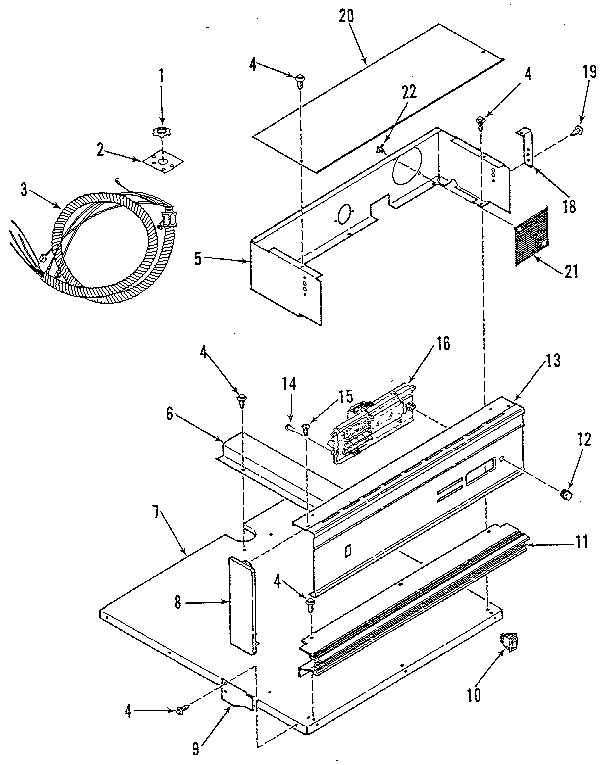

Control panel section diagram
End Cap (black)
Part #341136
The manufacturer no longer makes this part, and there's no substitute part
#237665 Identification Plate
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
Insulation
Part #328106
The manufacturer no longer makes this part, and there's no substitute part
Body section diagram
Vent Box
Part #336779
The manufacturer no longer makes this part, and there's no substitute part

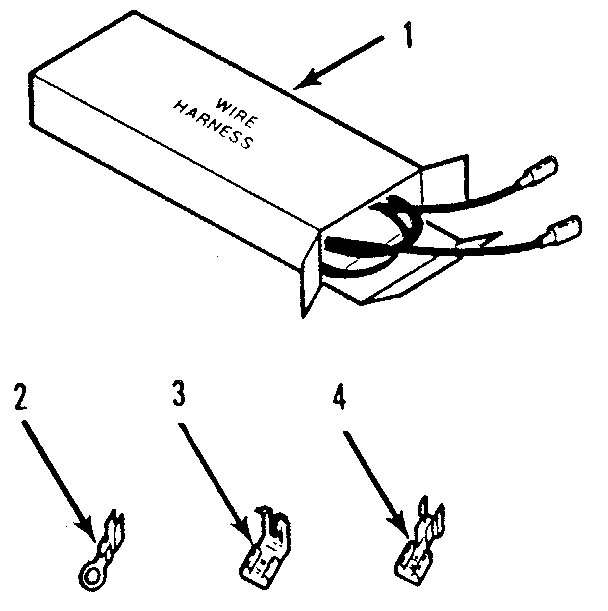

Wire harnesses and components diagram
Wire Harness
Part #333274
The manufacturer no longer makes this part, and there's no substitute part

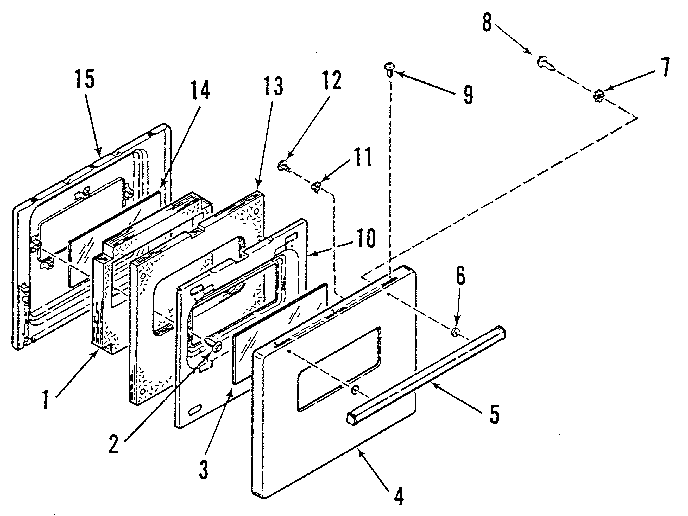

Oven door section diagram
Oven Door Panel (white)
Part #336972
The manufacturer no longer makes this part, and there's no substitute part
