Kenmore 1106102601 washer Parts
Here are the diagrams and repair parts for Kenmore 1106102601 washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 1106102601 Washer

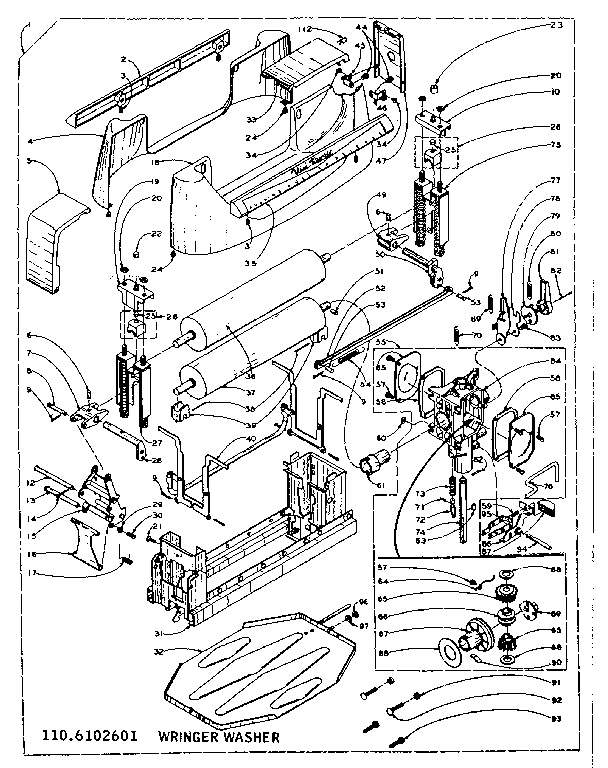

Wringer and wringer gear case assembly diagram
Wringr Shaft
Part #50137
The manufacturer no longer makes this part, and there's no substitute part
Worm gear and motor diagram
Motor
Part #72431
The manufacturer no longer makes this part, and there's no substitute part

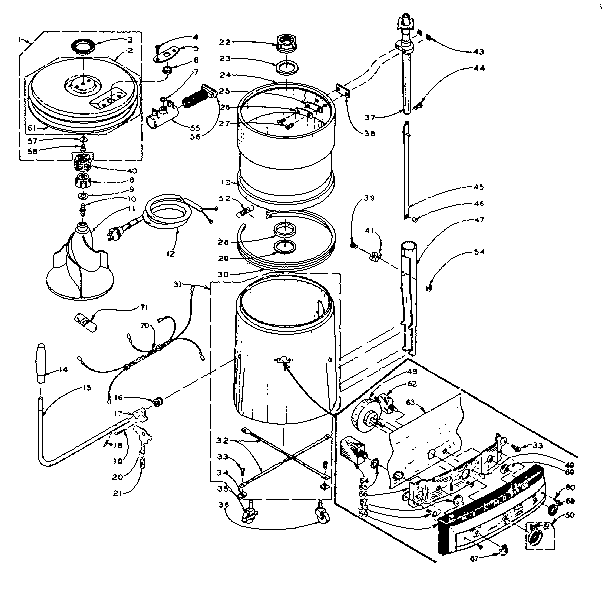

Machine sub-assembly diagram
Handle Assembly
Part #51861
The manufacturer no longer makes this part, and there's no substitute part
Machine sub-assembly diagram
Ring
Part #52800
The manufacturer no longer makes this part, and there's no substitute part
Machine sub-assembly diagram
Caster
Part #50815
The manufacturer no longer makes this part, and there's no substitute part
Worm gear and motor diagram
Eccent Shaft
Part #12378
The manufacturer no longer makes this part, and there's no substitute part

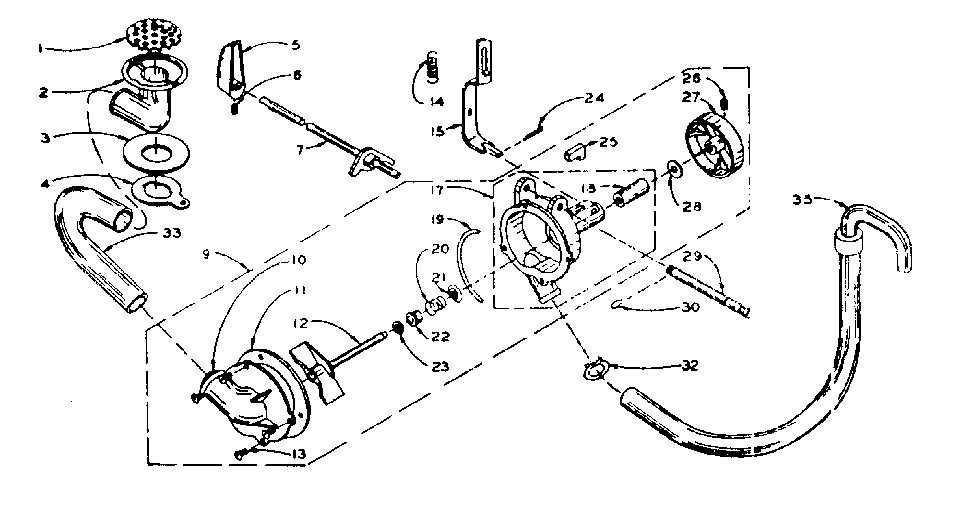

Pump assembly diagram
Hose Assembly
Part #51887
The manufacturer no longer makes this part, and there's no substitute part
Wringer and wringer gear case assembly diagram
Lock Washer
Part #138530
The manufacturer no longer makes this part, and there's no substitute part
Machine sub-assembly diagram
Knob
Part #52931
The manufacturer no longer makes this part, and there's no substitute part
Machine sub-assembly diagram
Base Pink
Part #55006
The manufacturer no longer makes this part, and there's no substitute part
