Whirlpool
Gas Range

Model # SC8830EBQ0 Official Whirlpool 30" sealed gas cooktop

Here are the diagrams and repair parts for Official Whirlpool SC8830EBQ0 30" sealed gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Spark Module 4381542
#5

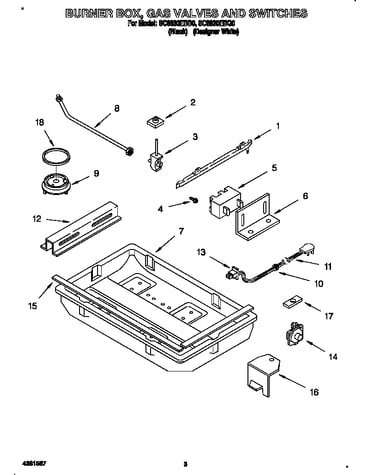

Burner box, gas valves and switches diagram

Spark module

Part #4381542

Replaced by #12001596

?
Manufacturer substitution
This part replaces 4381542. Substitute parts can look different from the original.
$73.30 |
6% OFF Phone Price : $78.30
In Stock
Screw 4381534
#9

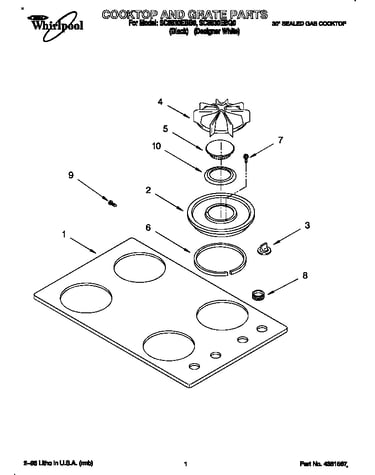

Cooktop and grate diagram

Screw

Part #4381534

Replaced by #WP4159387

?
Manufacturer substitution
This part replaces 4381534. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Igniter Switch 4381538
#2

Burner box, gas valves and switches diagram

Igniter switch

Part #4381538

Replaced by #WP7403P367-60

?
Manufacturer substitution
This part replaces 4381538. Substitute parts can look different from the original.
$60.09 |
8% OFF Phone Price : $65.09
In Stock
Control Knob 4381524
#3A

Cooktop and grate diagram

Control knob

Part #4381524

Replaced by #WP74001253

?
Manufacturer substitution
This part replaces 4381524. Substitute parts can look different from the original.
$20.89 |
19% OFF Phone Price : $25.89
In Stock
Control Knob 4381523
#3B

Cooktop and grate diagram

Control knob

Part #4381523

Replaced by #WP74001385

?
Manufacturer substitution
This part replaces 4381523. Substitute parts can look different from the original.
$27.99 |
15% OFF Phone Price : $32.99
In Stock
Foam Seal (black) 4381566

#NI

All parts diagram

Foam seal (black)

Part #4381566

The manufacturer no longer makes this part, and there's no substitute part

Burner Cap 4381527
#5A

Cooktop and grate diagram

Burner cap

Part #4381527

The manufacturer no longer makes this part, and there's no substitute part

Burner Seal 4381531
#6

Cooktop and grate diagram

Burner seal

Part #4381531

The manufacturer no longer makes this part, and there's no substitute part

Relief 4381554
#10

Burner box, gas valves and switches diagram

Relief

Part #4381554

The manufacturer no longer makes this part, and there's no substitute part

Lp Gas Conversion Kit 4381503

#NI

All parts diagram

Lp gas conversion kit

Part #4381503

The manufacturer no longer makes this part, and there's no substitute part
