Model #BWXR473EV0AA GE electric dryer

Here are the repair parts and diagrams for your GE BWXR473EV0AA electric dryer.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 110 parts

Dryer Operating Thermostat

#230

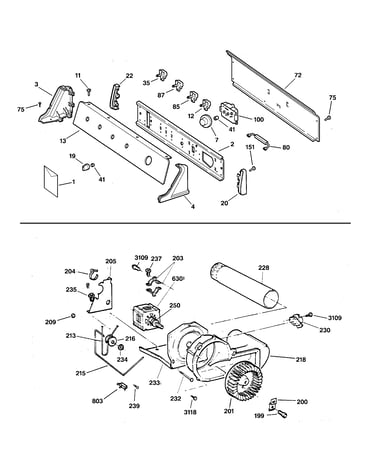

Backsplash, blower & drive assembly Diagram

$55.17

In Stock

Screw

#3104

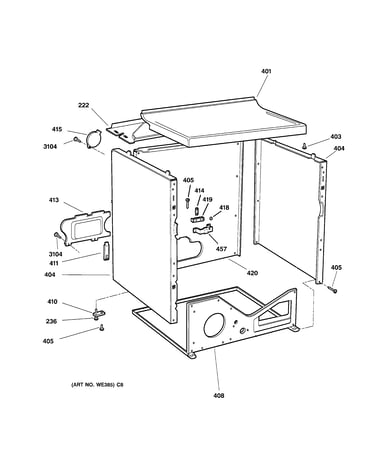

Cabinet Diagram

Screw

Part #WE1M280
This item is not returnable
$2.68

In Stock

Plug

#112

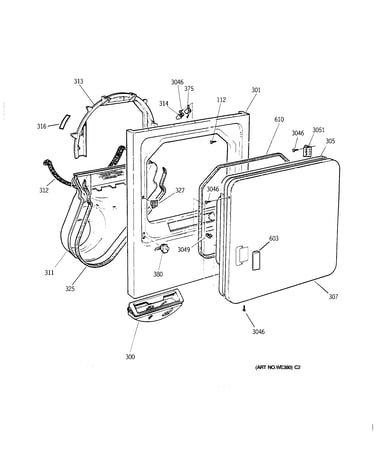

Front panel & door Diagram

Plug

Part #WR02X8693
This item is not returnable
$2.49

In Stock

Dryer Heating Element Assembly

#512

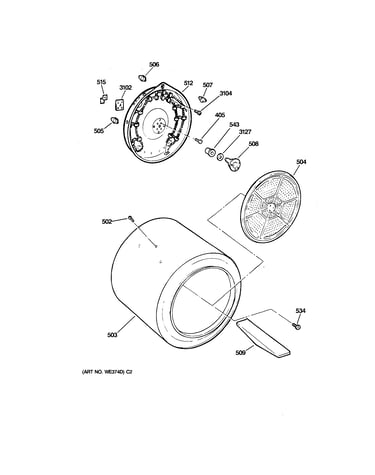

Drum Diagram

$134.41

In Stock

Rear Panel

#420

Cabinet Diagram

Rear panel

Part #WE20M301
$170.87

In Stock

Uc Nwsr473

#1

Backsplash, blower & drive assembly Diagram

Uc nwsr473

Part #39-9964
$8.49

In Stock

Dryer Front Panel And Door Assembly

#301

Front panel & door Diagram

Dryer front panel and door assembly

Part #WE49X22295
?
Manufacturer substitution
This part replaces WE20M0254. Substitute parts can look different from the original.
This part replaces WE20M0254
$155.77

In Stock

Dryer Safety Thermostat

#505

Drum Diagram

Dryer safety thermostat

Part #WE4M160
?
Manufacturer substitution
This part replaces WE04M0160. Substitute parts can look different from the original.
This part replaces WE04M0160
$85.05

In Stock

Screw, 2-pack

#235

Backsplash, blower & drive assembly Diagram

Screw, 2-pack

Part #WH2X820D
?
Manufacturer substitution
This part replaces WE02M0155. Substitute parts can look different from the original.
This part replaces WE02M0155
$14.34

In Stock

Gr Strap A

#515

Drum Diagram

Gr strap a

Part #WE1X1172
?
Manufacturer substitution
This part replaces WE01X1172. Substitute parts can look different from the original.
This part replaces WE01X1172
$14.55

In Stock

Symptoms common to all dryers

Choose a symptom to see related dryer repairs.

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: bad timer or electronic control board, door switch failure
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: damaged door strike, worn door catch
