Thermador
Bottom-Mount Refrigerator

Model # KBURT3675E01 Official Thermador refrigerator

Here are the diagrams and repair parts for Official Thermador KBURT3675E01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

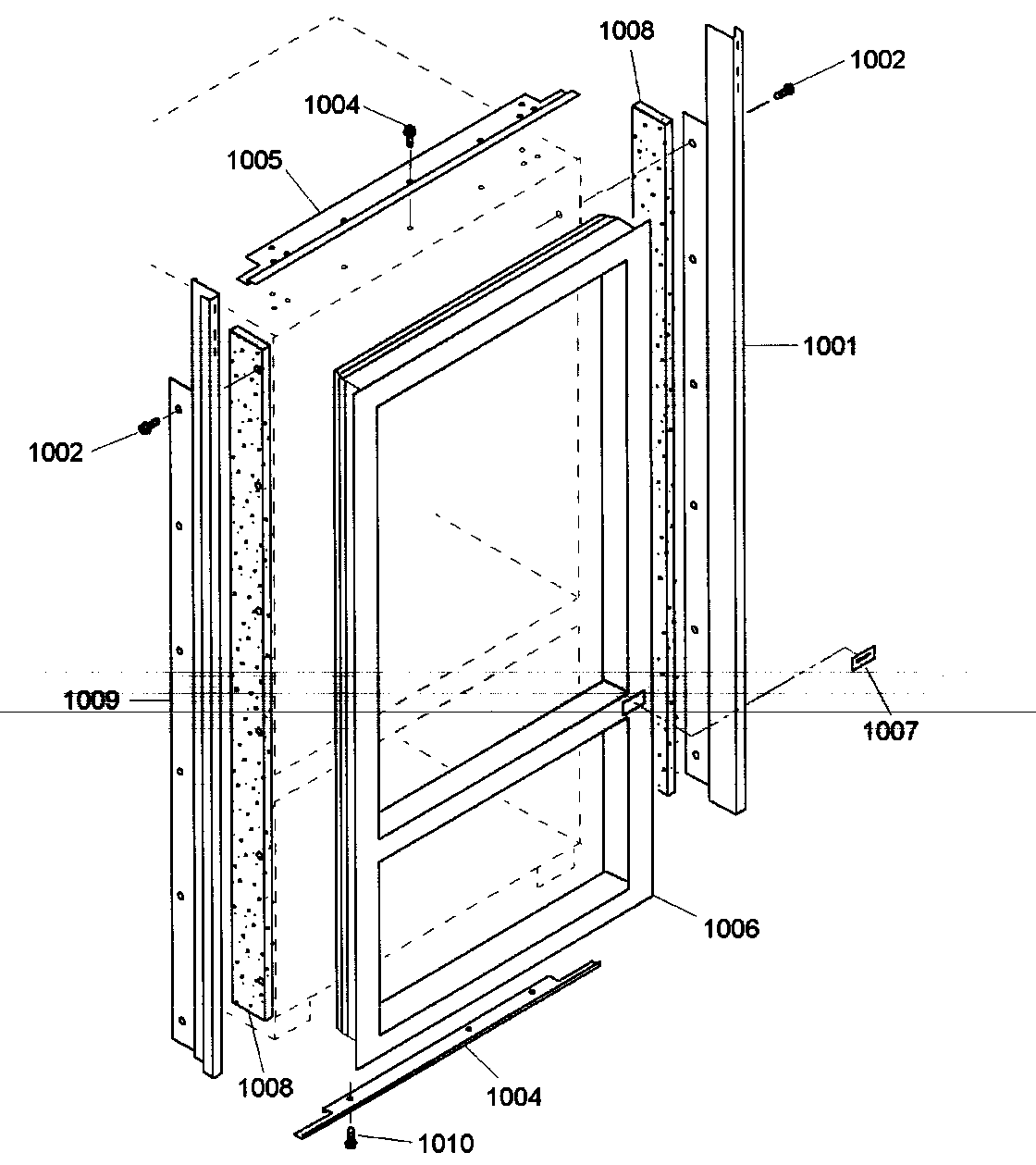

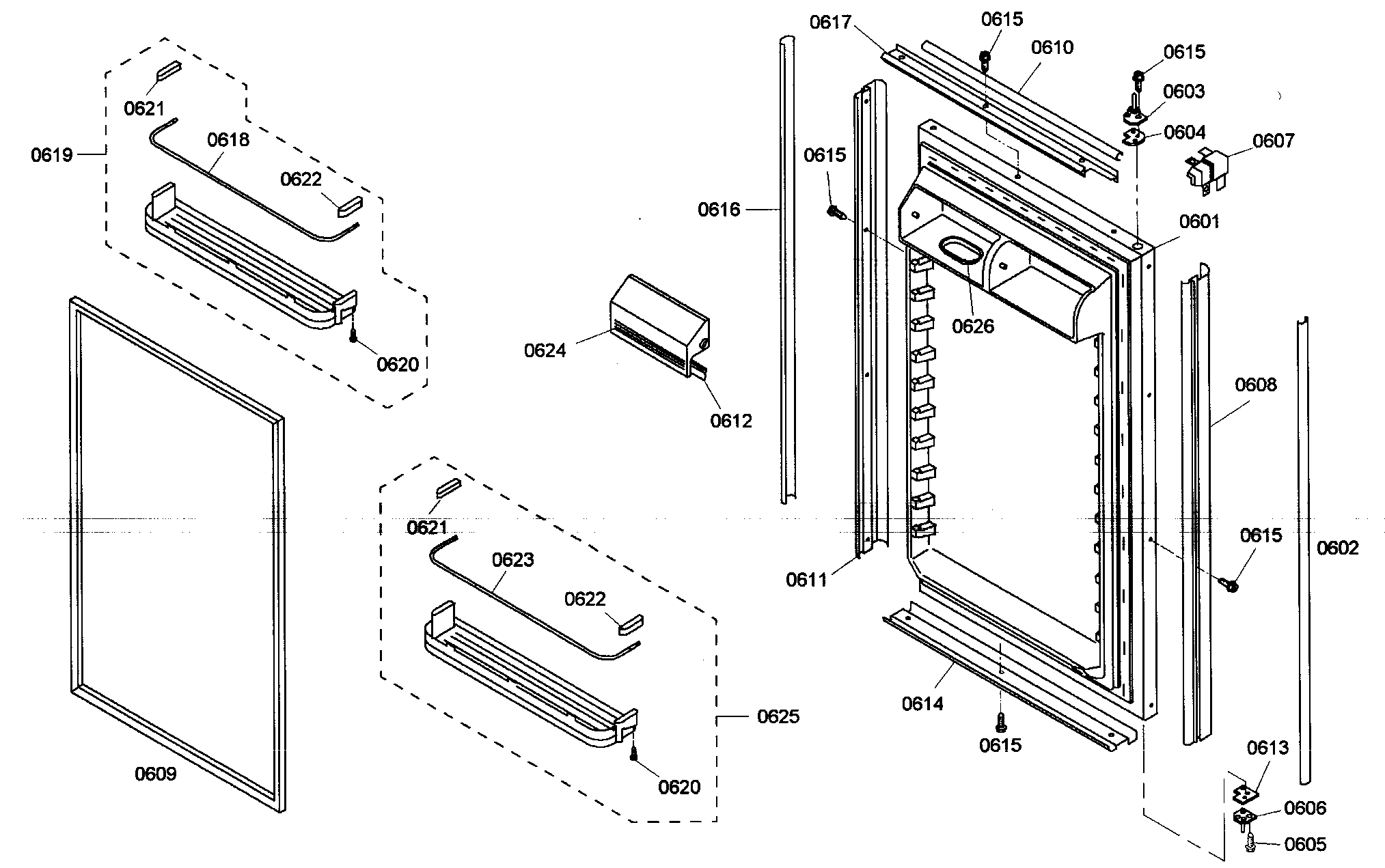

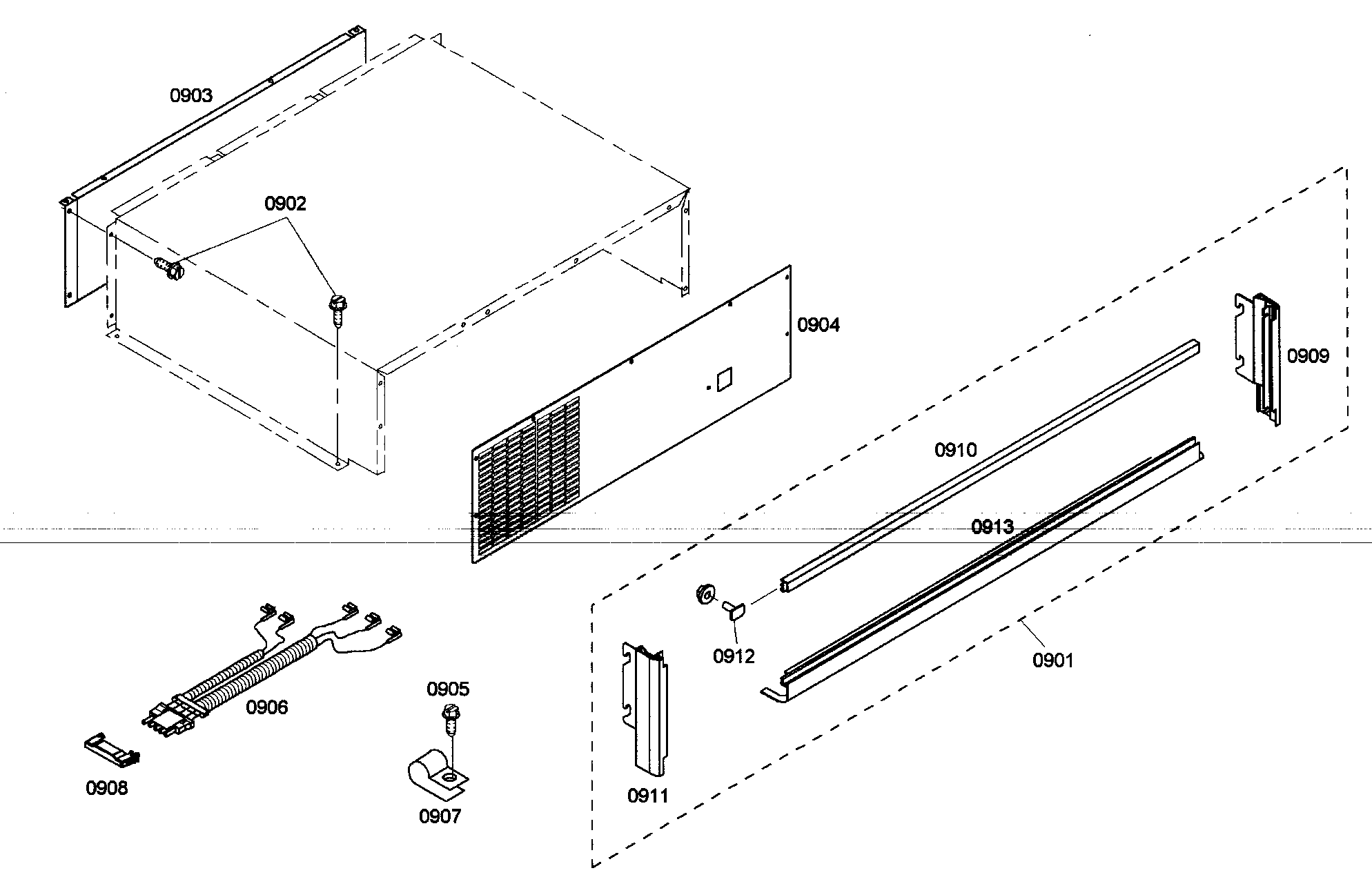

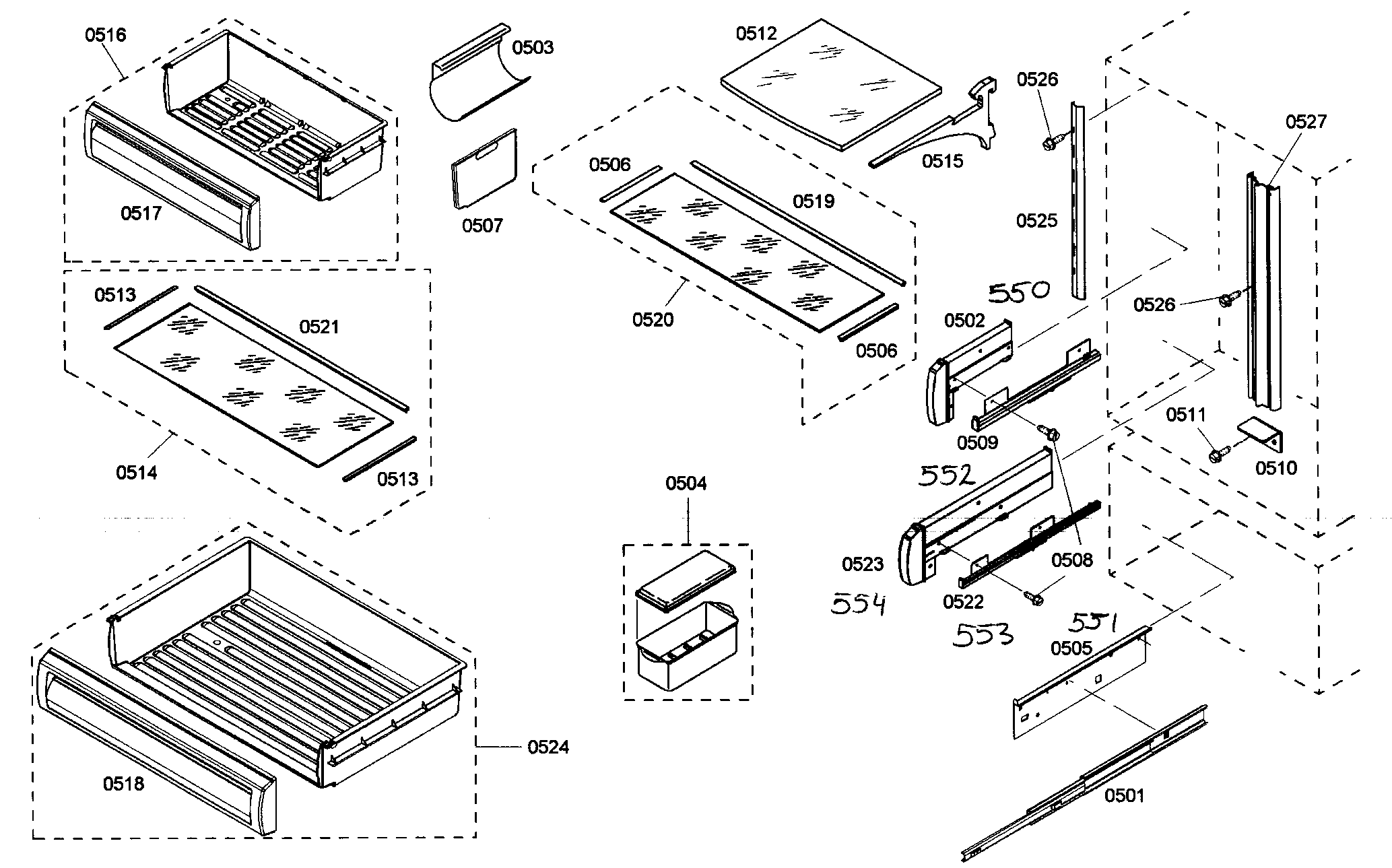

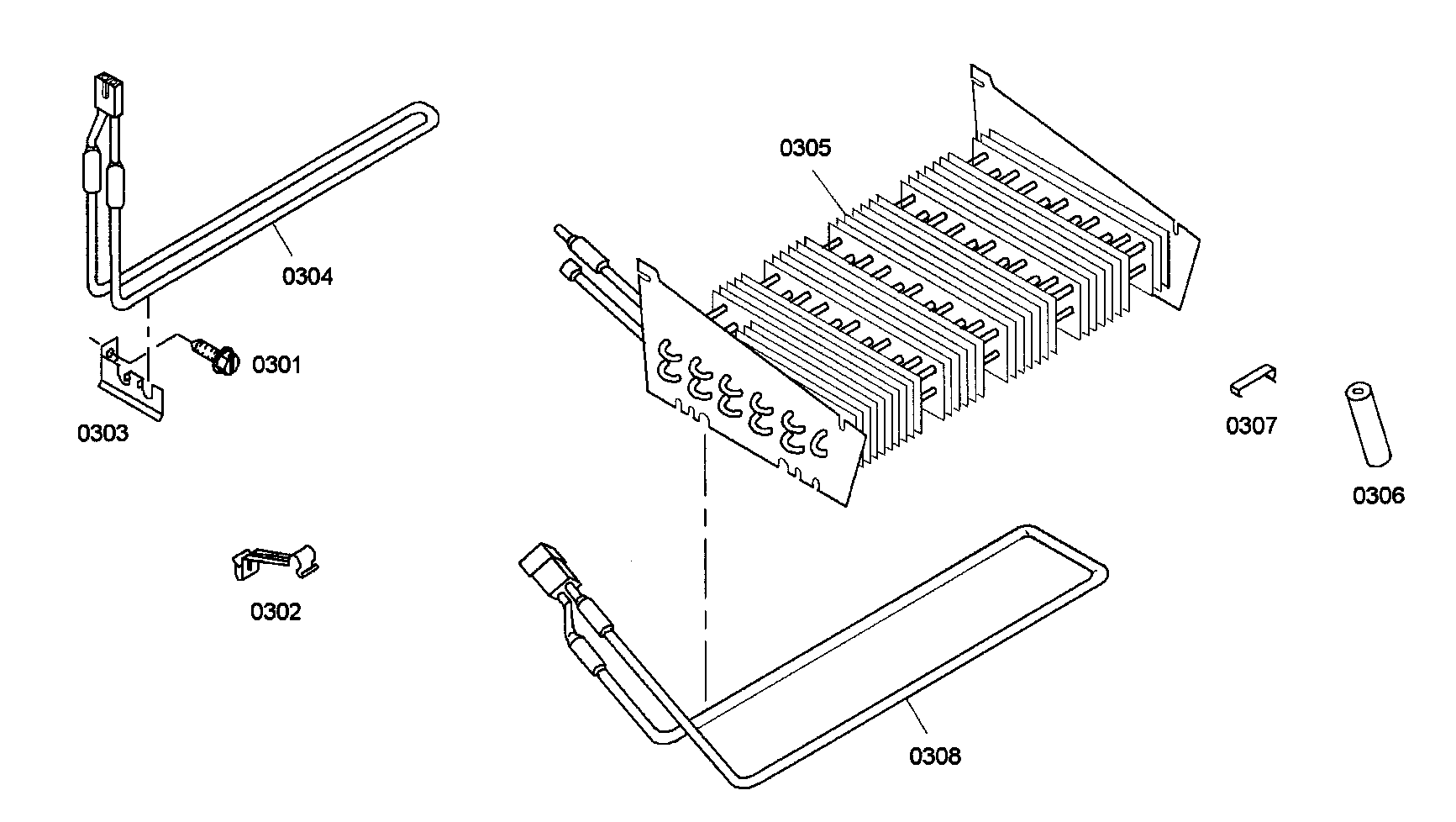

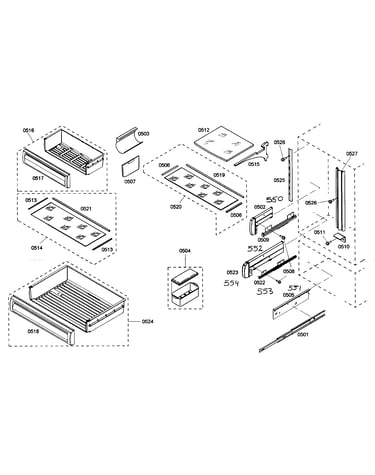

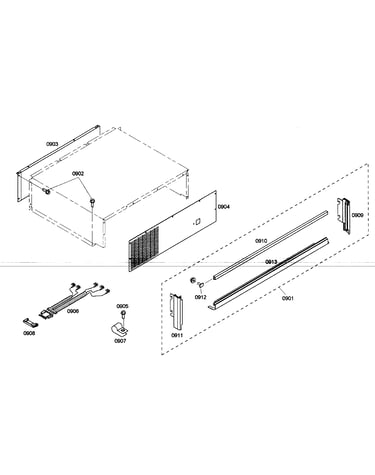

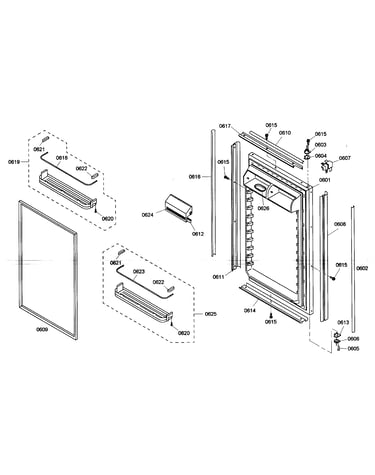

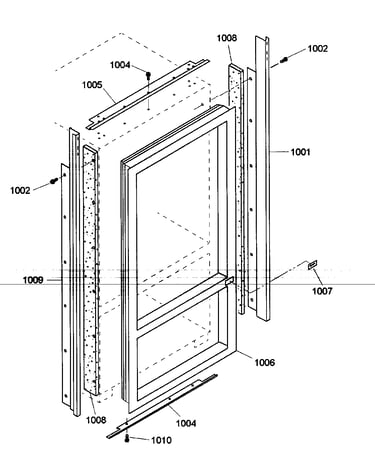

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Refrigerator Cap 422456
#132

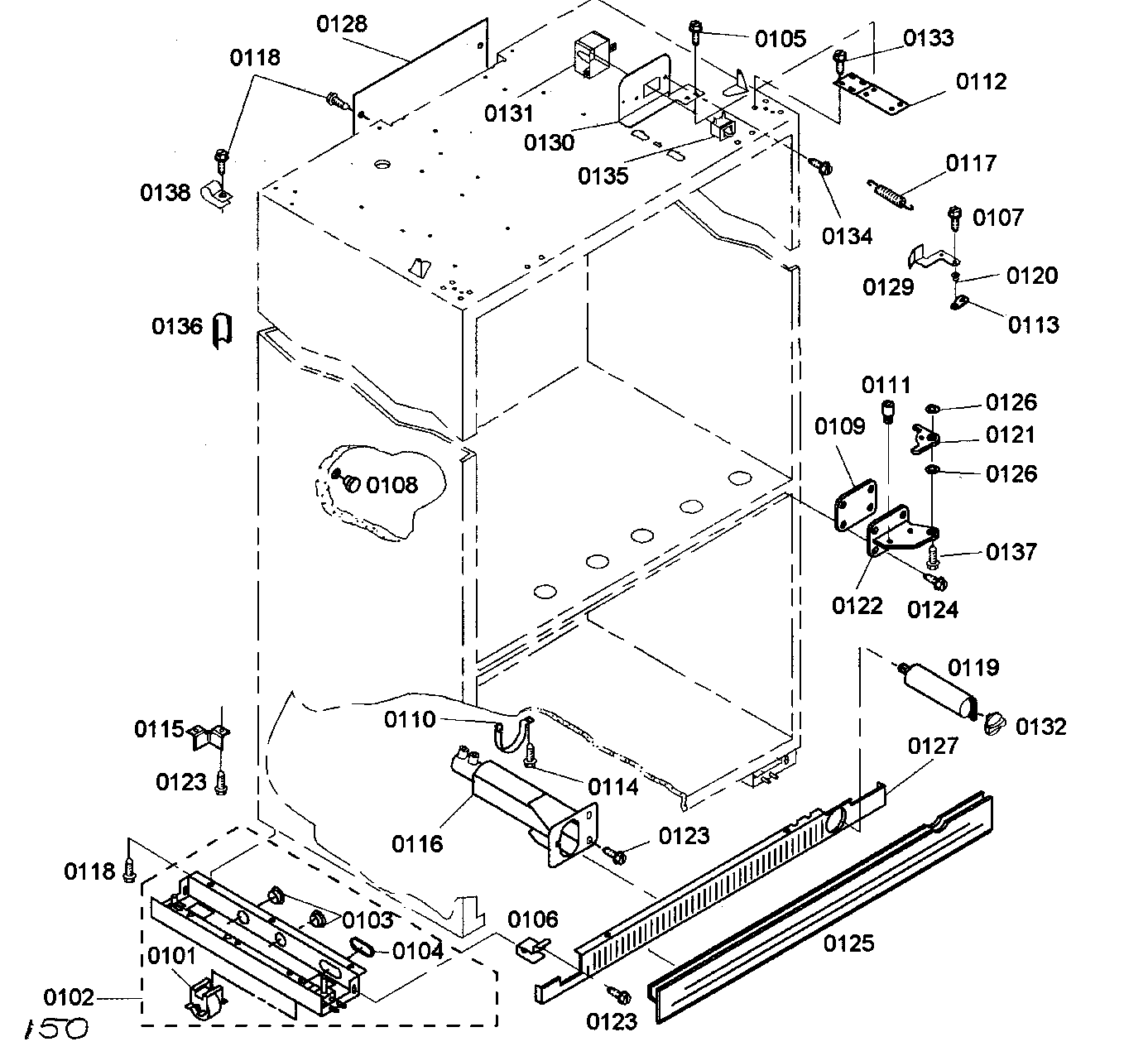

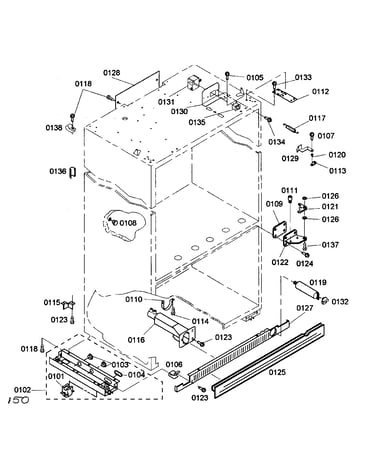

Cabinet parts diagram

Refrigerator cap

Part #422456

Replaced by #00422456

?
Manufacturer substitution
This part replaces 422456. Substitute parts can look different from the original.
$88.29 |
5% OFF Phone Price : $93.29
In Stock
Refrigerator Ice Maker 666077
#427

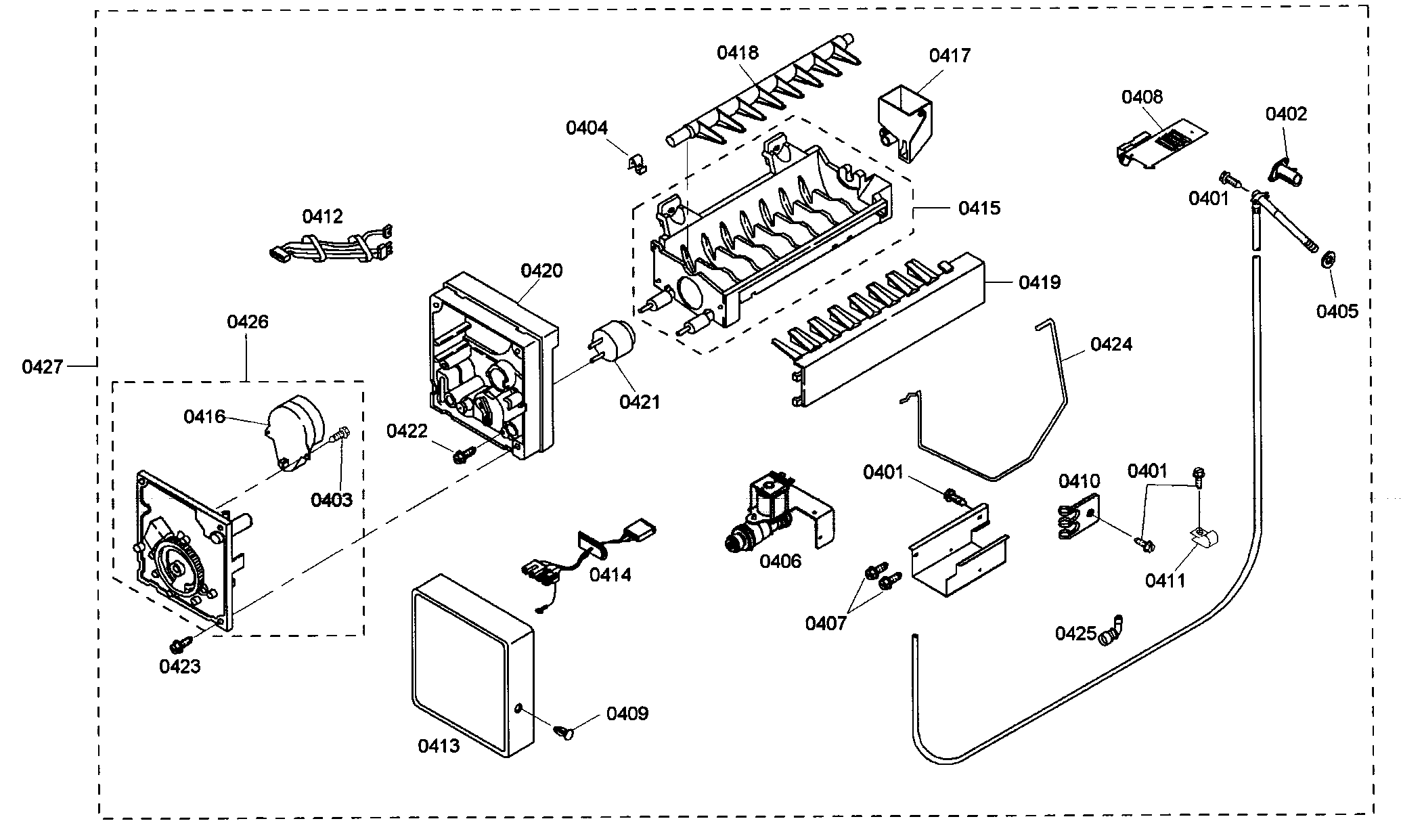

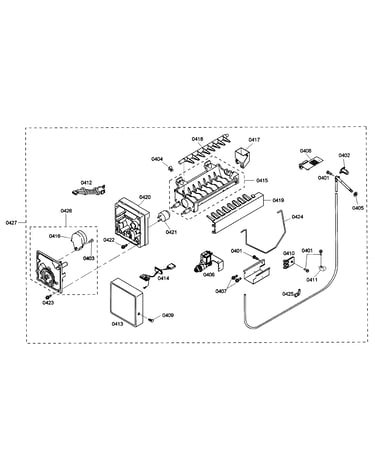

Icemaker diagram

Refrigerator ice maker

Part #666077

Replaced by #00144999

?
Manufacturer substitution
This part replaces 666077. Substitute parts can look different from the original.
$374.09 |
$10.00 OFF Phone Price : $384.09
In Stock
Refrigerator Nut 422311
#213

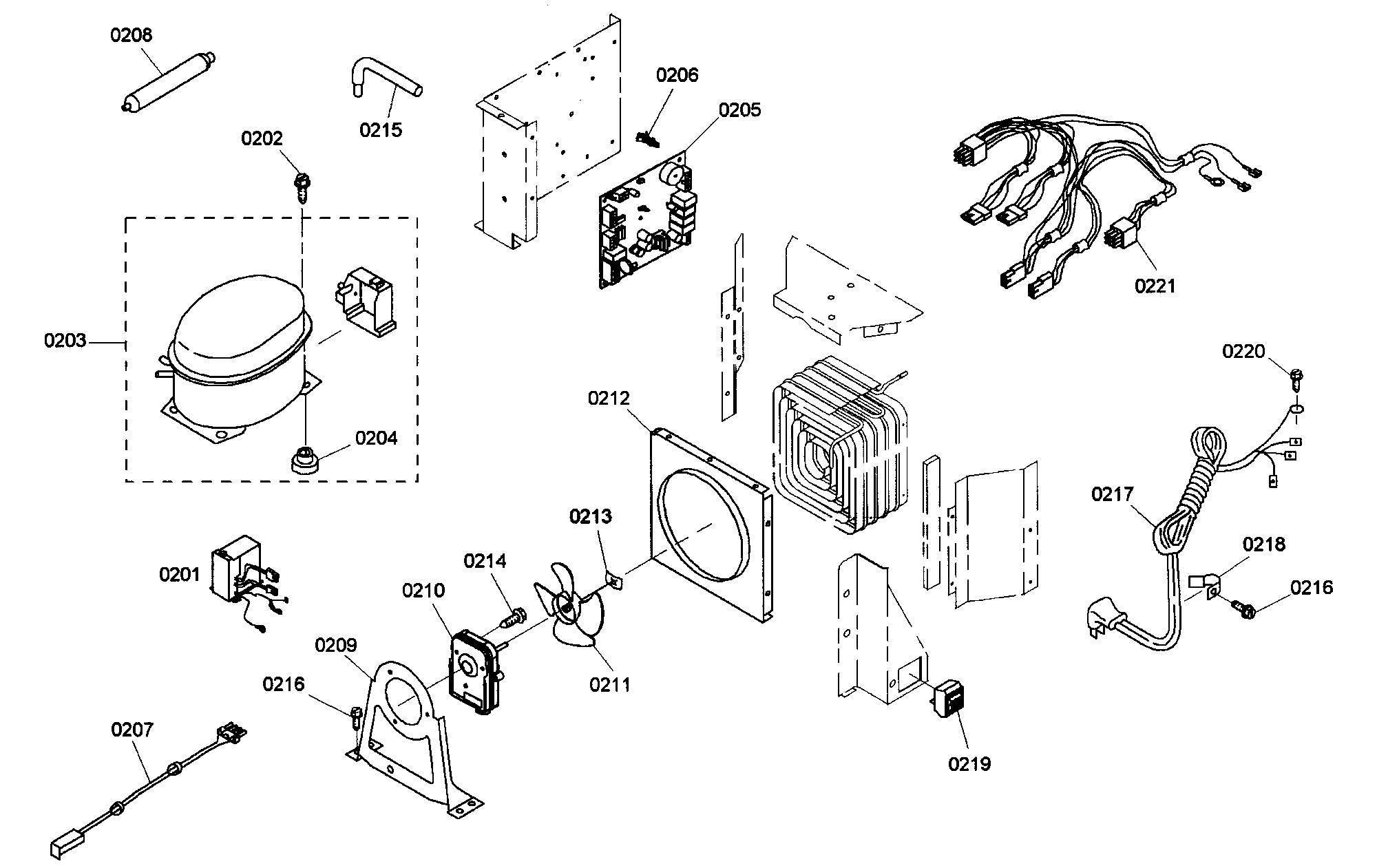

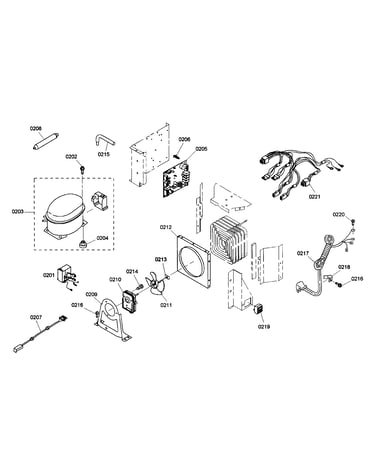

Compressor diagram

Refrigerator nut

Part #422311

Replaced by #00422311

?
Manufacturer substitution
This part replaces 422311. Substitute parts can look different from the original.
$25.80
In Stock
Refrigerator Frame Trim 437648
#707

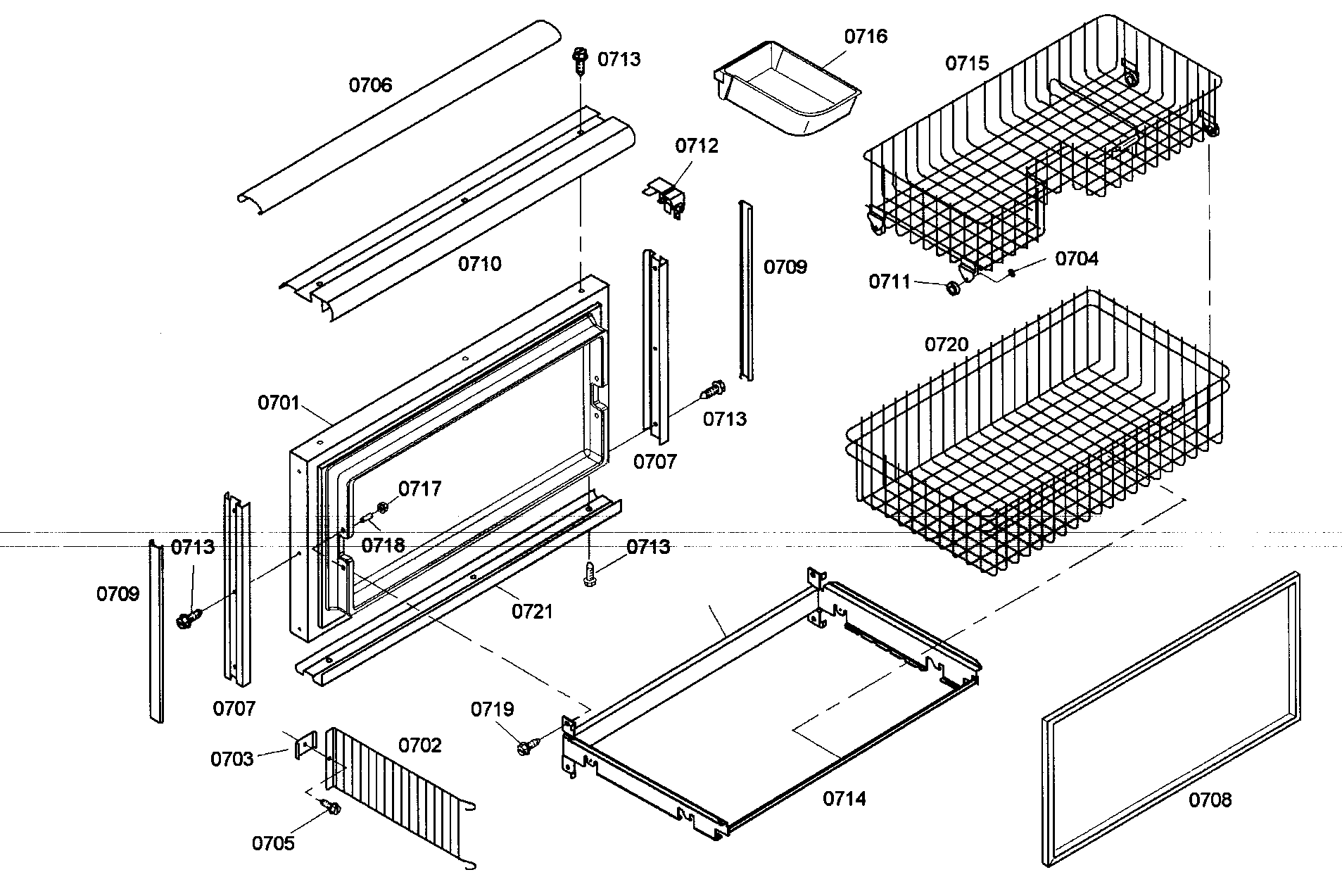

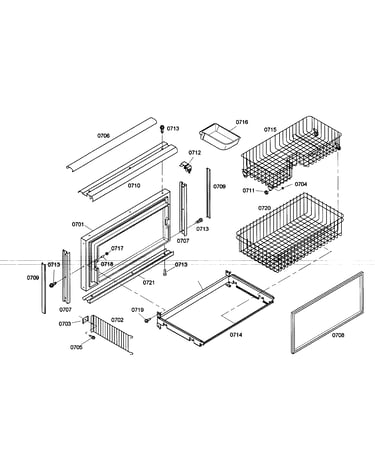

Freezer door diagram

Refrigerator frame trim

Part #437648

Replaced by #00437648

?
Manufacturer substitution
This part replaces 437648. Substitute parts can look different from the original.
$226.78
In Stock
Refrigerator Drier 644085
#208

Compressor diagram

Refrigerator drier

Part #644085

Replaced by #00644085

?
Manufacturer substitution
This part replaces 644085. Substitute parts can look different from the original.
$75.87
In Stock
Refrigerator Cover 422433
#838

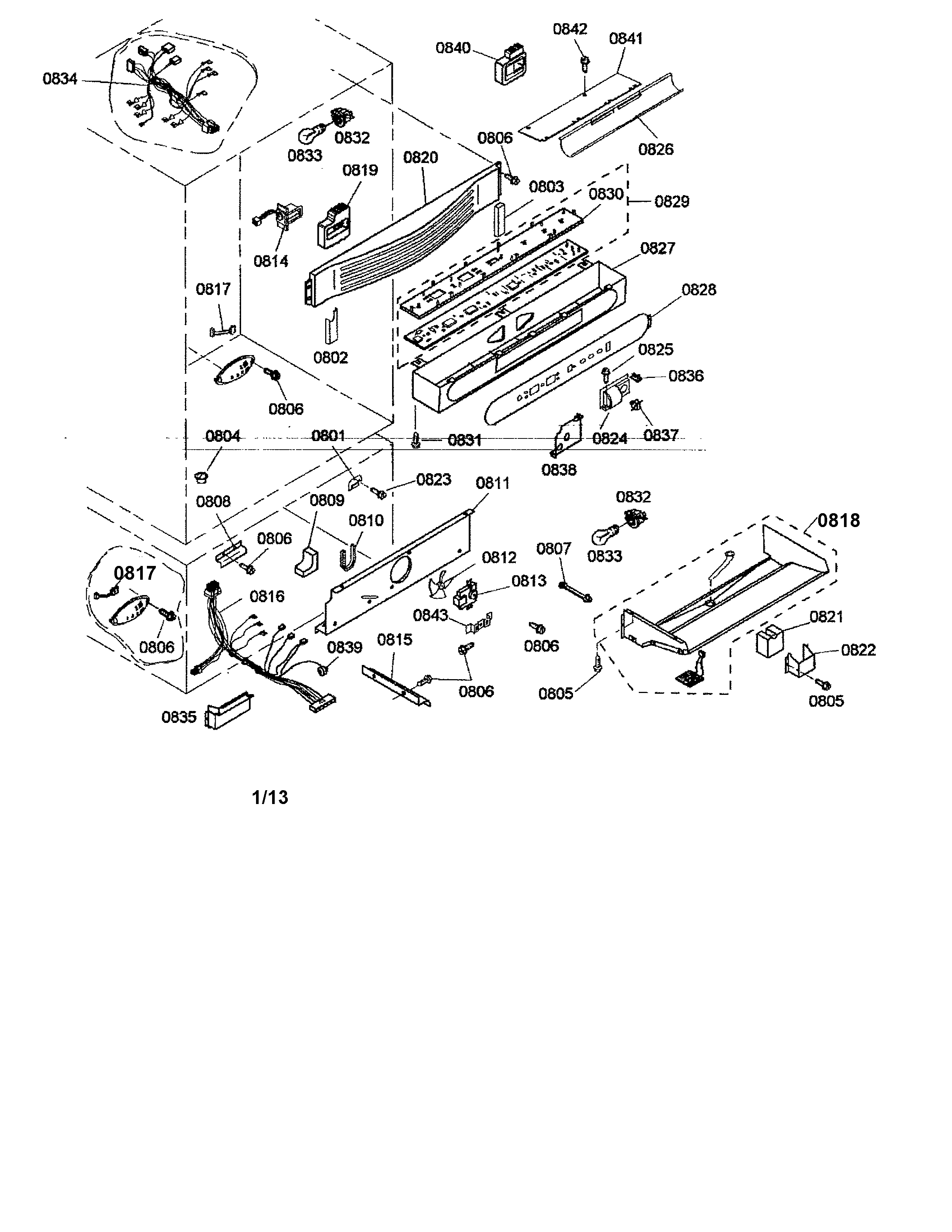

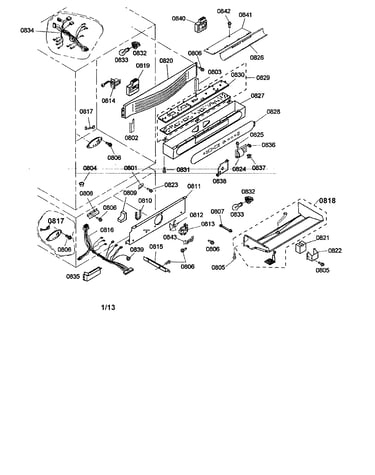

Control asy diagram

Refrigerator cover

Part #422433

Replaced by #00422433

?
Manufacturer substitution
This part replaces 422433. Substitute parts can look different from the original.
$111.80
In Stock
Refrigerator Exchanger 487775
#415

Icemaker diagram

Refrigerator exchanger

Part #487775

Replaced by #00645956

?
Manufacturer substitution
This part replaces 487775. Substitute parts can look different from the original.
$367.88
In Stock
Refrigerator Nut 422480
#120

Cabinet parts diagram

Refrigerator nut

Part #422480

Replaced by #00422480

?
Manufacturer substitution
This part replaces 422480. Substitute parts can look different from the original.
$26.82
In Stock
Refrigerator Screw 422357
Refrigerator screw

Part #422357

Replaced by #00422357

?
Manufacturer substitution
This part replaces 422357. Substitute parts can look different from the original.
$32.67
In Stock
Refrigerator Grommet 422568
#810

Control asy diagram

Refrigerator grommet

Part #422568

Replaced by #00422568

?
Manufacturer substitution
This part replaces 422568. Substitute parts can look different from the original.
$112.00
In Stock
