Model #48XPN042060300 Carrier central package

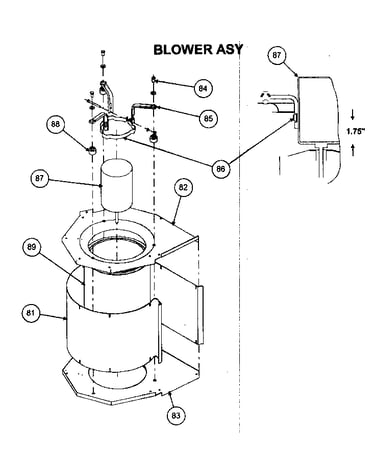

Here are the diagrams and repair parts for Carrier 48XPN042060300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 141 parts

    Switch

    #61

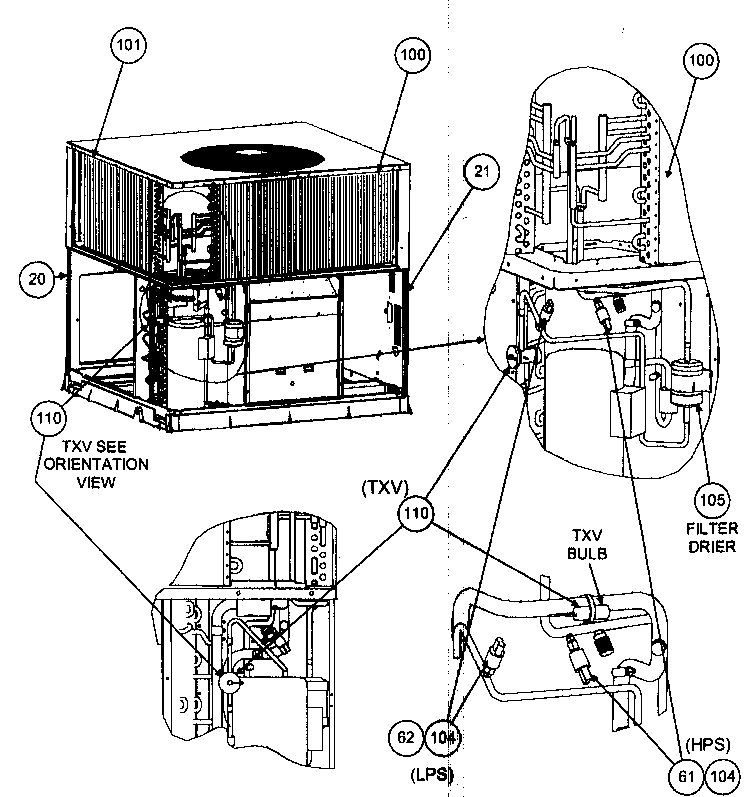

    Compressor assy Diagram

    Switch

    Part #HK02ZA402
    $88.04

    In Stock

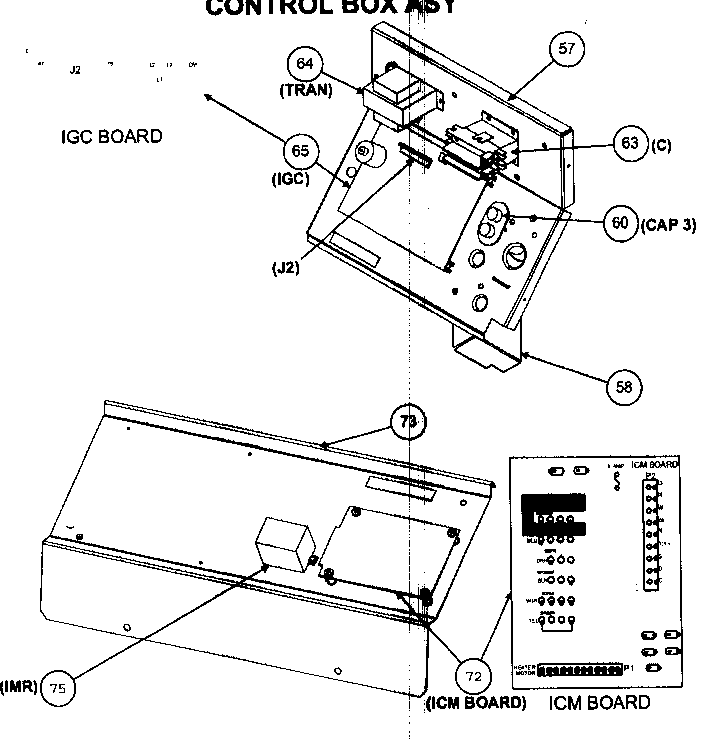

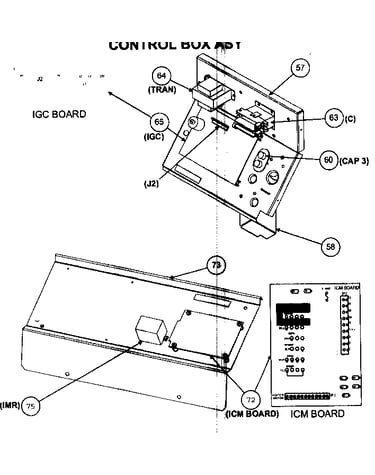

    Relay Ifr

    #75

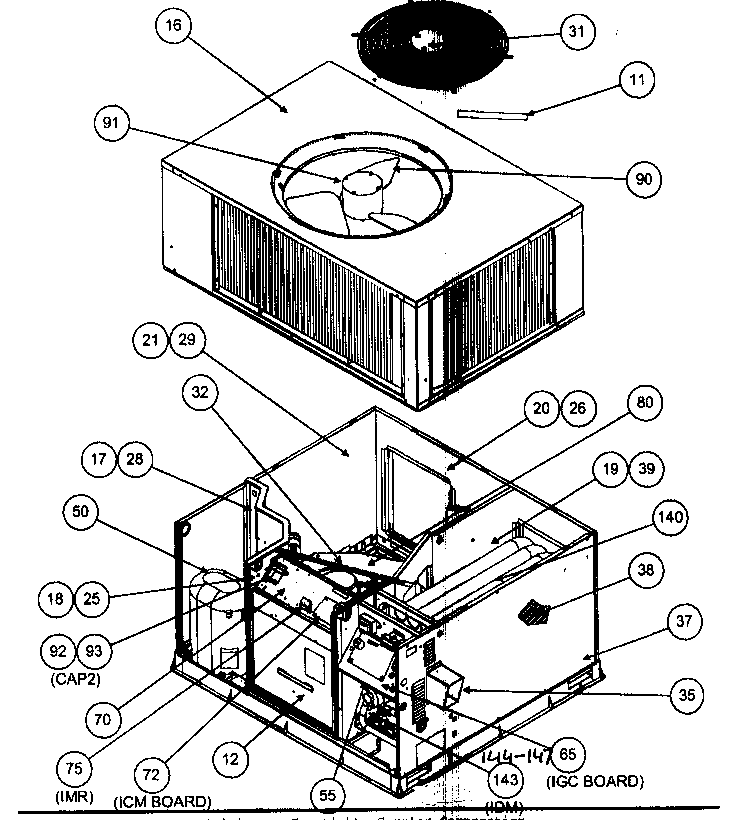

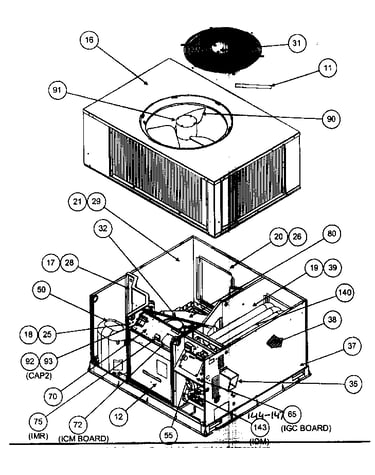

    Inside view Diagram

    Relay ifr

    Part #HN61KK224
    $84.32

    In Stock

    Core Valve

    #111

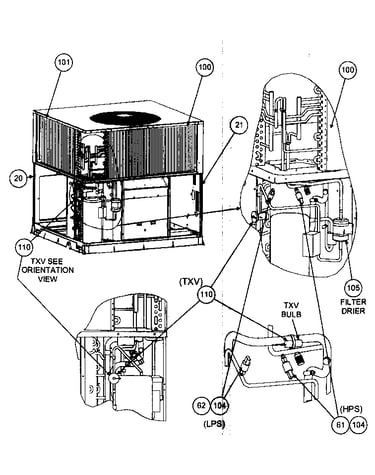

    Compressor assy Diagram

    Core valve

    Part #EC39EZ068
    $8.42

    In Stock

    Harness

    #NI

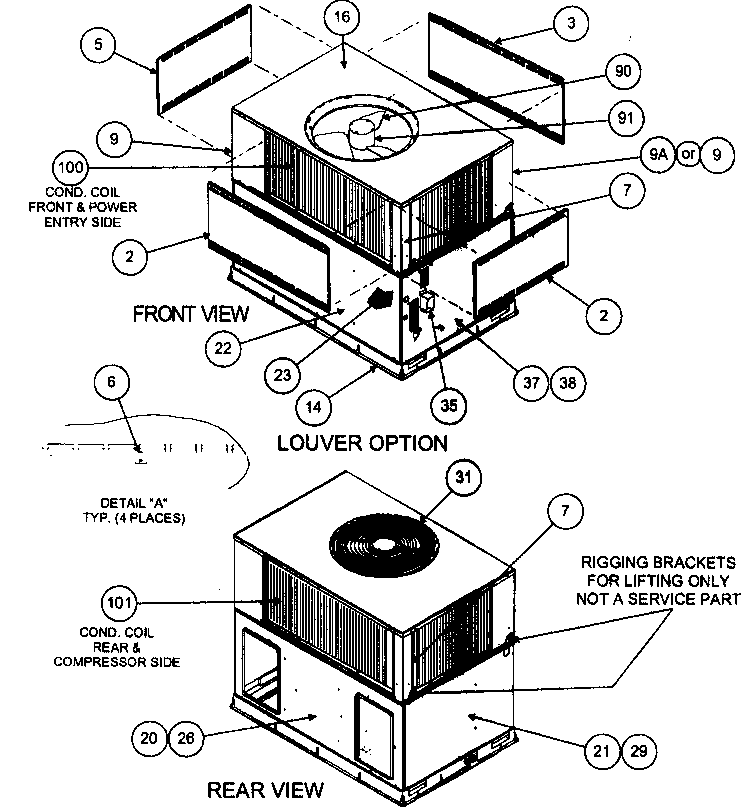

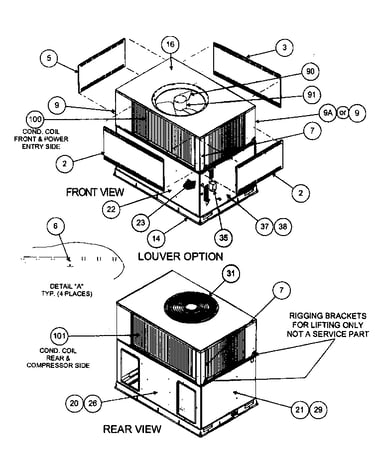

    Front view/louver/rear view Diagram

    Harness

    Part #48GS400593
    $453.99

    In Stock

    Bracket

    #131

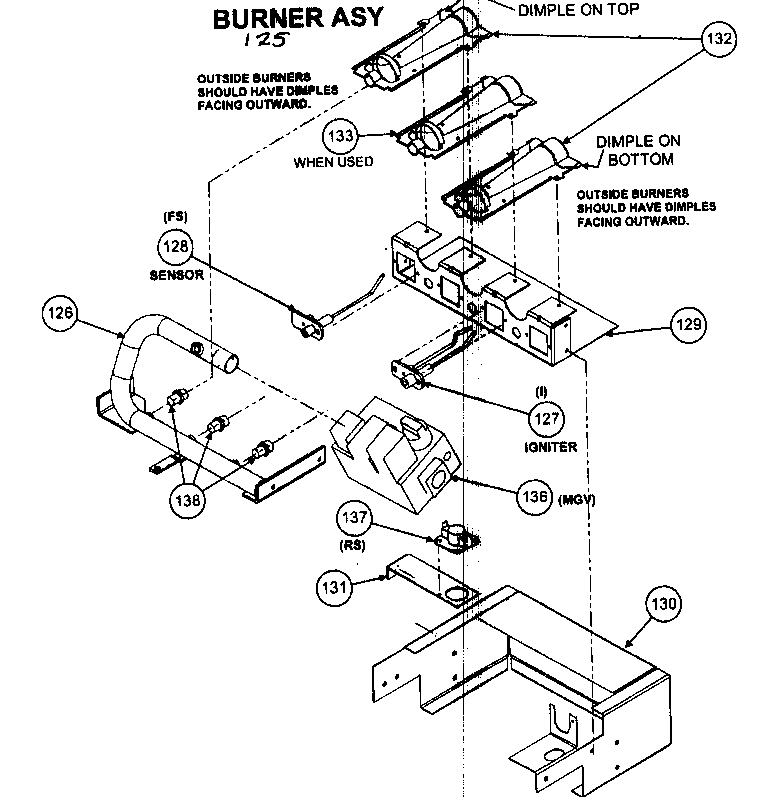

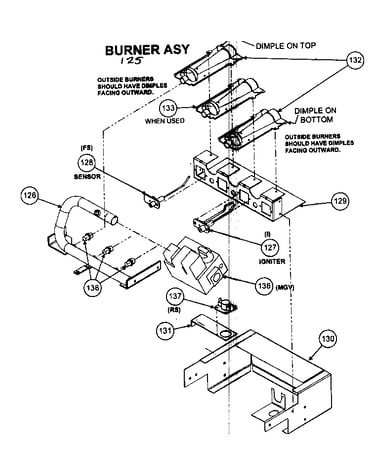

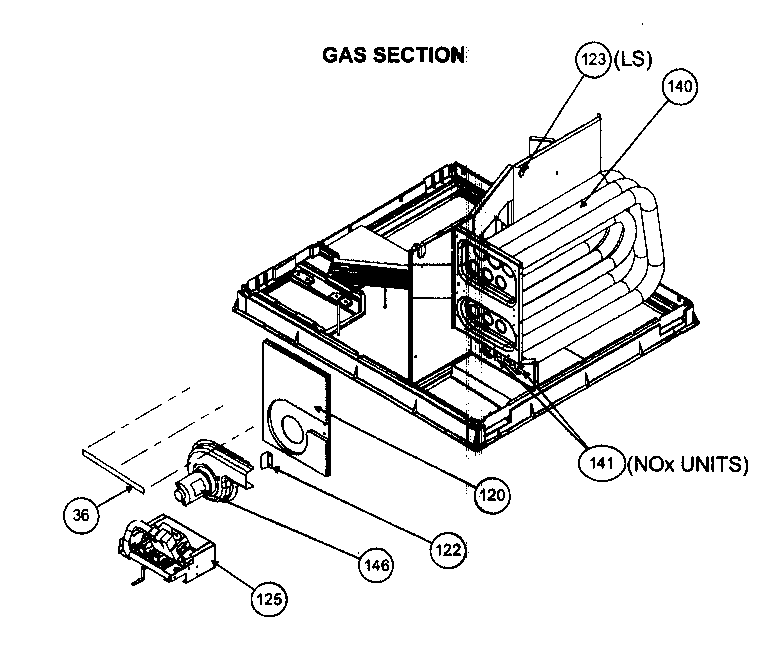

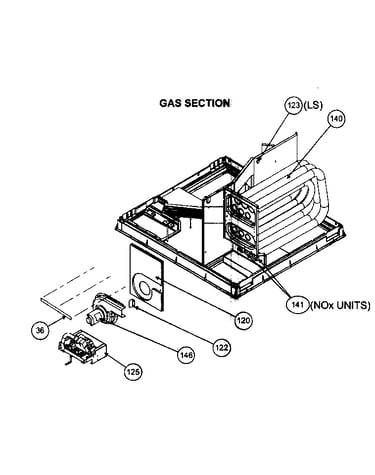

    Burner assy Diagram

    Bracket

    Part #48GS500186
    This item is not returnable
    $3.86

    In Stock

    Partition

    #17

    Inside view Diagram

    Partition

    Part #48GS500230
    $72.99

    In Stock

    Panel

    #20

    Front view/louver/rear view Diagram

    Panel

    Part #48GS500235
    $138.40

    In Stock

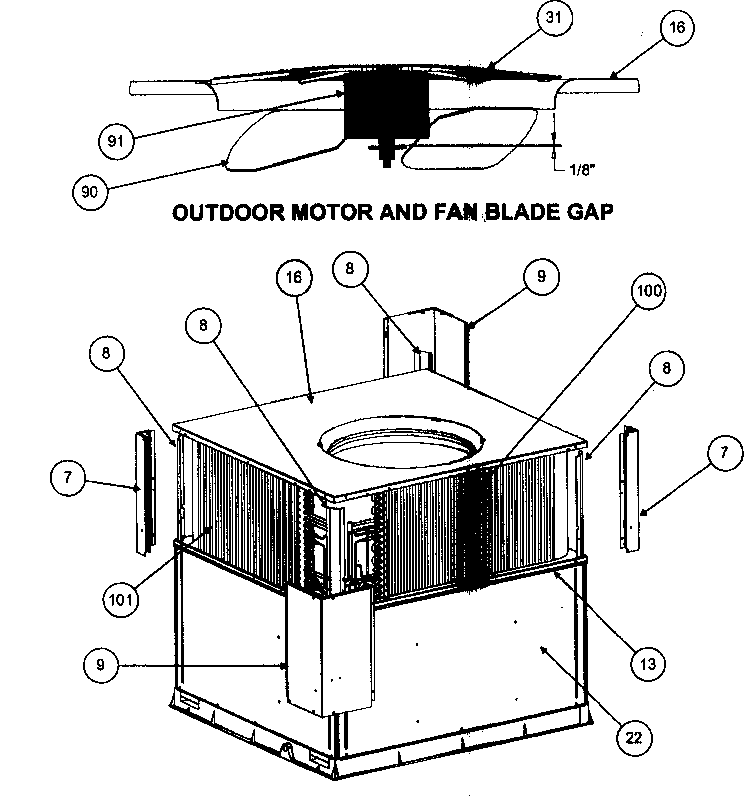

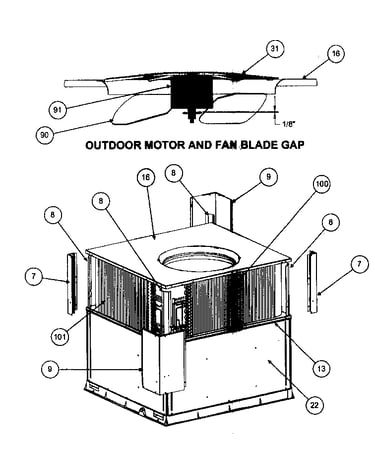

    Condenser Coil

    #100B

    Front view/louver/rear view Diagram

    Condenser coil

    Part #48XP400035
    $1597.99

    In Stock

    Harness

    #NI

    Front view/louver/rear view Diagram

    Harness

    Part #50GL400049
    $354.99

    In Stock

    Thermostat

    #NI

    Front view/louver/rear view Diagram

    Thermostat

    Part #TSTATCCBAC01-B
    $117.99

    In Stock
