Kenmore 9113678812 gas range

Kenmore 9113678812 gas range Parts

Here are the diagrams and repair parts for Kenmore 9113678812 gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 9113678812 Ranges

  • Oven Drive Insert for Kenmore 9113678812 - Part WB35M2

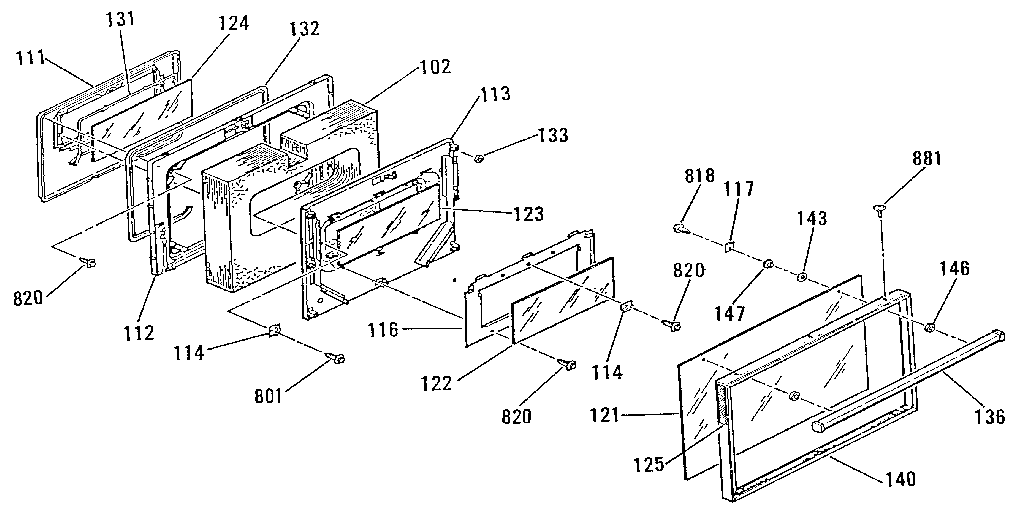

    Oven door section diagram

    Insulation

    Part #335782

    Replaced by #WB35M2

    Info Icon
    Manufacturer substitution
    This part replaces 335782. Substitute parts can look different from the original.
    In Stock
    $137.50
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan And Insert, 12-3/4 X 16-1/2-in for Kenmore 9113678812 - Part WB48X10056

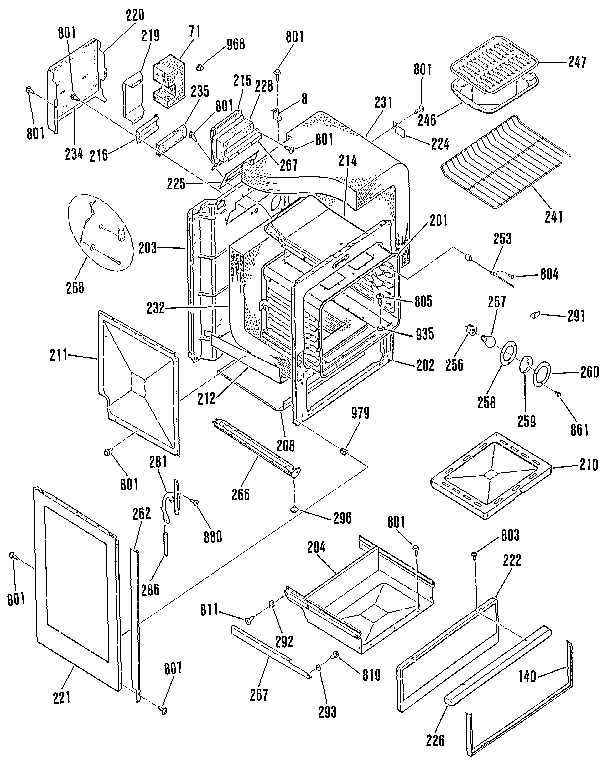

    Oven body section diagram

    Grid Broil

    Part #326297

    Replaced by #WB48X10056

    Info Icon
    Manufacturer substitution
    This part replaces 326297. Substitute parts can look different from the original.
    In Stock
    $36.11
    14% OFF Phone Price : $42.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Scr St 8a8 X for Kenmore 9113678812 - Part WB01X32746

    Oven body section diagram

    Screw

    Part #314124

    Replaced by #WB01X32746

    Info Icon
    Manufacturer substitution
    This part replaces 314124. Substitute parts can look different from the original.
    In Stock
    $32.52
    Minus Item
    Qty
    Plus Item
  • Scw 8abx. for Kenmore 9113678812 - Part WB1X1425

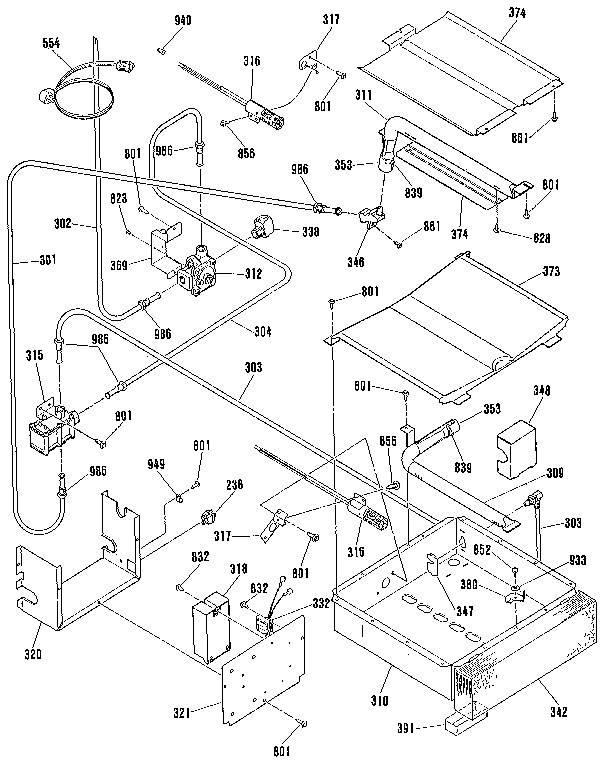

    Broiler and oven burner section diagram

    Screw

    Part #233583

    Replaced by #WB1X1425

    Info Icon
    Manufacturer substitution
    This part replaces 233583. Substitute parts can look different from the original.
    In Stock
    $8.38
    11% OFF Phone Price : $9.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Oven Cover for Kenmore 9113678812 - Part WB2X9152

    Oven body section diagram

    Cover

    Part #304835

    Replaced by #WB2X9152

    Info Icon
    Manufacturer substitution
    This part replaces 304835. Substitute parts can look different from the original.
    In Stock
    $32.48
    16% OFF Phone Price : $38.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Burner Cap for Kenmore 9113678812 - Part WB13M4

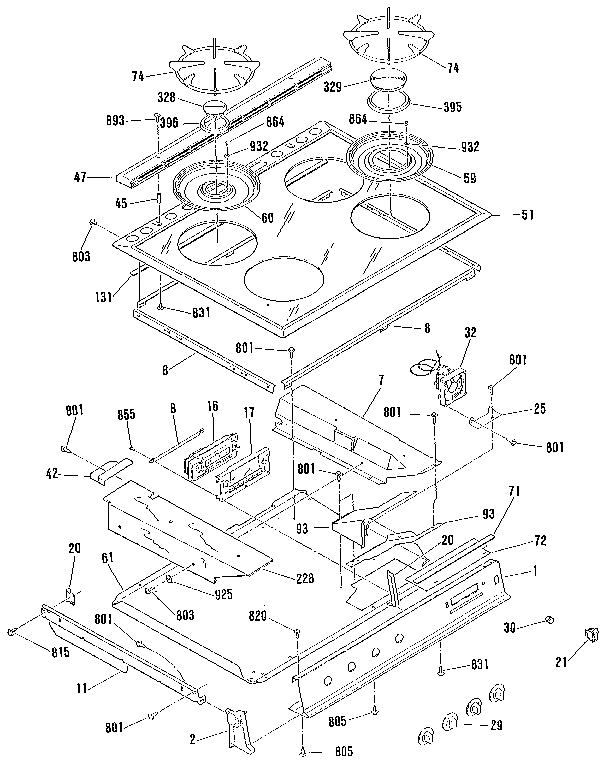

    Main top section diagram

    Burnr Cap Lg

    Part #342943

    Replaced by #WB13M4

    Info Icon
    Manufacturer substitution
    This part replaces 342943. Substitute parts can look different from the original.
    In Stock
    $189.88
    Minus Item
    Qty
    Plus Item
  • Clamp for Kenmore 9113678812 - Part WB6X93

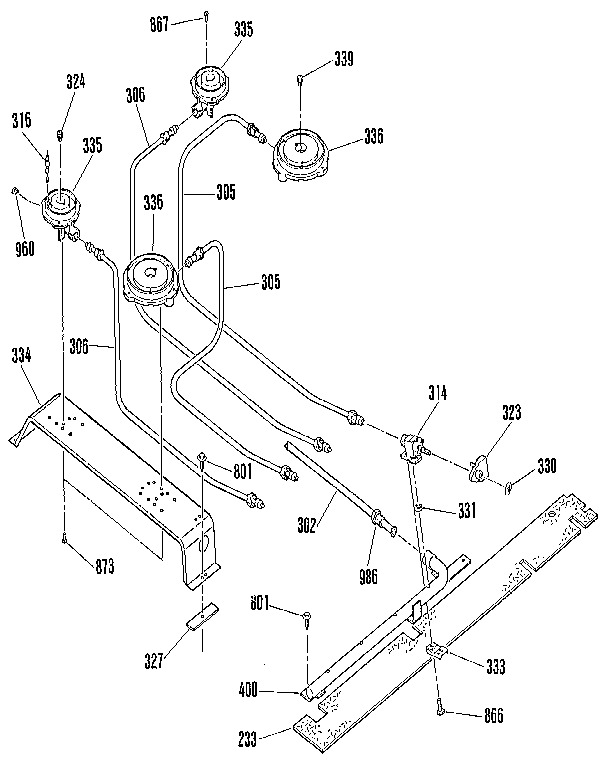

    Top burner section diagram

    Valve Clamp

    Part #338041

    Replaced by #WB6X93

    Info Icon
    Manufacturer substitution
    This part replaces 338041. Substitute parts can look different from the original.
    In Stock
    $13.35
    13% OFF Phone Price : $15.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Valve Kit for Kenmore 9113678812 - Part WB21M1

    Top burner section diagram

    R Gas Valve

    Part #344073

    Replaced by #WB21M1

    Info Icon
    Manufacturer substitution
    This part replaces 344073. Substitute parts can look different from the original.
    In Stock
    $188.30
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Orifice for Kenmore 9113678812 - Part WB6X83

    Top burner section diagram

    Orifice

    Part #339653

    Replaced by #WB6X83

    Info Icon
    Manufacturer substitution
    This part replaces 339653. Substitute parts can look different from the original.
    In Stock
    $61.58
    Minus Item
    Qty
    Plus Item
  • Cooking Appliance Screw for Kenmore 9113678812 - Part WB1K5191

    Oven body section diagram

    Screw 10

    Part #346127

    Replaced by #WB1K5191

    Info Icon
    Manufacturer substitution
    This part replaces 346127. Substitute parts can look different from the original.
    In Stock
    $32.52
    Minus Item
    Qty
    Plus Item
