Maytag
Refrigerator

Model # GT1924NDEW Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag GT1924NDEW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

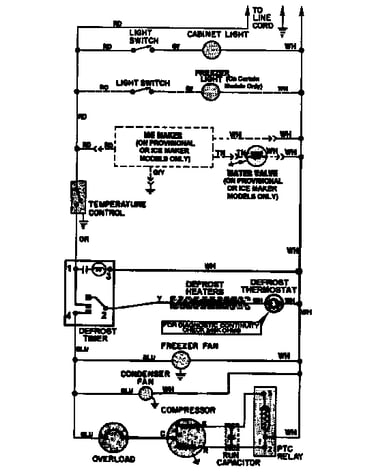

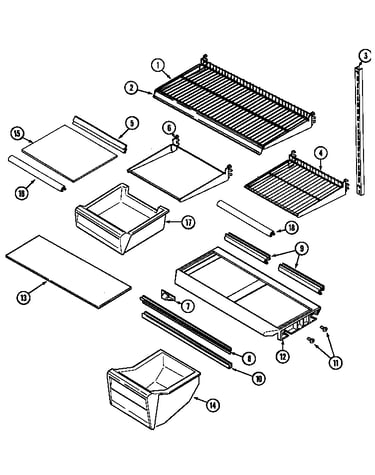

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |

Refrigerator Door Hinge Pin, Lower 61001925
#9

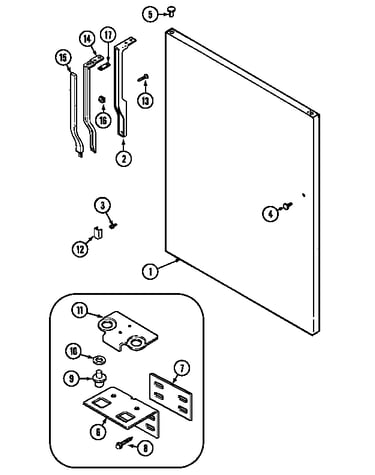

Fresh food outer door diagram

Refrigerator door hinge pin, lower

Part #61001925

Replaced by #WP61001925

?
Manufacturer substitution
This part replaces 61001925. Substitute parts can look different from the original.
This item is not returnable
$17.63
10% OFF Was : $19.59
In Stock
Refrigerator Screw 65275-50
#21B

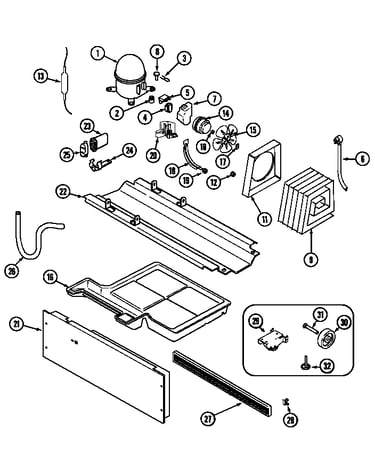

Compressor diagram

Refrigerator screw

Part #65275-50

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 65275-50. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Refrigerator Shelf Trim 61002399
#3

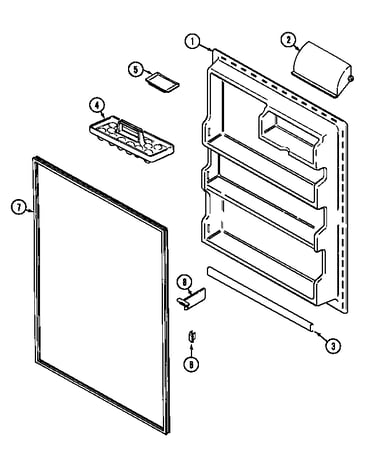

Fresh food inner door diagram

Refrigerator shelf trim

Part #61002399

Replaced by #W11045462

?
Manufacturer substitution
This part replaces 61002399. Substitute parts can look different from the original.
$44.99
10% OFF MSRP : $50.00
In Stock
Refrigerator Freezer Door Gasket (white) 61004007
#2

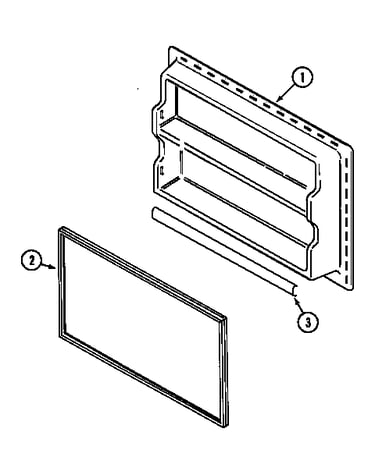

Freezer inner door diagram

Refrigerator freezer door gasket (white)

Part #61004007

Replaced by #WP61004007

?
Manufacturer substitution
This part replaces 61004007. Substitute parts can look different from the original.
$120.09
8% OFF Phone Price : $130.09
In Stock
Refrigerator Shelf Trim 61002400
#3

Freezer inner door diagram

Refrigerator shelf trim

Part #61002400

Replaced by #W11045462

?
Manufacturer substitution
This part replaces 61002400. Substitute parts can look different from the original.
$44.99
10% OFF MSRP : $50.00
In Stock
Refrigerator Freezer Handle 61002245
#3

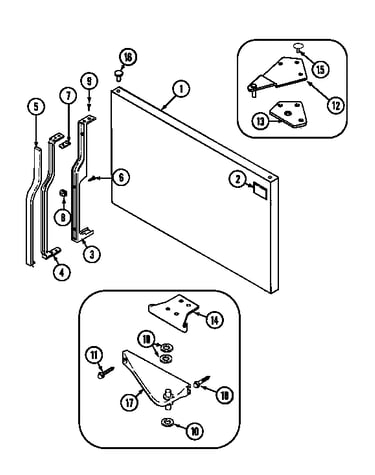

Freezer outer door diagram

Refrigerator freezer handle

Part #61002245

Replaced by #61005399

?
Manufacturer substitution
This part replaces 61002245. Substitute parts can look different from the original.
$94.65
14% OFF MSRP : $110.00
In Stock
Screw 61001885
Screw

Part #61001885

Replaced by #WP489399

?
Manufacturer substitution
This part replaces 61001885. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Refrigerator Defrost Bi-metal Thermostat 61002992
#12

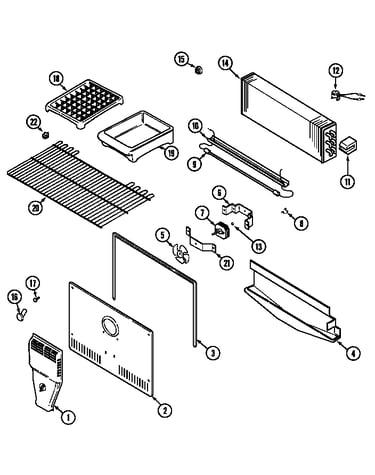

Freezer compartment diagram

Refrigerator defrost bi-metal thermostat

Part #61002992

Replaced by #WP61002992

?
Manufacturer substitution
This part replaces 61002992. Substitute parts can look different from the original.
$61.92
7% OFF Phone Price : $66.92
In Stock
Hinge Washer 61002231
Hinge washer

Part #61002231

Replaced by #WP61002231

?
Manufacturer substitution
This part replaces 61002231. Substitute parts can look different from the original.
This item is not returnable
$4.40
35% OFF MSRP : $6.80
In Stock
Refrigerator Screw 65275-81
#3A

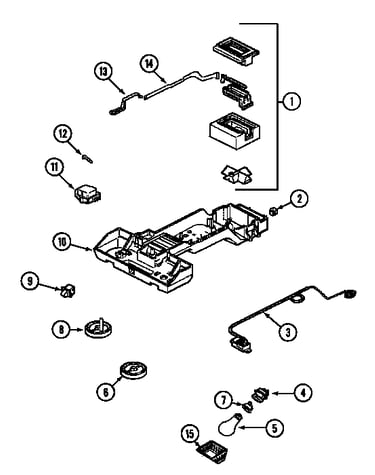

Controls diagram

Refrigerator screw

Part #65275-81

This item is not returnable
In Stock
