How to tell what model Kenmore refrigerator?
Your Kenmore refrigerator’s model number is printed on the appliance’s ID label; once you find it, you can match it to the correct parts list and specifications. For Kenmore model 11170712910, the model number is the key identifier we use to pull the right diagrams, parts, and manual details in the 11170712910 owner's manual.
We typically see the model and serial label in one of these spots on Kenmore refrigerators:
- Inside the fresh food (refrigerator) compartment on a side wall
- On the ceiling of the fresh food compartment

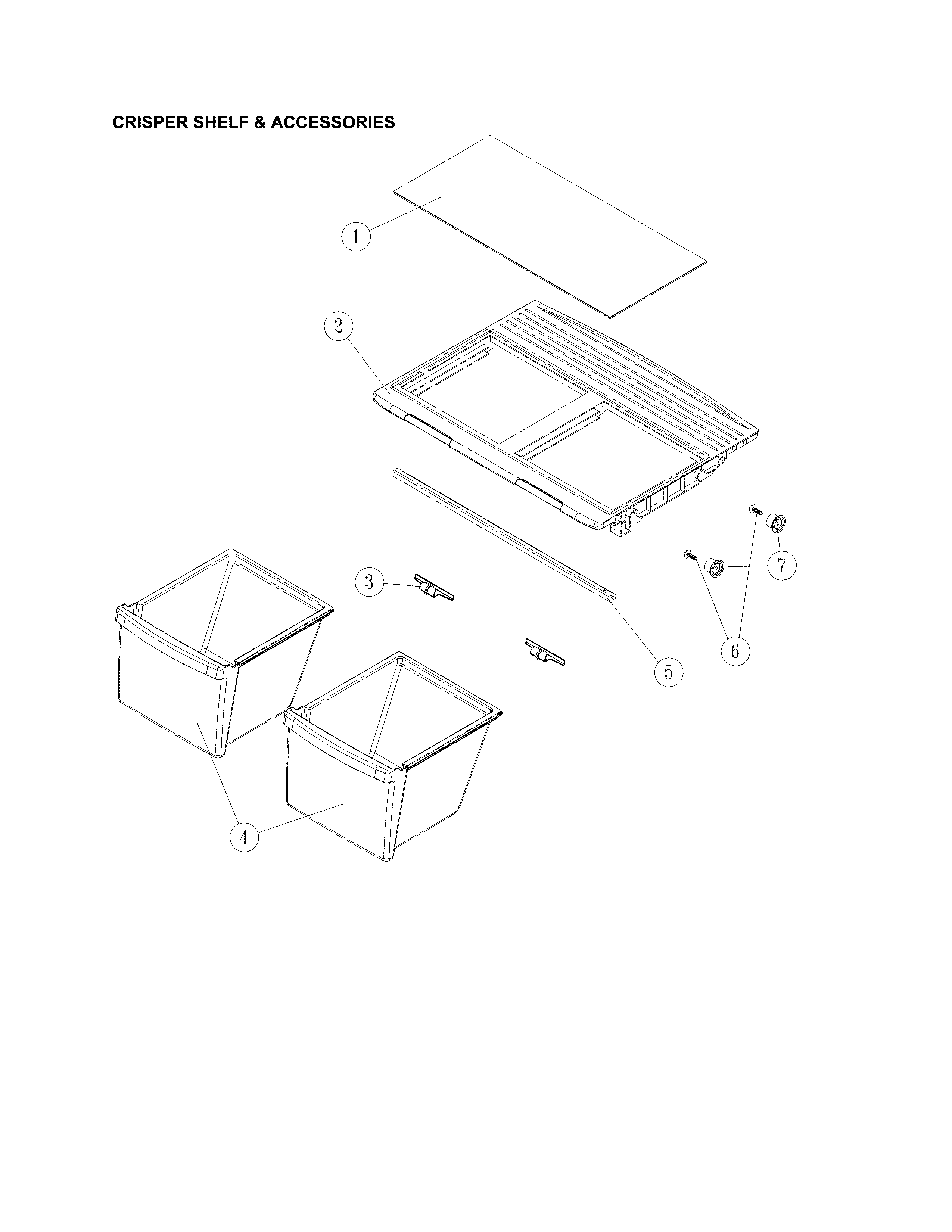

- Behind or beside a crisper drawer (you may need to slide the drawer out)
- Near the door opening (door jamb area)
- Behind the lower kick plate or toe grille (front bottom)
Kenmore model numbers are usually a long numeric string (often starting with 111, 253, 795, or 106). The prefix helps identify the product line, and the full model number ensures you get the correct shelves, bins, door gaskets, and ice maker or water system parts.
| What you see | What it means | What to do next |
|---|---|---|
| Full model number (example: 11170712910) | Exact product identification | Use it to look up diagrams and parts |
| Serial number | Production tracking | Keep it for service records |
| Partial/blurred label | Missing digits cause wrong matches | Recheck other label locations |
Using the exact model number prevents ordering the wrong components and speeds up diagnosis. For example, this Kenmore top-mount platform can have an optional ice maker with a rated power input listed in the manual, and water supply requirements are model-dependent.
- Compare the label to the model number shown on your parts page (for this unit: 11170712910)
- Use the parts list for your exact model first; then broaden your search on Sears PartsDirect
- If you’re troubleshooting a display or beeping issue, check Kenmore 111 model top freezer refrigerator error codes
Last updated: February 2026
What are the common problems with Kenmore Elite refrigerators?
Common Kenmore Elite refrigerator problems include weak or no cooling, frost buildup that blocks airflow, unusual fan or compressor noise, and water leaks. On Kenmore model 11170712910 (a top-mount refrigerator), many of these symptoms trace back to airflow restrictions, defrost system issues, dirty condenser coils, or a clogged defrost drain; use the 11170712910 owner's manual for model-specific operating and safety guidance.
- Fridge warm, freezer cold: restricted airflow (frosted evaporator, blocked vents, weak evaporator fan)
- Both sections warm: dirty condenser coils, condenser fan issue, sealed system or compressor problem
- Heavy frost on back wall or evaporator cover: defrost heater, defrost sensor, or control problem
- Buzzing, rattling, or grinding: evaporator fan blade hitting ice, worn fan motor, or vibration from the compressor area
- Water under crisper or on floor: clogged/iced defrost drain, drain pan overflow, or door left ajar
- Confirm temperatures: set freezer near 0°F and fresh food near 37°F.
- Check airflow: keep packages from blocking return vents and damper openings.
- Clean condenser coils: dust buildup commonly causes poor cooling and longer run times.
- Inspect door gaskets: look for gaps, tears, or areas that do not grip paper when the door is closed.
- Look for frost patterns: a solid ice sheet behind the freezer panel points to a defrost problem.
If your display shows an error code, match it to the code list first, then troubleshoot the specific circuit (fan, sensor, defrost, etc.). For Kenmore 111 models, we use the Kenmore 111 model top freezer refrigerator error codes guide.
| Problem you notice | Most likely area to check first | Why it matters |
|---|---|---|
| Warm temps, long run time | Condenser coils and airflow | Heat cannot leave the cabinet efficiently |
| Frost buildup | Defrost system | Ice blocks airflow and stops cooling |
| Leaks inside fridge | Defrost drain | Water has nowhere to go during defrost |
| Loud fan noise | Evaporator fan area | Fan moves cold air to both compartments |
Cooling and defrost problems usually get worse over time; catching airflow restrictions early helps protect food, reduces energy use, and prevents ice buildup that can damage fan blades and covers.
For replacement parts for Kenmore 11170712910, we use the parts list for this model, or search by model number on Sears PartsDirect.
Last updated: February 2026
What is the average lifespan of a Kenmore Elite refrigerator?
Most Kenmore Elite refrigerators last 10 to 15 years with normal household use. For your Kenmore 11170712910 top-mount refrigerator, steady temperatures, clean condenser airflow, and good door sealing are the biggest factors that keep the compressor and fans running longer; see the care and safety guidance in the 11170712910 owner's manual.
A refrigerator can keep cooling for years, but these issues most often drive major repairs:
- Compressor or sealed-system problems (cooling loss)
- Evaporator fan or condenser fan failures (warm fridge, noisy operation)
- Defrost system issues (frost buildup, poor airflow)
- Door gasket leaks (sweating, temperature swings)
- Ice maker or water valve problems (if equipped)
| Appliance type | Typical lifespan | Notes |
|---|---|---|
| Standard refrigerator (most brands) | 10 to 15 years | Most common range for modern units |
| Higher-end models (including “Elite” lines) | 10 to 15 years | Features add convenience, not extra years |
| Well-maintained units | 15+ years | Depends heavily on airflow, seals, and stable temps |
These habits reduce run time and heat stress on the cooling system:
- Keep vents inside the fridge and freezer unblocked so air can circulate
- Set stable temps (typical targets: 37°F fresh food, 0°F freezer)
- Clean dust from the condenser area regularly (more often with pets)
- Make sure doors close fully; avoid overloading door bins
- Replace water filters on schedule if your unit uses one (restricted flow can strain the valve)
Once a refrigerator is past about 10 years, a single major cooling repair can cost enough that many owners choose replacement instead. Knowing the normal 10 to 15 year lifespan helps you decide when to invest in parts and maintenance versus planning ahead.
We use the model number to match the right diagrams and replacement parts for your refrigerator. Start with the parts list for model 11170712910, or search by model on Sears PartsDirect.
Last updated: February 2026
What is the top part of a refrigerator called?

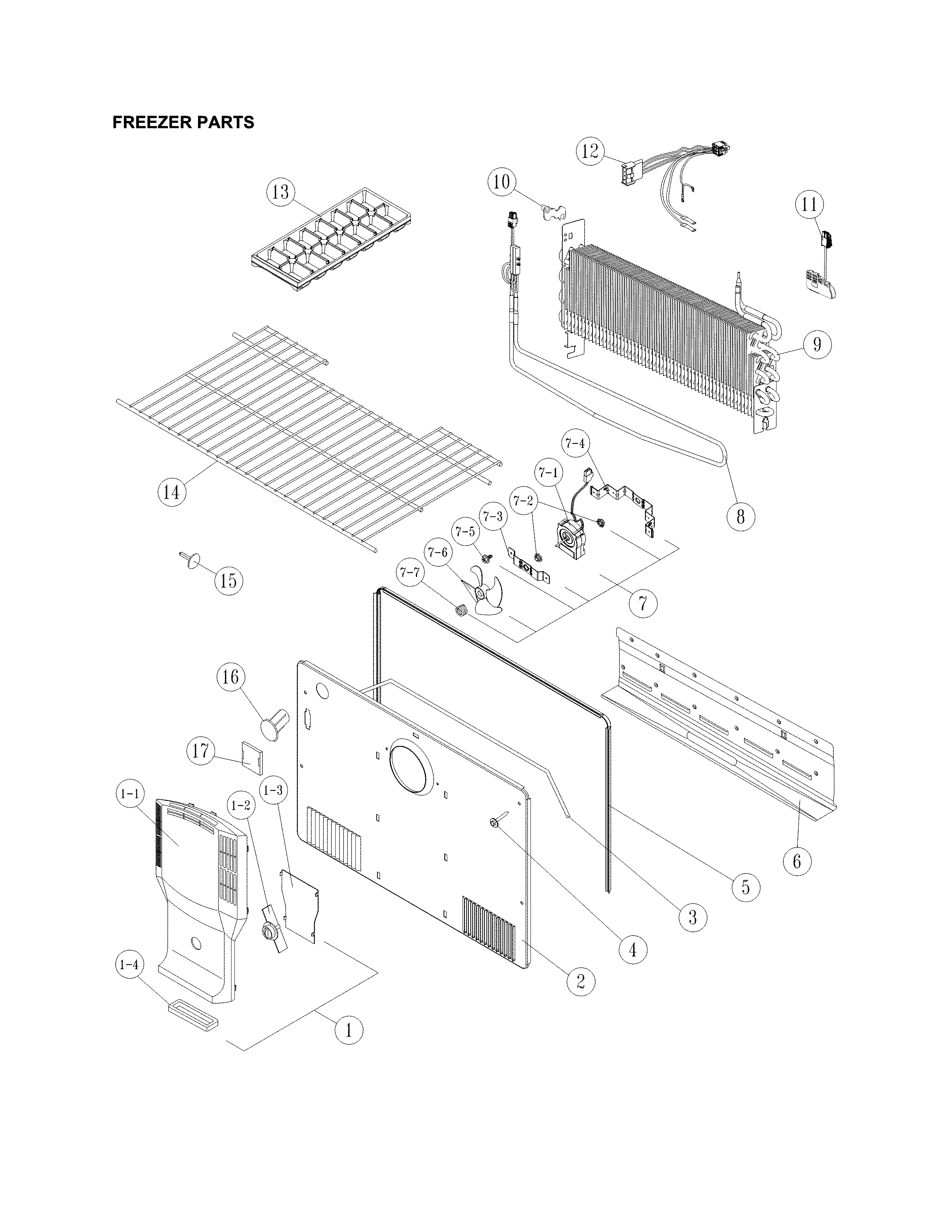

In a Kenmore top-mount refrigerator like model 11170712910, the top compartment is the freezer compartment (often just called the freezer). It is designed to keep foods frozen and, on some configurations, can support an optional ice maker; see the 11170712910 owner's manual for your exact layout and features.
The freezer compartment is the coldest area of the appliance and is where we store frozen foods long-term.
Common freezer functions include:
- Freezing and long-term storage of meats, vegetables, and prepared foods
- Keeping ice cream and other frozen items at safe temperatures

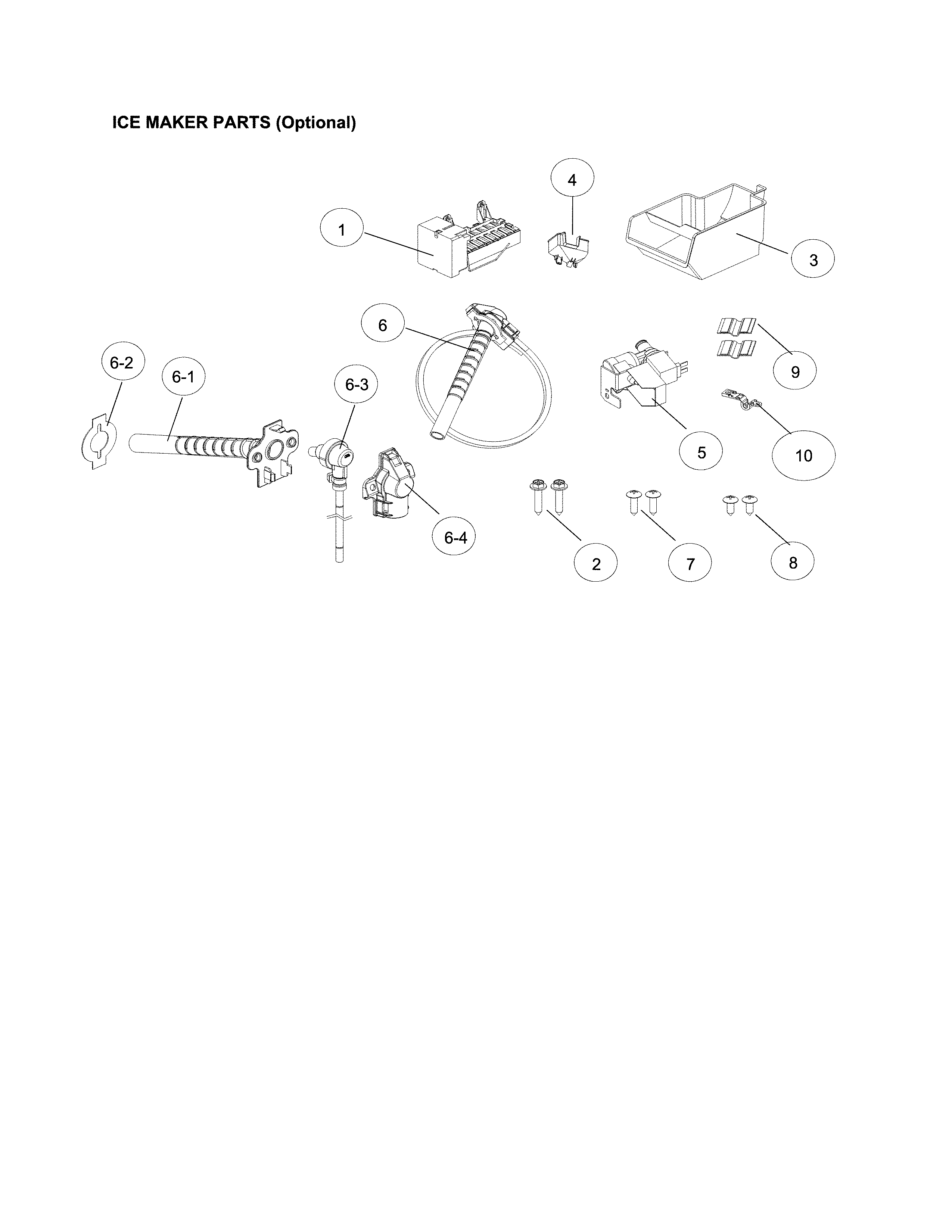

- Supporting ice production if an ice maker is installed (optional on some models)
- Providing cold air that helps cool the fresh food section through internal airflow
| Compartment | Location on a top-mount unit | Primary purpose | Typical temperature setting |
|---|---|---|---|
| Freezer compartment | Top | Keep food frozen | 0°F |
| Fresh food (refrigerator) compartment | Bottom | Keep food cold (not frozen) | 37°F |
Knowing the correct compartment name helps when we look up troubleshooting steps, temperature recommendations, and diagrams in the manual. It also helps when ordering replacement items (like shelves, bins, or an optional ice maker kit) by model number on Sears PartsDirect.
If you are seeing a code on the display or the unit is beeping, use the model-family troubleshooting guide: Kenmore 111 model top freezer refrigerator error codes.
Last updated: February 2026
