Craftsman 917370924 lawn mower

Craftsman 917370924 lawn mower Parts

Here are the diagrams and repair parts for Craftsman 917370924 lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 917370924 Walk-Behind Mowers

  • Husqvarna Lawn Mower Blade, 22-in for Craftsman 917370924 - Part 532421825

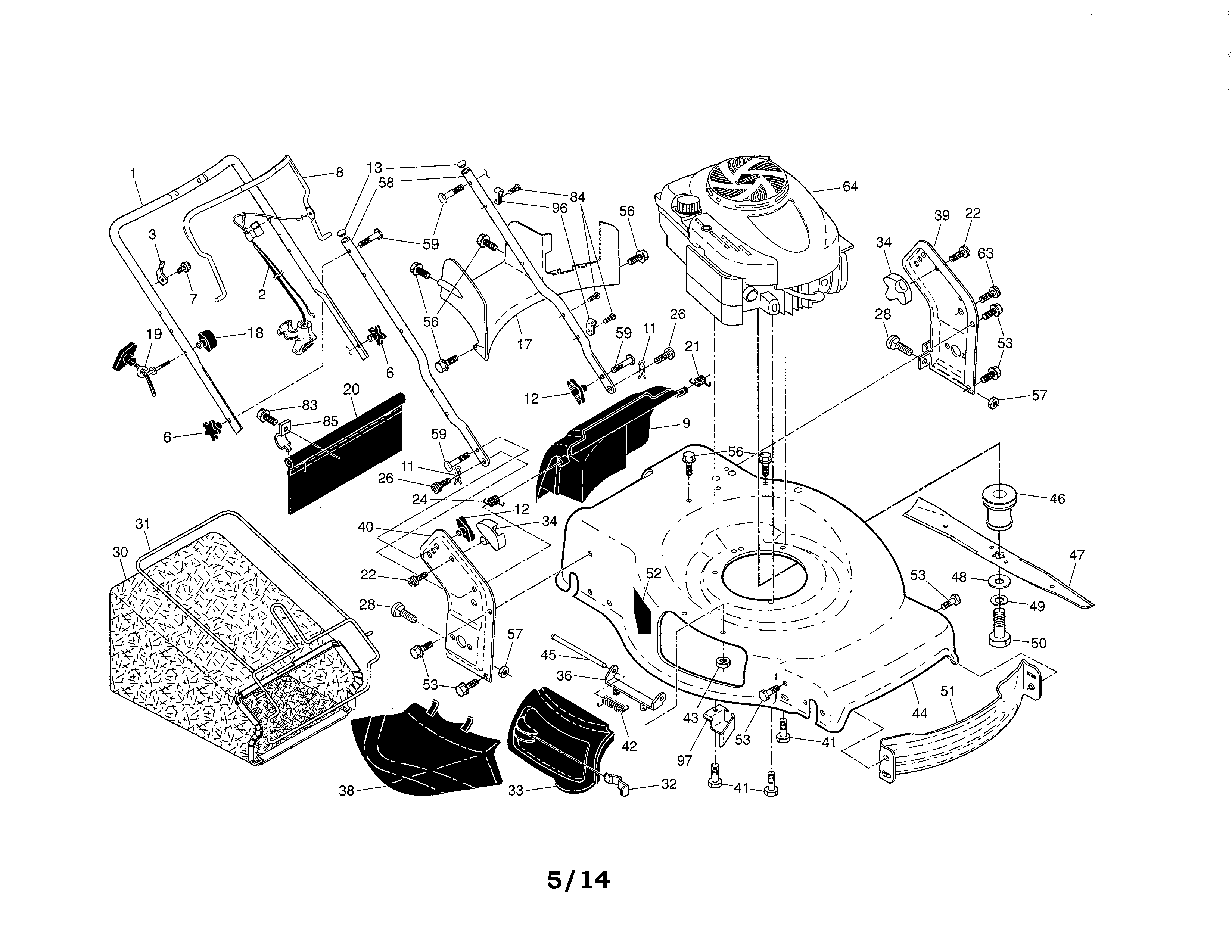

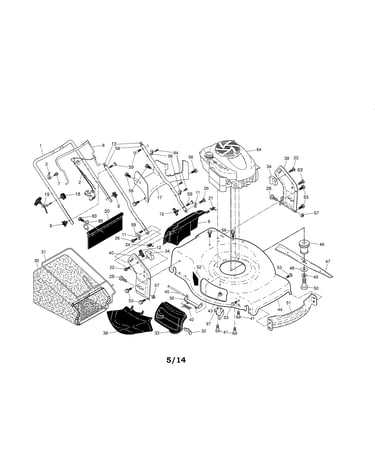

    Engine/housing/handle diagram

    Husqvarna Lawn Mower 22-inch Deck 3-in-1 Blade

    Part #421825

    Replaced by #532421825

    Info Icon
    Manufacturer substitution
    This part replaces 421825. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $28.81
    17% OFF Phone Price : $34.81Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Lock Nut, 3/8-in for Craftsman 917370924 - Part 532409149

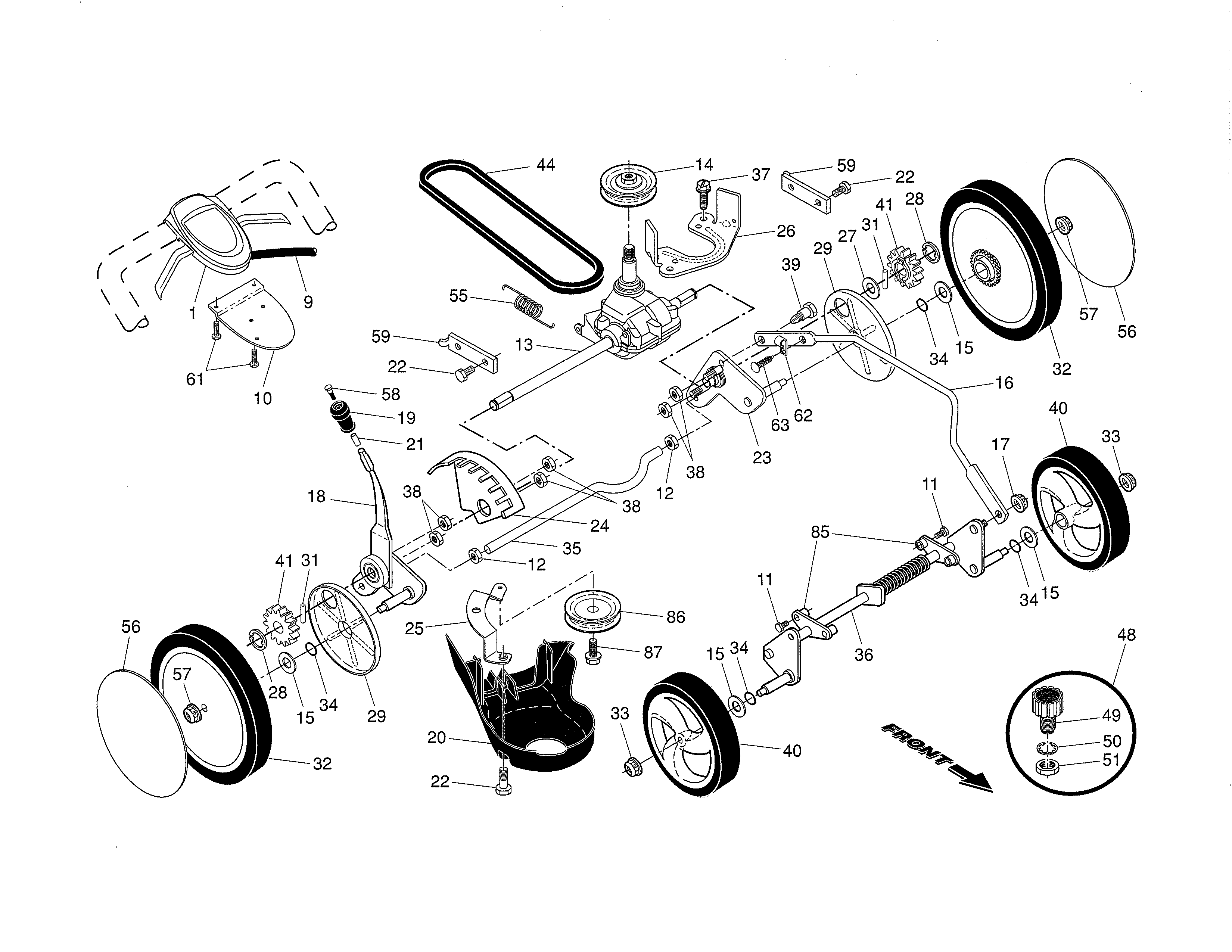

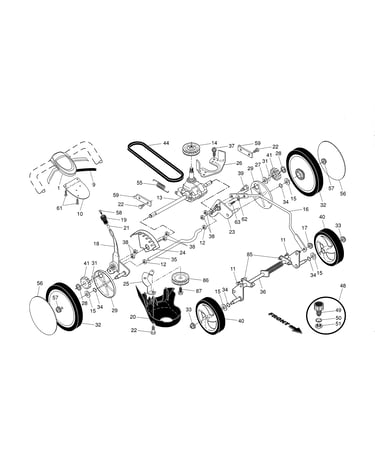

    Drive control/gear case/wheels diagram

    Lawn & Garden Equipment Nut

    Part #409148

    Replaced by #532409149

    Info Icon
    Manufacturer substitution
    This part replaces 409148. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.08
    25% OFF Phone Price : $4.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Lock Nut, 3/8-in for Craftsman 917370924 - Part 532409149

    Drive control/gear case/wheels diagram

    Lawn Mower Hex Flange Nut

    Part #409149

    Replaced by #532409149

    Info Icon
    Manufacturer substitution
    This part replaces 409149. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.08
    25% OFF Phone Price : $4.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Deflector Shield for Craftsman 917370924 - Part 532426129

    Engine/housing/handle diagram

    Lawn Mower Clipping Deflector

    Part #419942X428

    Replaced by #532426129

    Info Icon
    Manufacturer substitution
    This part replaces 419942X428. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.79
    22% OFF Phone Price : $26.79Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Zone Control Cable for Craftsman 917370924 - Part 587326602

    Engine/housing/handle diagram

    Lawn Mower Zone Control Cable

    Part #586837702

    Replaced by #587326602

    Info Icon
    Manufacturer substitution
    This part replaces 586837702. Substitute parts can look different from the original.
    In Stock
    $43.19
    12% OFF Phone Price : $49.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Washer for Craftsman 917370924 - Part 532851074

    Engine/housing/handle diagram

    Husqvarna Lawn & Garden Equipment Washer

    Part #851074

    Replaced by #532851074

    Info Icon
    Manufacturer substitution
    This part replaces 851074. Substitute parts can look different from the original.
    In Stock
    $8.63
    10% OFF Phone Price : $9.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Spring.lh.gray for Craftsman 917370924 - Part 532419949

    Engine/housing/handle diagram

    Husqvarna Lawn Mower Discharge Chute Door Spring, Left

    Part #419949

    Replaced by #532419949

    Info Icon
    Manufacturer substitution
    This part replaces 419949. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.63
    18% OFF Phone Price : $5.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Mulching Door for Craftsman 917370924 - Part 532420019

    Engine/housing/handle diagram

    Mulching Door

    Part #420019

    Replaced by #532420019

    Info Icon
    Manufacturer substitution
    This part replaces 420019. Substitute parts can look different from the original.
    In Stock
    $18.56
    10% OFF Phone Price : $20.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Spring.rh.gray for Craftsman 917370924 - Part 532419948

    Engine/housing/handle diagram

    Husqvarna Lawn Mower Discharge Chute Door Spring, Right

    Part #419948

    Replaced by #532419948

    Info Icon
    Manufacturer substitution
    This part replaces 419948. Substitute parts can look different from the original.
    In Stock
    $10.80
    16% OFF Phone Price : $12.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Wheel, 8 X 1.75-in for Craftsman 917370924 - Part 583733801

    Drive control/gear case/wheels diagram

    Lawn Mower Wheel, 8 X 1.75-in

    Part #400249X460

    Replaced by #583733801

    Info Icon
    Manufacturer substitution
    This part replaces 400249X460. Substitute parts can look different from the original.
    In Stock
    $21.34
    22% OFF Phone Price : $27.34Info Icon
    Minus Item
    Qty
    Plus Item

Craftsman Lawn Mower 917370924 FAQs

A Craftsman walk-behind lawn mower like model 917370924 typically lasts 8 to 15 years with normal homeowner use. With consistent maintenance (oil changes, clean deck, sharp blade, and fresh fuel practices), many owners get 10+ years of reliable mowing.

Typical lifespan ranges

Lifespan depends most on hours of use per season, storage conditions, and how well the cutting and drive systems are maintained.

  • 8 to 15 years is typical for a gas walk-behind mower
  • 10+ years is common with routine tune-ups and clean storage
  • Heavy weekly use, sandy soil, and wet mowing shorten life
  • Neglected oil changes and a dull blade shorten engine and deck life
Usage pattern What we typically see What helps most
Light (small yard, short season) 12 to 15 years Clean storage, fresh fuel
Average homeowner use 8 to 12 years Annual tune-up, blade care
Heavy use (large yard, long season) 5 to 8 years More frequent service, belt checks

Maintenance that extends mower life

These are the highest-impact habits for a gas walk-behind mower like the 917370924.

  • Change engine oil on schedule (more often in dusty conditions)
  • Keep the underside of the deck clean to prevent corrosion and drag
  • Sharpen or replace the blade when cuts look ragged
  • Use fresh gasoline and avoid long-term storage with untreated fuel
  • Inspect wear items like belts, wheels, and control cables each season

If your mower is leaving uneven cuts or vibrating, a worn or damaged blade is a common cause; the husqvarna lawn mower 22-inch deck 3-in-1 blade 532421825 is one of the model-matched blade options listed for this mower.

Why it matters

A mower that is maintained cuts cleaner, runs cooler, and puts less strain on the engine and drive system. That reduces expensive failures and keeps your Craftsman mower safer and easier to operate.

For model-specific maintenance intervals and seasonal storage steps, follow the 917370924 owner's manual.

Last updated: January 2026

For the Craftsman lawn mower model 917370924, we recommend using fresh regular unleaded gasoline; in most walk-behind mower engines, 87 octane is the right choice, and E10 (up to 10% ethanol) is commonly acceptable. For the exact fuel guidance for your mower, follow the 917370924 owner's manual.

What to use (and what to avoid)

  • Use fresh regular unleaded gas (typically 87 octane).
  • Use E10 if that is what is available locally (up to 10% ethanol).
  • Avoid old/stale fuel (more than about 30 days without stabilizer).
  • Avoid E15/E85 fuels; higher ethanol blends can cause hard starting and fuel-system issues.
  • Do not use race fuel or “premium only” gas unless the manual specifically calls for it.

Quick fuel guide

Fuel type OK for most walk-behind mowers Notes
Regular unleaded (87) Yes Best everyday choice
E10 (10% ethanol) Yes Common at U.S. pumps
Premium (91-93) Not needed Usually no benefit
E15 No Higher ethanol than typical small-engine guidance
E85 No Too much ethanol for small engines

Best practices for fewer starting problems

  • Buy gas in small quantities so it stays fresh.
  • If the mower will sit, add fuel stabilizer and run the engine a few minutes.
  • Store fuel in an approved container, tightly sealed.
  • If the mower won’t start after storage, drain old fuel and refill with fresh gas.

Why it matters

Using the right gasoline helps your Craftsman 917370924 start easier, run smoother, and reduces carburetor varnish and fuel-line deterioration that can lead to no-start or surging problems.

Last updated: January 2026

The model number for your Craftsman walk-behind mower is printed on the mower’s model and serial number label. On most Craftsman mowers like model 917370924, that label is on the rear of the deck near the back wheels or on the rear handle bracket; confirm the exact label location in the 917370924 owner's manual.

Where to look on the mower

Check these common label locations first:

  • Rear of the cutting deck (back edge, above the discharge area)
  • Top of the deck near the engine mounting area
  • Rear handle bracket or handle support area
  • Under the rear flap or near the grass bag opening
  • Side of the deck near a rear wheel height adjuster

What the label looks like

The label typically includes several identifiers. Use the model number for parts lookup.

Label item What it’s used for Example format
Model number Correct parts diagrams and part fit 917.XXXXXX or 917XXXXXX
Serial number Production run identification Letters and numbers
Product number Sometimes used on outdoor power equipment Varies

Tips to make sure you have the right number

  • Write the model number exactly as shown (include dots or dashes if present).
  • If the label is dirty, wipe it with a damp cloth; avoid soaking the label.
  • If the label is worn, take a close-up photo and zoom in to read it.
  • Use the model number (not the engine model) when ordering mower deck, drive, or handle parts.

Why it matters

Craftsman mower parts can look similar across different 917-series models, but belt routing, blade style, and control cables can differ. Using the exact model number helps ensure the correct diagrams and parts for your mower.

Last updated: March 2026

Most common symptoms to help you fix your walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…

Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…

Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…

Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…

Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…
