Model #DCF402W Official Danby freezer
Here are the diagrams and repair parts for Danby DCF402W freezer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

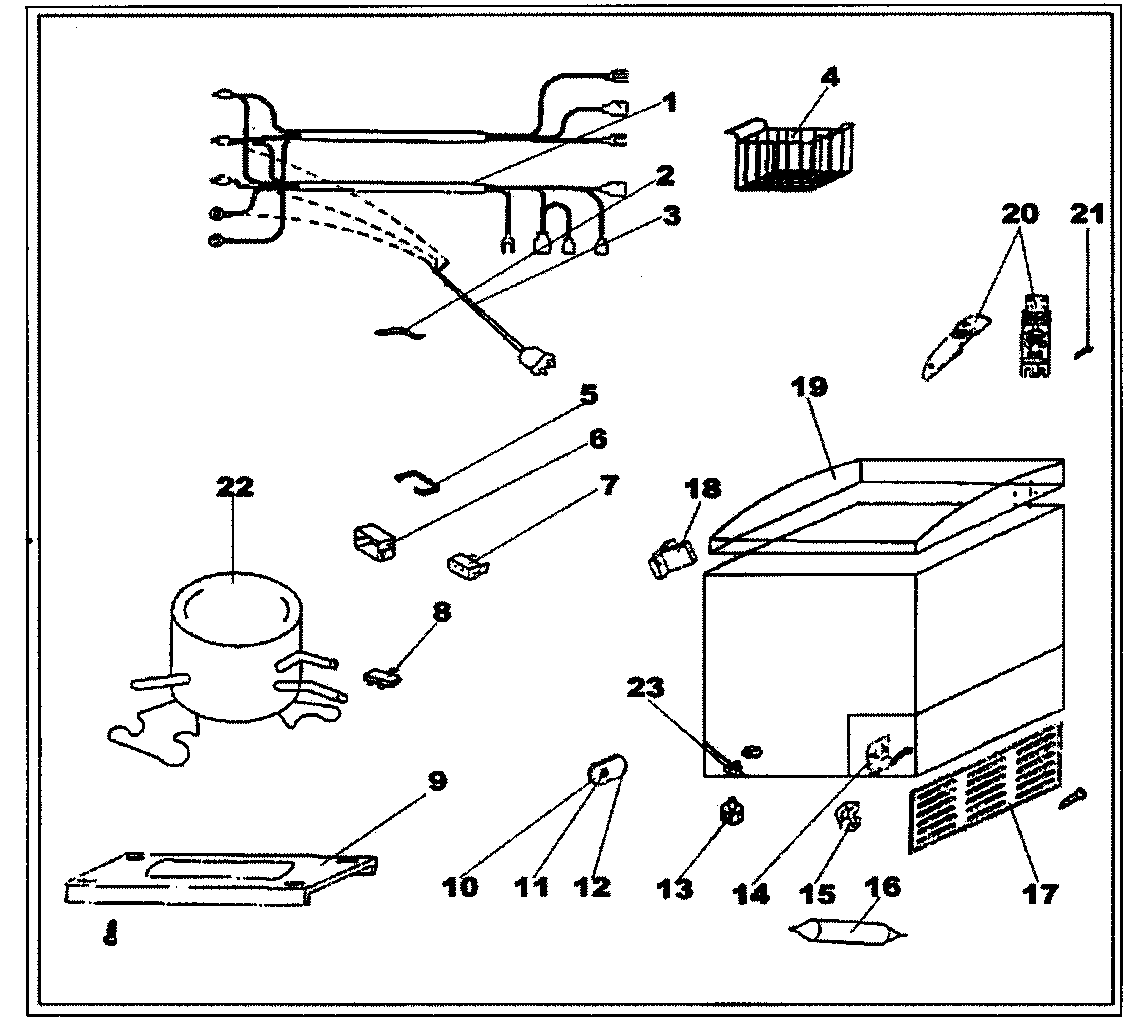

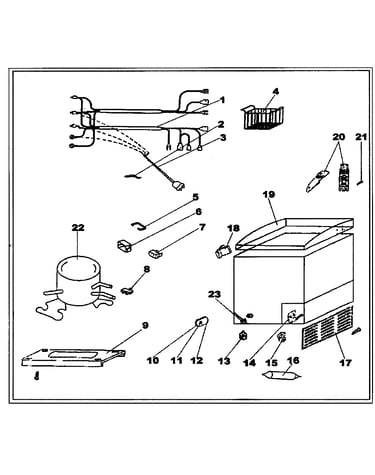

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 28 parts
Control knob
Part #401.08A
In Stock
$24.91
Hinge cover,lower
Part #401.25
The manufacturer no longer makes this part, and there's no substitute part
(t)hinge screw
Part #N/A
The manufacturer no longer makes this part, and there's no substitute part
Grommet
Part #401.19
The manufacturer no longer makes this part, and there's no substitute part
Support
Part #401.11
The manufacturer no longer makes this part, and there's no substitute part
Capacitor
Part #550.31
The manufacturer no longer makes this part, and there's no substitute part
Compressor
Part #TL3F
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #401.28
The manufacturer no longer makes this part, and there's no substitute part
Recommended maintenance parts and accessories
Symptoms common to all freestanding freezers
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
