Maytag
Chest Freezer

Model #GH1026NXEW Official Maytag freezer

Here are the diagrams and repair parts for Maytag GH1026NXEW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Showing 10 of 60 parts

Refrigerator UV Filter Dryer (replaces 2309242, W10143759)#6

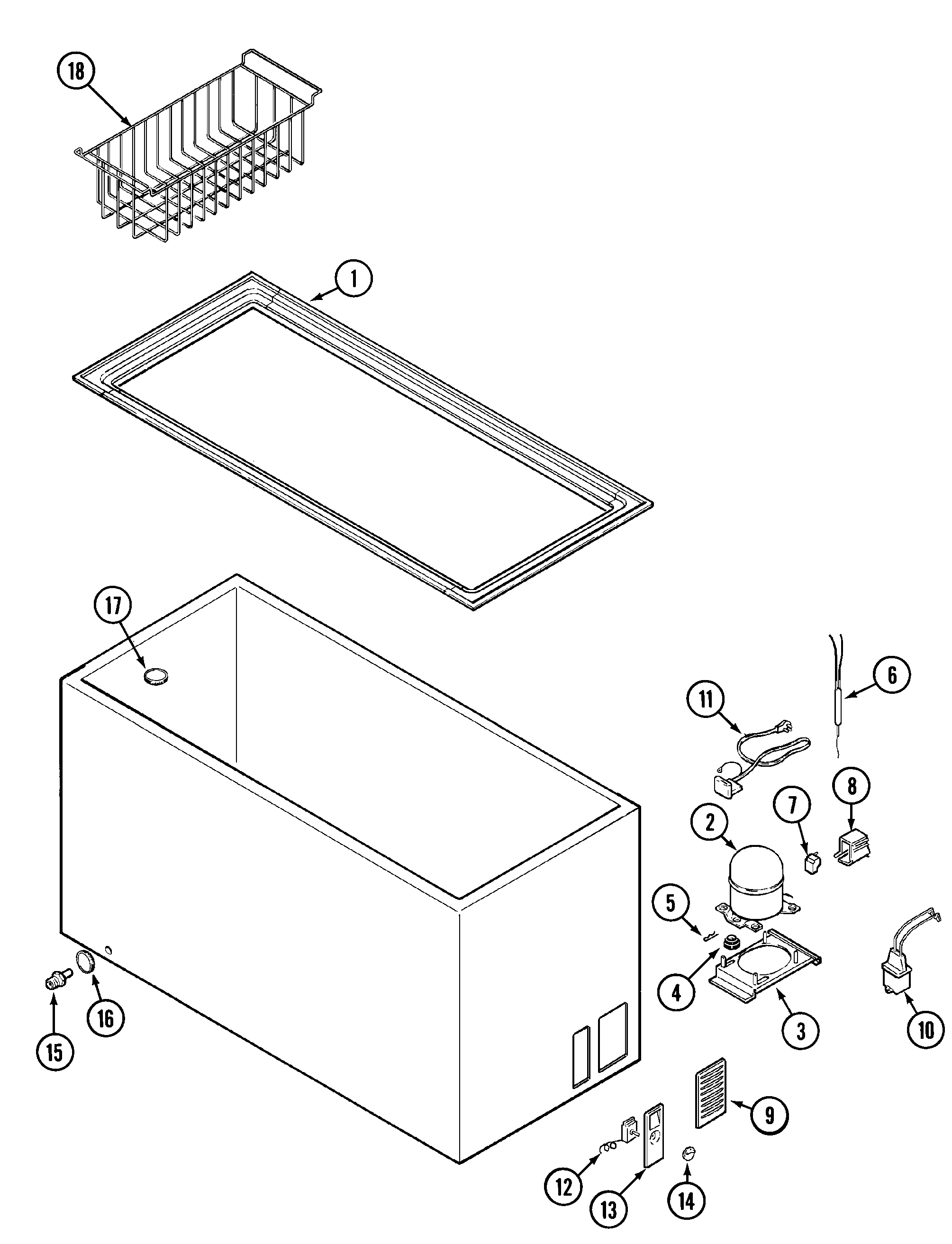

Cabinet Diagram

Refrigerator uv dye dryer

Part #13900-1
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
In Stock
$23.19 |
18% OFF
Phone Price: $28.19
Freezer Basket#18

Cabinet Diagram

Wire basket

Part #09100065
Replaced by #8210434A
?
Manufacturer substitution
This part replaces 09100065. Substitute parts can look different from the original.
In Stock
$34.39 |
13% OFF
Phone Price: $39.39
Freezer Drain Cap

See All Related Diagrams

Drain cap

Part #68001312
Replaced by #3-33211-001
?
Manufacturer substitution
This part replaces 68001312. Substitute parts can look different from the original.
In Stock
$9.49 |
10% OFF
Phone Price: $10.49
Door Hinge#12

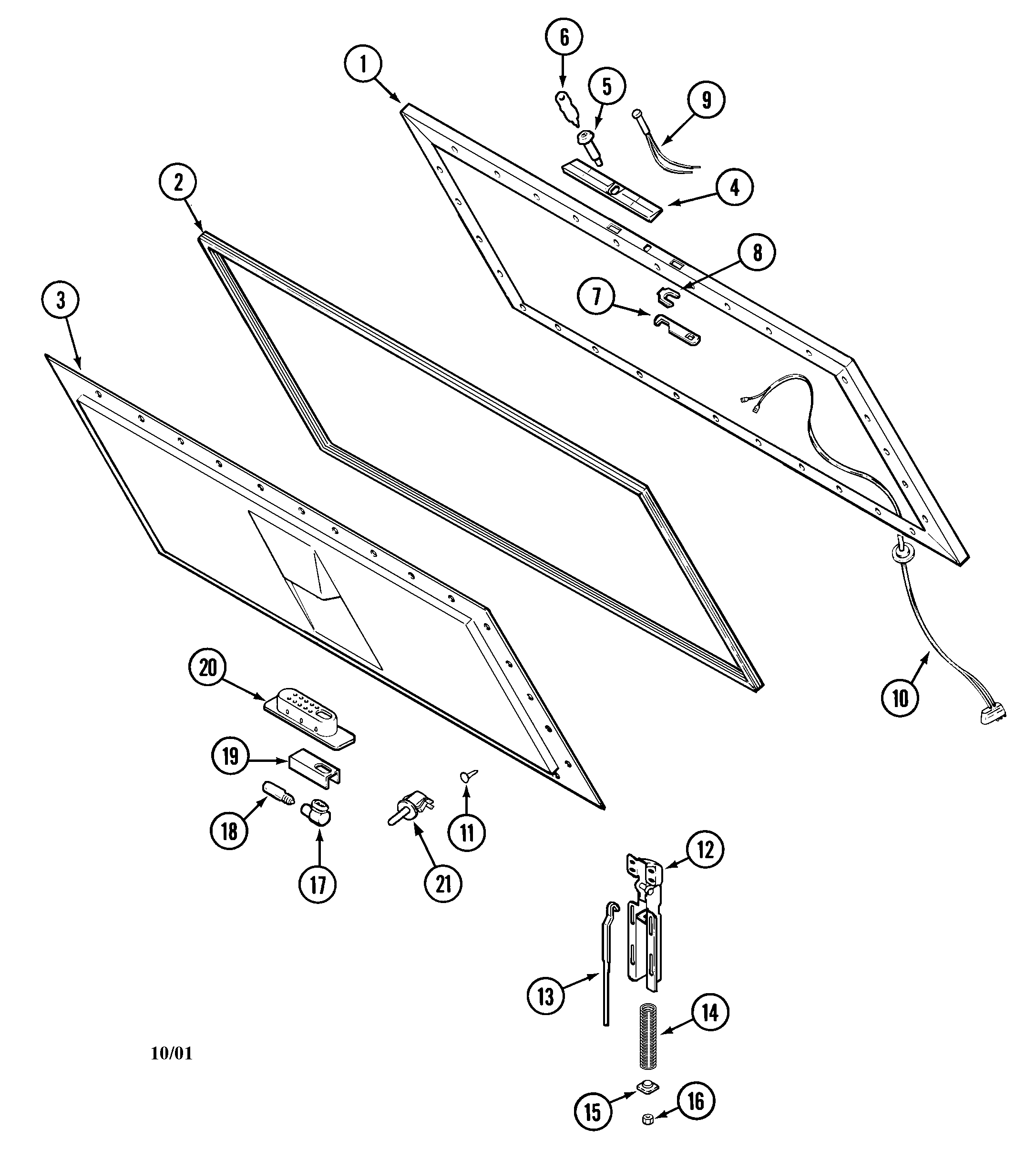

Lid Diagram

Hinge kit

Part #68001160
Replaced by #4356490
?
Manufacturer substitution
This part replaces 68001160. Substitute parts can look different from the original.
In Stock
$117.82
Spacer#12C

Lid Diagram

Hinge shim

Part #68001171
Replaced by #1-17548-006
?
Manufacturer substitution
This part replaces 68001171. Substitute parts can look different from the original.
In Stock
$18.96
Lock Clip#8

Lid Diagram

Lock clip

Part #68001012
Replaced by #1-26359
?
Manufacturer substitution
This part replaces 68001012. Substitute parts can look different from the original.
In Stock
$36.58
Brace#3A

Cabinet Diagram

Base bracket

Part #68001313
Replaced by #3-81556-001
?
Manufacturer substitution
This part replaces 68001313. Substitute parts can look different from the original.
In Stock
$10.80
Refrigerator Temperature Control Thermostat#12A

Cabinet Diagram

Temperature control

Part #68001451
Replaced by #WP4-35940-001
?
Manufacturer substitution
This part replaces 68001451. Substitute parts can look different from the original.
In Stock
$118.93 |
8% OFF
Phone Price: $128.93
Control Box#13

Cabinet Diagram

Kit temperature box

Part #68001311
Replaced by #W10682894
?
Manufacturer substitution
This part replaces 68001311. Substitute parts can look different from the original.
In Stock
$26.49 |
16% OFF
Phone Price: $31.49
Freezer Light Switch#21

Lid Diagram

Light switch

Part #68001449
Replaced by #W10917237
?
Manufacturer substitution
This part replaces 68001449. Substitute parts can look different from the original.
This item is not returnable
In Stock
$25.79 |
16% OFF
Phone Price: $30.79

Symptoms common to all freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket

Repair guides for chest freezers
