Model # VRHW420 Official Viking Range interior power wall range hood

Here are the diagrams and repair parts for Official Viking Range VRHW420 interior power wall range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

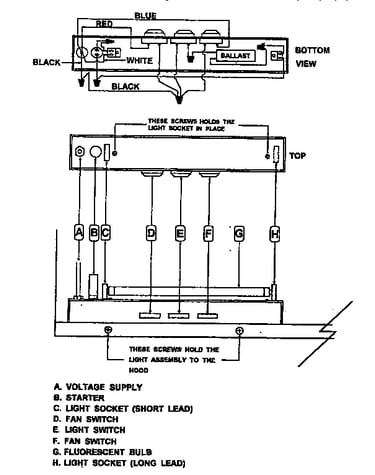

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Range Hood Fan Motor, Right PV110003
#3

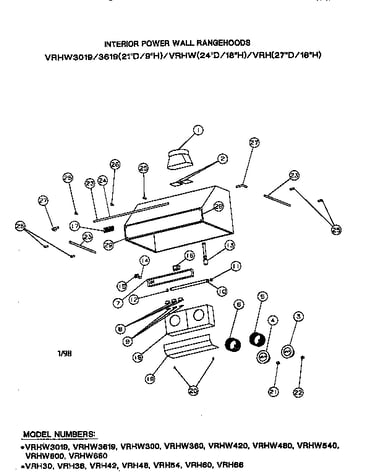

Range hood diagram

Range hood fan motor, right

Part #PV110003

$350.49
In Stock
Screw PV100004
#20

Range hood diagram

Screw

Part #PV100004

$35.99
In Stock
2" Domed Logo "viking Prof"-white/brass PE010055
#17H

Range hood diagram

2" domed logo "viking prof"-white/brass

Part #PE010055

The manufacturer no longer makes this part, and there's no substitute part

2" Domed Logo "viking Prof"-black PE010019
#17F

Range hood diagram

2" domed logo "viking prof"-black

Part #PE010019

The manufacturer no longer makes this part, and there's no substitute part

Front Trim 36" Vrhw3619 (1") (br, Ss) PV100021
#28H

Range hood diagram

Front trim 36" vrhw3619 (1") (br, ss)

Part #PV100021

The manufacturer no longer makes this part, and there's no substitute part

Back Draft Damper PV110015
#2

Range hood diagram

Back draft damper

Part #PV110015

The manufacturer no longer makes this part, and there's no substitute part

Front Trim (front/rear) 42" Vrhi/vih (br, Ss) PV100015
#28B

Range hood diagram

Front trim (front/rear) 42" vrhi/vih (br, ss)

Part #PV100015

The manufacturer no longer makes this part, and there's no substitute part

Left Blower Wheel/red PV110006
#6

Range hood diagram

Left blower wheel/red

Part #PV110006

The manufacturer no longer makes this part, and there's no substitute part

Grease Shield (specify Color When Ordering Enamel Parts) PV110010
#19

Range hood diagram

Grease shield (specify color when ordering enamel parts)

Part #PV110010

The manufacturer no longer makes this part, and there's no substitute part

Slide Switch PV120001
#8

Range hood diagram

Slide switch

Part #PV120001

The manufacturer no longer makes this part, and there's no substitute part
