GE JTP27BA1BB wall oven

GE JTP27BA1BB wall oven Parts

Here are the diagrams and repair parts for GE JTP27BA1BB wall oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

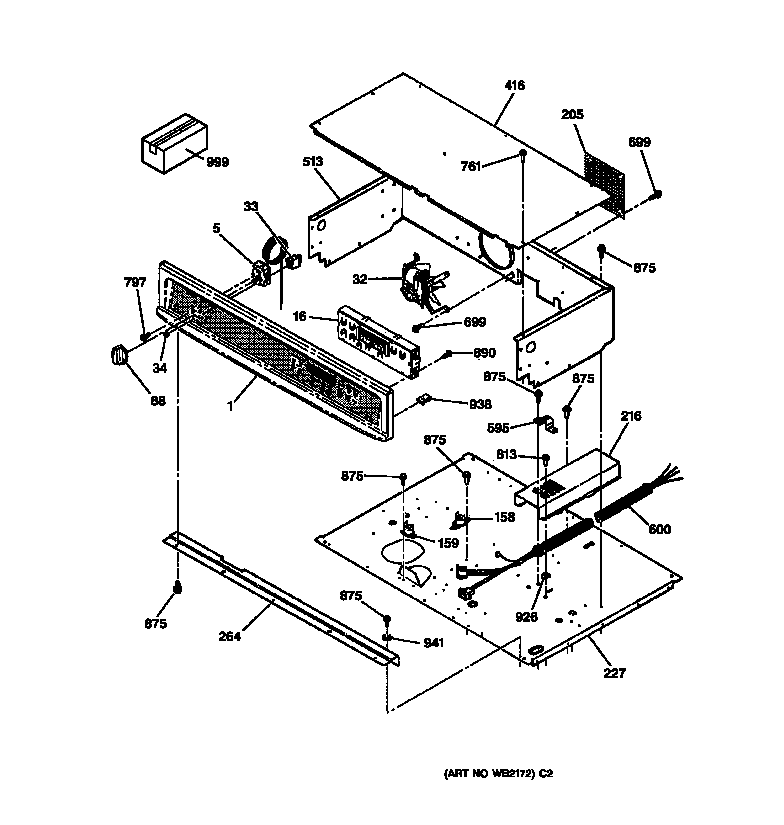

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JTP27BA1BB Wall Ovens

  • Range Oven Door Lock Assembly for GE JTP27BA1BB - Part WB49T10020

    Door lock diagram

    Lock Motor

    Part #WB26K5030

    Replaced by #WB49T10020

    Info Icon
    Manufacturer substitution
    This part replaces WB26K5030. Substitute parts can look different from the original.
    In Stock
    $145.49
    8% OFF Phone Price : $157.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Rack for GE JTP27BA1BB - Part WB48T10095

    Oven Rack

    Part #WB48K5019

    Replaced by #WB48T10095

    Info Icon
    Manufacturer substitution
    This part replaces WB48K5019. Substitute parts can look different from the original.
    In Stock
    $63.25
    9% OFF Phone Price : $69.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JTP27BA1BB - Part WB1X1130

    Screw-10-32

    Part #WB1X1253

    Replaced by #WB1X1130

    Info Icon
    Manufacturer substitution
    This part replaces WB1X1253. Substitute parts can look different from the original.
    In Stock
    $9.86
    9% OFF Phone Price : $10.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for GE JTP27BA1BB - Part WB44T10005

    Range Bake Element

    Part #WB44T10005
    In Stock
    $152.81
    7% OFF Phone Price : $164.81Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JTP27BA1BB - Part WB1X536

    Screw

    Part #WB1K5028

    Replaced by #WB1X536

    Info Icon
    Manufacturer substitution
    This part replaces WB1K5028. Substitute parts can look different from the original.
    In Stock
    $10.32
    16% OFF Phone Price : $12.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for GE JTP27BA1BB - Part WB1K5029

    Screw

    Part #WB1K5029
    This item is not returnable
    In Stock
    $36.54
    Minus Item
    Qty
    Plus Item
  • Wall Oven Screw for GE JTP27BA1BB - Part WB1K5157

    #NI

    All parts diagram

    Wall Oven Screw

    Part #WB1K5157
    This item is not returnable
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JTP27BA1BB - Part WB1X1137

    Range Screw

    Part #WB1X1137
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for GE JTP27BA1BB - Part WB44K5017

    Range Broil Element

    Part #WB44K5017
    In Stock
    $175.62
    6% OFF Phone Price : $187.62Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan And Insert, 12-3/4 X 16-1/2-in for GE JTP27BA1BB - Part WB48X10056

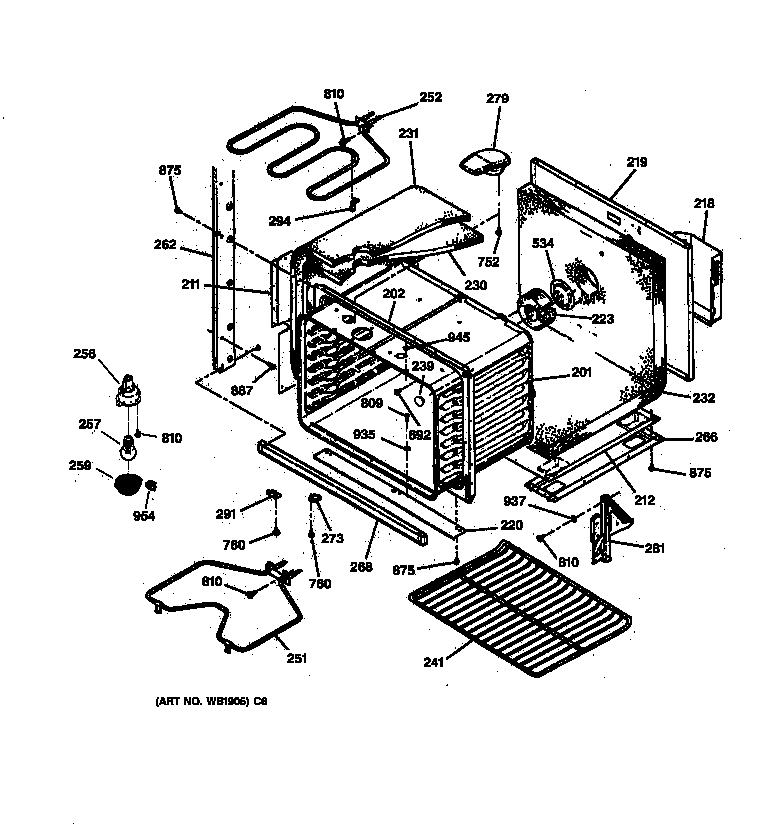

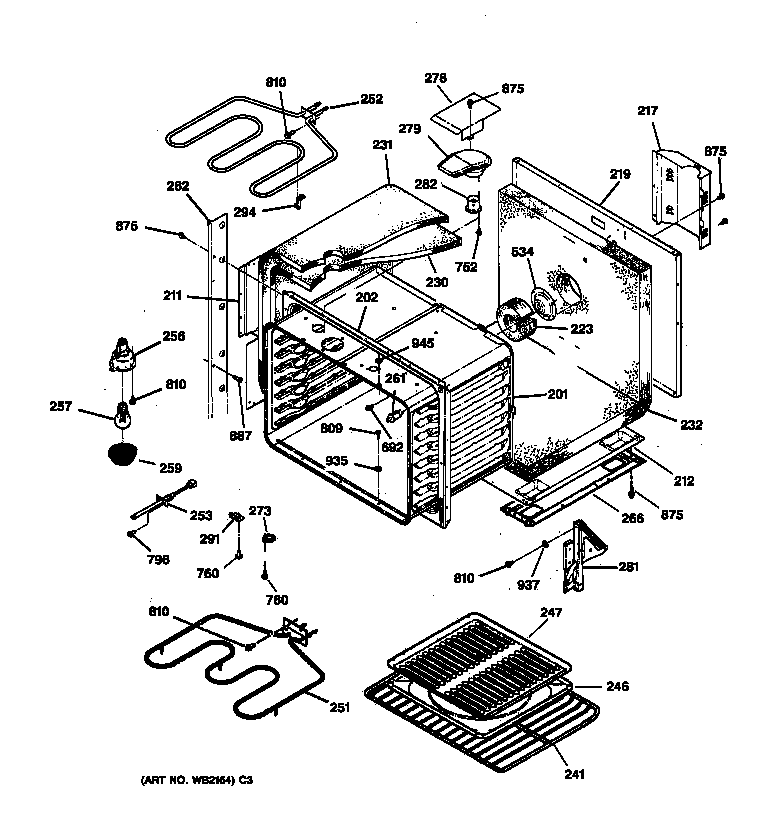

    Upper body diagram

    Broiler Pan

    Part #WB48T10007

    Replaced by #WB48X10056

    Info Icon
    Manufacturer substitution
    This part replaces WB48T10007. Substitute parts can look different from the original.
    In Stock
    $36.11
    14% OFF Phone Price : $42.11Info Icon
    Minus Item
    Qty
    Plus Item
