GE
Room Air Conditioner

Model # ASH12ACS1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE ASH12ACS1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Ash08+8 Rac 49-7442
#999

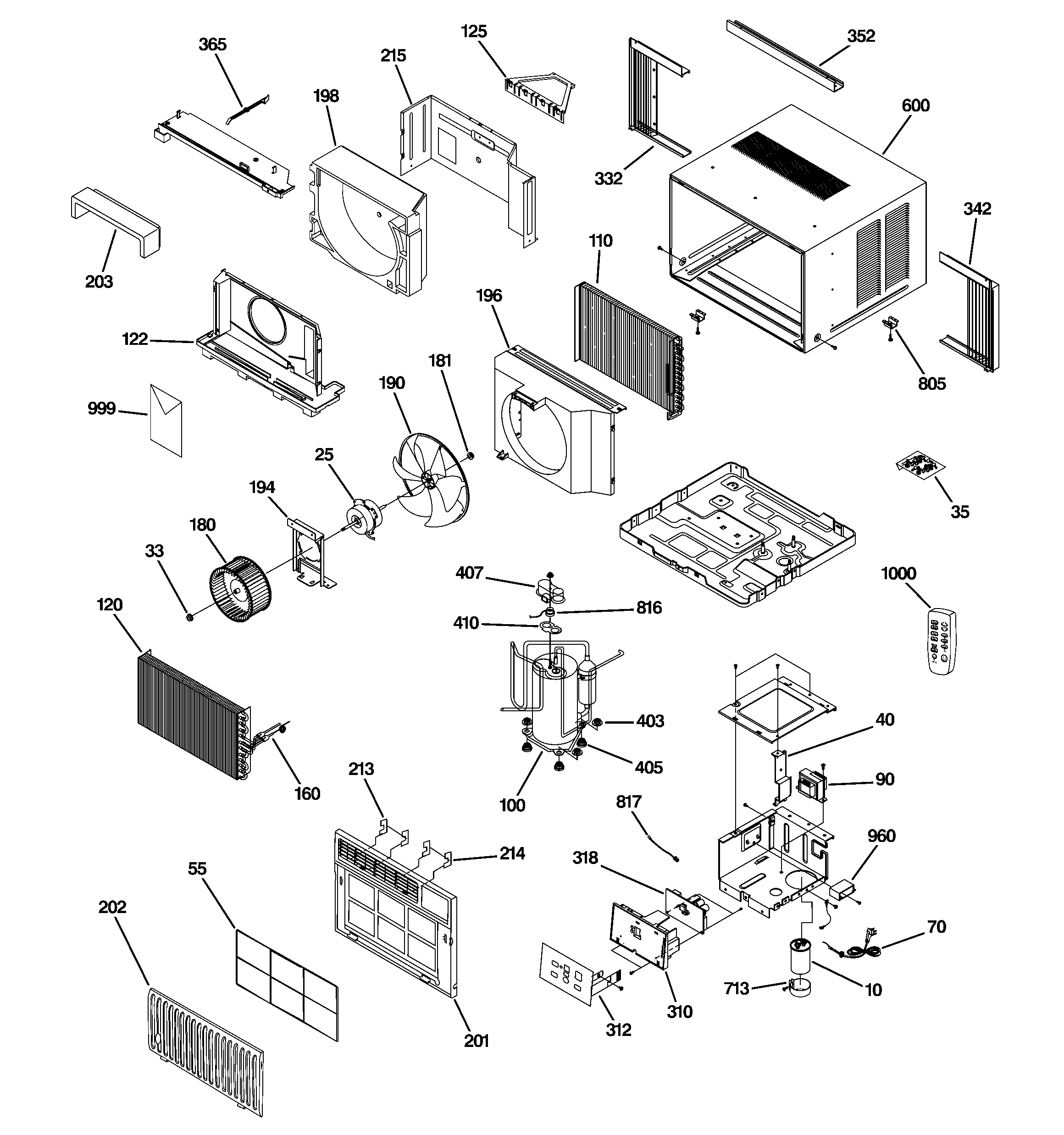

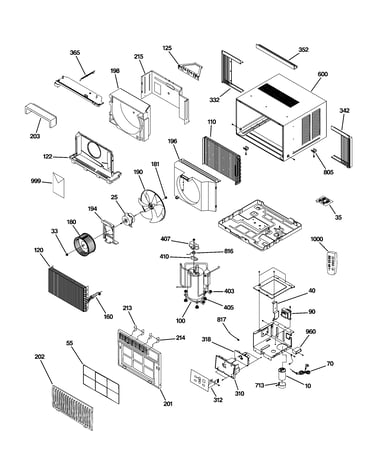

Room air conditioner diagram

Ash08+8 rac

Part #49-7442

Replaced by #49-7458

?
Manufacturer substitution
This part replaces 49-7442. Substitute parts can look different from the original.
$17.99
In Stock
Air Conditioner Blower WJ73X10071
#180

Room air conditioner diagram

Air conditioner blower

Part #WJ73X10071

The manufacturer no longer makes this part, and there's no substitute part

Overload Protector WJ23X10033
#816

Room air conditioner diagram

Overload protector

Part #WJ23X10033

The manufacturer no longer makes this part, and there's no substitute part

Case Condenser WJ76X10118
#196

Room air conditioner diagram

Case condenser

Part #WJ76X10118

The manufacturer no longer makes this part, and there's no substitute part

Outer Case WJ90X10038
#600

Room air conditioner diagram

Outer case

Part #WJ90X10038

The manufacturer no longer makes this part, and there's no substitute part

Clip Capacitor WJ03X10023
#713

Room air conditioner diagram

Clip capacitor

Part #WJ03X10023

The manufacturer no longer makes this part, and there's no substitute part

Link Blade WJ71X10285
#214

Room air conditioner diagram

Link blade

Part #WJ71X10285

The manufacturer no longer makes this part, and there's no substitute part

Lever Damper WJ14X10051
#365

Room air conditioner diagram

Lever damper

Part #WJ14X10051

The manufacturer no longer makes this part, and there's no substitute part

Gasket WJ43X10018
#410

Room air conditioner diagram

Gasket

Part #WJ43X10018

The manufacturer no longer makes this part, and there's no substitute part

Mounter-moto WJ65X10055
#194

Room air conditioner diagram

Mounter-moto

Part #WJ65X10055

The manufacturer no longer makes this part, and there's no substitute part
