MTD
Gas Walk-Behind Mower

Model # 11A-549Q755 Official MTD lawn mower

Here are the diagrams and repair parts for Official MTD 11A-549Q755 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Blade-21" Mu 742-0741
#16

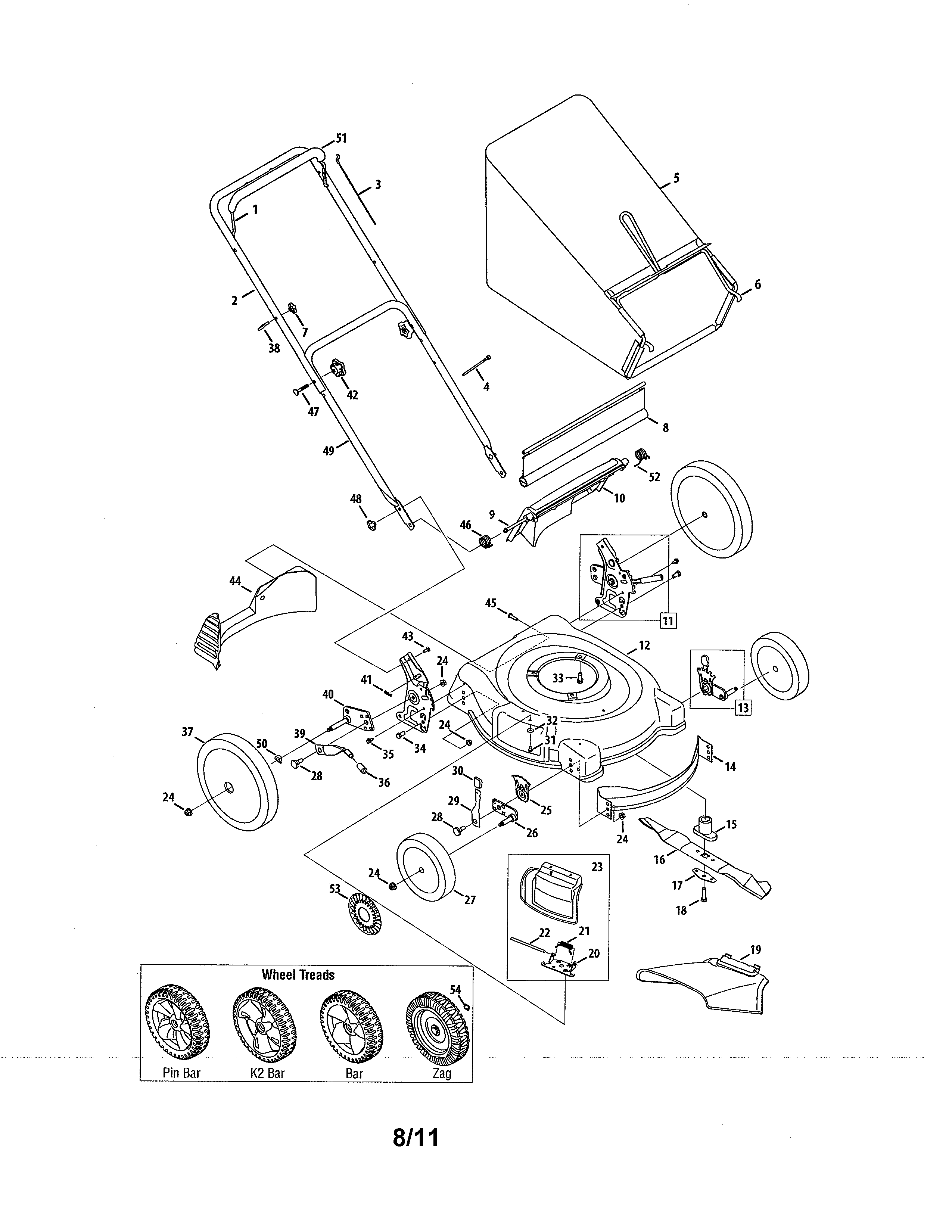

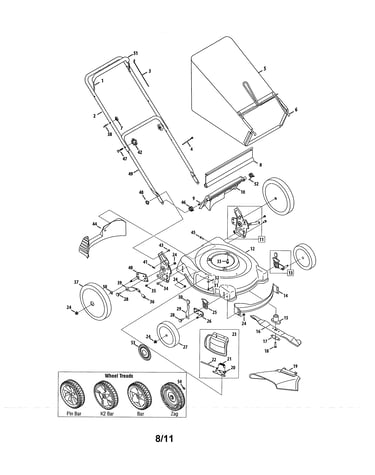

Lawn mower diagram

Blade-21" mu

Part #742-0741

Replaced by #942-0741A

?
Manufacturer substitution
This part replaces 742-0741. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.71 |
18% OFF Phone Price : $33.71
In Stock
Lawn Mower Blade Support (replaces 936-0524a) 736-0524B
#17

Lawn mower diagram

Lawn mower blade support (replaces 936-0524a)

Part #736-0524B

Replaced by #736-0524B-1

?
Manufacturer substitution
This part replaces 736-0524B. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$6.29 |
14% OFF Phone Price : $7.29
In Stock
Yard Machines Lawn Tractor Flange Nut (replaces 00012173, Wd-129-103) 712-04065
#24

Lawn mower diagram

Yard machines lawn tractor flange nut (replaces 00012173, wd-129-103)

Part #712-04065

BEST SELLER
This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
Knob 720-04072
#42

Lawn mower diagram

Knob

Part #720-04072

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 720-04072. Substitute parts can look different from the original.
BEST SELLER
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Hinge Pin 747-0710
#22

Lawn mower diagram

Hinge pin

Part #747-0710

Replaced by #747-0710A

?
Manufacturer substitution
This part replaces 747-0710. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.42 |
18% OFF Phone Price : $5.42
Back Order
Lawn Mower Control Cable 746-1130
#3A

Lawn mower diagram

Lawn mower control cable

Part #746-1130

Replaced by #946-1130

?
Manufacturer substitution
This part replaces 746-1130. Substitute parts can look different from the original.
This item is not returnable
$14.49 |
12% OFF Phone Price : $16.49
In Stock
Yard Machines Lawn Mower Wheel 734-1987
#27B

Lawn mower diagram

Yard machines lawn mower wheel

Part #734-1987

$24.93 |
19% OFF Phone Price : $30.93
In Stock
Control Cable 746-0957
#3

Lawn mower diagram

Control cable

Part #746-0957

Replaced by #946-0957

?
Manufacturer substitution
This part replaces 746-0957. Substitute parts can look different from the original.
This item is not returnable
$18.67 |
10% OFF Phone Price : $20.67
In Stock
Yard Machines Lawn & Garden Equipment Wing Nut (replaces 01002925, 920-0279) 720-0279
#7

Lawn mower diagram

Yard machines lawn & garden equipment wing nut (replaces 01002925, 920-0279)

Part #720-0279

This item is not returnable
$6.87 |
13% OFF Phone Price : $7.87
In Stock
Yard Machines Lawn & Garden Equipment Guide Bolt 710-1205
#38

Lawn mower diagram

Yard machines lawn & garden equipment guide bolt

Part #710-1205

This item is not returnable
$5.01 |
17% OFF Phone Price : $6.01
In Stock
