Model #G30LPNL1 Official Frigidaire gas range - 5995204731
Here are the diagrams and repair parts for Frigidaire G30LPNL1 gas range - 5995204731, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

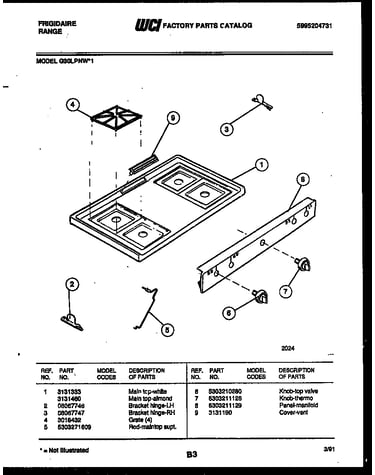

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 92 parts
All parts Diagram
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it doesn’t control the oven light properly.
Learn how to troubleshoot a coil surface element on your stove that won't heat.
