KitchenAid KGCU407VSS02 counter unit

KitchenAid KGCU407VSS02 counter unit Parts

Here are the diagrams and repair parts for KitchenAid KGCU407VSS02 counter unit, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KGCU407VSS02 Cooktops

  • Range Spark Module for KitchenAid KGCU407VSS02 - Part WPW10475147

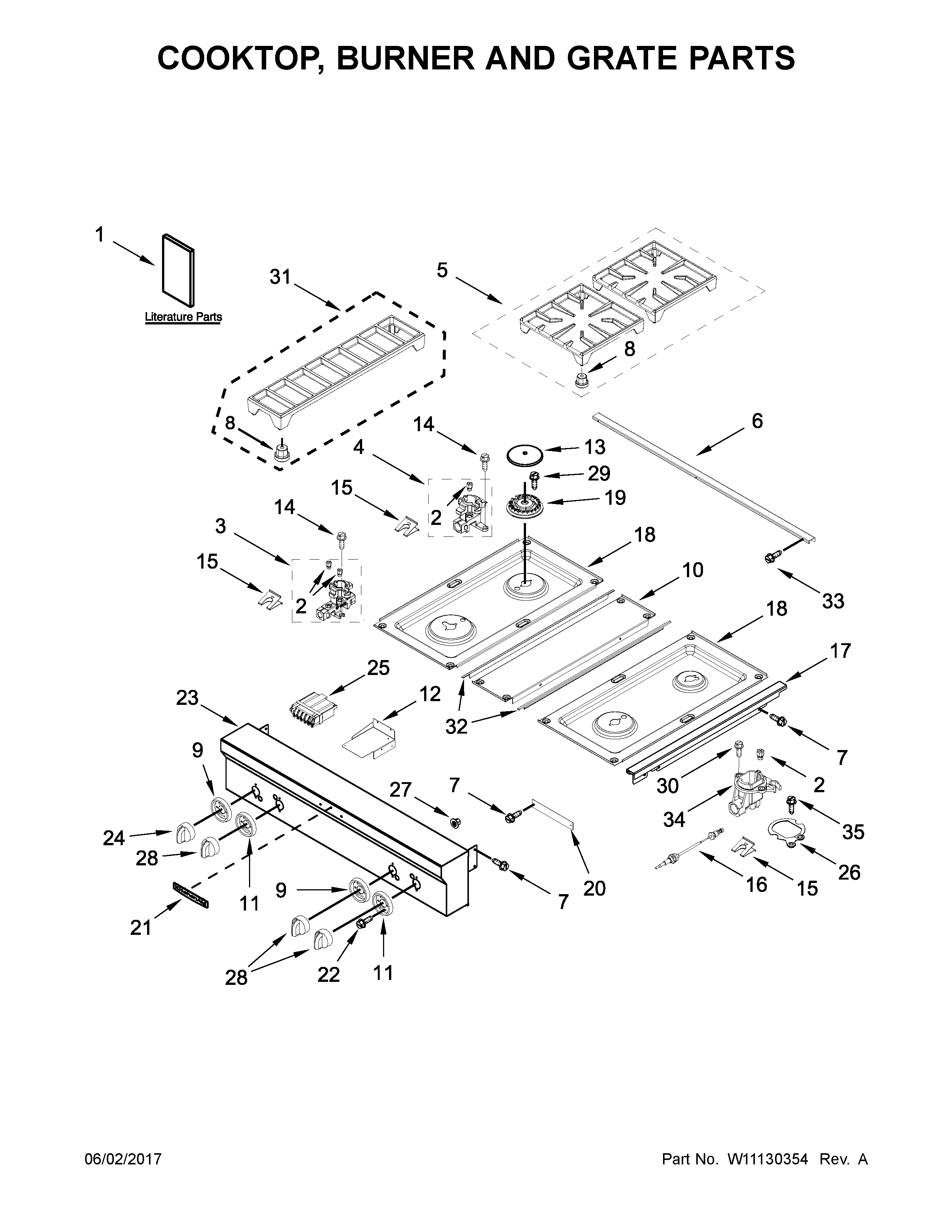

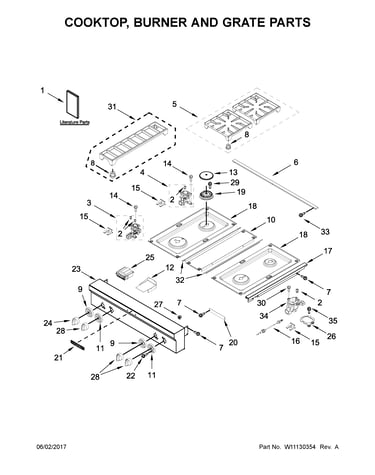

    Cooktop, burner and grate parts diagram

    Range Spark Module

    Part #W10475147

    Replaced by #WPW10475147

    Info Icon
    Manufacturer substitution
    This part replaces W10475147. Substitute parts can look different from the original.
    In Stock
    $199.83
    6% OFF Phone Price : $211.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Surface Igniter for KitchenAid KGCU407VSS02 - Part W10854967

    Cooktop, burner and grate parts diagram

    Surface Igniter

    Part #8286725

    Replaced by #W10854967

    Info Icon
    Manufacturer substitution
    This part replaces 8286725. Substitute parts can look different from the original.
    In Stock
    $26.16
    19% OFF Phone Price : $32.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Valve And Igniter Switch, Left Front for KitchenAid KGCU407VSS02 - Part WPW10385582

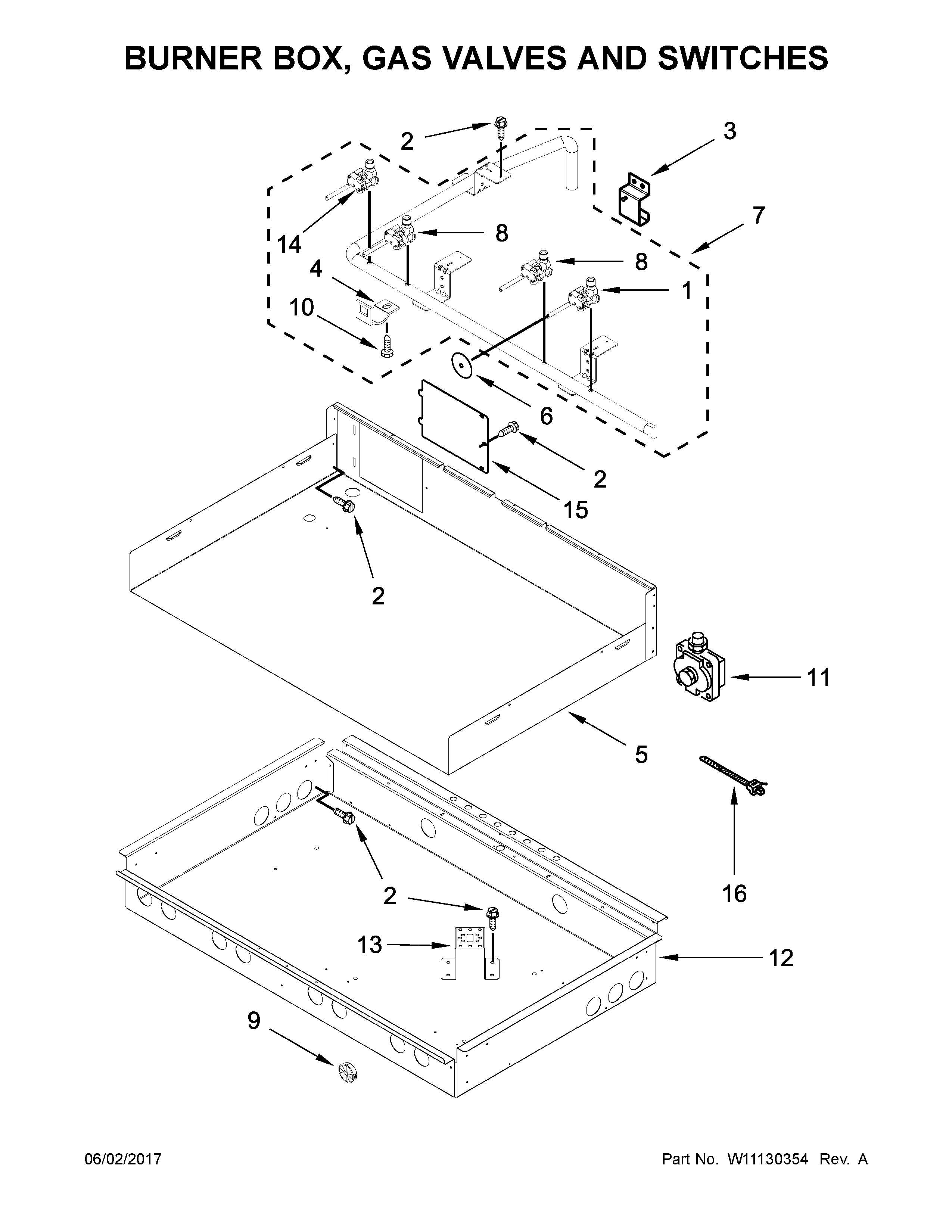

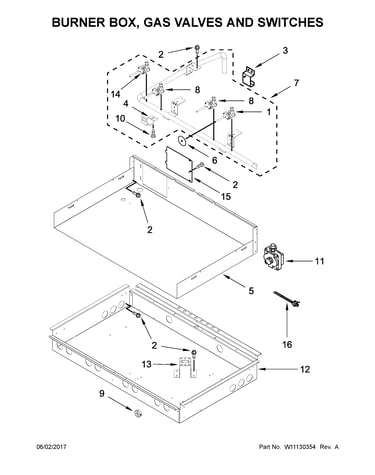

    Burner box, gas valves and switches diagram

    Cooktop Burner Valve

    Part #W10385582

    Replaced by #WPW10385582

    Info Icon
    Manufacturer substitution
    This part replaces W10385582. Substitute parts can look different from the original.
    In Stock
    $192.29
    6% OFF Phone Price : $204.29Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Valve for KitchenAid KGCU407VSS02 - Part WPW10371235

    Burner box, gas valves and switches diagram

    Range Surface Burner Valve

    Part #W10371235

    Replaced by #WPW10371235

    Info Icon
    Manufacturer substitution
    This part replaces W10371235. Substitute parts can look different from the original.
    In Stock
    $140.44
    27% OFF Was : $192.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Valve, Right Rear for KitchenAid KGCU407VSS02 - Part WPW10385583

    Burner box, gas valves and switches diagram

    Cooktop Burner Valve

    Part #W10385583

    Replaced by #WPW10385583

    Info Icon
    Manufacturer substitution
    This part replaces W10385583. Substitute parts can look different from the original.
    In Stock
    $183.64
    6% OFF Phone Price : $195.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Igniter Clip for KitchenAid KGCU407VSS02 - Part 8286863

    Cooktop, burner and grate parts diagram

    Range Surface Burner Igniter Clip

    Part #8286863
    In Stock
    $37.33
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Head for KitchenAid KGCU407VSS02 - Part WPW10256027

    Cooktop, burner and grate parts diagram

    Range Burner Head

    Part #W10256027

    Replaced by #WPW10256027

    Info Icon
    Manufacturer substitution
    This part replaces W10256027. Substitute parts can look different from the original.
    In Stock
    $43.73
    35% OFF Was : $67.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Cap for KitchenAid KGCU407VSS02 - Part WPW10256034

    Cooktop, burner and grate parts diagram

    Range Surface Burner Cap

    Part #W10256034

    Replaced by #WPW10256034

    Info Icon
    Manufacturer substitution
    This part replaces W10256034. Substitute parts can look different from the original.
    In Stock
    $108.64
    10% OFF Phone Price : $120.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw, Burne for KitchenAid KGCU407VSS02 - Part W11676349

    Cooktop, burner and grate parts diagram

    Amana Screw

    Part #8286921

    Replaced by #W11676349

    Info Icon
    Manufacturer substitution
    This part replaces 8286921. Substitute parts can look different from the original.
    In Stock
    $36.21
    Minus Item
    Qty
    Plus Item
  • Cooktop Backguard (stainless) for KitchenAid KGCU407VSS02 - Part W10115773

    Optional parts (not included) diagram

    Cooktop Backguard (stainless)

    Part #W10115773
    In Stock
    $282.85
    Minus Item
    Qty
    Plus Item
