Model #106175362 Official Craftsman air compressor
Here are the diagrams and repair parts for Craftsman 106175362 air compressor, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

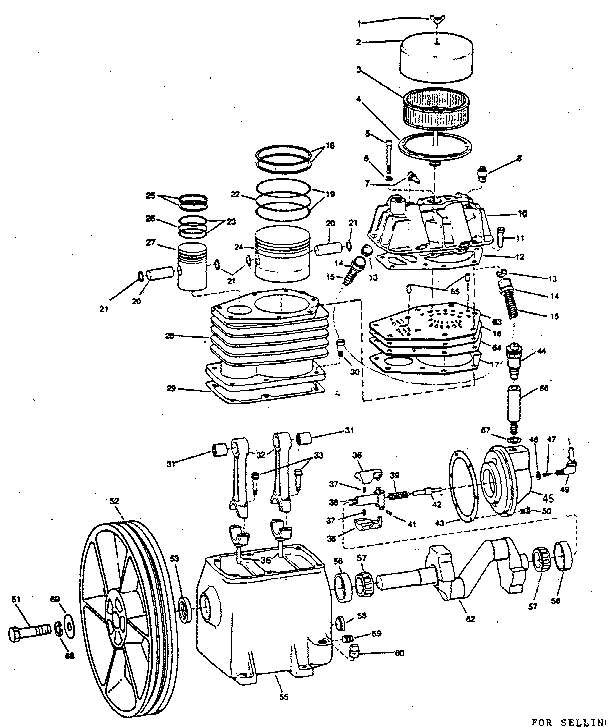

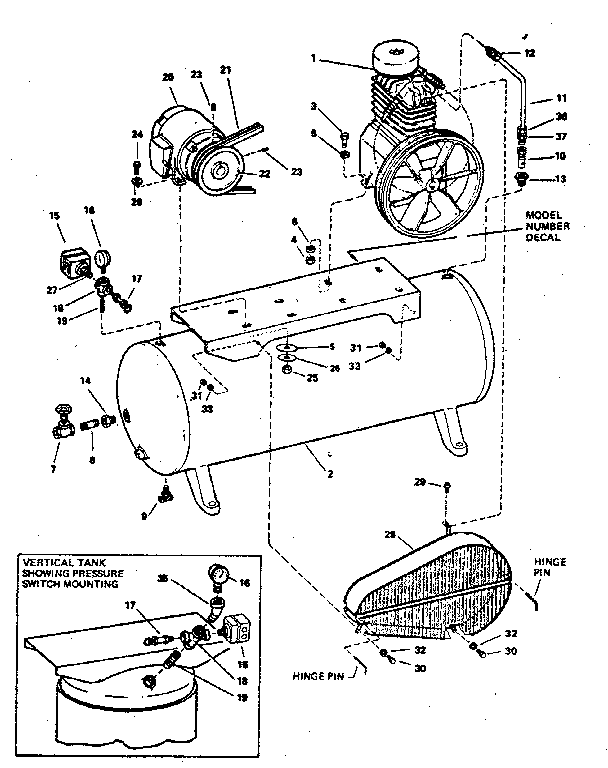

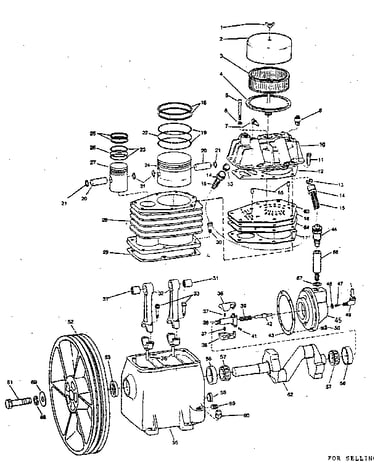

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 120 parts
Washer
Part #ST070914AV
The manufacturer no longer makes this part, and there's no substitute part
Gasket
Part #XA006200AV
The manufacturer no longer makes this part, and there's no substitute part
Hex screw
Part #ST067200AV
The manufacturer no longer makes this part, and there's no substitute part
Gasket kit
Part #TF007100AJ
The manufacturer no longer makes this part, and there's no substitute part
Nipple
Part #ST070303AV
The manufacturer no longer makes this part, and there's no substitute part
Hex screw
Part #ST024300AV
The manufacturer no longer makes this part, and there's no substitute part
Nut
Part #ST057600AV
The manufacturer no longer makes this part, and there's no substitute part
Low-pressure piston assembly
Part #TF002400AJ
The manufacturer no longer makes this part, and there's no substitute part
Air receiver
Part #TF003600AV
The manufacturer no longer makes this part, and there's no substitute part
Air compressor reed gasket
Part #TF022200AV
The manufacturer no longer makes this part, and there's no substitute part
Symptoms common to all air compressors
Repair guides common to all air compressors
You can replace a broken air compressor pressure switch in about 45 minutes.
If the air compressor won't fill the tank with compressed air, rebuild the pump using these steps in about 45 minutes.
You can replace a defective air compressor check valve in about 10 minutes.
Articles and videos common to all air compressors
Find out how to reduce air compressor noise.
See how to perform routine maintenance on your oil-lubricated air compressor.
Learn how to maintain an oil-less air compressor for safe and efficient operation.
