Speed Queen ADE4BRGS175TW01 START S#2001000001 dryer Parts

Speed Queen dryer model ADE4BRGS175TW01 does not use a dedicated reset button; “reset” means stopping the cycle and returning the controls to a start-ready state. Turn the timer to OFF (or open the door), then close the door, reset the timer if needed, and press Start or push in the timer knob. See the ADE4BRGS175TW01 owner's manual.

Reset and restart steps

• Turn the timer knob to OFF.
• Open and close the door firmly (re-engages the door switch).
• Re-select the cycle and temperature.
• Press Start (if equipped) or push in the timer knob.
• If it still will not start, unplug for 1 minute, then retry.

If it still will not start

• No power: Check the breaker (electric dryers often need both legs of 240V).
• Door not latching: Make sure the door closes fully and the latch catches.

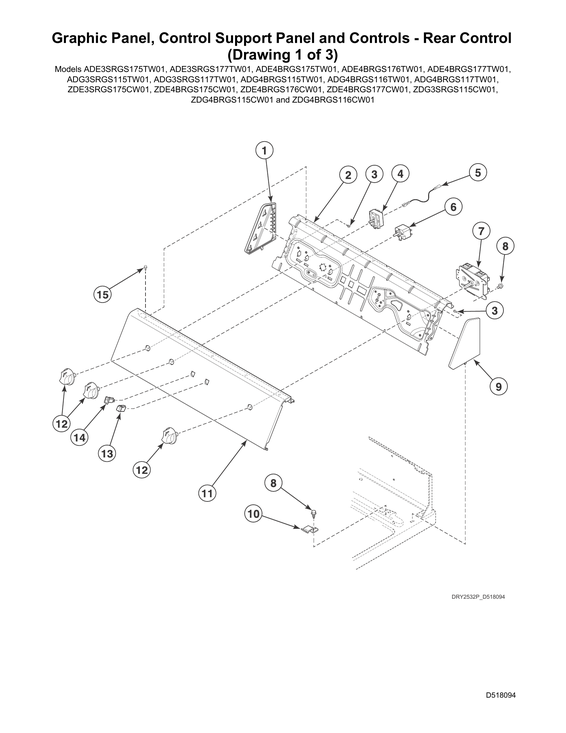

• Knob slipping: A loose knob can prevent proper timer selection; replace the knob assembly 806597 if it will not grip the shaft.
• Motor hums, no run: A tight drum or failed motor can stop startup; the dryer drive motor D511629P is the listed motor for this model.

Quick symptom guide

What you see	What it usually means	First check
Nothing happens	Power or door switch not made	Breaker, door closure
Hums but won’t run	Motor or drum binding	Drum turns by hand, motor
Starts only with knob held	Timer/knob not engaging	Knob fit, timer setting

Why it matters

This dryer is designed to stop immediately when the door opens or the timer is moved to OFF; it will not restart until the door switch and timer/start control are set correctly.

Parts for ADE4BRGS175TW01 can be ordered from the parts list for this model, or you can search by model number on Sears PartsDirect.

Last updated: February 2026

Common problems with the Speed Queen ADE4BRGS175TW01 dryer are long dry times from restricted venting, no heat from a failed heating component, squealing or thumping from worn drum support parts, and a no-start condition from a bad switch or power issue. We use the ADE4BRGS175TW01 owner's manual to match symptoms to the right checks.

Most common symptoms and what they usually mean

• Dryer takes too long to dry: restricted venting, lint buildup, or an overloaded drum

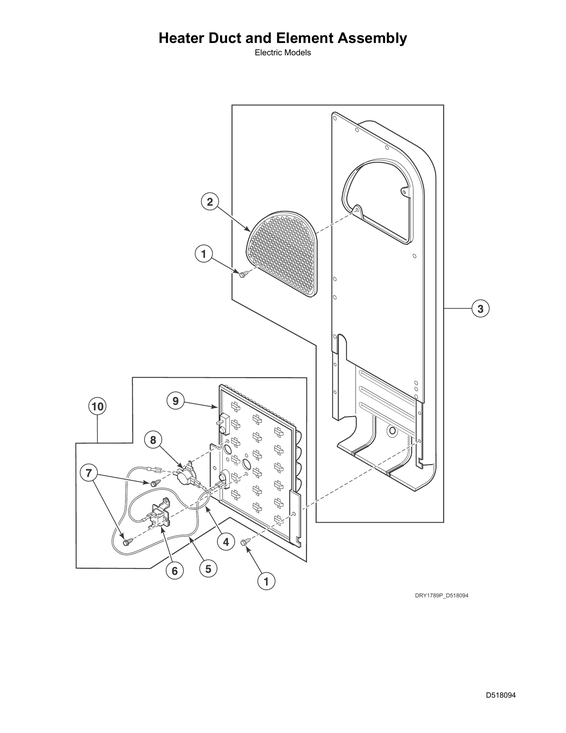

• No heat or weak heat: failed heater circuit component (heater kit, heating element, thermostat, thermal fuse)
• Squealing or grinding noise: worn belt, idler wheel, or drum rollers
• Thumping: flat-spotted or worn drum rollers
• Won’t start: door switch, start switch, timer/control issue, or supply power problem

Quick checks we recommend first (fast, high-impact)

1. Clean the lint screen and confirm strong airflow at the outside vent hood.
2. Inspect the vent run for kinks, crushing, or heavy lint restriction.
3. Run a timed cycle with a medium load to compare performance.
4. If the cycle advances slowly in an auto-sensing cycle, reduce load size and sort by fabric weight.
5. If you smell gas: follow the safety steps in the manual immediately and stop using the dryer.

Parts that commonly fix noise and tumbling problems

If the drum turns but you hear squealing, scraping, or thumping, these model-matched parts are frequent fixes:

Symptom	Likely wear item	Example part for this model

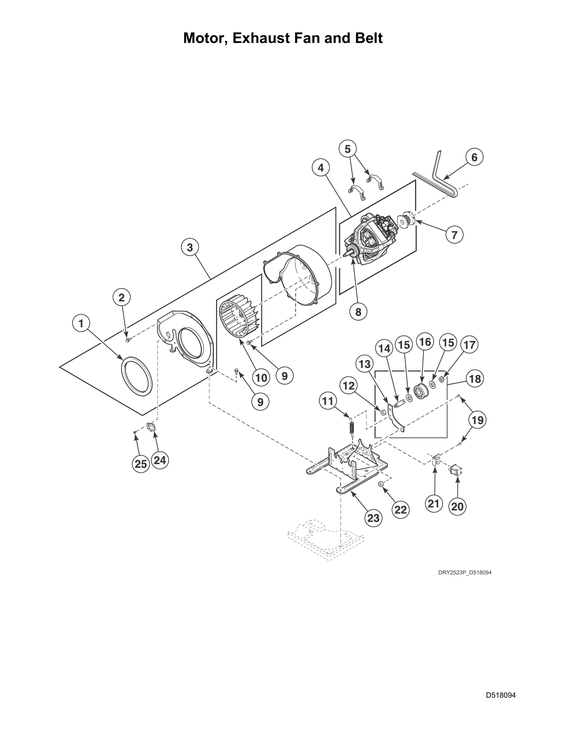

Squealing	Belt or idler wheel	Commercial dryer drum belt D511255P or idler wheel and bearing assembly D510142P

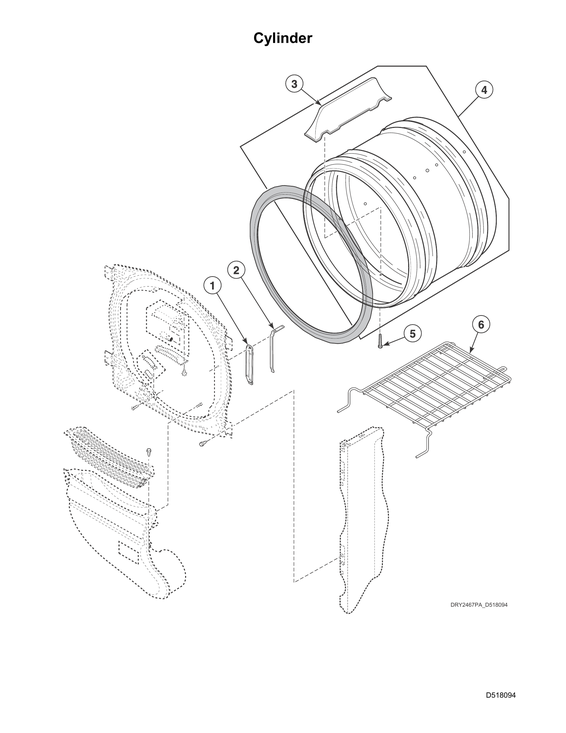

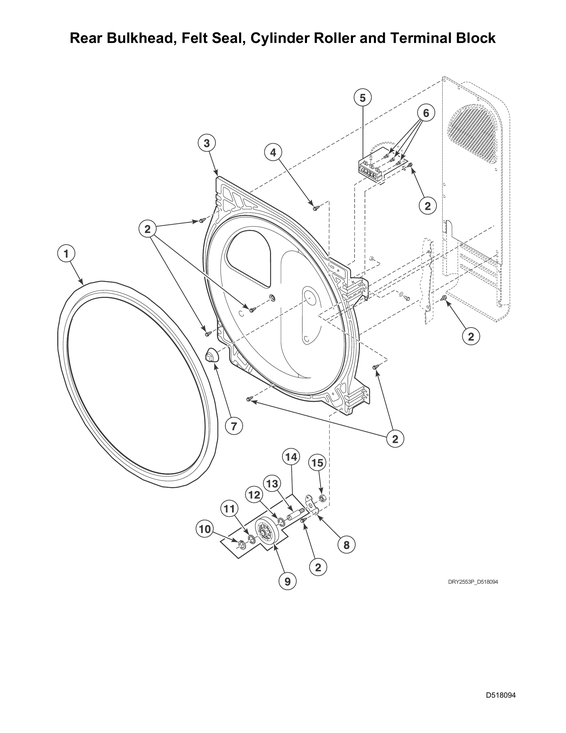

Thumping	Drum rollers	Cylinder roller D510708P
Drum won’t tumble	Drive system issue	Dryer drive motor D511629P (less common, higher cost)

Why it matters

Restricted venting and lint buildup do more than slow drying; they also raise operating temperatures and can shorten the life of heating and drive components. The manual also calls out plugged or kinked venting and lint cleaning as common service-call causes.

You can order replacement parts for ADE4BRGS175TW01 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

A Speed Queen dryer typically lasts about 25 years in normal home use. For your Speed Queen ADE4BRGS175TW01, real-world life depends most on airflow (venting and lint control), load habits, and timely replacement of wear items like the drum belt and idler components; see the ADE4BRGS175TW01 owner's manual for care and operating guidance.

Typical lifespan: Speed Queen vs. most dryers

Speed Queen dryers are built with commercial-style components, so their expected service life is longer than many residential dryers.

Dryer type	Typical life expectancy	What usually ends the run
Speed Queen residential/commercial-style	~25 years	Wear parts, airflow neglect, motor or heater failures
Typical residential dryer	~10 to 15 years	Heating system, motor, drum support wear

What extends the life of ADE4BRGS175TW01

We see the biggest longevity gains from basic maintenance and keeping the dryer running cool and free-flowing.

• Clean the lint screen every load; wash and dry it periodically to remove residue.
• Keep venting short, smooth, and unkinked; restricted venting is a common cause of service calls.
• Avoid chronic overloading; it accelerates belt, roller, and idler wear.
• Listen for early warning noises (squeal, thump, rumble) and replace wear parts before they damage the drum.
• Use the right cycle for the load; auto-sensing cycles can run longer with wetter, heavier loads.

Wear parts that commonly determine “how long it lasts”

If the dryer runs but starts squealing, slipping, or tumbling poorly, these model-matched parts are common fixes:

• Commercial dryer drum belt D511255P
• Idler wheel and bearing assembly D510142P
• Idler lever and wheel assembly (includes items 12 -17) D516792
• Cylinder roller D510708P

Why it matters

A dryer can be mechanically “fine” but still feel worn out if airflow is restricted; that leads to long dry times, higher heat stress on the heater and motor, and faster breakdown of drum support parts. Keeping venting and lint areas clean is the simplest way to protect a 25-year lifespan.

Replacement parts for ADE4BRGS175TW01 can be ordered from the parts list for this model, or you can search by model number on Sears PartsDirect.

Last updated: February 2026

If your Speed Queen ADE4BRGS175TW01 dryer has power but will not start, the most common causes are the door not fully closed, the timer/START not engaged, a tripped breaker or blown fuse in the home circuit, or the motor overload protector needing time to reset. Use the steps below and confirm details in the ADE4BRGS175TW01 owner's manual.

Quick checks we recommend first

• Make sure the power cord is fully seated in the outlet.

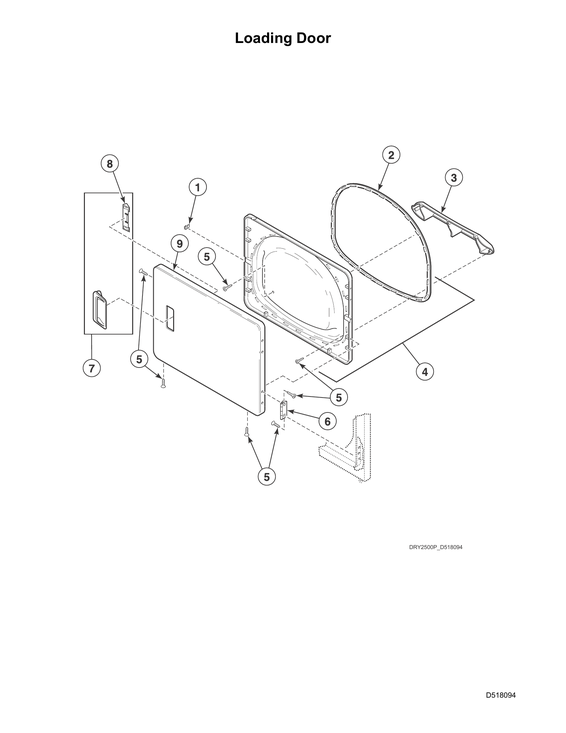

• Close the loading door firmly; the dryer will not run with the door open.
• Select a cycle and push the timer knob in (or engage the START mechanism).
• Check the home electrical supply; many dryers use a 2-breaker or 2-fuse circuit and both must be on.
• If the motor overload protector tripped, wait 10 minutes, then try again.

If it still will not start: likely failure points

What you notice	What it usually points to	Next step
Must slam door to start, or stops when door is bumped	Door switch not closing reliably	Test door switch continuity; replace if intermittent
Hums but drum will not turn	Belt or idler problem	Inspect belt and idler for wear or binding
Won’t restart until it cools	Motor overload cycling or failing motor	Check for drum drag; inspect motor if repeatable

Parts that commonly fix a no-start condition

If the drum is hard to turn by hand (power disconnected), fix the drag first; a tight drum can trip the motor overload.

• Replace a broken belt with the Speed queen commercial dryer drum belt D511255P.
• If the belt is intact but loose or squealing, inspect the idler; replace the Speed queen idler wheel and bearing assembly D510142P if worn.
• If the idler arm or wheel assembly is damaged, replace the Speed queen idler lever and wheel assembly (includes items 12 -17) D516792.

Why it matters

A no-start condition is often a safety interlock (door switch) or motor protection (overload). Correcting the root cause prevents repeat shutdowns and reduces wear on the drive motor.

Ordering the right replacement part

We list model-matched replacement parts for ADE4BRGS175TW01 on the parts list for this model; for broader model searches, use Sears PartsDirect.
