Model # DCCH43GA3WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE DCCH43GA3WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

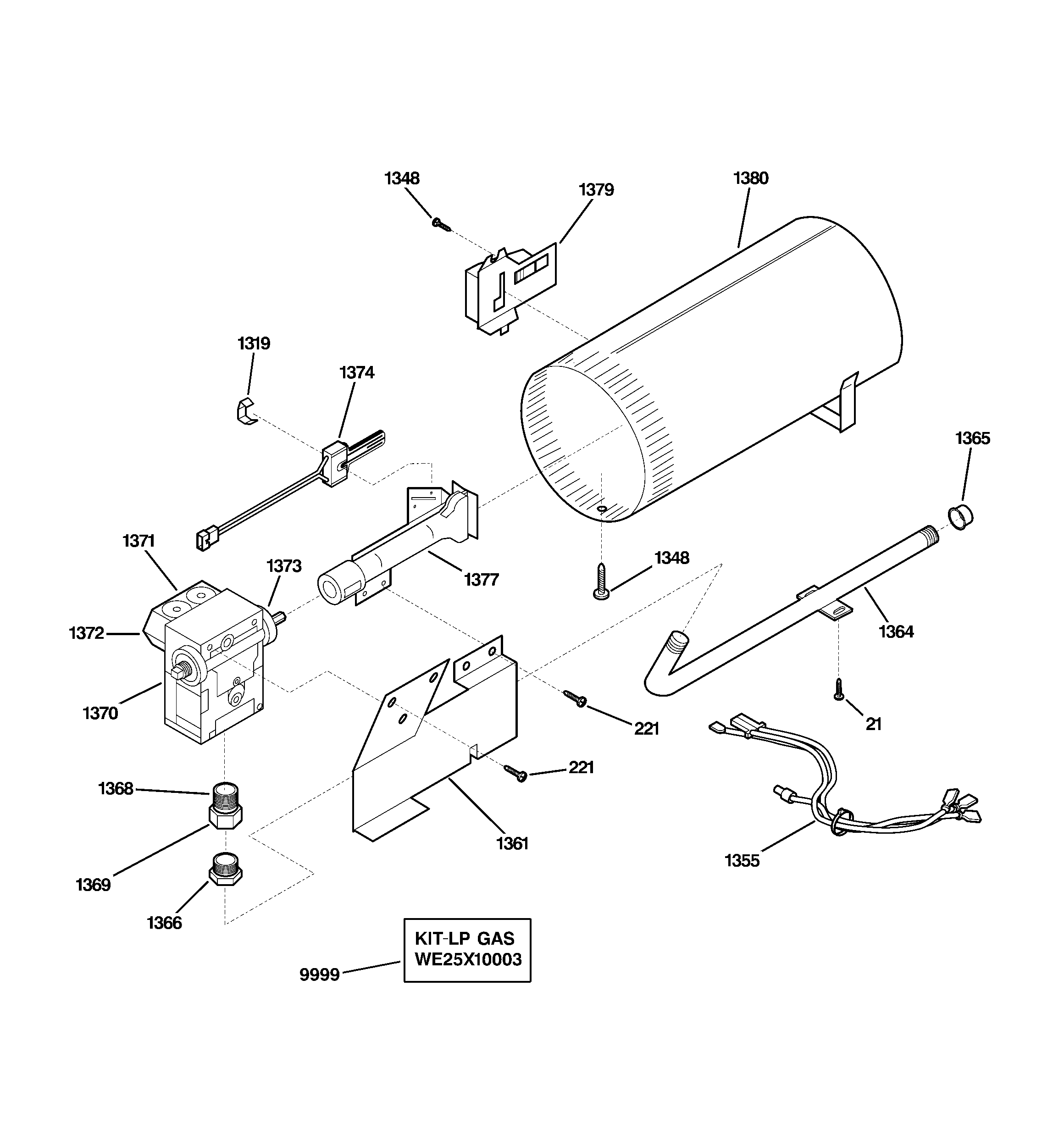

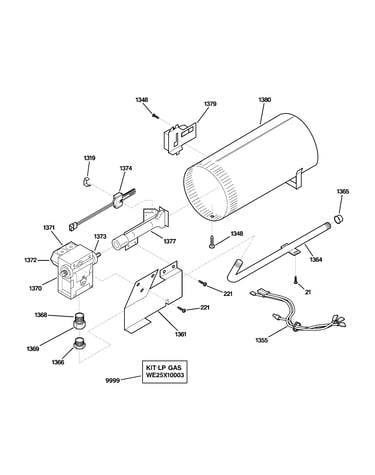

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |

Dryer Drum Felt Seal, Upper WE09X10013
#1220

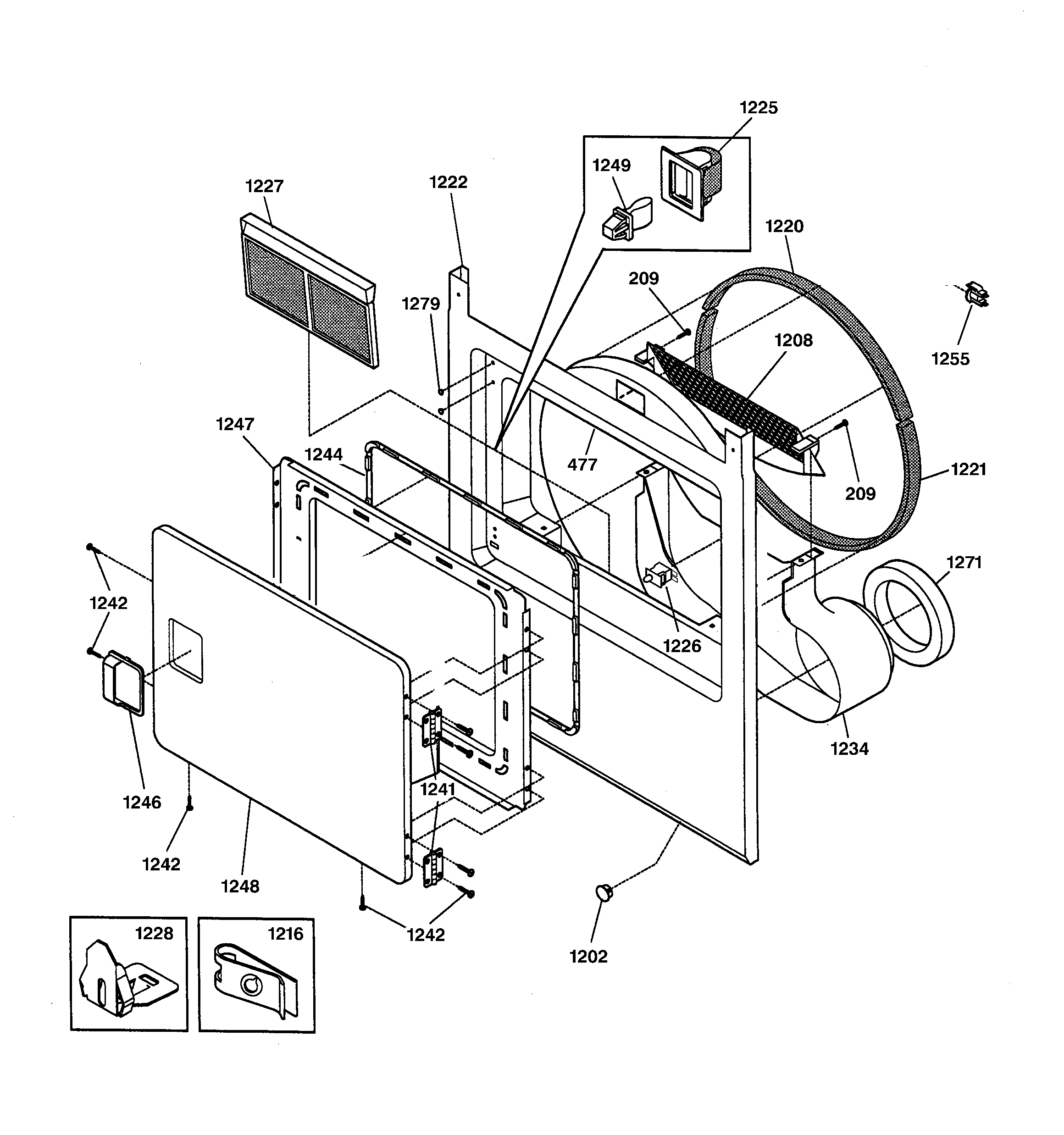

Front panel & door diagram

Dryer drum felt seal, upper

Part #WE09X10013

$76.76
6% OFF Phone Price : $81.76
In Stock
Dryer Drum Front Glide WE03X10007
#1124

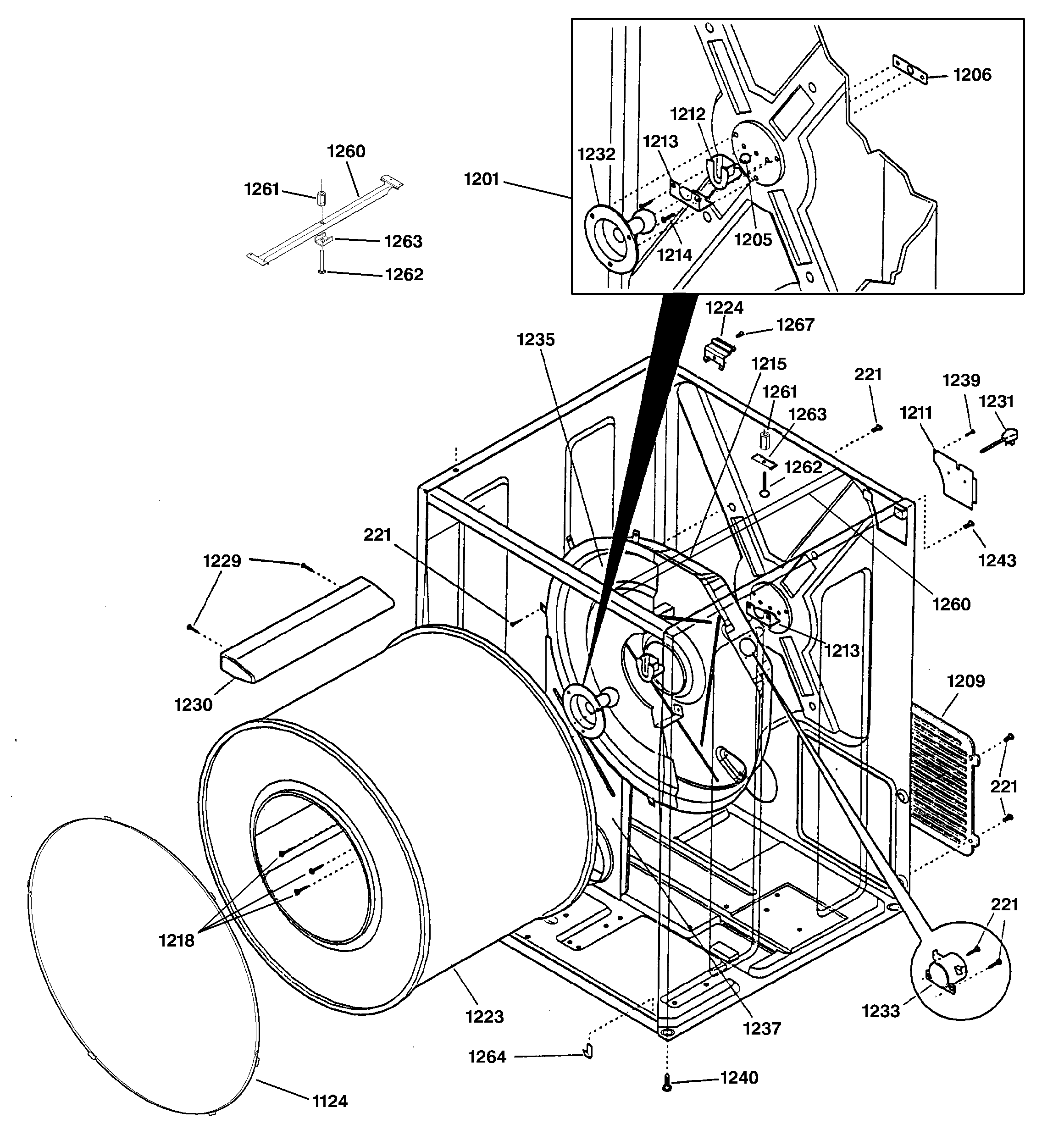

Cabinet & drum diagram

Dryer drum front glide

Part #WE03X10007

$25.51
16% OFF Phone Price : $30.51
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

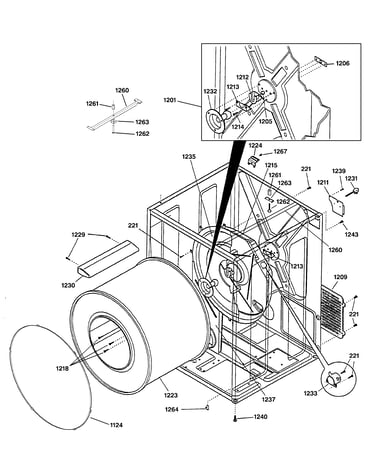

Cabinet & drum diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$87.93
5% OFF Phone Price : $92.93
In Stock
Rotary Knob WE01X10093
#29

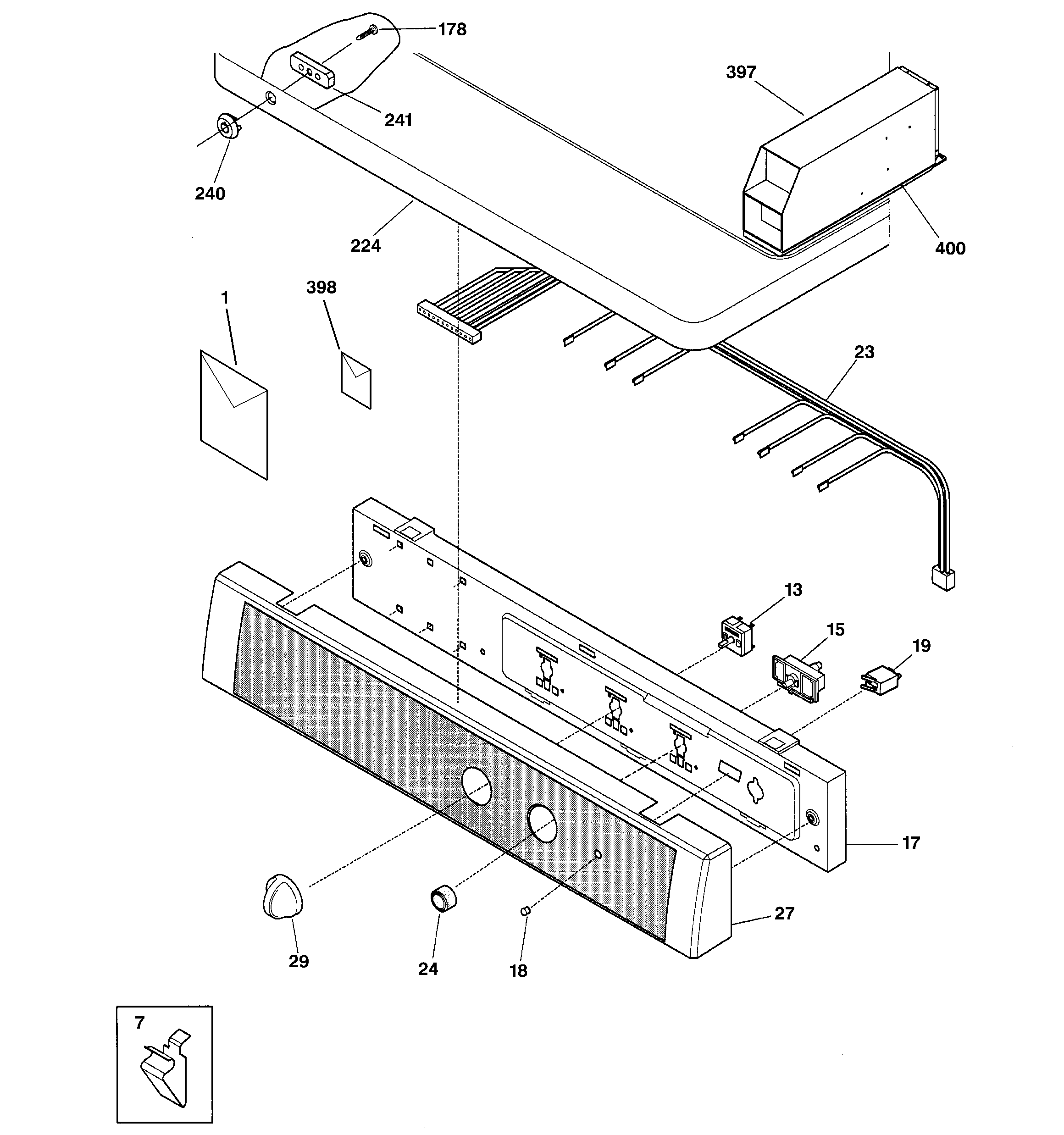

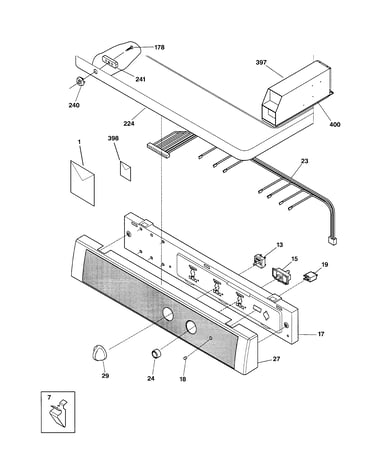

Controls & top panel diagram

Rotary knob

Part #WE01X10093

In Stock
Dryer Exhaust Tube WE14X10007
#1381

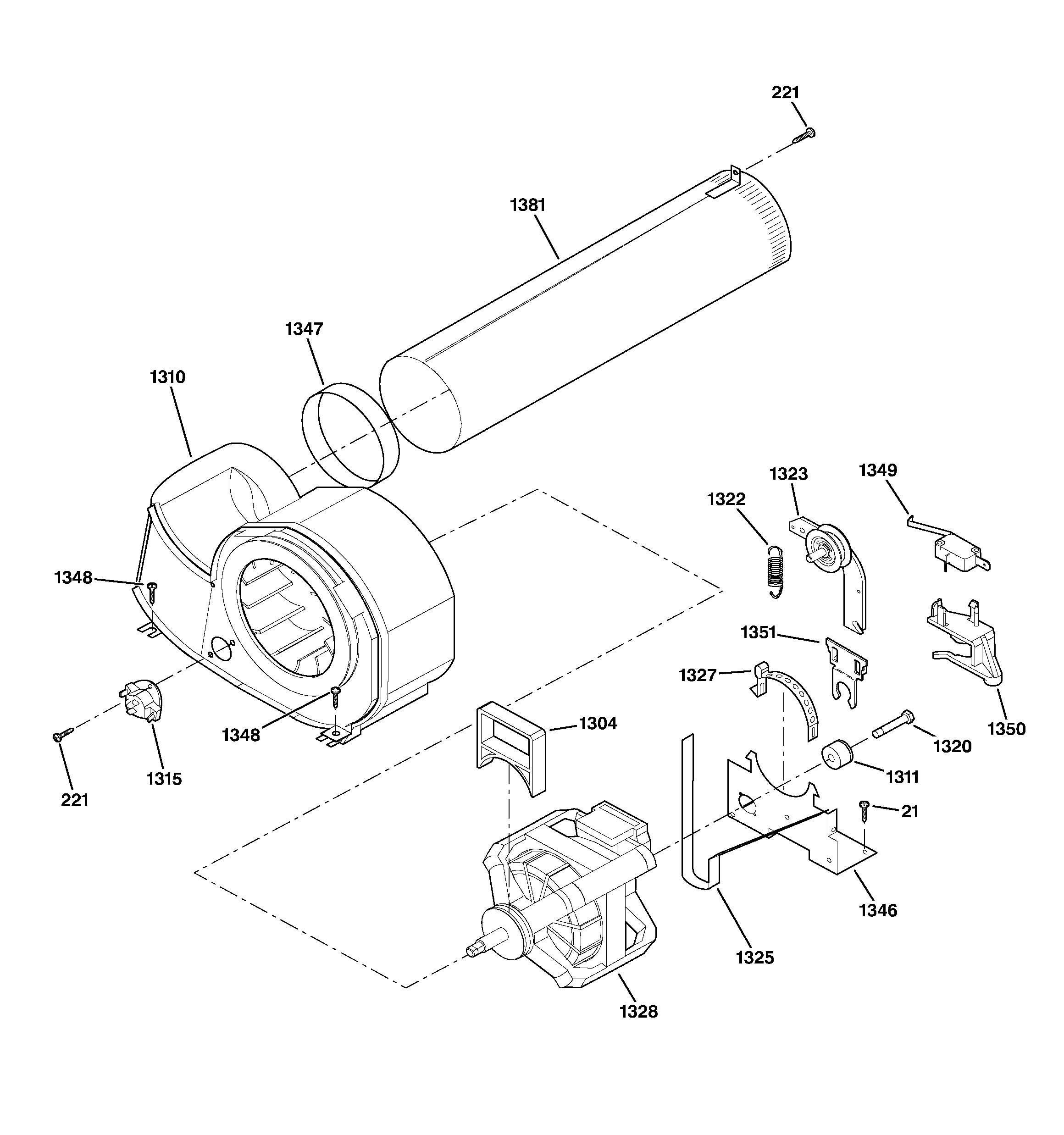

Motor diagram

Dryer exhaust tube

Part #WE14X10007

This item is not returnable
$39.11
11% OFF Phone Price : $44.11
In Stock
Screw WE02X10011
#1239

Cabinet & drum diagram

Screw

Part #WE02X10011

In Stock
Electronic Harness WE08X10026
#23

Controls & top panel diagram

Electronic harness

Part #WE08X10026

In Stock
Dryer Drum Belt (replaces We12x10001, We12x90) WE12X10009
#1325

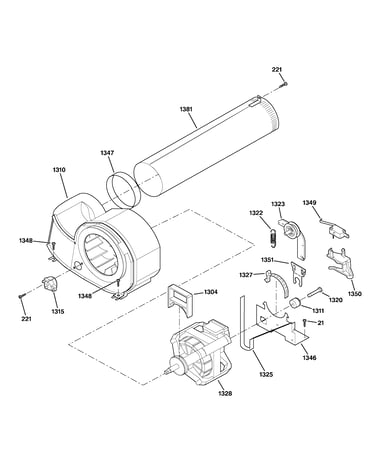

Motor diagram

Dryer drum belt (replaces we12x10001, we12x90)

Part #WE12X10009

$68.77
7% OFF Phone Price : $73.77
In Stock
Washer Screw WH02X10009
#209

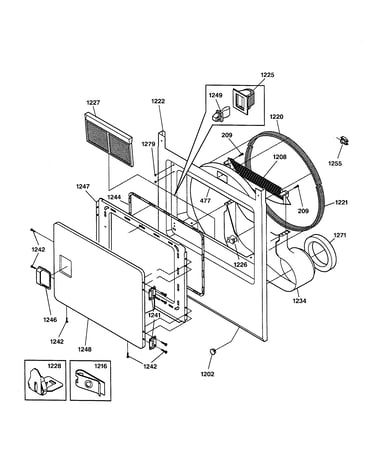

Front panel & door diagram

Washer screw

Part #WH02X10009

$26.64
16% OFF Phone Price : $31.64
In Stock
Clip WE02X10009
#7

Controls & top panel diagram

Clip

Part #WE02X10009

In Stock
