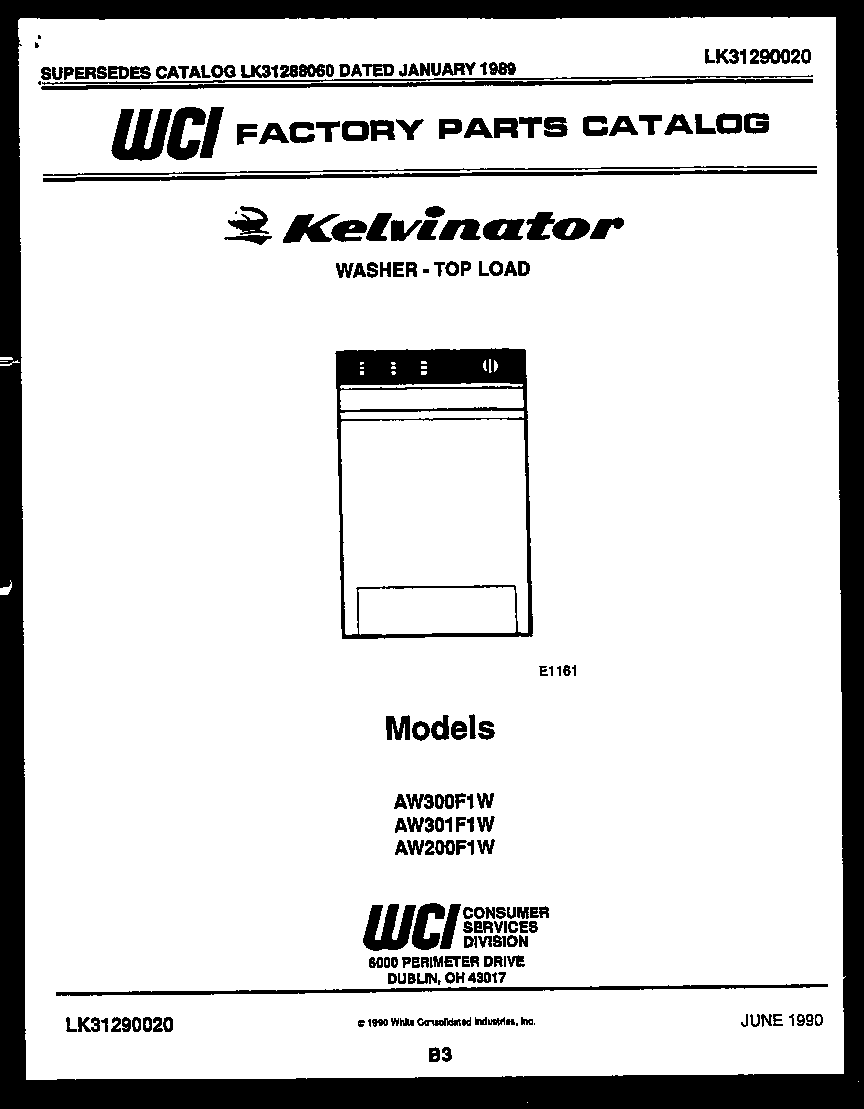

Model # AW300F1T Official Kelvinator top-loading washer - lk31290020
Here are the diagrams and repair parts for Official Kelvinator AW300F1T top-loading washer - lk31290020, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forAW300F1T Top-Loading Washer - LK31290020
- #13

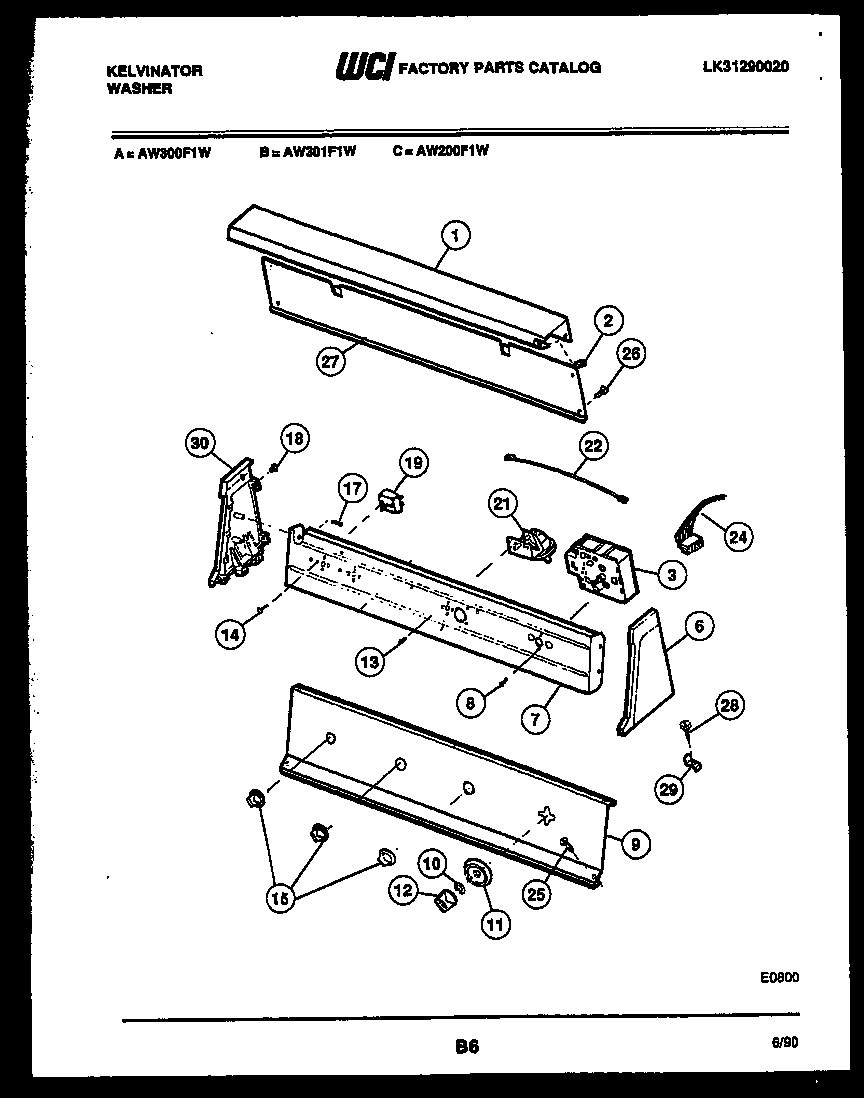

Console and control parts diagram
ScrewPart #3017891
Replaced by #131168200
?Manufacturer substitutionThis part replaces 3017891. Substitute parts can look different from the original.$12.76 |14% OFF Phone Price : $14.76In Stock - #28

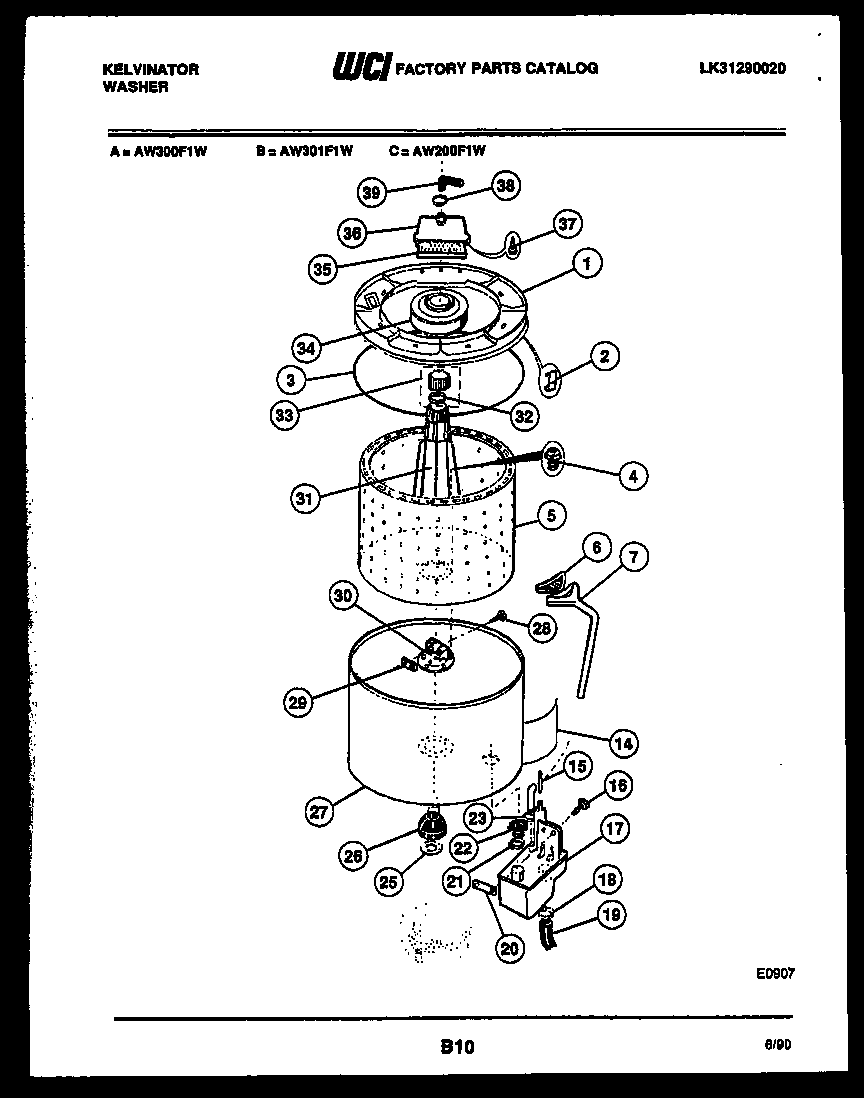

Tub detail diagram
Screw-lockplPart #F142056-000
Replaced by #137539500
?Manufacturer substitutionThis part replaces F142056-000. Substitute parts can look different from the original.$18.08 |10% OFF Phone Price : $20.08In Stock - #29
Tub detail diagram
Lock platePart #F140603-000
Replaced by #137107000
?Manufacturer substitutionThis part replaces F140603-000. Substitute parts can look different from the original.$27.47 |18% OFF Phone Price : $33.47In Stock - #5
Transmission parts diagram
Washer basket drive tube sealPart #5303161307
$19.16 |9% OFF Phone Price : $21.16In Stock - Screw
Part #3015671
Replaced by #5303015671
?Manufacturer substitutionThis part replaces 3015671. Substitute parts can look different from the original.This item is not returnable$3.74In Stock - #12

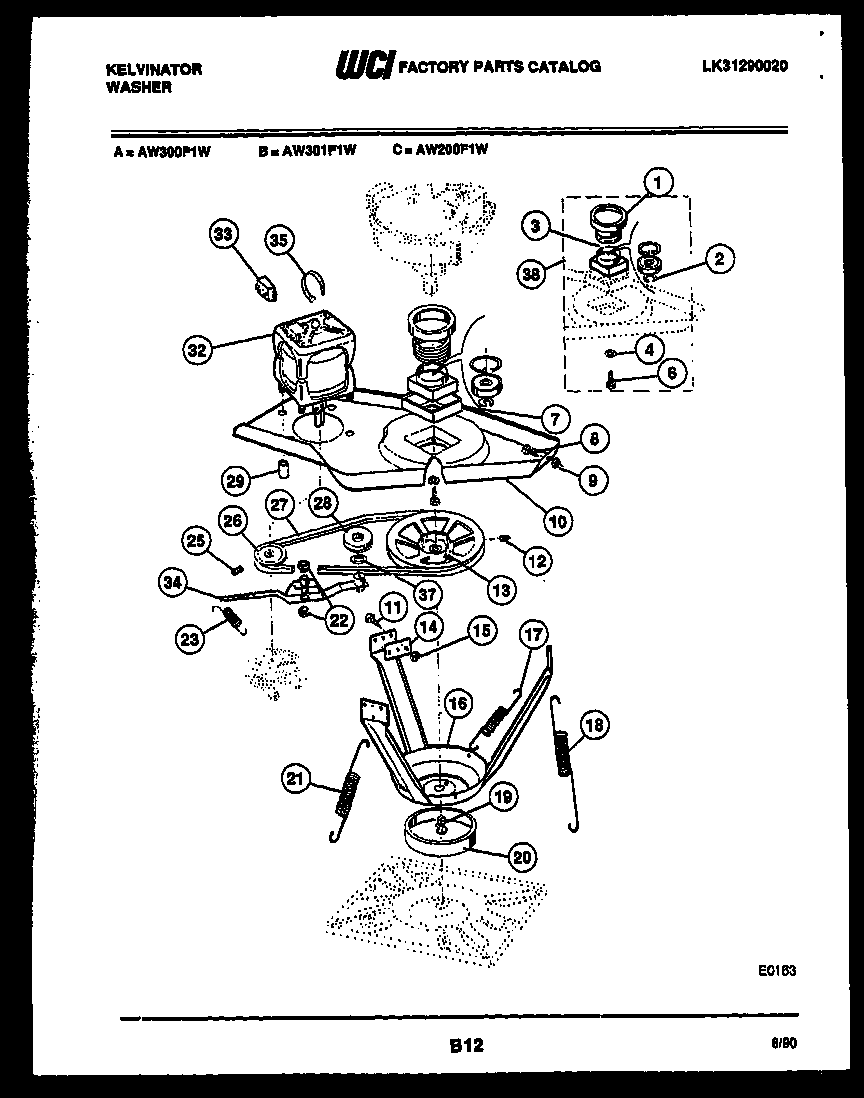

Motor and idler arm clutch diagram
ScrewPart #3161456
Replaced by #5303270023
?Manufacturer substitutionThis part replaces 3161456. Substitute parts can look different from the original.$55.02In Stock - #35

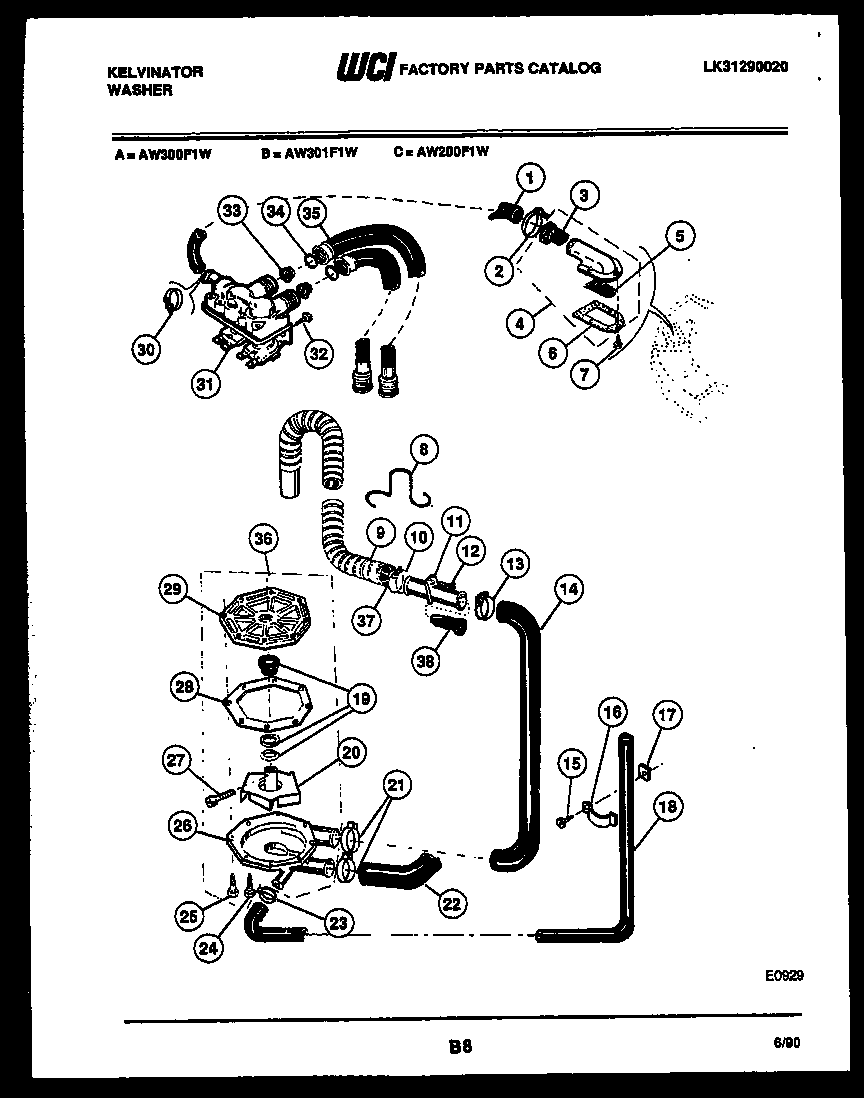

Pump, water valve, water inlet diagram
H/c fill hosPart #06561384
Replaced by #5303912532
?Manufacturer substitutionThis part replaces 06561384. Substitute parts can look different from the original.$69.10 |8% OFF Phone Price : $75.10In Stock - #34
Pump, water valve, water inlet diagram
WasherPart #08015499
Replaced by #5303161296
?Manufacturer substitutionThis part replaces 08015499. Substitute parts can look different from the original.This item is not returnable$12.16 |14% OFF Phone Price : $14.16In Stock - #12A

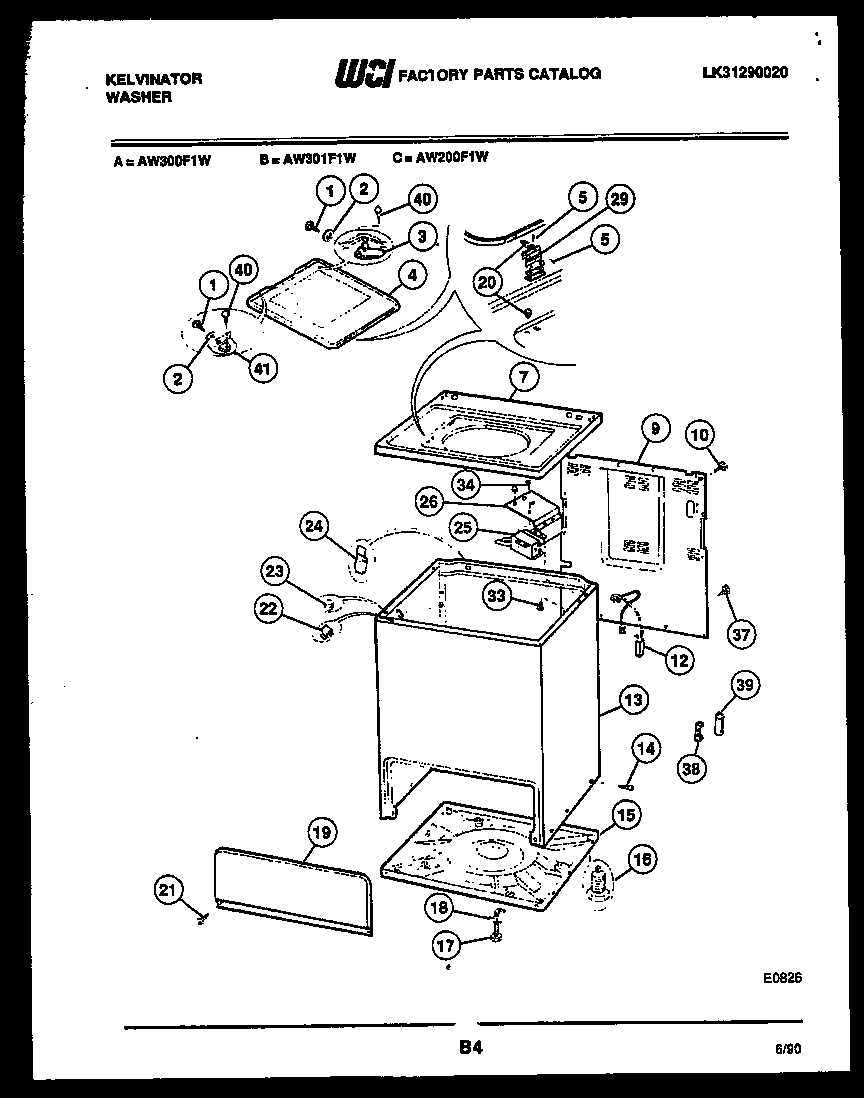

Cabinet parts diagram
Washer power cord strain reliefPart #5303209428
$19.71In Stock - #9A
Pump, water valve, water inlet diagram
StrapPart #3161250
This item is not returnable$3.60In Stock
