Kenmore 867734950 gas-fired direct vent wall furnace Parts

Here are the diagrams and repair parts for Kenmore 867734950 gas-fired direct vent wall furnace, as well as links to manuals and error code tables, if available.

Kenmore 867734950 gas-fired direct vent wall furnace
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 867734950 Gas-Fired Direct Vent Wall Furnace

  • Pilot Gasket for Kenmore 867734950 - Part 502934

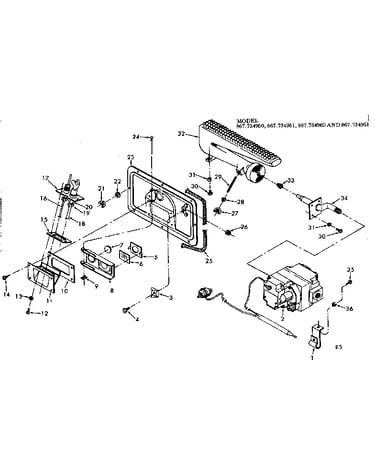

    Gas burners and manifold diagram

    Pilot Gasket

    Part #502934

    The manufacturer no longer makes this part, and there's no substitute part

  • Vent Pipe for Kenmore 867734950 - Part 502979

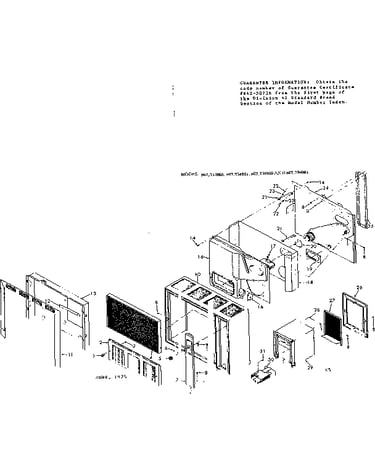

    Cabinet diagram

    Vent Pipe

    Part #502979

    The manufacturer no longer makes this part, and there's no substitute part

  • Vent for Kenmore 867734950 - Part 506340

    Cabinet diagram

    Vent

    Part #506340

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 867734950 - Part 132745

    Gas burners and manifold diagram

    Screw

    Part #132745

    The manufacturer no longer makes this part, and there's no substitute part

  • Grommet for Kenmore 867734950 - Part 24107

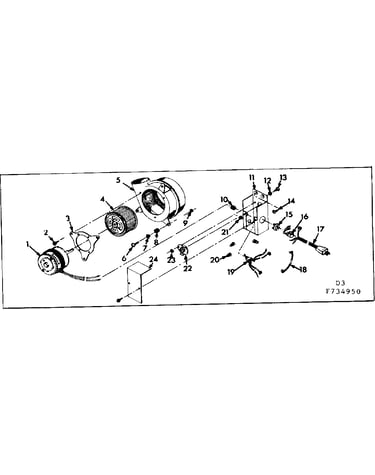

    Blower diagram

    Grommet

    Part #24107

    The manufacturer no longer makes this part, and there's no substitute part

  • Cover Plate for Kenmore 867734950 - Part 48204

    Gas burners and manifold diagram

    Cover Plate

    Part #48204

    The manufacturer no longer makes this part, and there's no substitute part

  • Nut for Kenmore 867734950 - Part 120619

    Nut

    Part #120619

    The manufacturer no longer makes this part, and there's no substitute part

  • Inlet Gasket for Kenmore 867734950 - Part 503053

    Cabinet diagram

    Inlet Gasket

    Part #503053

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner for Kenmore 867734950 - Part 503615

    Gas burners and manifold diagram

    Burner

    Part #503615

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 867734950 - Part 121832

    Blower diagram

    Screw

    Part #121832

    The manufacturer no longer makes this part, and there's no substitute part
