Kenmore
Canister Vacuum

Model # 1165581690C Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 1165581690C powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Swivel Seal (white) 742019
#11

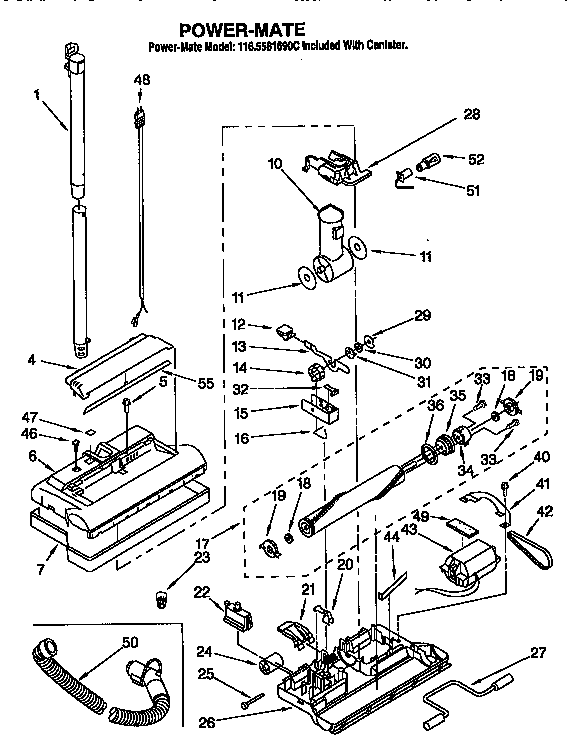

Power mate diagram

Swivel seal (white)

Part #742019

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Pedal 4369930
#21

Power mate diagram

Vacuum handle release pedal

Part #4369930

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Power mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Gasket 747156
#49

Power mate diagram

Gasket

Part #747156

The manufacturer no longer makes this part, and there's no substitute part

Pad Pedal 747280
#12

Power mate diagram

Pad pedal

Part #747280

The manufacturer no longer makes this part, and there's no substitute part

Screw 681297
#40

Power mate diagram

Screw

Part #681297

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Height Indicator Lens 4369687
#47

Power mate diagram

Vacuum height indicator lens

Part #4369687

The manufacturer no longer makes this part, and there's no substitute part

Housng-blb 4369966
#4

Power mate diagram

Housng-blb

Part #4369966

The manufacturer no longer makes this part, and there's no substitute part

Screw (silver) 681605
#33

Power mate diagram

Screw (silver)

Part #681605

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 4369965
#6

Power mate diagram

Nozzle

Part #4369965

The manufacturer no longer makes this part, and there's no substitute part
