Model #351217570 Official Craftsman 9" disc sander

Here are the diagrams and repair parts for Craftsman 351217570 9" disc sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 88 parts

    Bolt#36

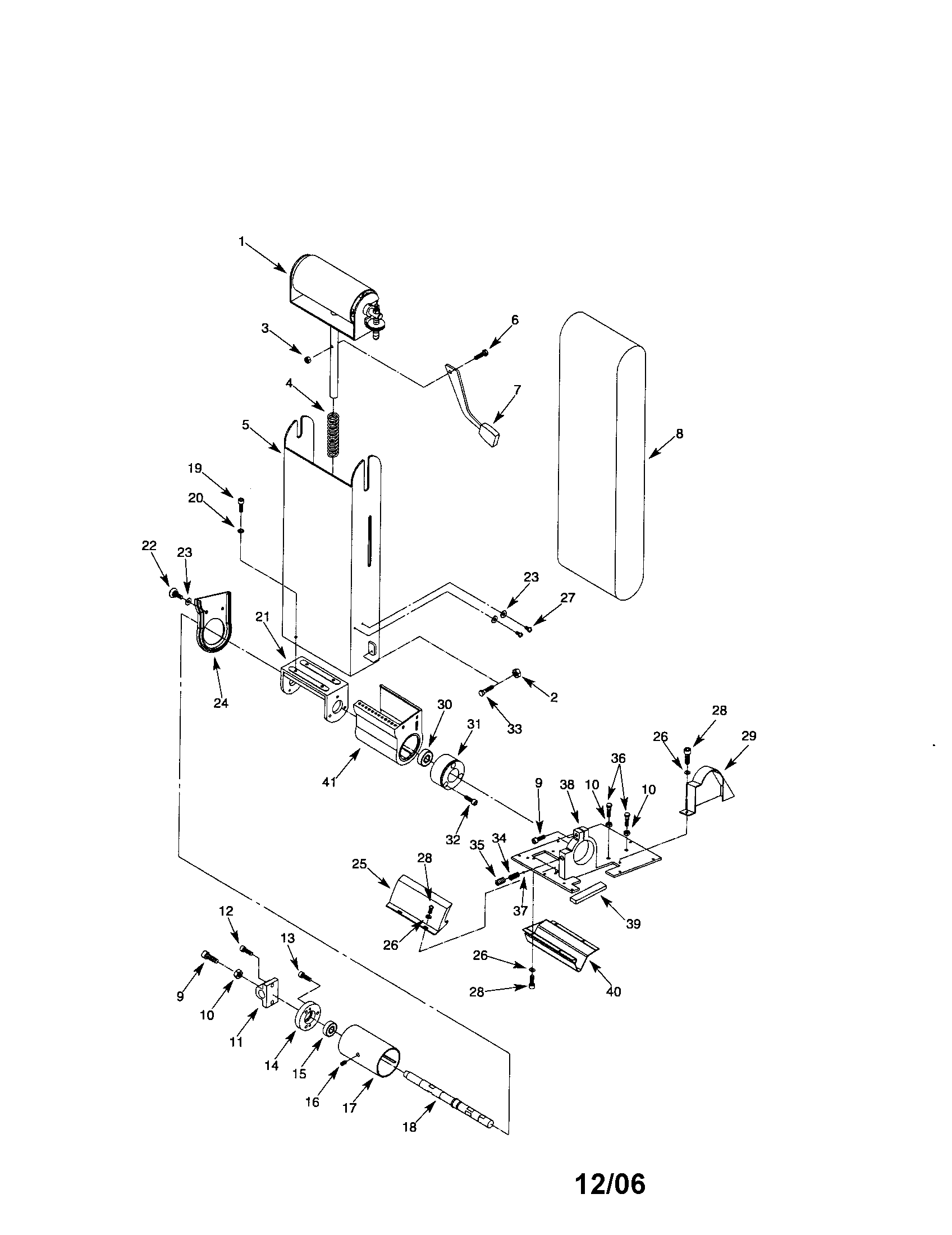

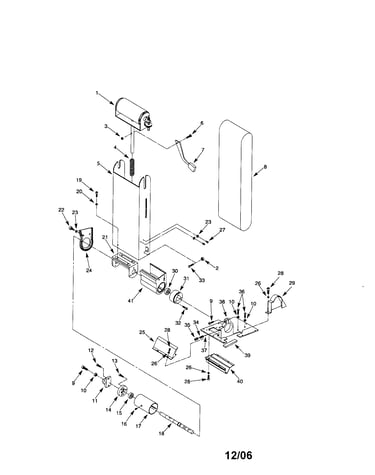

    Belt housing Diagram

    Bolt

    Part #STD835035

    The manufacturer no longer makes this part, and there's no substitute part

    Pivot#31

    Belt housing Diagram

    Pivot

    Part #24639.00

    The manufacturer no longer makes this part, and there's no substitute part

    Power Sander Motor#17

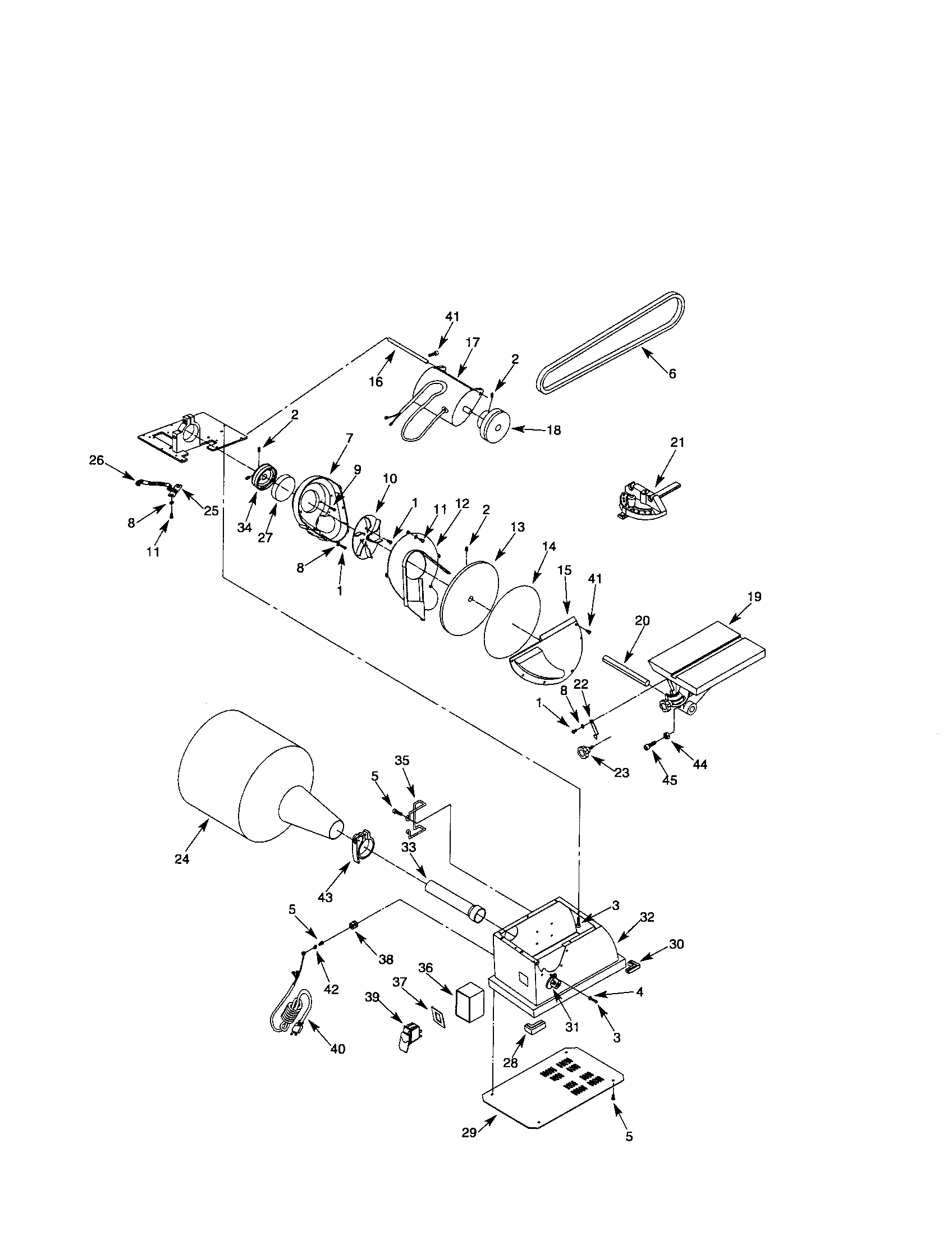

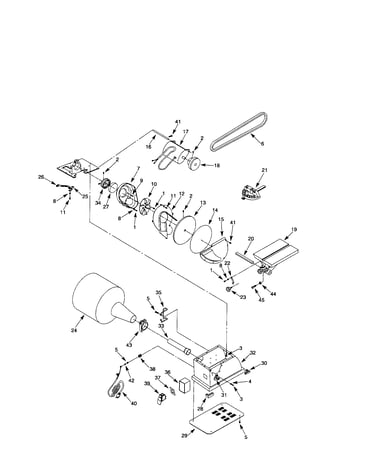

    Motor and disc Diagram

    Power sander motor

    Part #24652.00

    The manufacturer no longer makes this part, and there's no substitute part

    Cap Screw

    See All Related Diagrams

    Cap screw

    Part #STD870616

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Washer, 6-mm#20

    Belt housing Diagram

    Lock washer, 6-mm

    Part #STD852006

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Nut#2

    Belt housing Diagram

    Hex nut

    Part #STD840610

    The manufacturer no longer makes this part, and there's no substitute part

    Cap Screw#45

    Motor and disc Diagram

    Cap screw

    Part #STD870816

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Nut

    See All Related Diagrams

    Hex nut

    Part #STD840812

    The manufacturer no longer makes this part, and there's no substitute part

    Cap Screw#19

    Belt housing Diagram

    Cap screw

    Part #STD870610

    The manufacturer no longer makes this part, and there's no substitute part

    Aluminum Disc#13

    Motor and disc Diagram

    Aluminum disc

    Part #21446.00

    The manufacturer no longer makes this part, and there's no substitute part
