Model # HDR-CX580V Official Sony camcorder

Here are the diagrams and repair parts for Official Sony HDR-CX580V camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

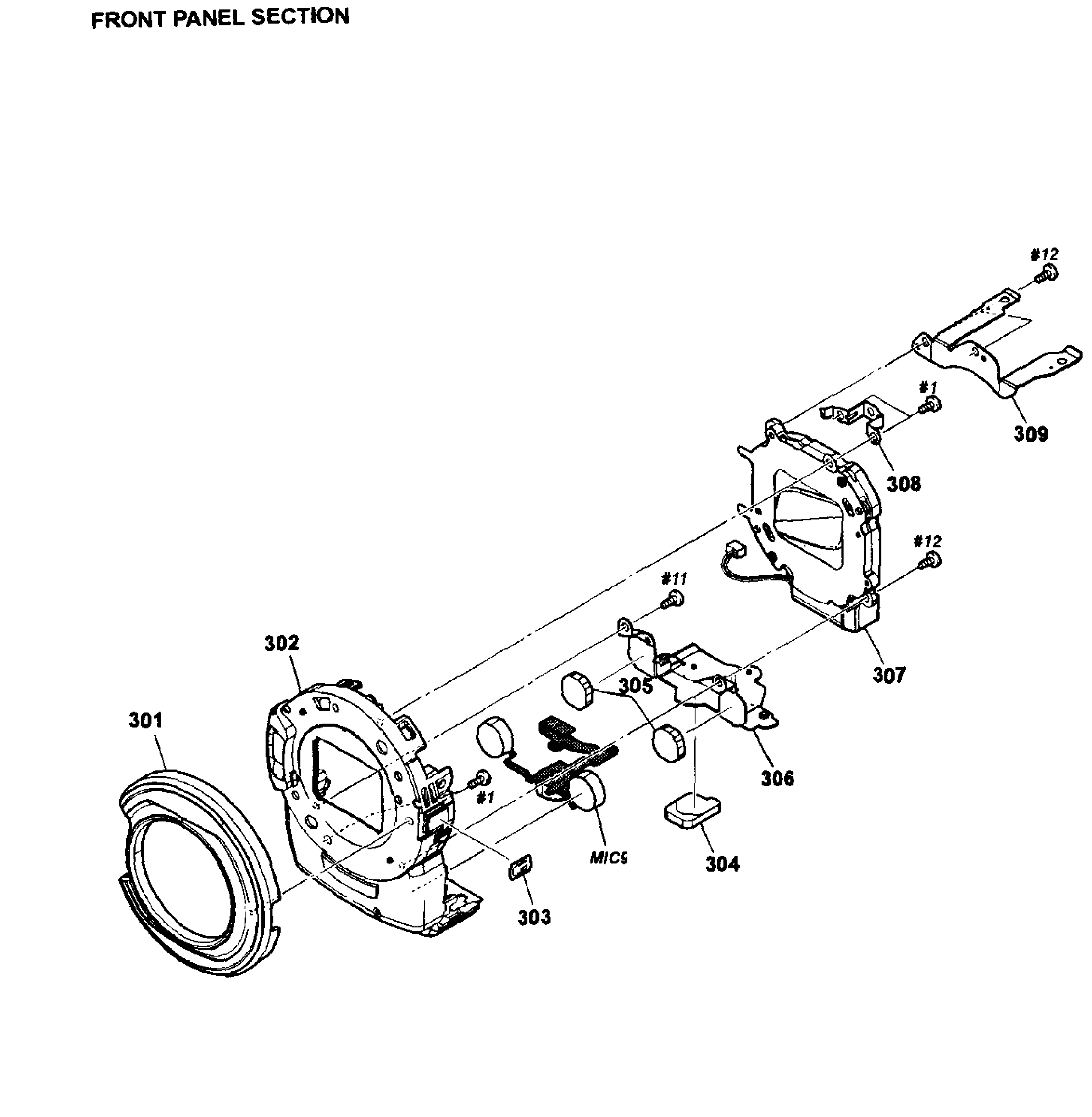

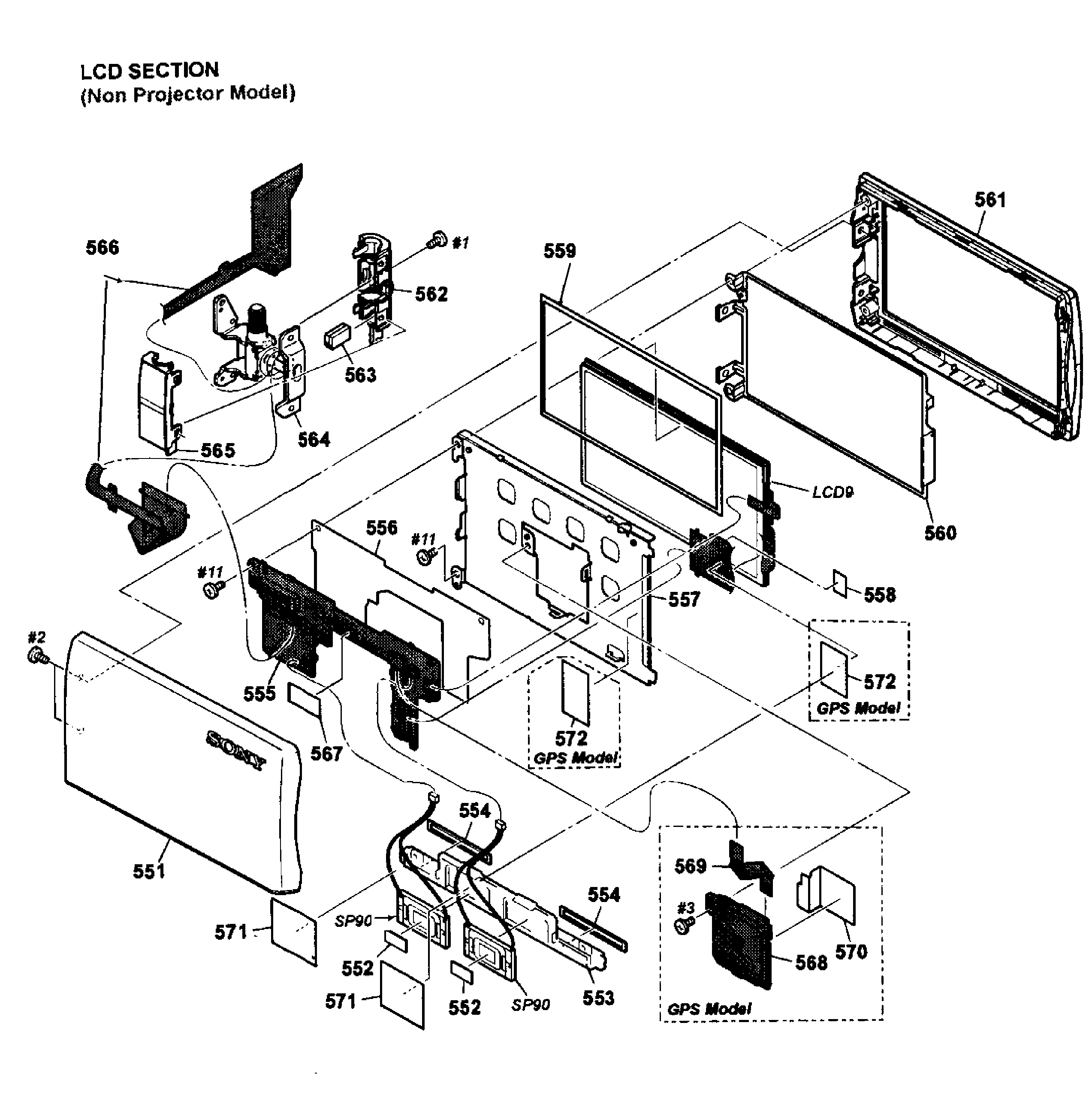

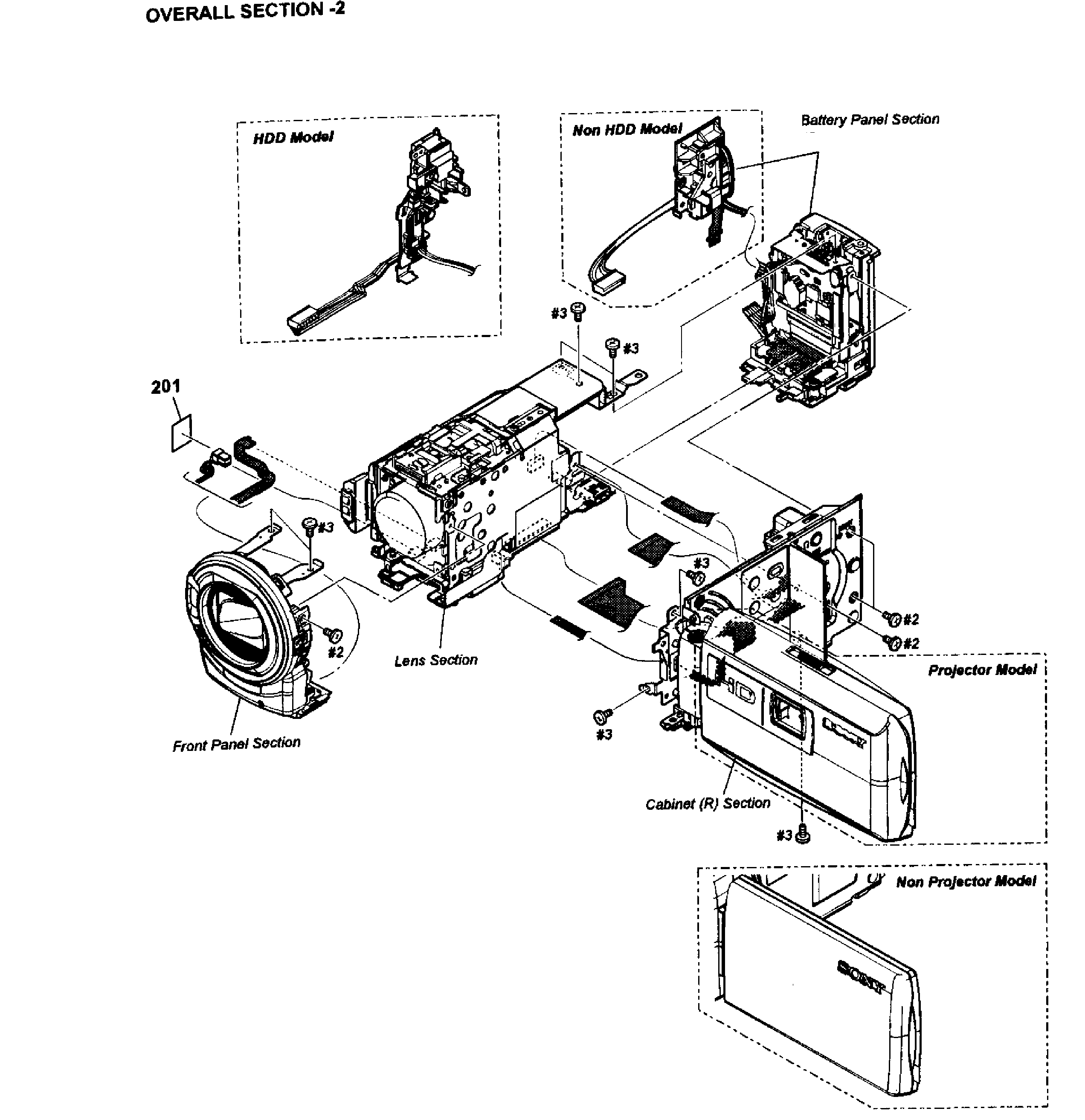

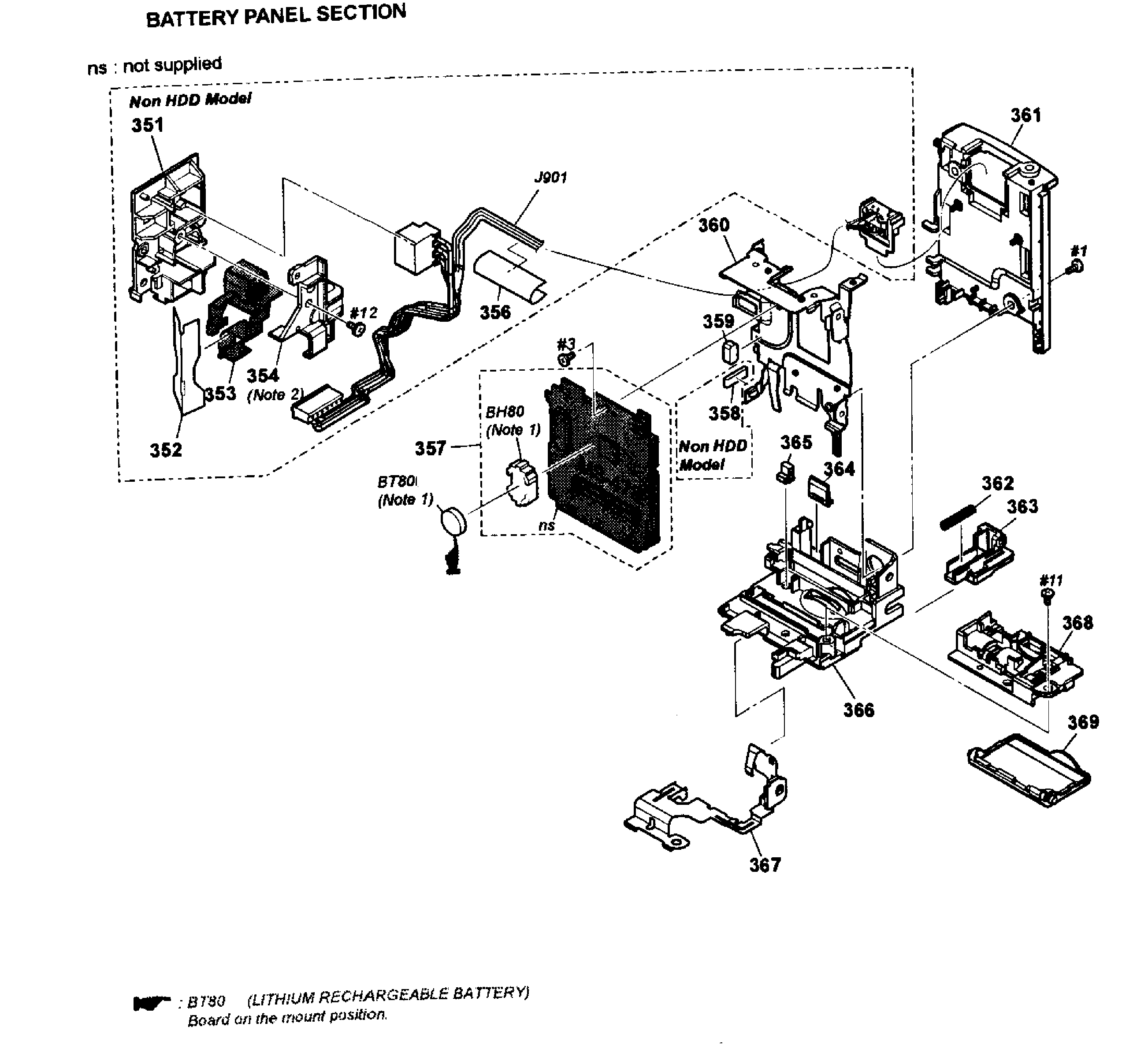

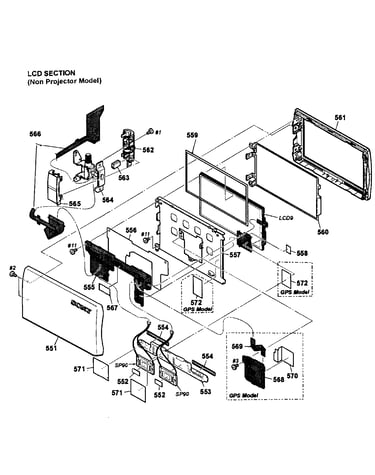

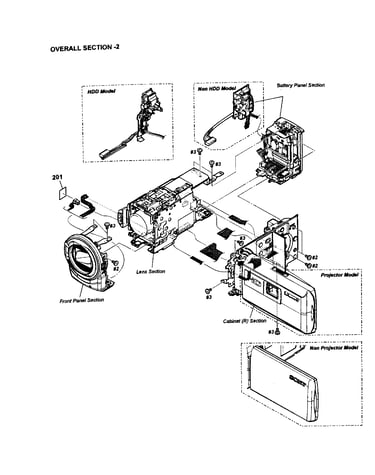

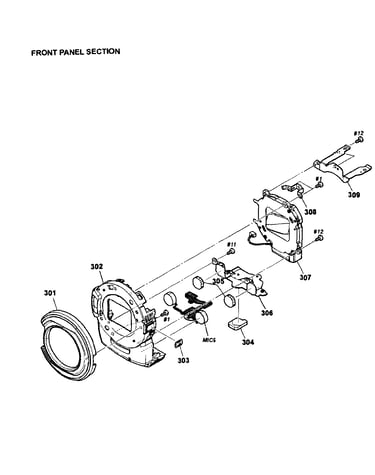

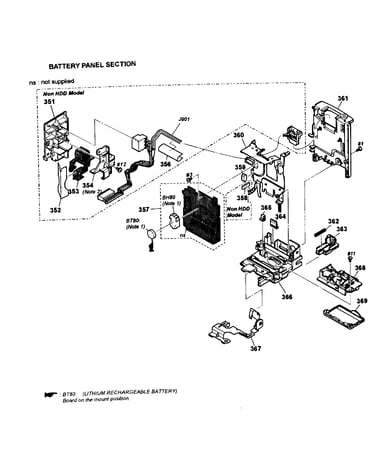

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |

Flex Tape 264930001
#407

Rear assy diagram

Flex tape

Part #264930001

In Stock
Hdmi Cable 183908021
#NI

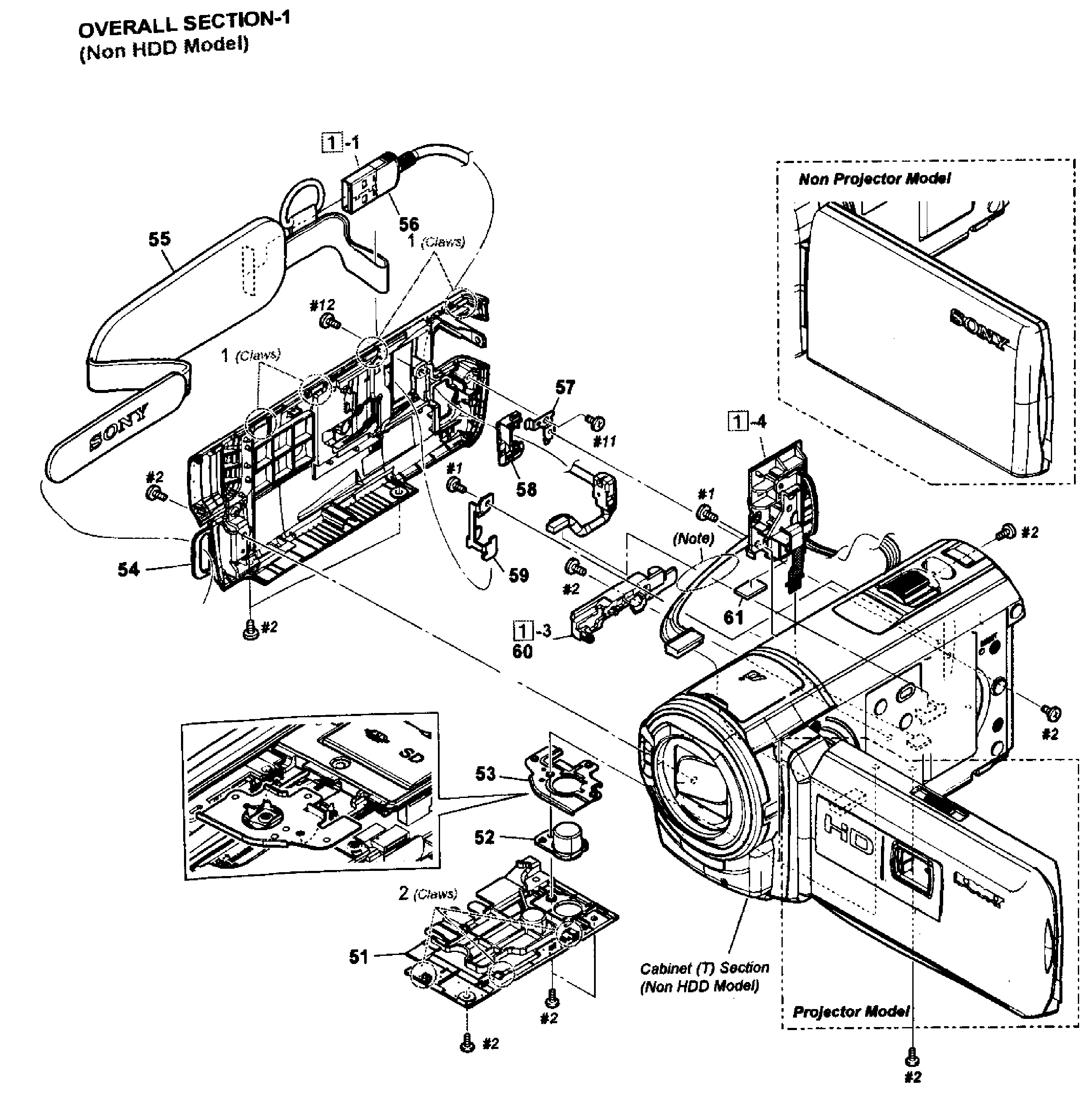

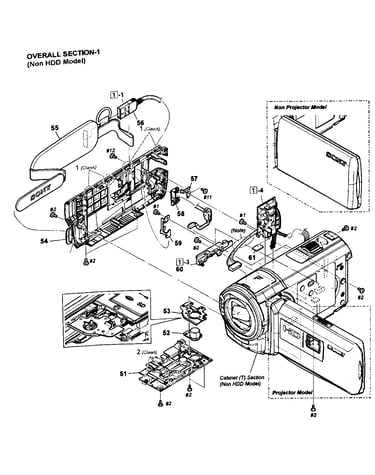

Section-1 diagram

Hdmi cable

Part #183908021

In Stock
Sheet 427196801
#278

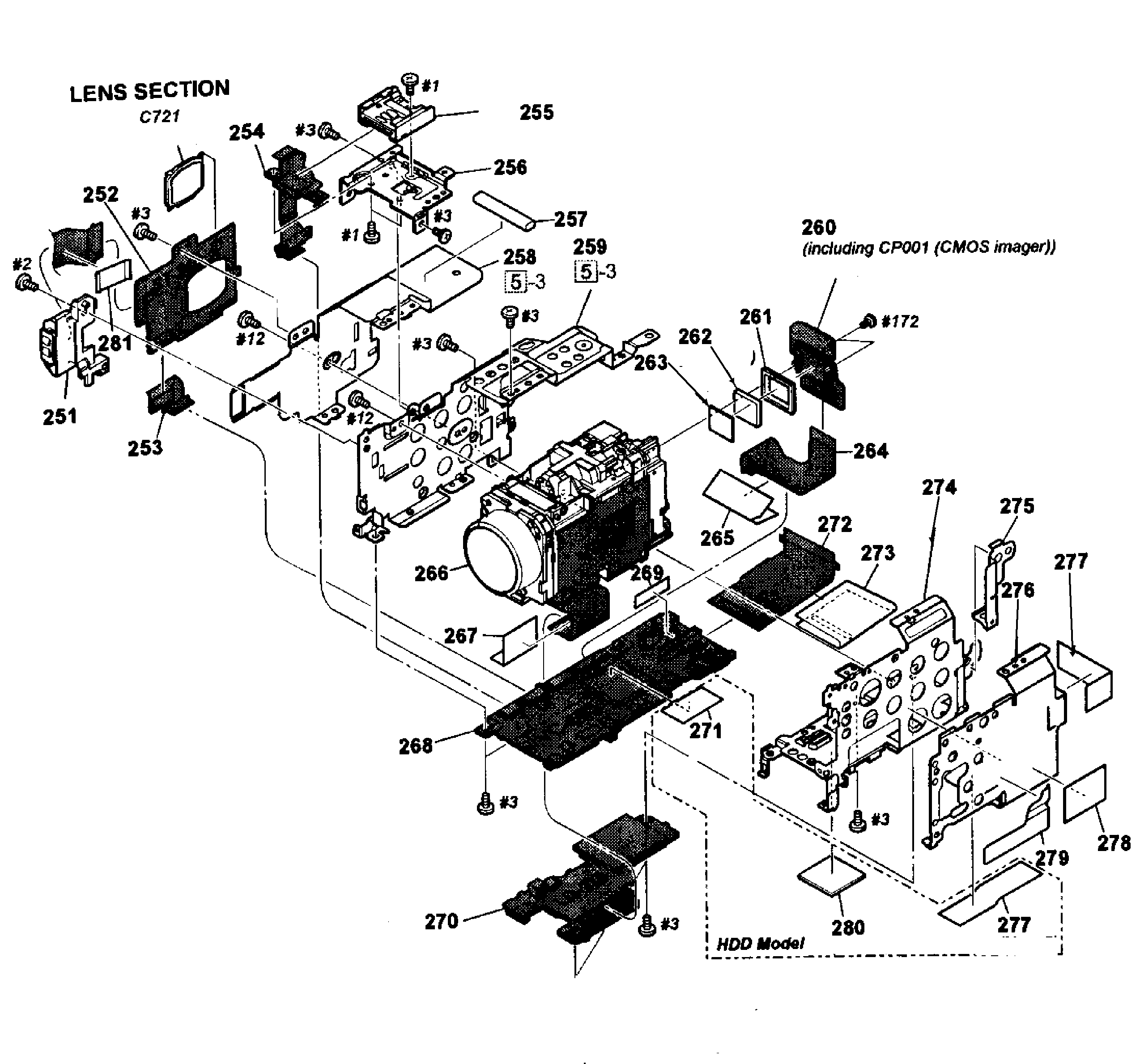

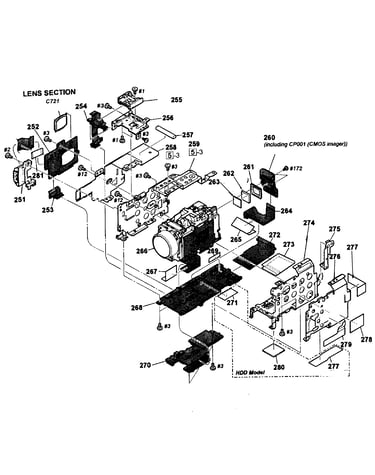

Lens assy diagram

Sheet

Part #427196801

In Stock
Shield She 440819101
#265

Lens assy diagram

Shield she

Part #440819101

In Stock
Sheed 427681601
#402

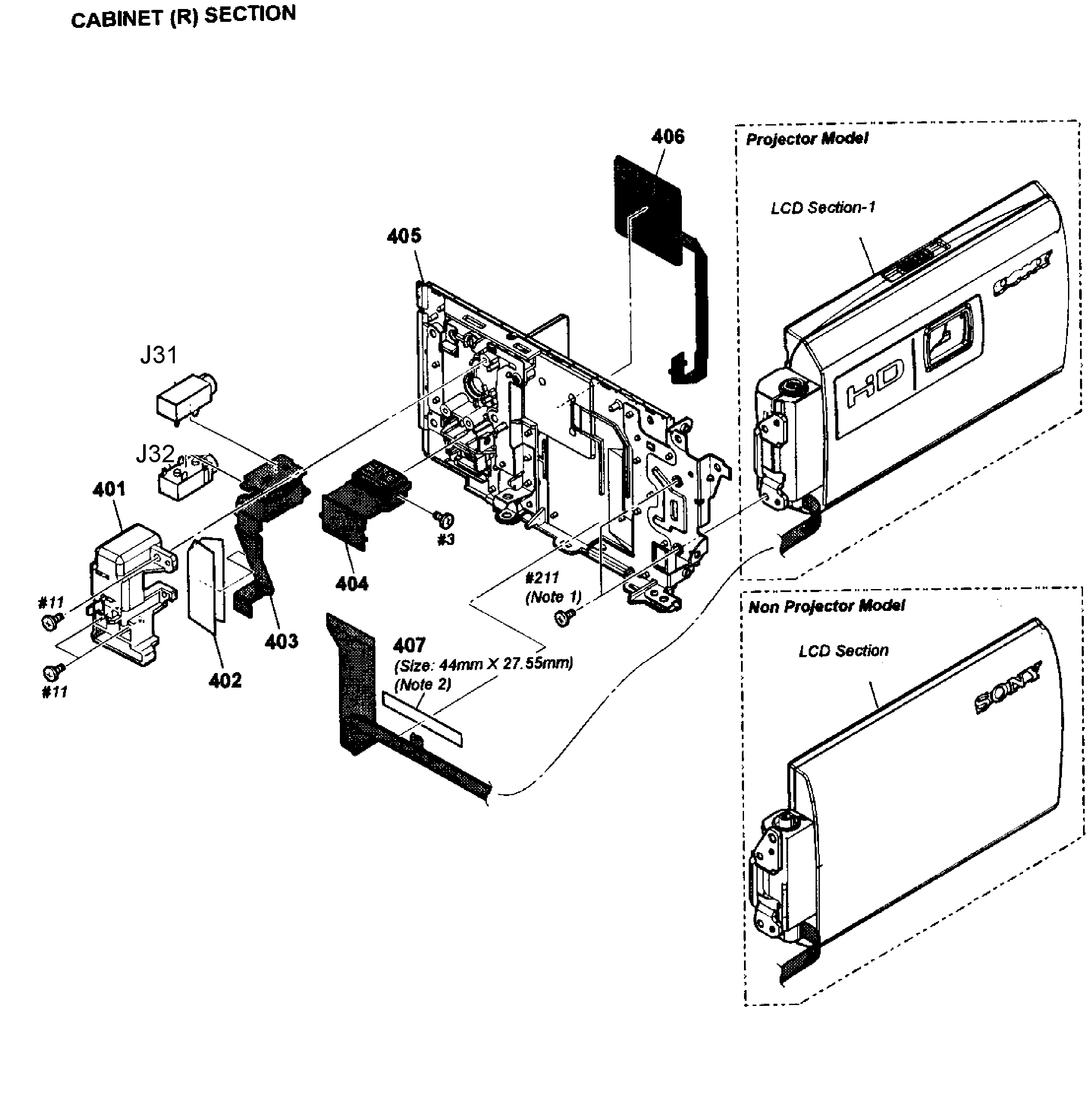

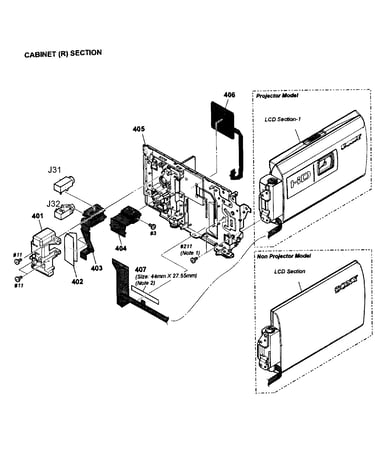

Rear assy diagram

Sheed

Part #427681601

In Stock
Cabinet To A1856535A
#151

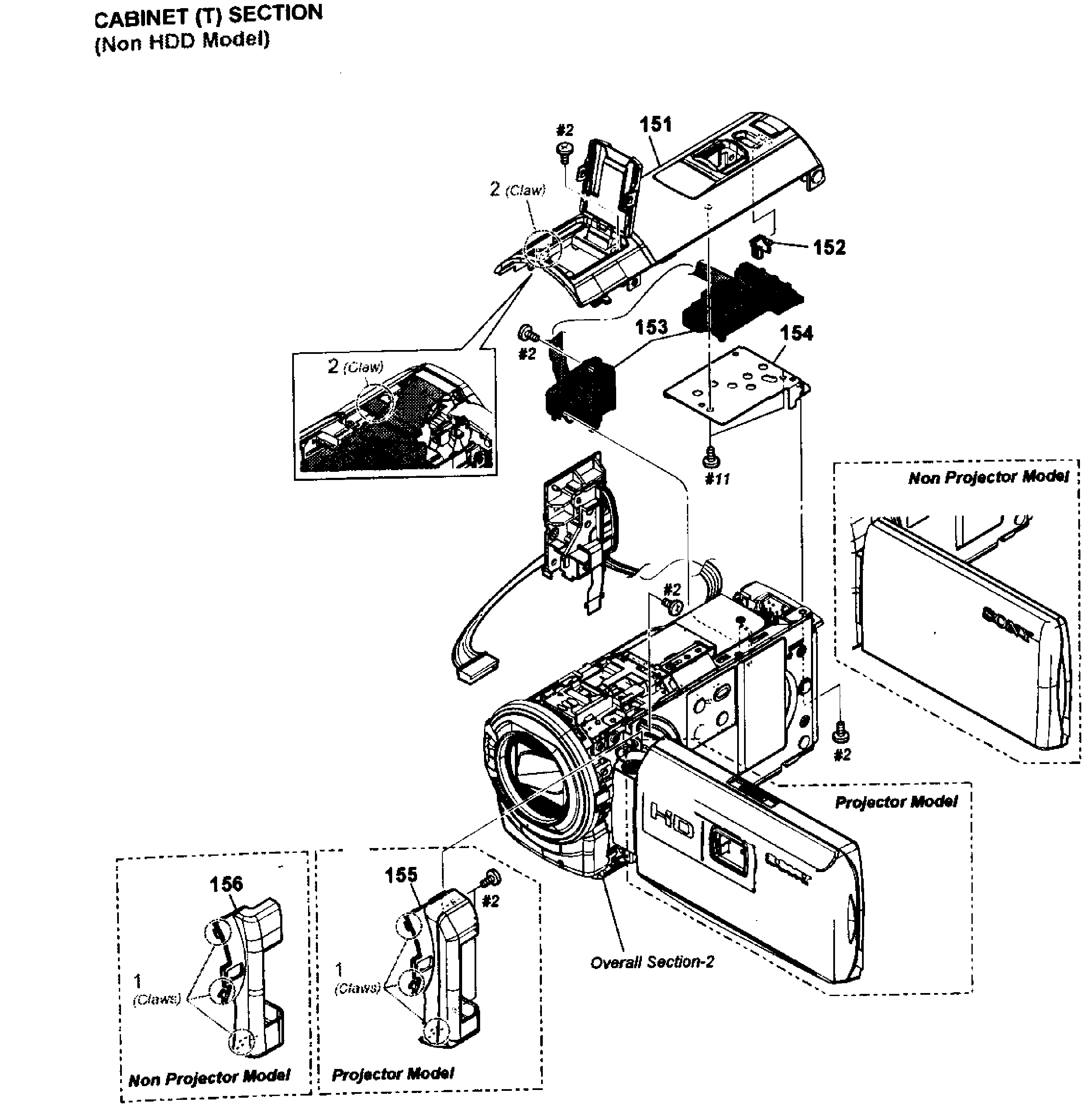

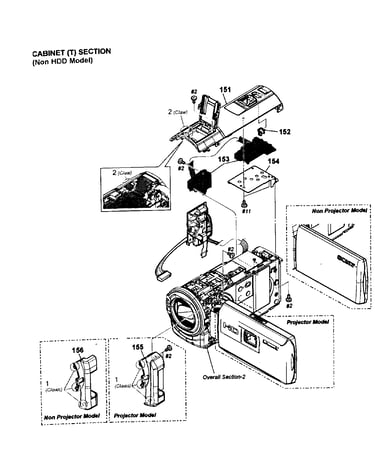

Top assy diagram

Cabinet to

Part #A1856535A

In Stock
Heat Sink 427172401
#258

Lens assy diagram

Heat sink

Part #427172401

In Stock
Shoe Frame 427196601
#256

Lens assy diagram

Shoe frame

Part #427196601

In Stock
Belt Guard 427195901
#58

Section-1 diagram

Belt guard

Part #427195901

In Stock
Sheet 428256401
#269

Lens assy diagram

Sheet

Part #428256401

In Stock
