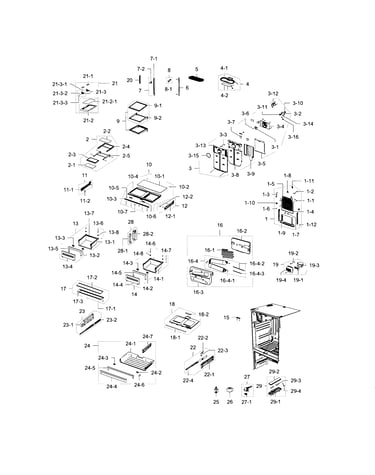

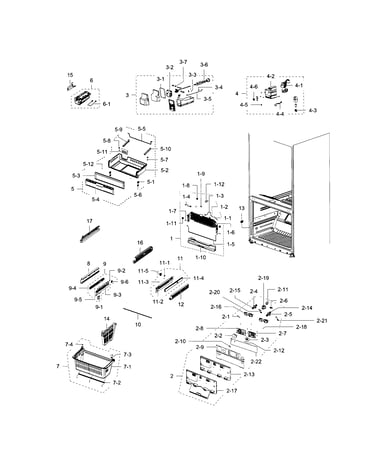

Samsung RFG237AARS/XAA-02 refrigerator Parts

For the Samsung RFG237AARS bottom-mount refrigerator, the overall exterior size is typically about 35 3/4 in. wide x 70 in. tall x 36 in. deep (depth varies depending on whether you include handles). For the exact, model-specific measurements and clearance requirements, use the RFG237AARS owner's manual.

How to measure your refrigerator correctly

Use a tape measure and record three numbers; this prevents fit issues with cabinets, doors, and water lines.

• Width: measure the cabinet at the widest point (not the doors swung open)
• Height: floor to top of hinge cover (and note if leveling legs are extended)
• Depth: measure without handles and with handles
• Door swing clearance: measure space needed for French doors to open fully
• Ventilation clearance: leave space behind and above for airflow

Typical dimension ranges (what you should expect)

Most Samsung French door, bottom-freezer refrigerators in this size class fall into these ranges.

Measurement	Typical range
Width	35 3/4 in. to 36 in.
Height	69 1/2 in. to 70 1/2 in.
Depth (cabinet only)	33 in. to 35 in.
Depth (with handles)	35 in. to 37 in.

Why the exact depth matters

Depth is the number that most often causes installation surprises. A small difference can affect whether the doors clear an island, whether drawers open fully, and whether the water line kinks when you push the unit back.

Quick install checks before you move it into place

• Confirm the opening width is at least the refrigerator width plus clearance
• Verify the floor is level so doors seal correctly
• Plan the water line route so it does not pinch behind the cabinet
• Make sure the top cabinet clearance allows the unit to ventilate

Last updated: February 2026

The Samsung RFG237AARS bottom-mount refrigerator has a total capacity of about 23 cu. ft., with roughly 15.9 cu. ft. in the fresh food (refrigerator) section and 6.7 cu. ft. in the freezer. For the exact breakdown and features, use the RFG237AARS owner's manual.

Capacity breakdown (what the numbers mean)

Capacity is the usable interior volume; it helps you compare storage space across Samsung refrigerators and plan shelf and bin layouts.

• Total capacity: ~23 cu. ft.
• Refrigerator section: ~15.9 cu. ft.
• Freezer section: ~6.7 cu. ft.
• Best use: compare like-for-like (French door vs. side-by-side can feel different)
• Real-world space: shelves, ice storage, and door bins can reduce usable room

Quick reference table

Compartment	Approx. capacity	Typical items stored
Fresh food (refrigerator)	15.9 cu. ft.	Produce, beverages, leftovers
Freezer	6.7 cu. ft.	Frozen foods, ice, bulk items
Total	23 cu. ft.	Combined storage

Why it matters

Capacity affects how well the RFG237AARS fits your household needs. If you are troubleshooting temperature swings or airflow issues, knowing which compartment is larger can also help you prioritize checks like door sealing and vent clearance.

Tips to maximize usable space

• Keep air vents inside the refrigerator and freezer clear for even cooling.
• Avoid overpacking the freezer drawer; airflow matters for consistent temperatures.
• Store heavier items on lower shelves to reduce shelf stress.
• Confirm shelf positions and bin locations in the RFG237AARS owner's manual.

Last updated: February 2026

If your Samsung RFG237AARS bottom-mount freezer is not freezing, the most common causes are airflow problems from frost buildup, a failed evaporator fan, dirty condenser area, a door gasket leak, or a defrost system issue. Start with temperature settings and airflow checks, then test fans and cooling components.

Quick checks we recommend first

• Confirm the freezer is set near 0°F (typical target for most Samsung freezers); verify the exact setting steps in the RFG237AARS owner's manual.
• Make sure vents inside the freezer are not blocked by food packages.
• Check for heavy frost on the rear freezer panel (a strong sign of a defrost or airflow problem).
• Listen for the evaporator fan in the freezer when the door switch is pressed.
• Clean dust from the condenser area (unplug the refrigerator first).

What the symptoms usually mean

What you notice	Most likely cause	What to check next
Freezer warm, fridge section also warming	Sealed system or compressor not running correctly	Listen for compressor, check condenser fan operation
Freezer warm, thick frost on back wall	Defrost system problem	Inspect defrost heater and sensors
Freezer warm, no frost, fan quiet	Evaporator fan not running	Check fan motor and wiring
Ice buildup near door, moisture, gaps	Door gasket not sealing	Inspect gasket fit and door alignment

Parts that commonly fix “not freezing” on this model

These are model-matched parts we often see involved when cooling is weak or stops:

• Refrigerator defrost heater DA47-00424M (failed heater can allow frost to choke airflow)
• Refrigerator temperature sensor DA32-00033C (bad sensor can cause incorrect cooling/defrost behavior)
• Refrigerator condenser fan DA31-00146B (poor heat removal can reduce freezing performance)
• Refrigerator compressor MKV190CL2BASH (if the compressor cannot run or pump effectively, both sections warm)

Why it matters

A freezer that is not freezing is usually an airflow or heat-removal problem first; if frost blocks the evaporator cover or a fan stops, the freezer temperature rises quickly and food safety becomes a concern.

If you see an error code

Use Samsung-specific guidance to interpret display codes and narrow the failure faster: Samsung rfg29 french door refrigerator error codes.

Last updated: February 2026
