GE
Electric Wall Oven

Model #JT952CF3CC GE electric oven

Here are the diagrams and repair parts for GE JT952CF3CC electric oven, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 140 parts

|

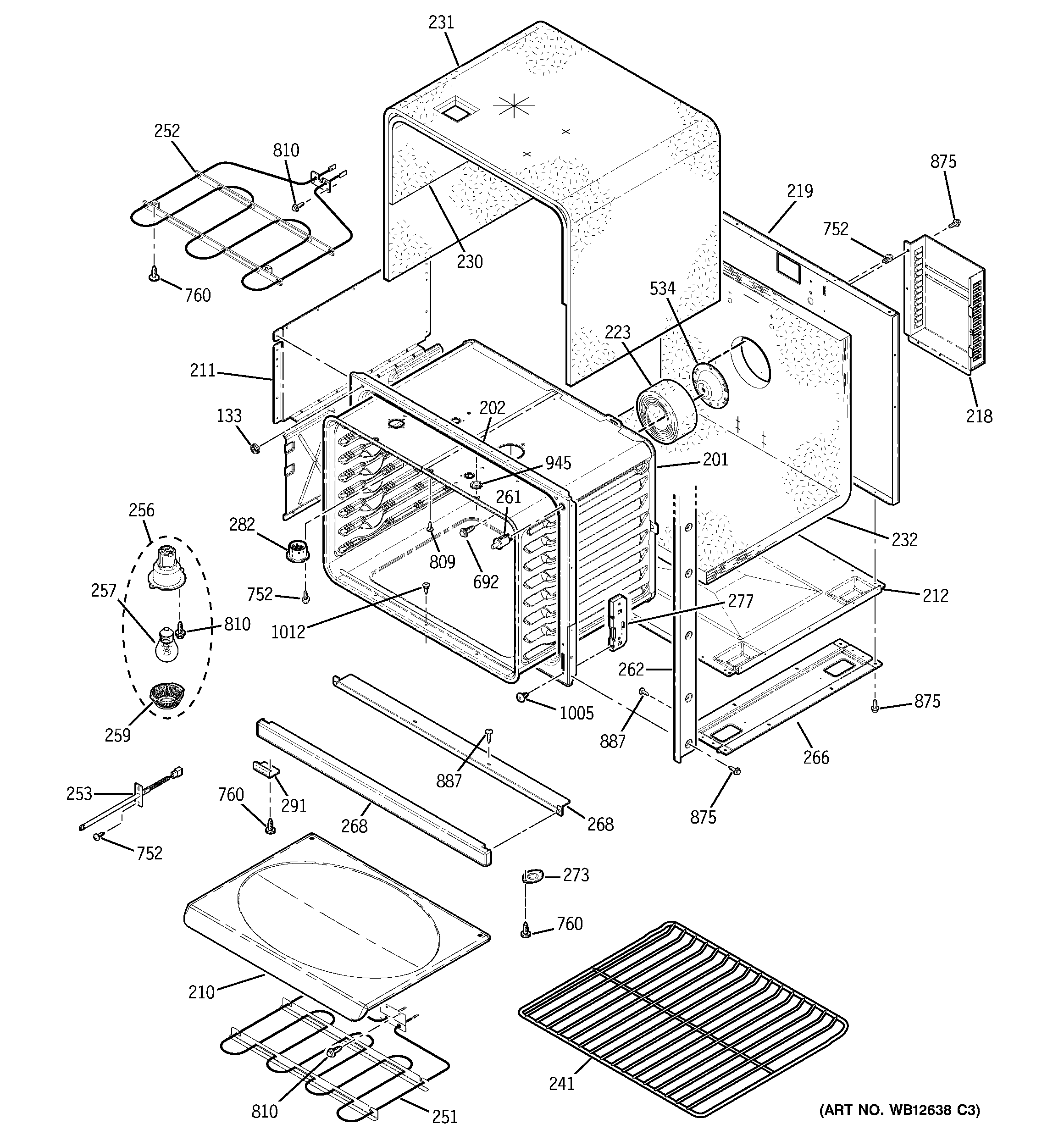

Wall Oven Temperature Sensor

#253

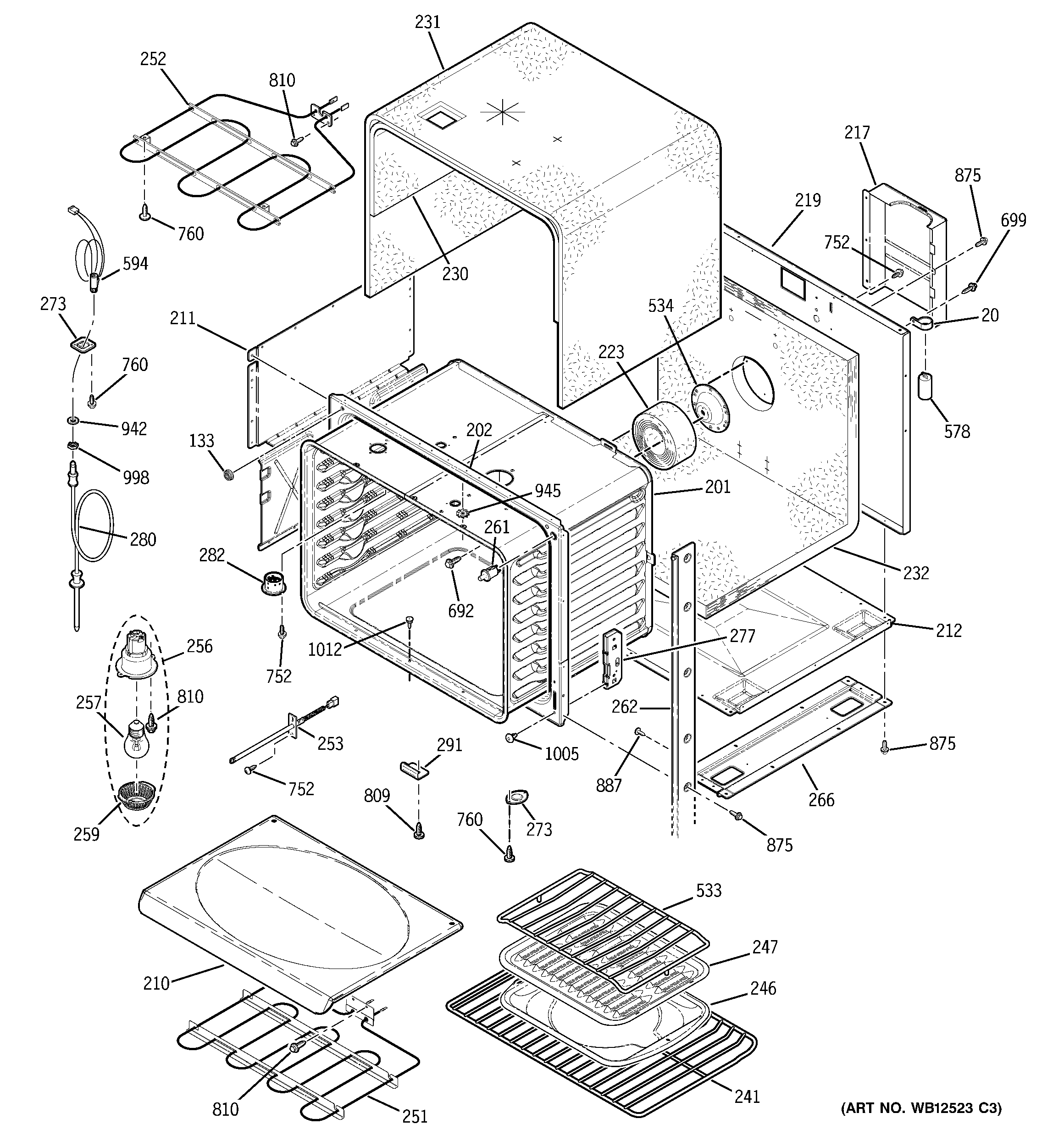

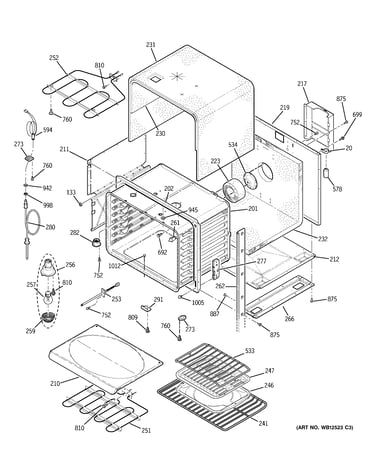

Upper body Diagram

$17.55

In Stock

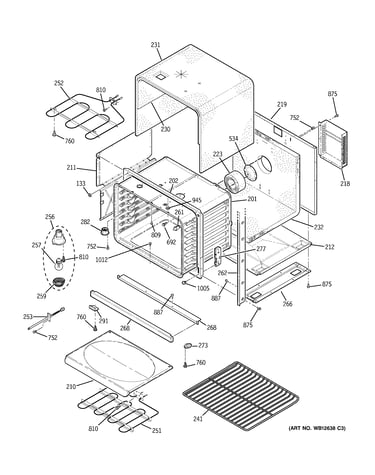

Range Oven Rack

#241

Upper body Diagram

Range oven rack

Part #WB48T10020
$49.92

In Stock

Range Oven False Bottom Panel

#210

Upper body Diagram

$63.74

In Stock

Range Oven Door Gasket

#132

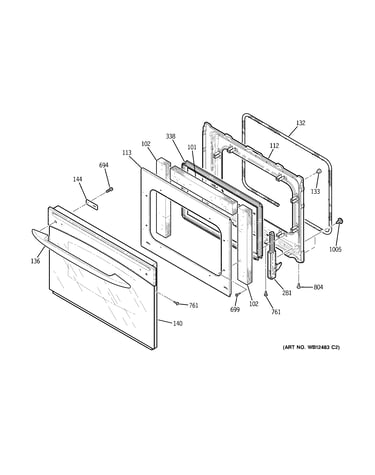

Door Diagram

Range oven door gasket

Part #WB41T10003
$65.51

In Stock

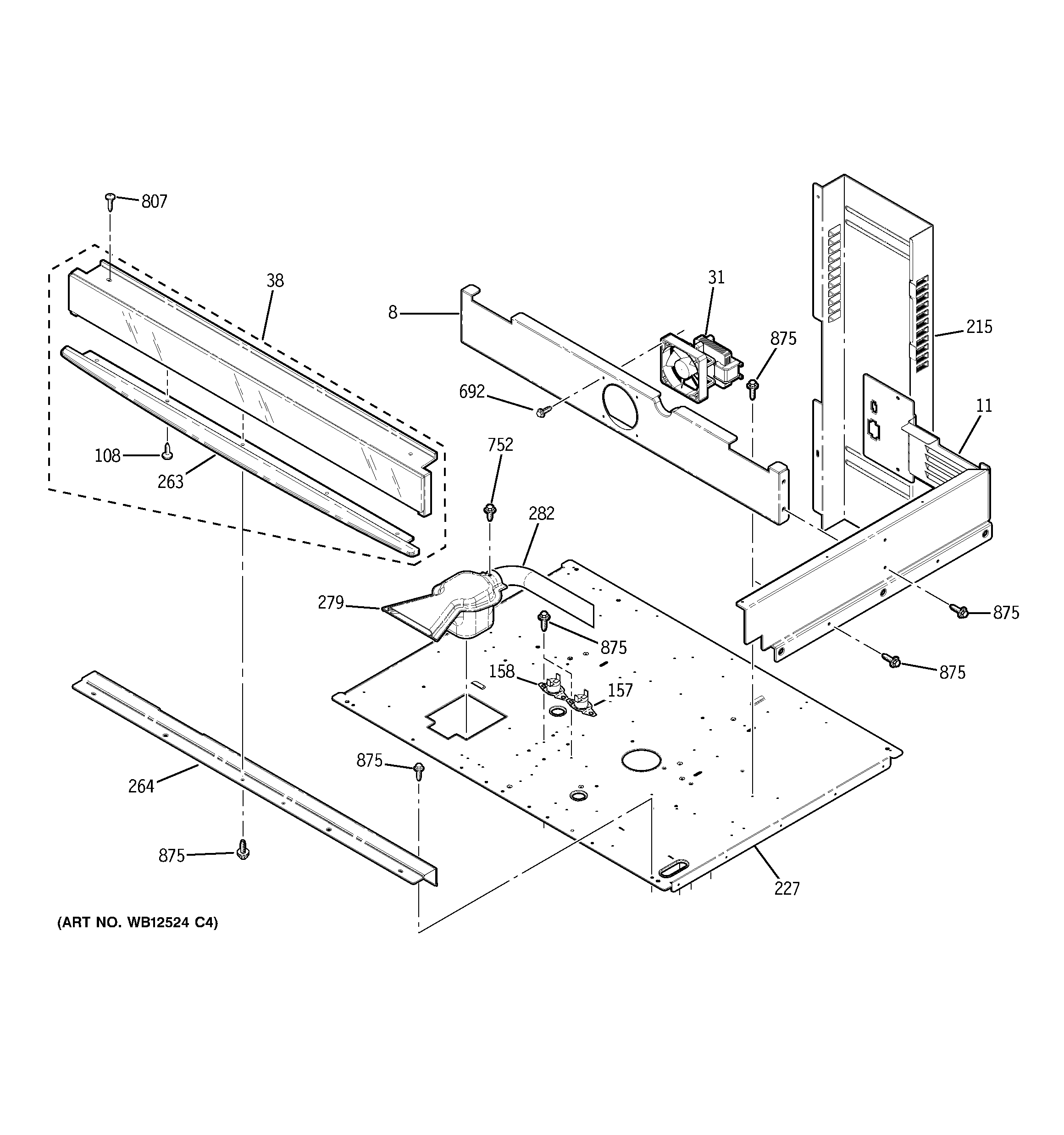

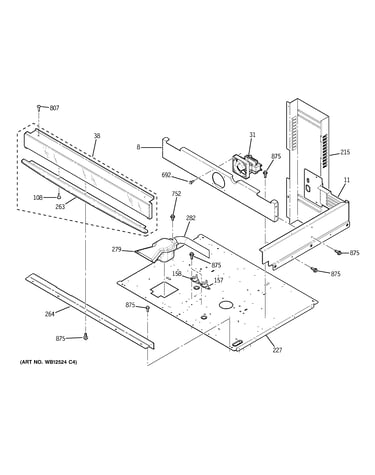

Wall Oven Safety Thermostat

#159

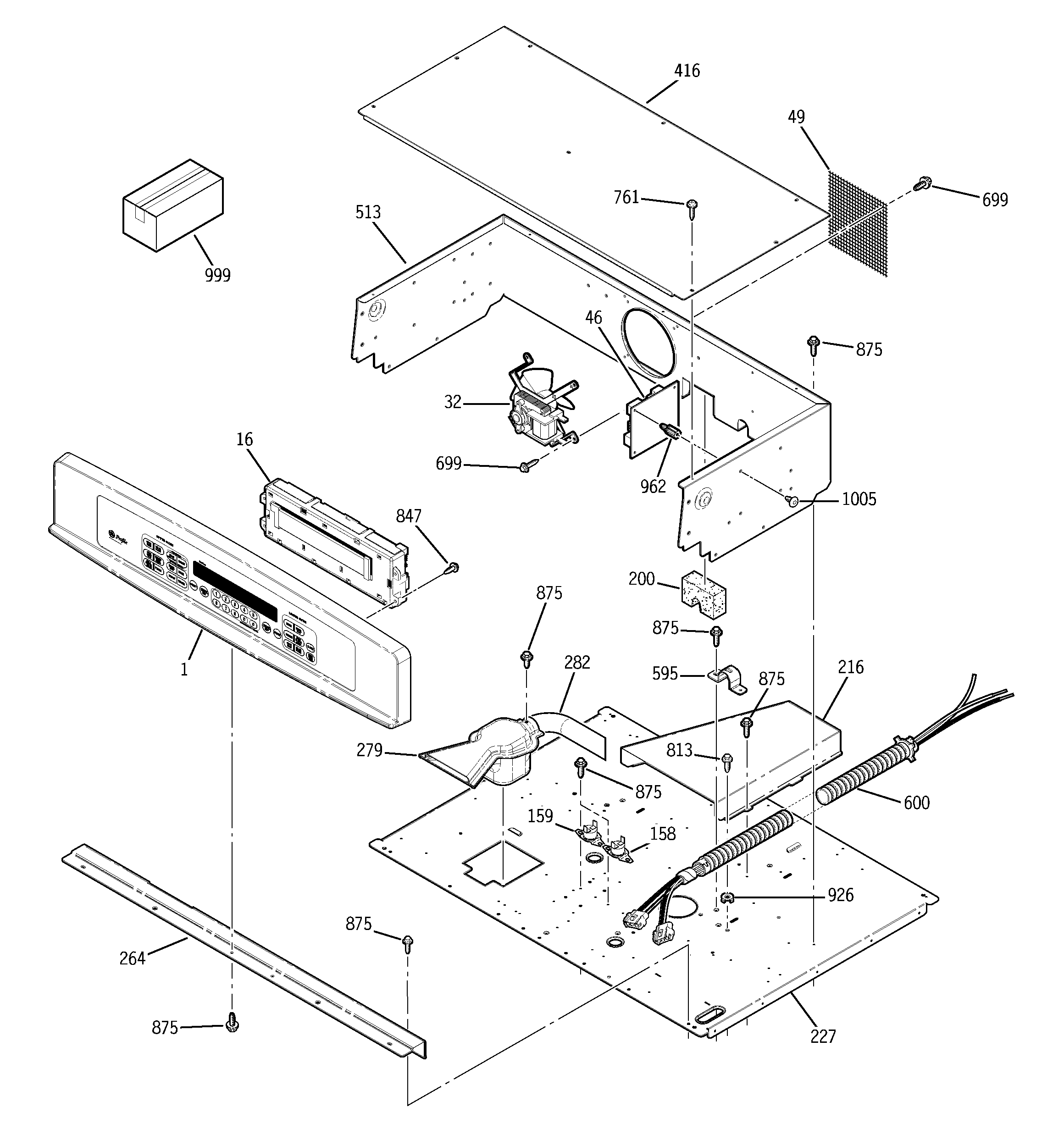

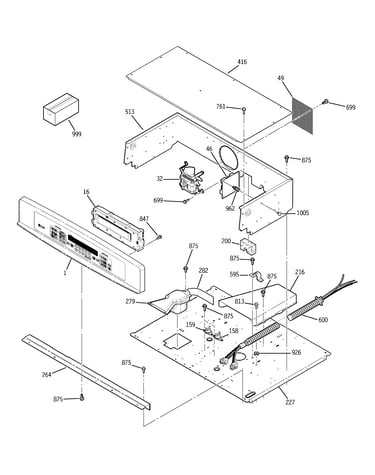

Control panel Diagram

$8.58

In Stock

Nut

#977

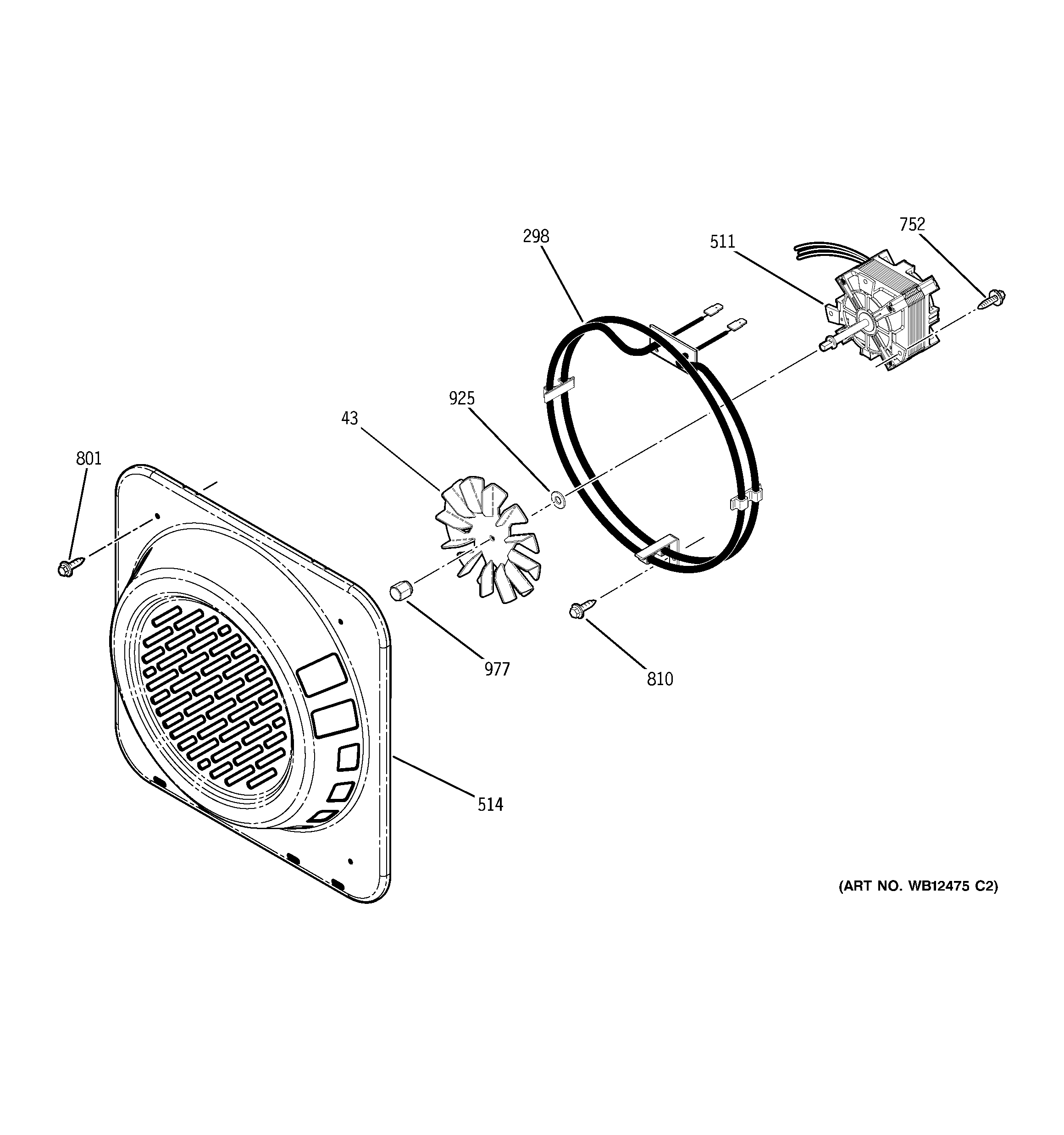

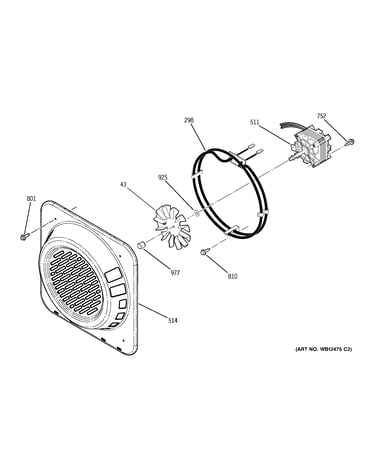

Convection fan Diagram

Nut

Part #WB02T10017
This item is not returnable
$6.89

In Stock

Range Oven Rack Assembly

#533

Upper body Diagram

Range oven rack assembly

Part #WB48X5108
$28.65

In Stock

Door Bumper

#133

Door Diagram

Door bumper

Part #WB03T10156
This item is not returnable
$2.49

In Stock

Range Oven Door Outer Panel Assembly (Black)

#140

Door Diagram

$281.31

In Stock

Door Bumper

#133

Door Diagram

Door bumper

Part #WB01T10022
This item is not returnable
$3.01

In Stock

Showing 10 of 140 parts
