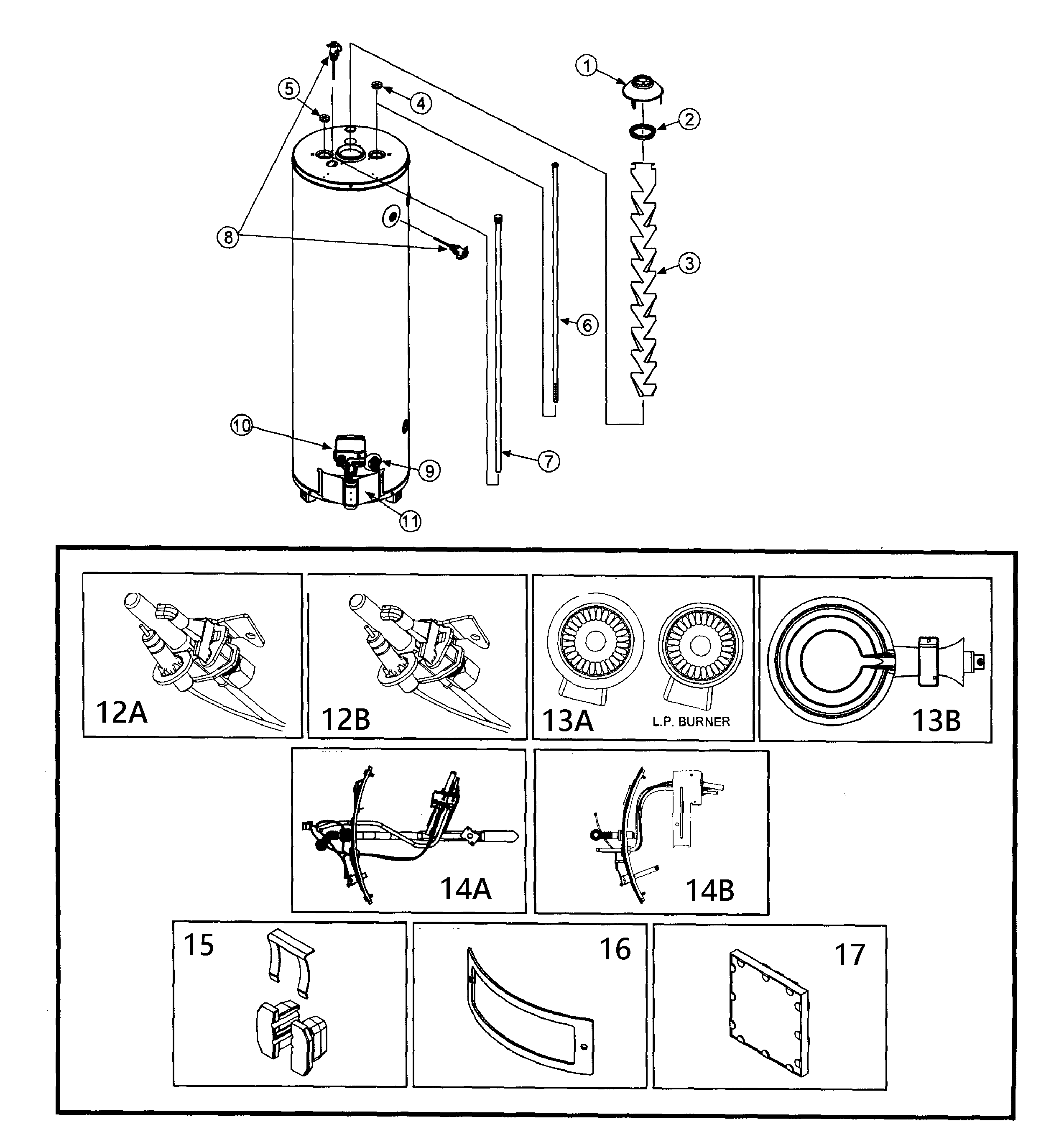

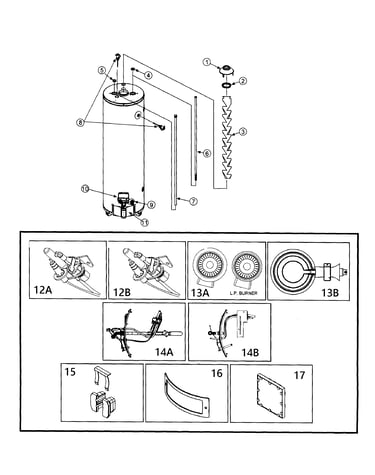

American Water Heaters N30T61-303 water heater Parts

Replacing a 30-gallon water heater typically costs about $800 to $3,000 for the new tank plus professional installation. For an American N30T61-303 gas water heater, the final price mainly depends on venting, gas-line work, code-required safety items (like a T and P relief valve), and local labor rates.

What drives the price most

• Fuel type and venting: gas units often cost more to install than electric because venting and combustion air matter.
• Labor and access: tight closets, attic installs, or long runs for water piping increase labor time.
• Code and safety updates: shutoff valves, expansion tank (closed systems), drip pan, seismic strapping (where required).
• Disposal and haul-away: old tank removal fees vary.
• Permits and inspection: common for water heater replacements.

Typical cost breakdown (what you are paying for)

Cost item	Typical range	Notes
30-gallon tank	$400 to $1,200	Higher for premium efficiency or specialty venting
Installation labor	$400 to $1,500	More if venting, gas piping, or access is difficult
Materials and upgrades	$100 to $800	Valves, fittings, expansion tank, vent parts
Permit and disposal	$0 to $400	Varies by area and contractor

When repair makes more sense than replacement

If the tank is sound and you are dealing with a specific failure, replacing a part can be the better value. Common examples for this model include:

• Pilot will not stay lit: water heater pilot assembly 100112330
• Water leaking from the safety discharge line: water heater temperature and pressure relief valve 100108279
• Temperature control or gas control problems: American water heater water heater gas valve and temperature control assembly 100112336

Why it matters

A water heater replacement is not just the tank. The owner's manual emphasizes correct piping, shutoff valve placement, and required safety components (including the temperature and pressure relief valve). Paying for a code-compliant install helps prevent leaks, scalding risk, and unsafe combustion conditions.

You can order model-specific replacement parts from the parts list for your N30T61-303, or search by model number on Sears PartsDirect.

Last updated: February 2026

For the American N30T61-303 gas water heater, the most common issue we see is the pilot light not staying lit, which stops the burner from heating water. Typical causes include a dirty or clogged pilot/orifice, restricted combustion air, or a failing pilot assembly or gas control.

Most common symptoms and what they usually point to

• Pilot will not light or won’t remain lit: clogged pilot line/orifice, weak thermopile, or combustion air problems
• High operating costs: thermostat set too high, sediment buildup in the tank, or hot water waste
• Insufficient hot water: thermostat set too low, sediment buildup, plumbing issues, or low gas pressure
• Slow hot water recovery: insufficient secondary air, flue restriction, or low gas pressure

Quick checks you can do safely

Before any hands-on work, follow the lighting and safety steps in the N30T61-303 owner's manual.

• Confirm the gas shut-off valve is open and other gas appliances work
• Check the area around the heater for lint, dust, or debris that can restrict airflow
• Make sure the heater has adequate make-up air (especially in closets or tight utility rooms)
• If the environment is dusty, plan to clean the flame arrestor (flame-trap) periodically
• If the status light indicates an overheat condition, stop and have the gas control evaluated

Parts that commonly solve “pilot won’t stay lit”

If troubleshooting points to a failed component, these are common replacements for this model:

Symptom	Common part to inspect/replace	What it does
Pilot won’t stay lit	Water heater pilot assembly 100112330	Provides pilot flame and flame-sensing signal to keep gas flowing
Overheat or temperature control problems	American water heater water heater gas valve and temperature control assembly 100112336	Regulates gas flow and water temperature; includes safety shutoff

You can order model-matched replacement parts from the parts list for N30T61-303, or search by model number on Sears PartsDirect.

Why it matters

A pilot that will not stay lit is more than an inconvenience; it prevents normal burner operation and can be triggered by airflow and venting conditions. Correcting combustion air issues and keeping the burner area clean helps restore reliable hot water and reduces nuisance shutdowns.

Last updated: February 2026

Most tank-style gas water heaters last 8 to 12 years. For your American N30T61-303, the tank’s condition (corrosion and sediment) and the health of the gas controls are what determine whether you land closer to 8 years or closer to 12.

What shortens or extends lifespan

A gas storage water heater usually fails from internal tank corrosion or wear in the burner and controls.

• Hard or aggressive water speeds corrosion and sediment buildup
• Higher temperature settings increase stress and can deplete the anode rod faster
• Heavy hot-water use increases burner cycles and control wear
• Poor combustion air or ventilation can cause burner issues and soot
• Skipped maintenance (no flushing, never checking the anode rod) shortens life

Signs it’s near end of life

These are common “replace soon” indicators:

• Rusty or discolored hot water
• Rumbling or popping noises from sediment
• Water around the base of the heater
• Pilot will not stay lit or frequent shutdowns
• Hot water becomes inconsistent or runs out faster

Maintenance that helps you reach 12 years

Use the intervals and safety steps in the N30T61-303 owner’s manual. Practical upkeep typically includes:

• Flush sediment from the tank periodically
• Inspect and replace the anode rod when significantly depleted
• Keep the burner area clean and air openings clear
• Test the temperature and pressure relief valve for proper operation

Common wear items for N30T61-303

Part area	What you may notice	Example part
Tank protection	Odor, faster corrosion risk	Anode rod 100108571
Ignition/pilot	Pilot will not stay lit	Water heater pilot assembly 100112330
Temperature/pressure safety	Dripping at discharge tube	Water heater temperature and pressure relief valve 100108279

Why it matters

Once the anode rod is depleted, the glass-lined tank corrodes faster and a leak can follow. Staying ahead of anode and sediment issues is the most effective way to protect service life.

You can order model-matched parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

For an American N30T61-303 gas water heater, it’s cheaper to repair when the tank is sound and the failure is limited to a replaceable component (pilot, gas control, valve). Replace the heater when the tank leaks or after specific safety events called out in the owner's manual.

Quick decision guide

• Repair when hot water problems trace to a single part and the tank is not leaking.
• Replace when the tank is leaking/corroded or the heater has had certain safety events.
• Stop and follow safety steps if you suspect a gas issue or unsafe operating condition.

Repairs that are usually the better value

These are common, serviceable fixes on this model:

• Water heater pilot assembly 100112330 for pilot that will not stay lit.
• Water heater gas valve and temperature control assembly 100112336 for temperature control or shutdown issues.
• Water heater temperature and pressure relief valve 100108279 for a leaking or dripping relief valve.

When replacement is the right call

The manual directs replacement of the entire water heater if:

• Any part has been under water (flooding or submersion of gas controls, burner, or pilot).
• There has been an ignition of flammable vapors.

Also replace if you have:

• Water leaking from the tank body or seams
• Heavy corrosion or repeated breakdowns that add up to frequent repairs
• A repair estimate that approaches the cost of a new heater

Cost logic at a glance

Situation	Usually best to	Why it matters
One part failed, tank is dry	Repair	Restores operation at lower cost
Relief valve drips	Repair	Often solved by correcting pressure and replacing the valve
Tank leak/corrosion	Replace	Tank failure is not a practical repair

Why it matters

Gas water heater decisions are not only about cost; tank integrity and safety conditions determine when replacement is mandatory.

You can order model-specific parts from the parts list for N30T61-303, or search by model on Sears PartsDirect.

Last updated: February 2026

Plumbers often don’t recommend tankless water heaters because installation is usually more complex and expensive, performance drops quickly with mineral scale in hard water if maintenance is skipped, and whole-home demand can exceed the unit’s flow rate. For many homes, a tank-style heater like the American N30T61-303 is simpler and more predictable.

Why plumbers push back on tankless

• Installation often requires upgraded gas piping, dedicated venting, and electrical changes
• Scale buildup reduces heat transfer; regular descaling is required in many areas
• Flow-rate limits can cause temperature swings when multiple fixtures run at once
• Short draws can create a brief cool-water burst (often called a cold-water sandwich)
• More frequent service expectations compared with a standard tank

Tank vs. tankless at a glance

Topic	Tankless	Tank (like N30T61-303)
Upfront install	Often higher	Often lower
Hot water delivery	Continuous, limited by flow rate	Limited by tank size, strong short-burst delivery
Maintenance	Descaling is critical	Periodic flushing helps reduce sediment
Common complaints	Delay, temp swings, scale	Sediment noise, normal condensation

Why it matters

Most homeowner frustration comes from a mismatch between simultaneous hot-water use (showers, laundry, dishwasher) and what a tankless unit can deliver at the needed temperature rise. With tank models, comfort and reliability usually come down to basic upkeep.

Practical tips for your tank-style water heater

Follow the intervals and steps in the N30T61-303 owner’s manual. These basics prevent many “performance” complaints:

• Flush the tank to reduce sediment that can cause popping noises and shorten tank life
• Expect some condensation sizzling during startup; it’s normal and stops as the tank warms
• Inspect venting and combustion air openings annually for blockage
• If the pilot won’t stay lit, the pilot system is a common repair area

Parts that commonly come up on this model

• Water heater pilot assembly 100112330
• American water heater water heater gas valve and temperature control assembly 100112336

You can order model-matched replacement parts from the parts list for N30T61-303, or search by model on Sears PartsDirect.
