Whirlpool 7GU3200XTVY4 undercounter dishwasher

Whirlpool 7GU3200XTVY4 undercounter dishwasher Parts

Here are the diagrams and repair parts for Whirlpool 7GU3200XTVY4 undercounter dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

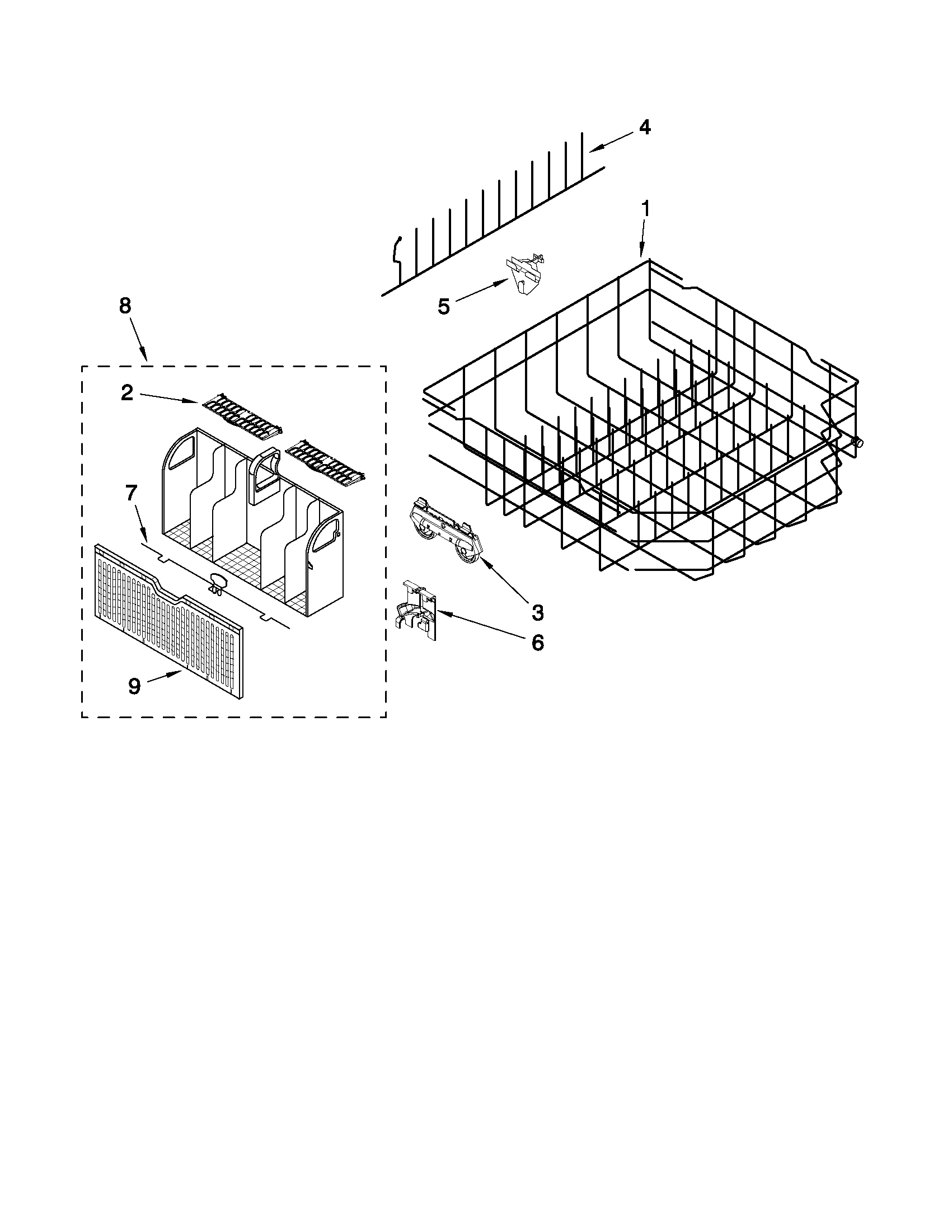

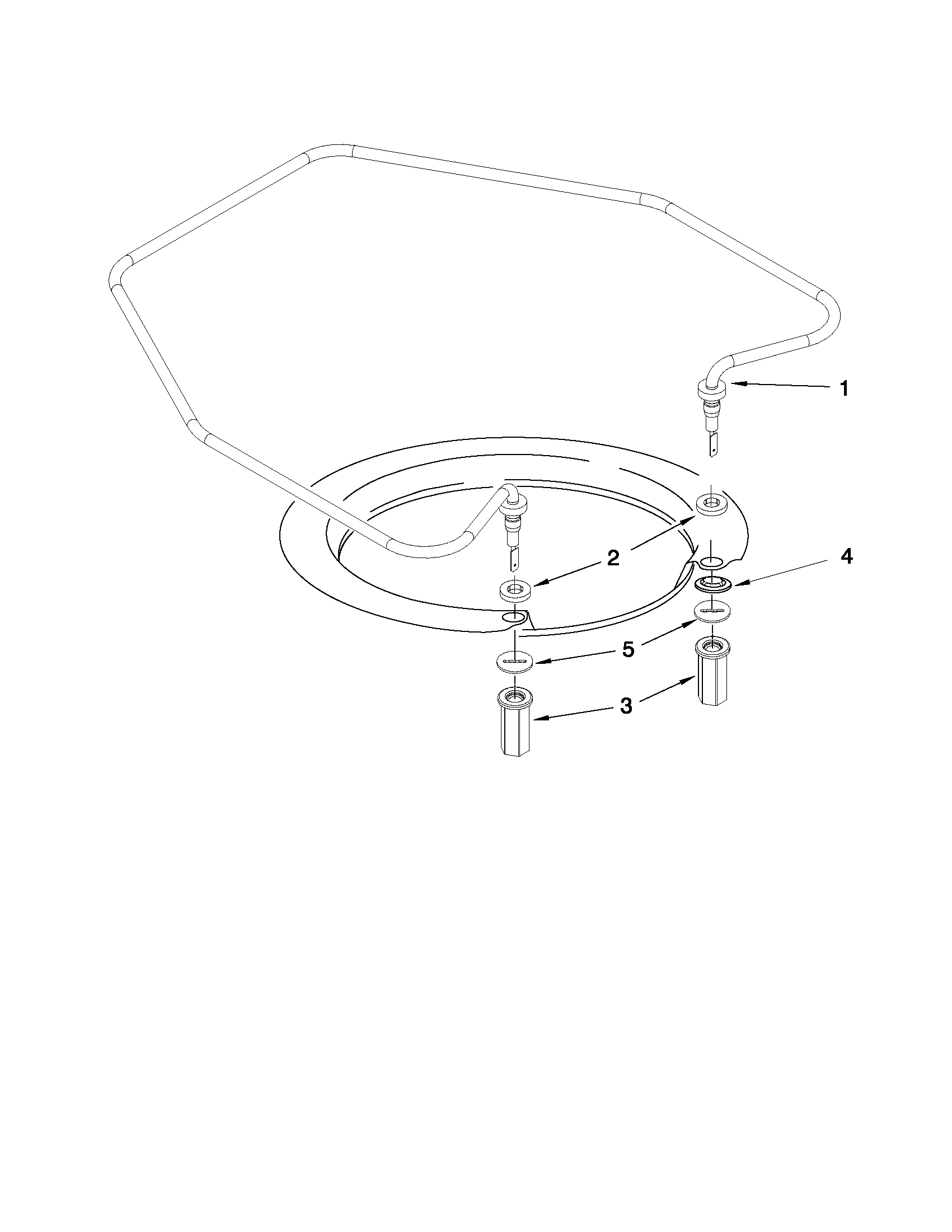

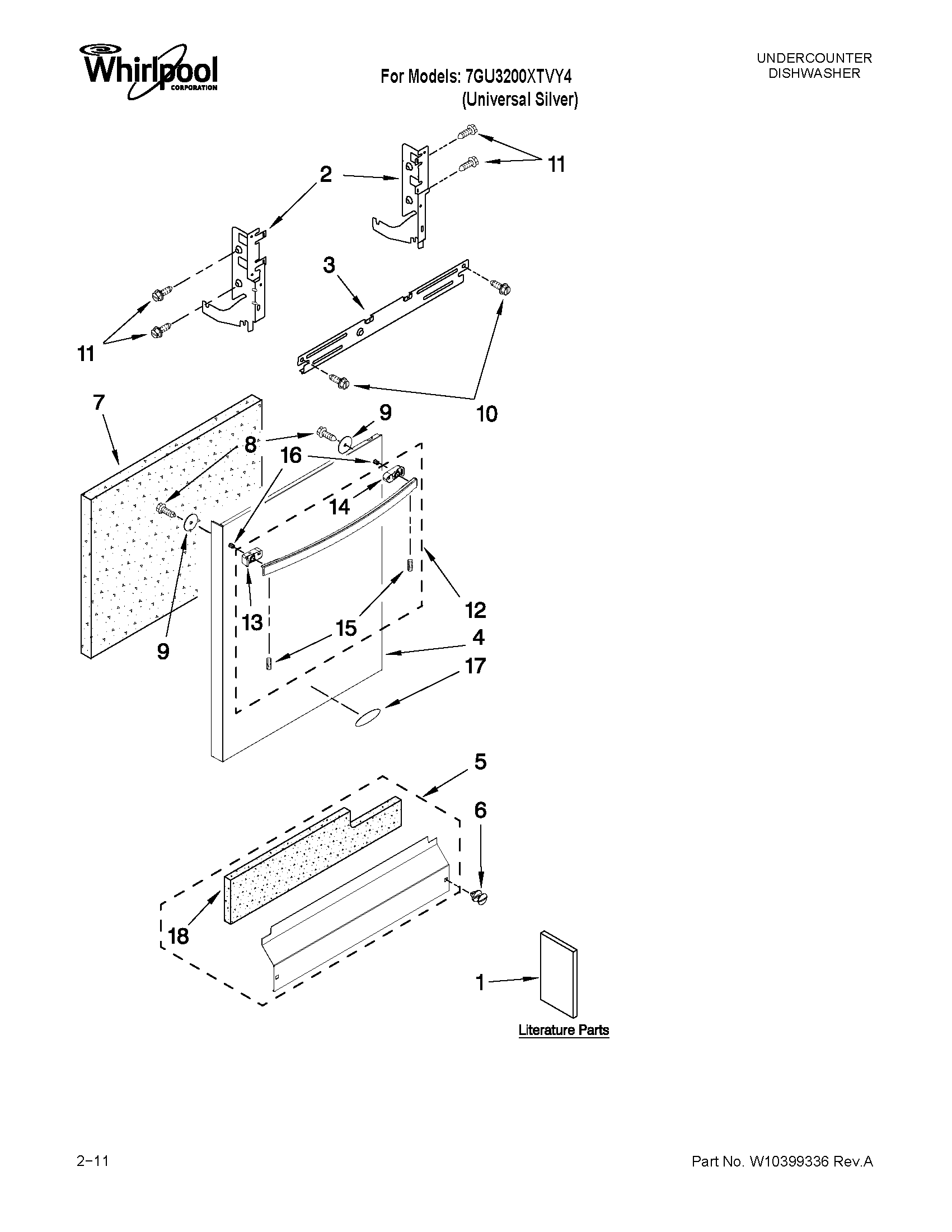

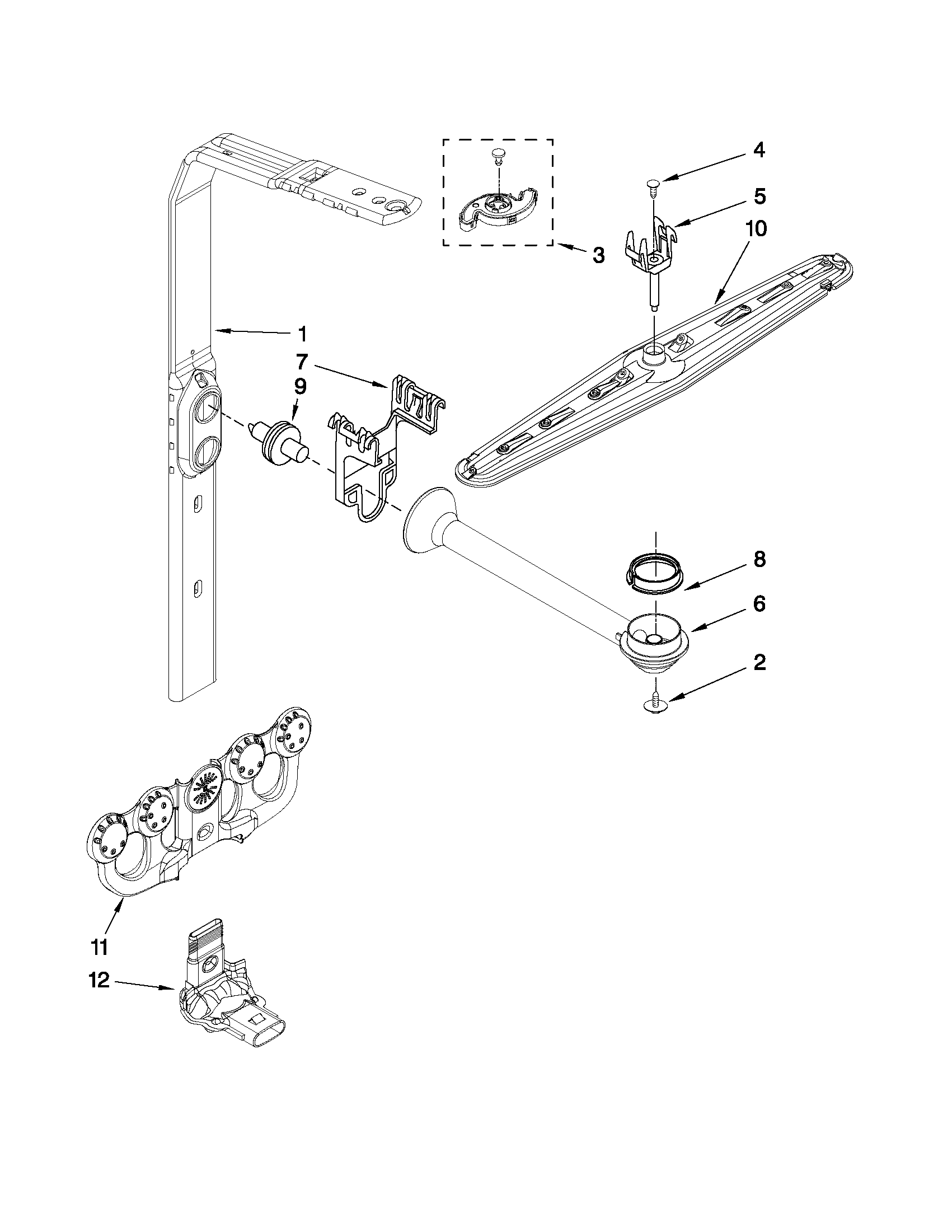

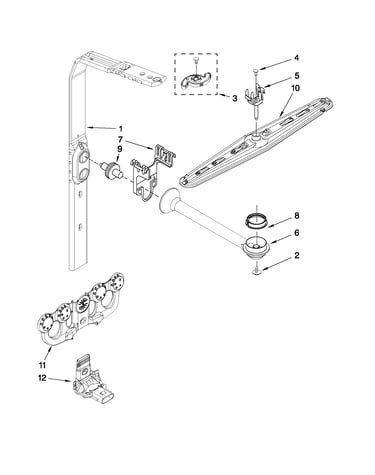

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 7GU3200XTVY4 Undercounter Dishwasher

  • Whirlpool Dishwasher Drain Pump for Whirlpool 7GU3200XTVY4 - Part WPW10348269

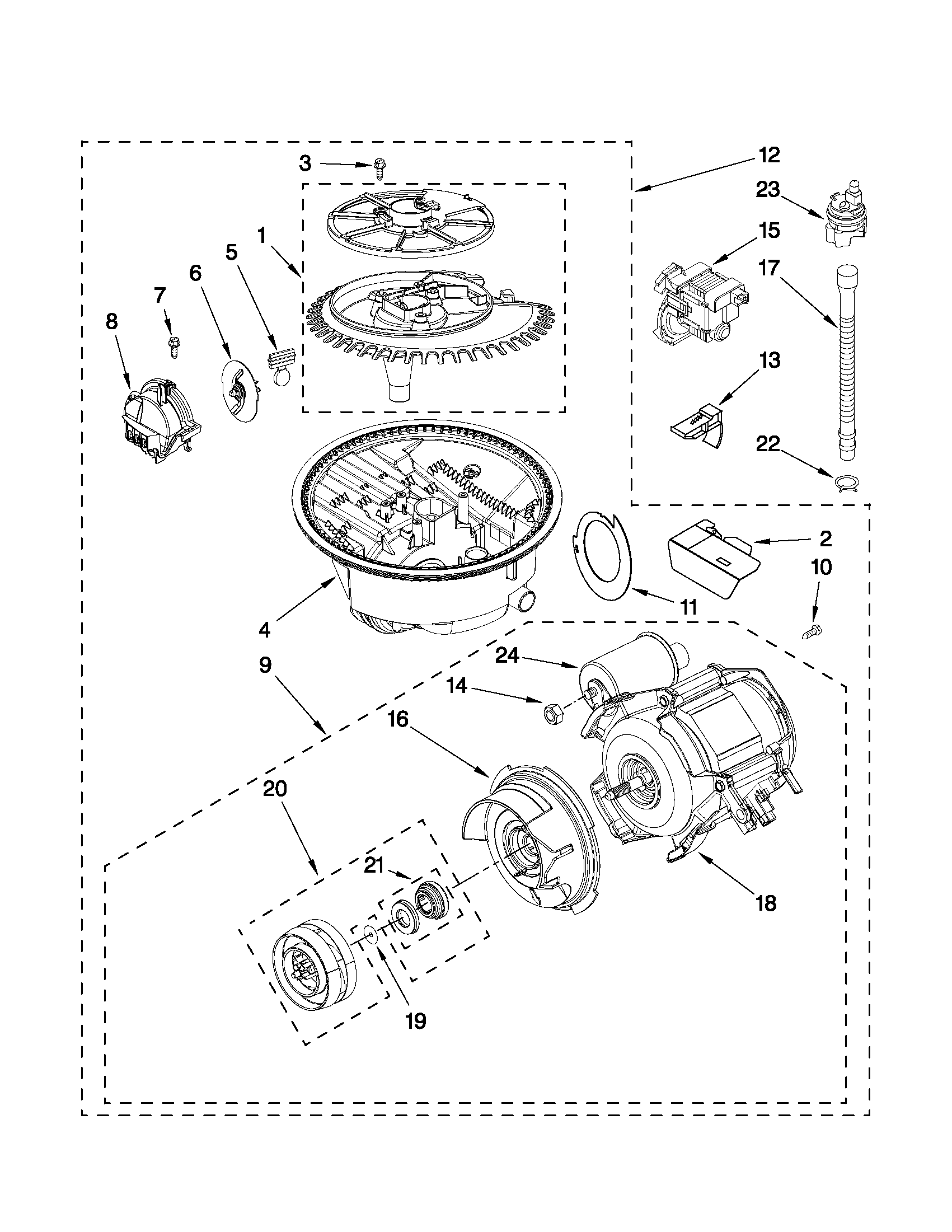

    Pump and motor parts diagram

    Dishwasher Drain Pump

    Part #8558995

    Replaced by #WPW10348269

    Info Icon
    Manufacturer substitution
    This part replaces 8558995. Substitute parts can look different from the original.
    In Stock
    $58.24
    9% OFF Phone Price : $64.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Dishrack Slide Rail Stop, Upper for Whirlpool 7GU3200XTVY4 - Part WP8565925

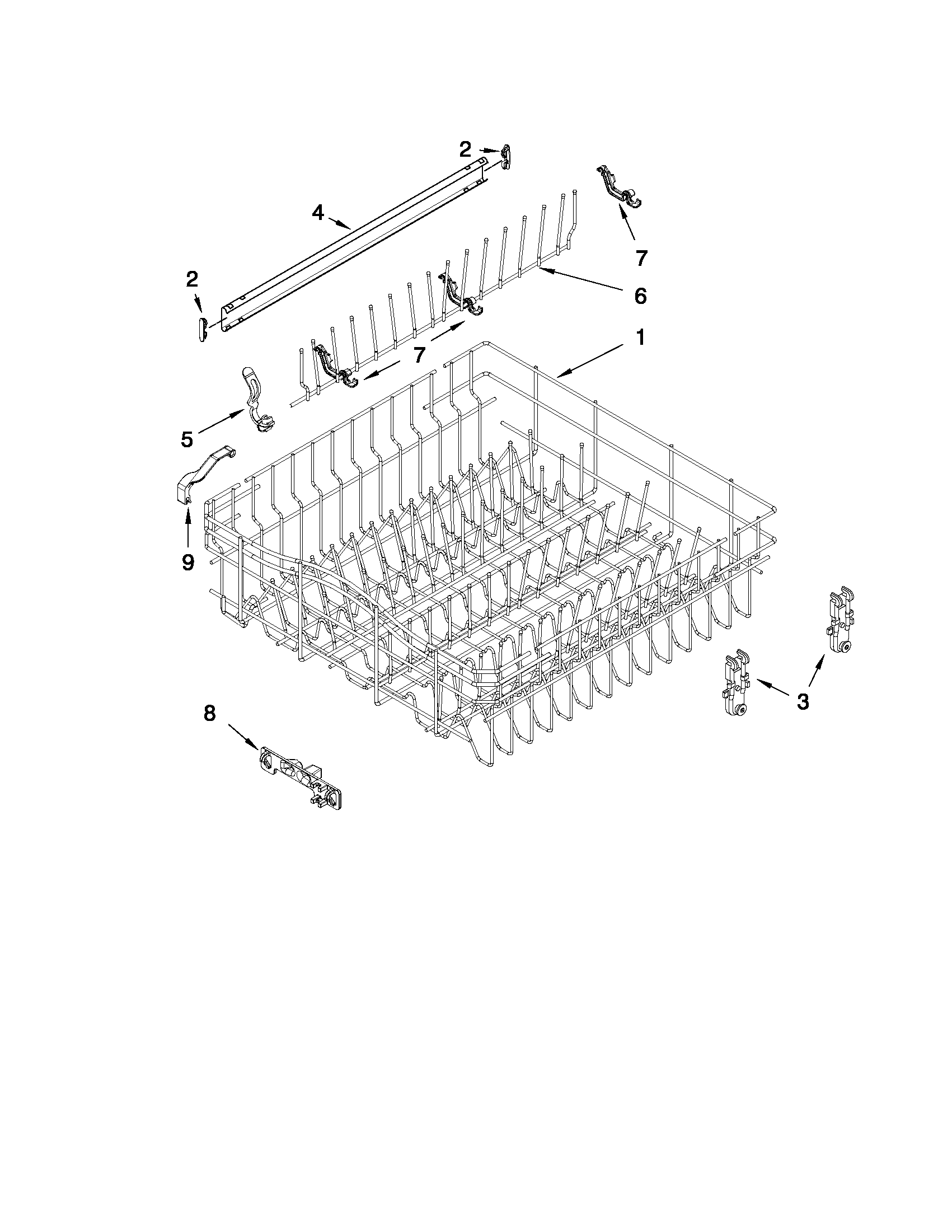

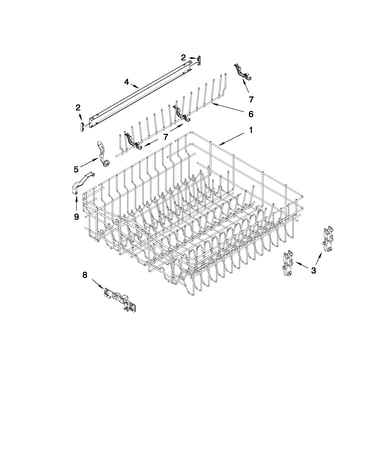

    Upper rack and track parts diagram

    Dishwasher Dishrack Slide Rail Stop, Upper

    Part #8565925

    Replaced by #WP8565925

    Info Icon
    Manufacturer substitution
    This part replaces 8565925. Substitute parts can look different from the original.
    In Stock
    $7.37
    12% OFF Phone Price : $8.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Thermal Fuse for Whirlpool 7GU3200XTVY4 - Part W10258275

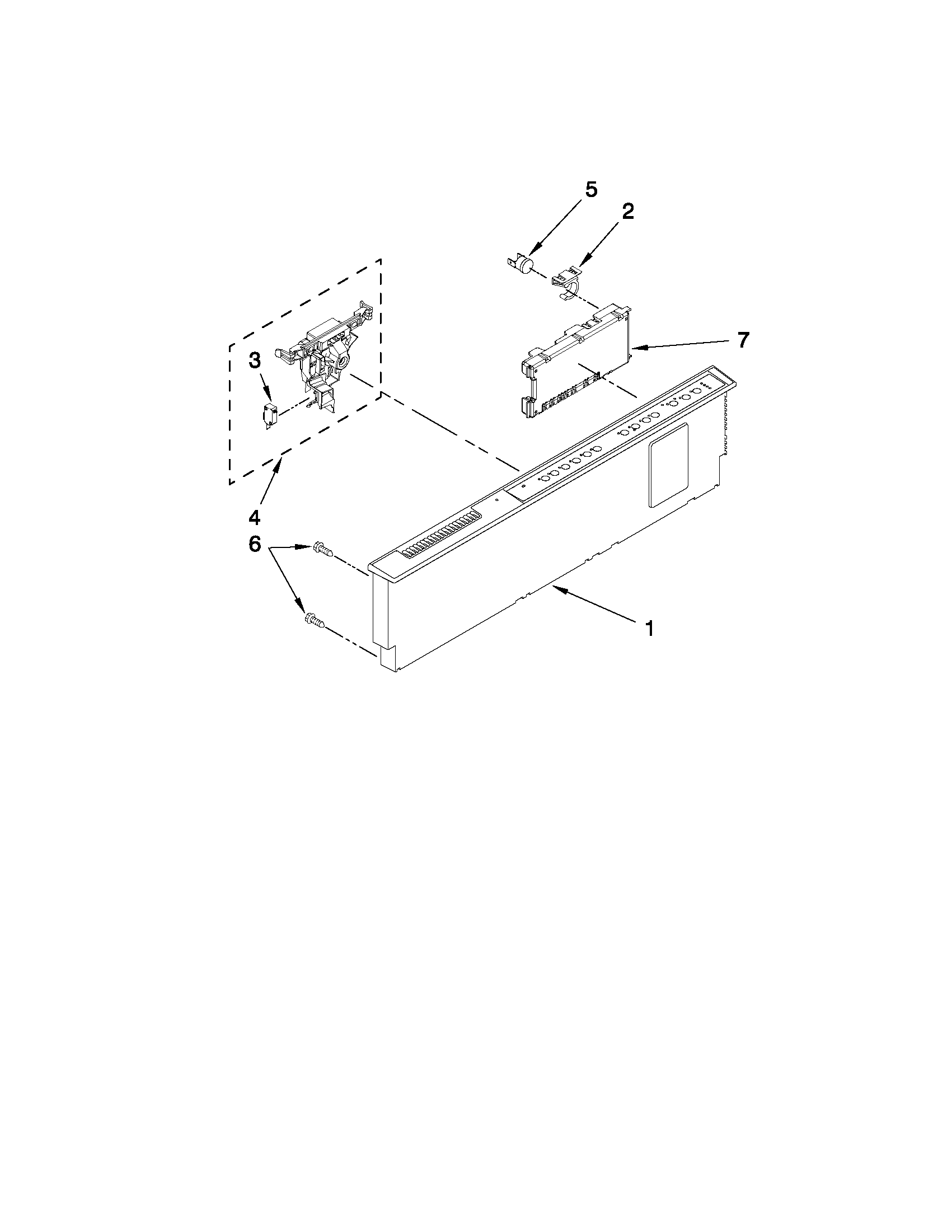

    Control panel and latch parts diagram

    Fuse

    Part #661663

    Replaced by #W10258275

    Info Icon
    Manufacturer substitution
    This part replaces 661663. Substitute parts can look different from the original.
    In Stock
    $26.57
    18% OFF Phone Price : $32.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Thermostat for Whirlpool 7GU3200XTVY4 - Part WP661566

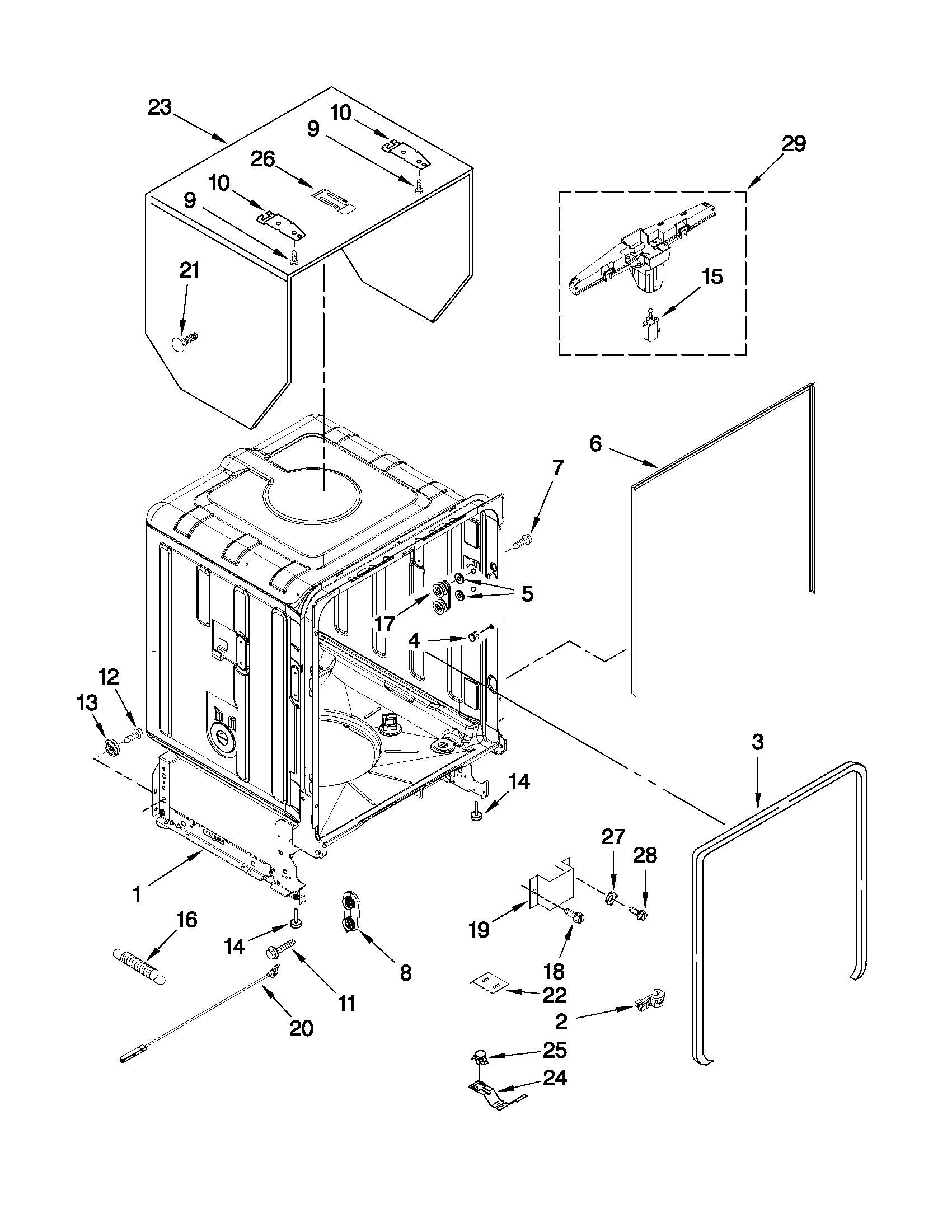

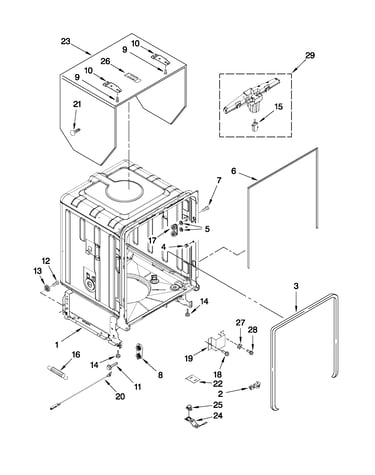

    Tub and frame parts diagram

    Dishwasher Thermostat

    Part #661566

    Replaced by #WP661566

    Info Icon
    Manufacturer substitution
    This part replaces 661566. Substitute parts can look different from the original.
    In Stock
    $13.39
    46% OFF Was : $24.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Drain Hose for Whirlpool 7GU3200XTVY4 - Part 8269144A

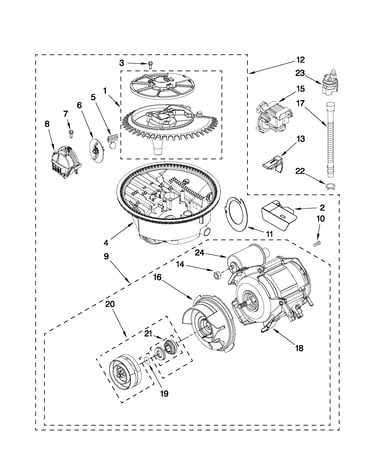

    Pump and motor parts diagram

    Dishwasher Drain Hose

    Part #8269144

    Replaced by #8269144A

    Info Icon
    Manufacturer substitution
    This part replaces 8269144. Substitute parts can look different from the original.
    In Stock
    $19.77
    9% OFF Phone Price : $21.77Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Turbidity Sensor for Whirlpool 7GU3200XTVY4 - Part WPW10705575

    Pump and motor parts diagram

    Dishwasher Turbidity Sensor

    Part #W10134017

    Replaced by #WPW10705575

    Info Icon
    Manufacturer substitution
    This part replaces W10134017. Substitute parts can look different from the original.
    In Stock
    $27.75
    18% OFF Phone Price : $33.75Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Cabinet Seal for Whirlpool 7GU3200XTVY4 - Part W10864081

    Tub and frame parts diagram

    Seal

    Part #8269110

    Replaced by #W10864081

    Info Icon
    Manufacturer substitution
    This part replaces 8269110. Substitute parts can look different from the original.
    In Stock
    $48.59
    11% OFF Phone Price : $54.59Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Detergent Dispenser Assembly for Whirlpool 7GU3200XTVY4 - Part WPW10199696

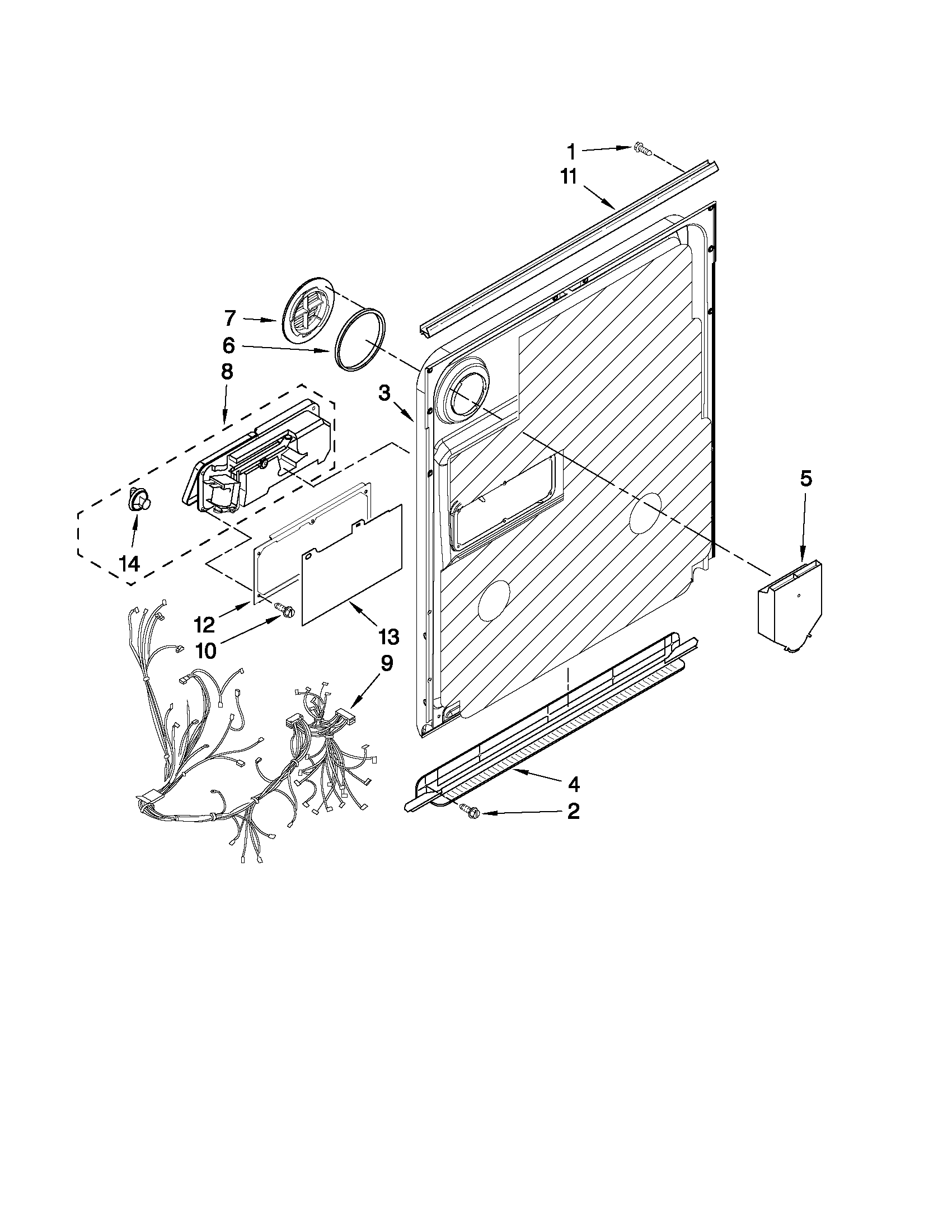

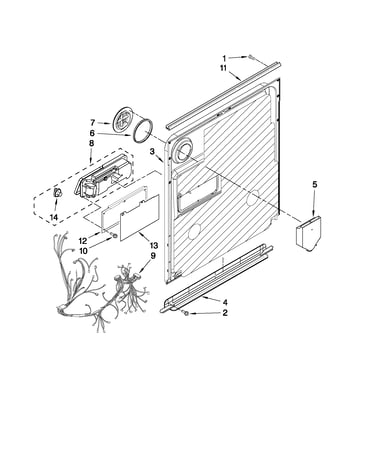

    Inner door parts diagram

    Dishwasher Detergent Dispenser Assembly

    Part #W10224429

    Replaced by #WPW10199696

    Info Icon
    Manufacturer substitution
    This part replaces W10224429. Substitute parts can look different from the original.
    In Stock
    $137.14
    8% OFF Phone Price : $149.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Water Inlet Tubing for Whirlpool 7GU3200XTVY4 - Part W10878507

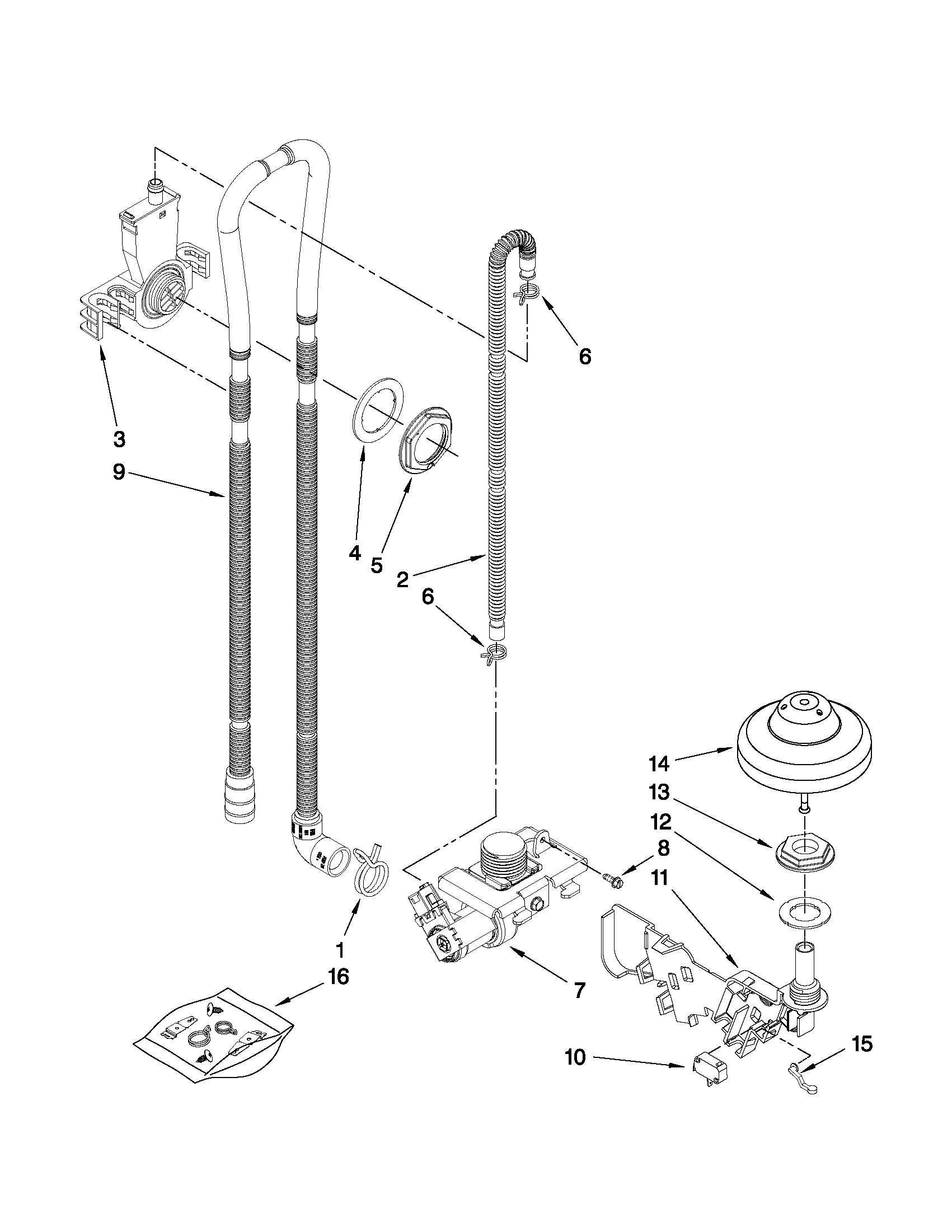

    Fill, drain and overfill parts diagram

    Dishwasher Water Inlet Tubing

    Part #8531412

    Replaced by #W10878507

    Info Icon
    Manufacturer substitution
    This part replaces 8531412. Substitute parts can look different from the original.
    In Stock
    $60.31
    9% OFF Phone Price : $66.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Water Inlet Valve for Whirlpool 7GU3200XTVY4 - Part W10648041

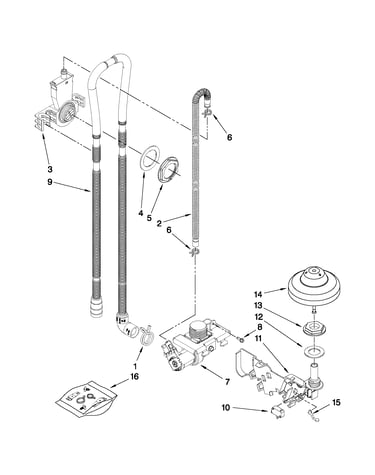

    Fill, drain and overfill parts diagram

    Dishwasher Water Inlet Valve

    Part #W10195049

    Replaced by #W10648041

    Info Icon
    Manufacturer substitution
    This part replaces W10195049. Substitute parts can look different from the original.
    In Stock
    $45.78
    12% OFF Phone Price : $51.78Info Icon
    Minus Item
    Qty
    Plus Item
