GE GDP670SYV1FS dishwasher Parts

Yes, for a GE GDP670SYV1FS dishwasher, we replace many common parts ourselves with basic tools, especially mechanical items like spray arms, rack hardware, and some seals. For electrical diagnosis or leak-related repairs, we still DIY safely, but we use extra caution and stop if wiring or water connections look damaged.

What you can usually replace yourself

• Spray arms and manifolds (clogs, cracks, poor cleaning)

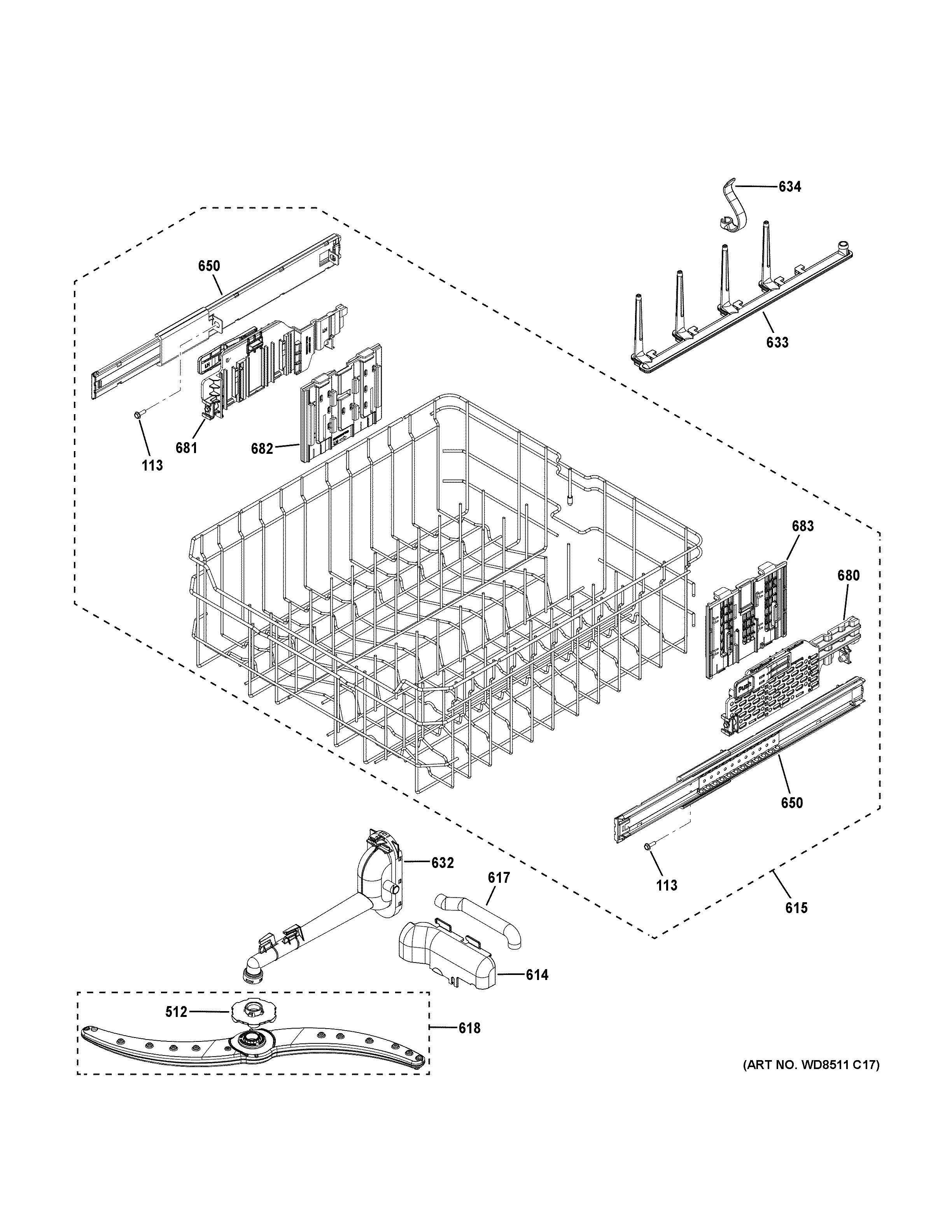

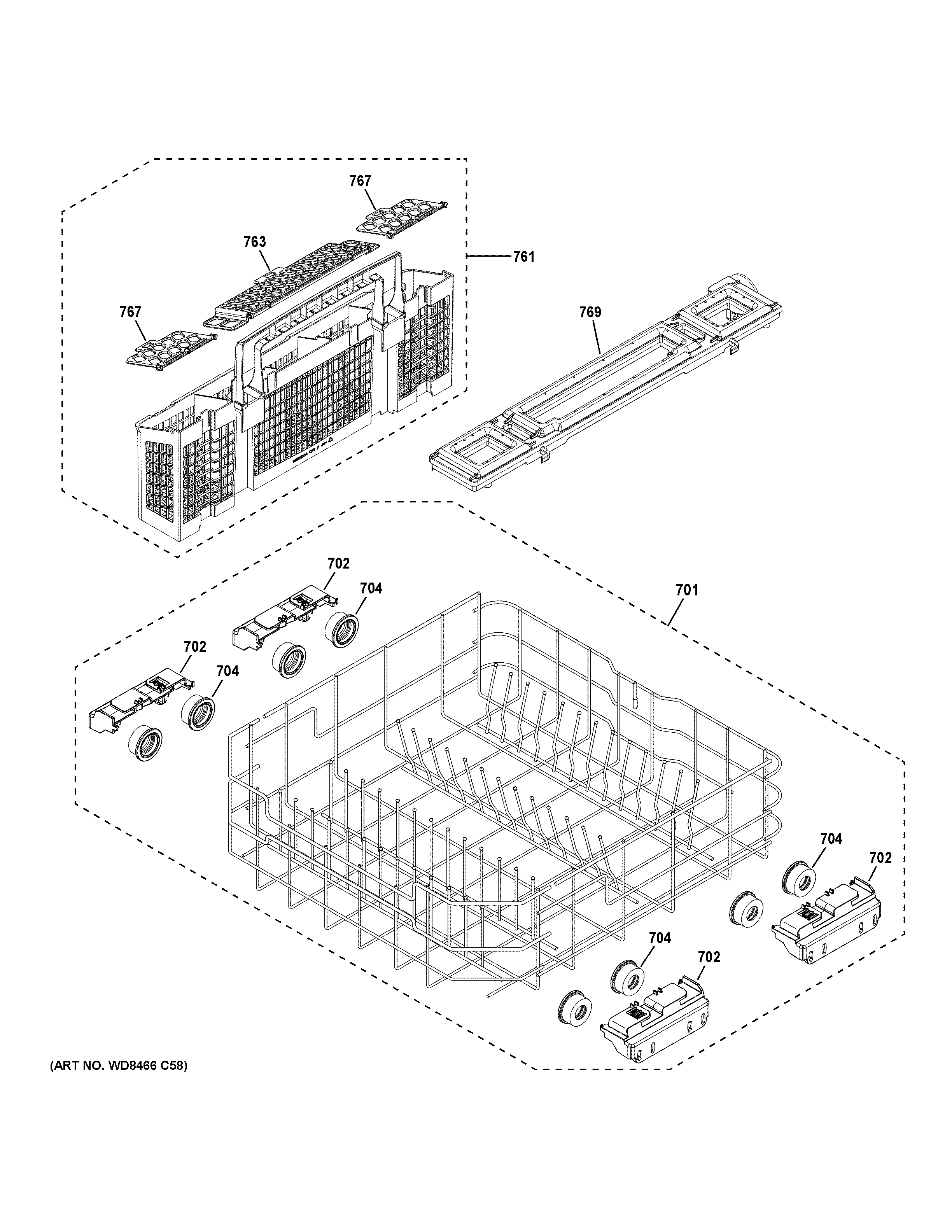

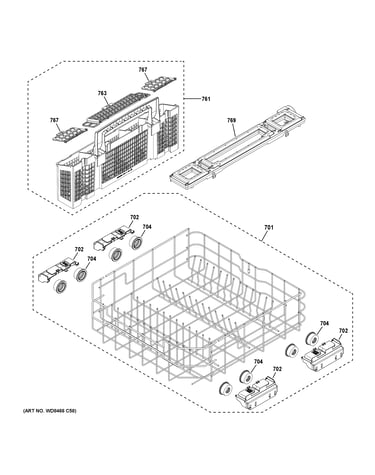

• Rack slides, rollers, and brackets (rack won’t roll smoothly)

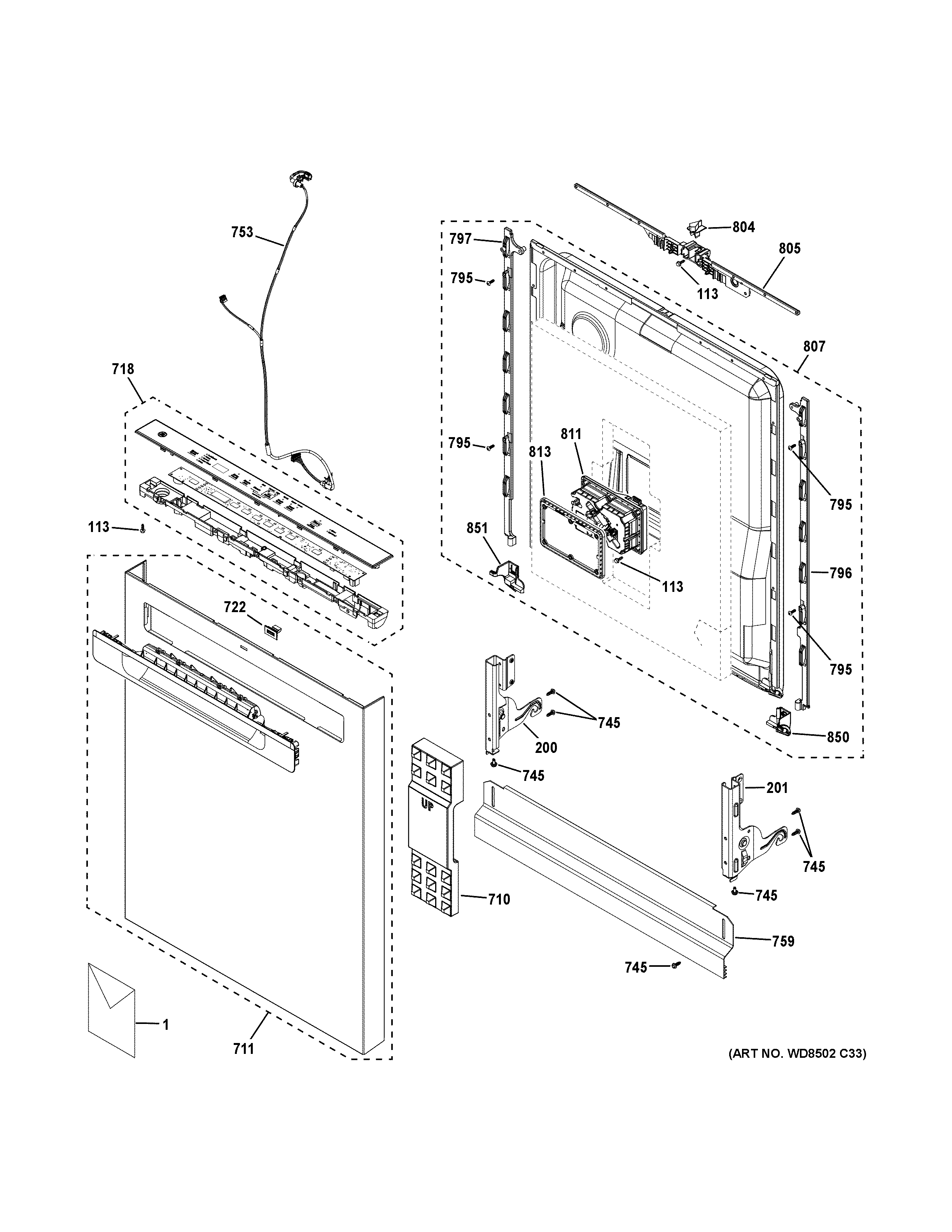

• Door latch components (won’t start because the door won’t latch)
• Drain hose (slow drain, leaks under sink)
• Water valve assembly (no fill or weak fill)

Parts that commonly come up on this model

Symptom	Likely part area	Example part for GDP670SYV1FS
Dishes not getting clean	Spray system	Spray arm WD22X33499
Won’t drain or drains slowly	Drain system	Dishwasher drain pump WD19X25461
Won’t start, beeps, or stops	Door latch	Dishwasher door latch lock WD01X29878
Not drying well	Heating circuit	Heating element WD05X35098
Fill issues or water hammer	Inlet/fill	Water valve assembly WD15X27703

DIY safety checklist (do this every time)

• Shut off power at the breaker (dishwashers are hardwired or plugged in).
• Turn off the water supply valve under the sink.
• Pull the dishwasher out only if needed; protect the floor and water line.
• Take photos of wire routing and hose connections before removal.
• Run a short rinse cycle after the repair and check for leaks with a flashlight.

Why it matters

Replacing the right part the first time prevents repeat leaks, poor wash performance, and nuisance error conditions. A simple clog in a spray arm can look like a pump problem, so quick inspection and cleaning often saves time and money.

For troubleshooting codes before you buy parts, use GE dishwasher error codes.

Last updated: February 2026

The most common GE dishwasher problem we see on model GDP670SYV1FS is water not moving correctly: it may not drain, may not fill to the right level, or may wash weakly. Most root causes trace back to a clog, a door-latch/start issue, or a failed pump, valve, or sensor.

Most common symptoms and what they usually mean

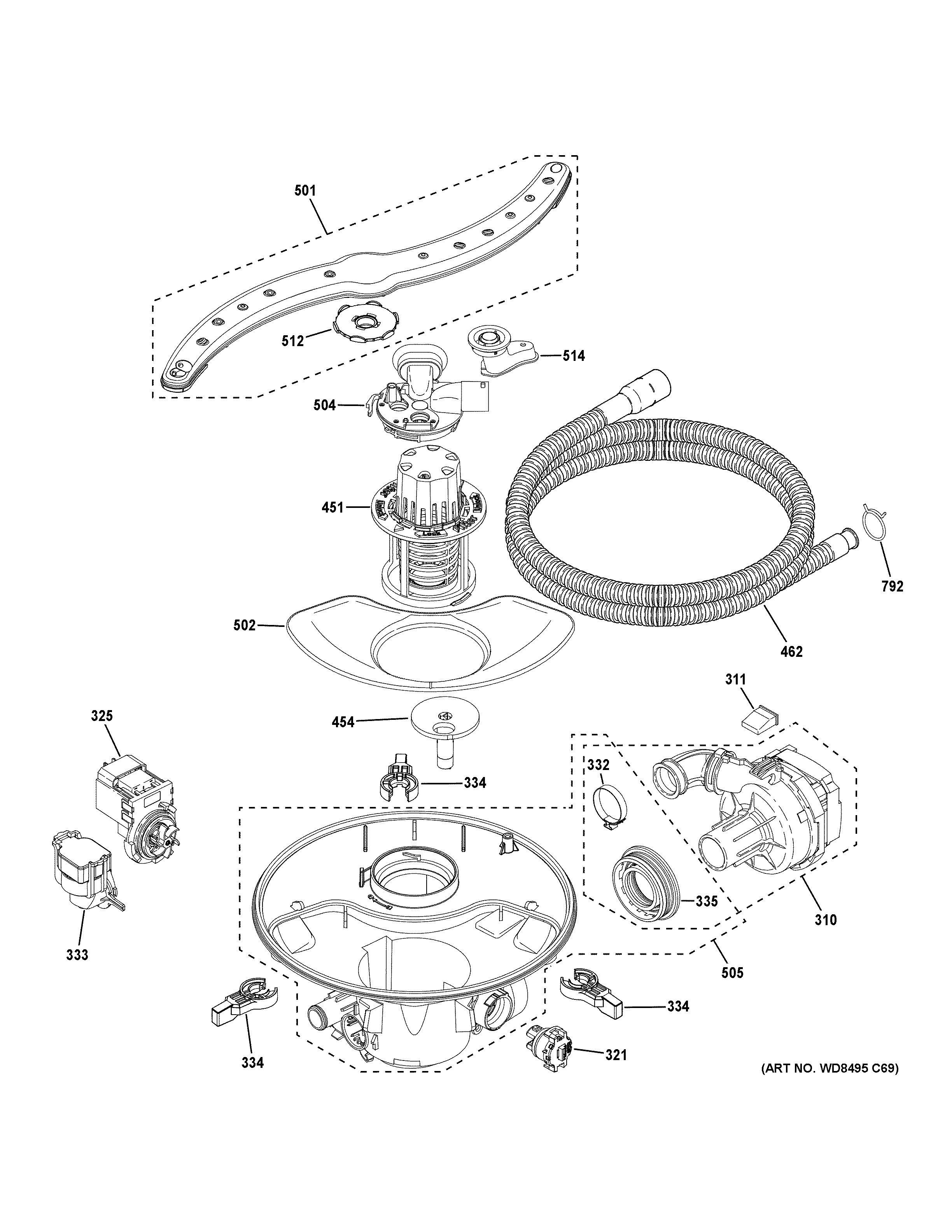

• Won’t drain: clogged drain path, kinked hose, or a failing drain pump
• Won’t start: door not latching, control lock, or control issue
• Not cleaning well: blocked spray arm holes, low water fill, or wash pump problem
• Leaks: tub gasket wear, loose hose connection, or overfilling
• Error codes: often point to fill, drain, or sensing problems (we use them to narrow the diagnosis)

Quick checks we recommend first (fast, no parts)

1. Confirm the door closes firmly and the latch engages.
2. Cancel/drain the cycle and listen for the drain motor running.
3. Check the sink drain/garbage disposal connection for a blockage.
4. Inspect for a kinked or crushed drain hose under the sink.
5. Pull out racks and look for food debris blocking spray arms.

Parts that commonly fix these issues on GDP670SYV1FS

Problem area	What fails	Example part for this model
Draining	Drain pump weak or jammed	Dishwasher drain pump WD19X25461
Filling	Inlet valve not opening fully	Water valve assembly WD15X27703
Washing pressure	Sensor misreads water level/pressure	GE dishwasher pressure sensor WD21X25468
Poor spray	Spray arm clogged or cracked	Spray arm WD22X33499

Why it matters

Drain, fill, and wash-pressure problems all reduce water circulation. That leads to dirty dishes, standing water, odors, and repeated cycle interruptions. Fixing the underlying restriction or failed part restores normal wash action and prevents secondary issues like leaks.

Helpful troubleshooting resources

• Use GE electronic dishwasher error codes to match any displayed code to likely causes.

Last updated: February 2026

A GE dishwasher like model GDP670SYV1FS typically lasts 10 to 12 years with normal household use. With consistent cleaning and quick fixes for draining, heating, or wash issues, many units reach the upper end of that range.

Typical lifespan and what changes it

Most dishwasher life expectancy comes down to water quality, how often it runs, and whether key wear items are kept clean.

• 10 to 12 years: common average for many GE dishwashers
• Shorter lifespan: heavy daily use, hard water scale, chronic clogs, frequent overheating
• Longer lifespan: regular filter/sump cleaning, correct detergent, prompt leak/drain repairs

Maintenance that extends life (high impact)

These steps reduce strain on the wash pump, drain pump, spray arms, and heating system.

• Clean the tub and sump area monthly; remove debris before it reaches the pump
• Keep spray arm holes clear; replace a damaged arm such as the spray arm WD22X33499
• Address slow or no-drain symptoms early; a failing pump like the dishwasher drain pump WD19X25461 can shorten overall life
• Use rinse aid and the right detergent amount to reduce filming and redeposit
• Run hot water at the sink before starting a cycle to improve wash performance and reduce run time
• Fix leaks quickly; a worn seal can lead to corrosion and electrical damage

Quick “repair vs replace” guide

What you’re seeing	Usually worth repairing	Often points toward replacement planning
Not draining, noisy drain	Drain hose clog, drain pump	Repeated pump failures plus leaks
Not cleaning well	Spray arm, sump cleaning	Persistent poor wash after multiple repairs
Not drying	Heating circuit checks, rinse aid	Multiple major systems failing together
Random stopping or dead	Latch, wiring checks	Control issues plus other major symptoms

Why it matters

A dishwasher near the 10 to 12 year mark can still be a great candidate for repair if the tub is sound and the problem is isolated (spray, drain, latch, or heat). Catching issues early helps protect expensive components like the wash pump and control board.

For troubleshooting help by symptom, we use the GE dishwasher error codes reference to match what the dishwasher is reporting to the most likely causes.

Last updated: February 2026

Yes, it’s usually worth fixing a GE dishwasher like model GDP670SYV1FS when the problem is a common wear item or a single failed component and the total repair cost stays well below the cost of replacement. It’s less worth it when multiple major systems are failing (leaks plus poor washing plus electrical issues).

Quick decision checklist

• The dishwasher is under 10 years old and has been reliable overall.
• The issue is isolated (for example: won’t drain, won’t fill, not cleaning, not drying).
• You can confirm a clear cause (clog, broken latch, failed pump, failed valve).
• The tub is in good shape (no major rust-through or structural damage).
• The repair is a DIY-friendly swap (pump, valve, latch, spray arm).

Common repairs that are often worth it on GDP670SYV1FS

These are typical “single-part” fixes that can restore normal operation:

Symptom	Likely area	Example part for this model
Won’t drain, standing water	Drain path or drain pump	Dishwasher drain pump WD19X25461
Door won’t latch, won’t start	Door latch system	Dishwasher door latch lock WD01X29878
Not filling or fills slowly	Water inlet valve	Water valve assembly WD15X27703
Poor cleaning, weak spray	Spray arm or feed/manifold	Spray arm WD22X33499
Not drying well	Heating circuit	Heating element WD05X35098

When replacement makes more sense

• The dishwasher has repeated breakdowns in different systems (wash, drain, heat, controls).
• You’re facing a high-cost electronics repair plus another mechanical issue.
• You have persistent leaking that continues after replacing seals and correcting installation.

Why it matters

A dishwasher repair is most cost-effective when it restores performance with one targeted part (like a drain pump, latch, or inlet valve). Once multiple major components stack up, downtime and labor can outweigh the value of keeping the unit.

Helpful troubleshooting resources

• Use GE dishwasher error codes to interpret beeps, blinking lights, or fault codes before buying parts.
• If the unit has power but won’t run, follow dishwasher wont start video to rule out door-latch and control-related causes.

Last updated: February 2026

Yes. GE Profile is widely considered GE’s premium (high-end) line, positioned above standard GE appliances for features and finish, but below GE’s luxury Monogram line. For your GE dishwasher model GDP670SYV1FS, “Profile” branding typically signals more advanced options than base models.

What “high end” means with GE Profile

GE Profile usually focuses on upgrades that affect daily use, including:

• More wash and dry options (specialty cycles, targeted cleaning)
• Quieter operation compared with many entry-level models
• More refined controls and exterior styling
• Added convenience features (rack adjustability, better loading flexibility)
• More electronics and sensors to manage water use and performance

Where GE Profile fits in the GE lineup

This is the typical positioning customers see when comparing GE brands:

GE line	Typical positioning	What you usually get
GE (standard)	Core/value	Essential cycles and features
GE Profile	Premium	More features, quieter builds, more automation
Monogram	Luxury	Highest-end design, materials, and pricing

Why it matters for parts and repairs

A “higher-end” dishwasher often uses more sensors and control components to deliver performance and efficiency. When troubleshooting a GE Profile style dishwasher like GDP670SYV1FS, we commonly see issues tied to electronic sensing, water fill, and wash performance components.

If you’re diagnosing a cleaning or fill-related problem, these model-matched parts are often involved:

• GE dishwasher pressure sensor WD21X25468 (water level and pressure feedback)
• Water valve assembly WD15X27703 (controls water entering the dishwasher)
• Spray arm WD22X33499 (wash coverage and cleaning performance)

Helpful troubleshooting resource

When the dishwasher displays an error or behaves inconsistently, using a GE-specific code list speeds up diagnosis: GE electronic dishwasher error codes.

Last updated: February 2026

If you can’t find a part for your GE GDP670SYV1FS dishwasher, we recommend confirming the full model number and then searching by the part ID or part number from the old part label. If it still doesn’t show up, our parts specialists can help you identify the correct replacement.

Quick checks that usually solve it

• Recheck the model number on the dishwasher’s rating label and match it exactly to GDP670SYV1FS.
• Search using the part number printed on the original part (letters and numbers must match).
• Try searching by a known part ID from common repairs (example: spray arm WD22X33499).
• Look for alternate descriptions (for example, “wash pump” vs. “pump and motor”).
• If the part is part of a kit or assembly, search the assembly name (example: sump and seal assembly).
• If you’re troubleshooting first, pull any displayed error code and use GE dishwasher error codes to narrow the part.

What to have ready when you contact us

Having these details speeds up part identification and avoids ordering the wrong item:

What to gather	Where to find it	Why it helps
Model number (GDP670SYV1FS)	Rating label on the dishwasher	Ensures correct diagrams and compatible parts
Serial number	Same rating label	Helps confirm production variation
Part number from old part	Printed/stamped on the part	Fastest way to match the exact replacement
Symptom or error code	Display or behavior	Points to likely parts (drain, fill, heat, wash)

If you’re not sure which part you need

Use the symptom to guide your search, then match to a listed part for this model:

• Not draining: check the dishwasher drain pump WD19X25461 and drain hose routing
• Not filling: check the water supply and the water valve assembly WD15X27703
• Not cleaning: inspect spray arms and filters; consider the spray arm WD22X33499
• Not drying: heating circuit issues can involve the heating element WD05X35098
• Won’t start: door latch and control issues can involve the dishwasher door latch lock WD01X29878

Why it matters

Dishwasher parts often look similar across GE models, but small design changes can affect fit, wiring, and performance. Matching the exact model number and part number helps ensure the replacement works correctly the first time.

Last updated: February 2026
