Model # RT215SCH0 Official White-Westinghouse top-mount refrigerator - 5995227757

Here are the diagrams and repair parts for Official White-Westinghouse RT215SCH0 top-mount refrigerator - 5995227757, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 237 parts  |

Molo Body 3206327
#17

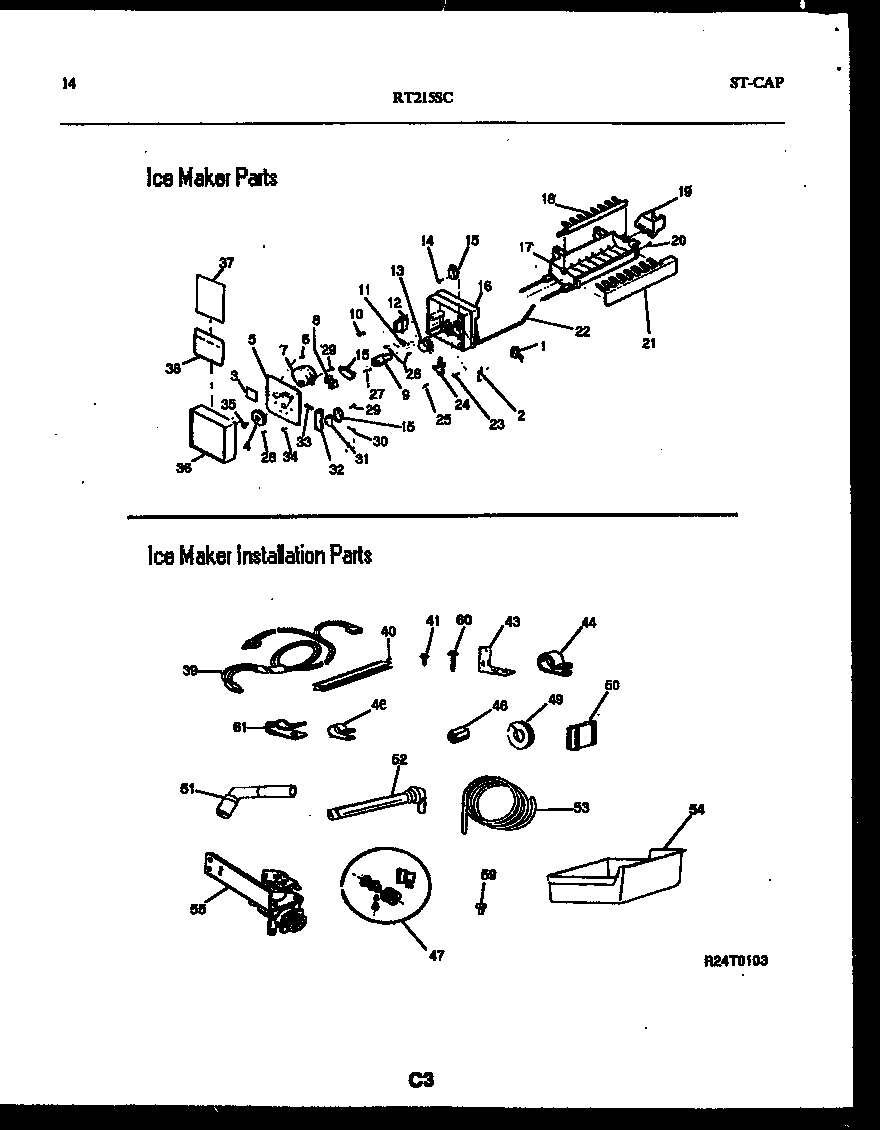

Ice maker and installation parts diagram

Molo body

Part #3206327

Replaced by #241798231

?
Manufacturer substitution
This part replaces 3206327. Substitute parts can look different from the original.
BEST SELLER
$135.63
15% OFF MSRP : $160.00
In Stock
Filter 5308000027
#4

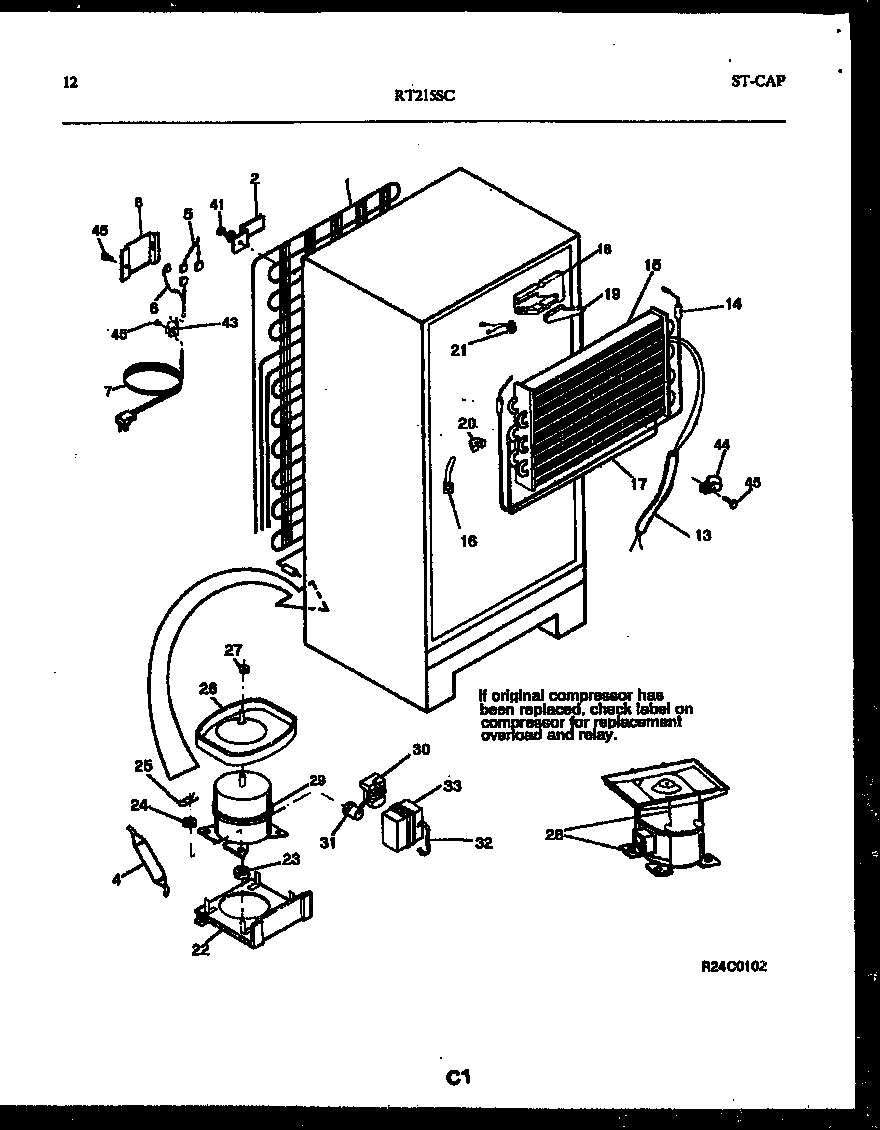

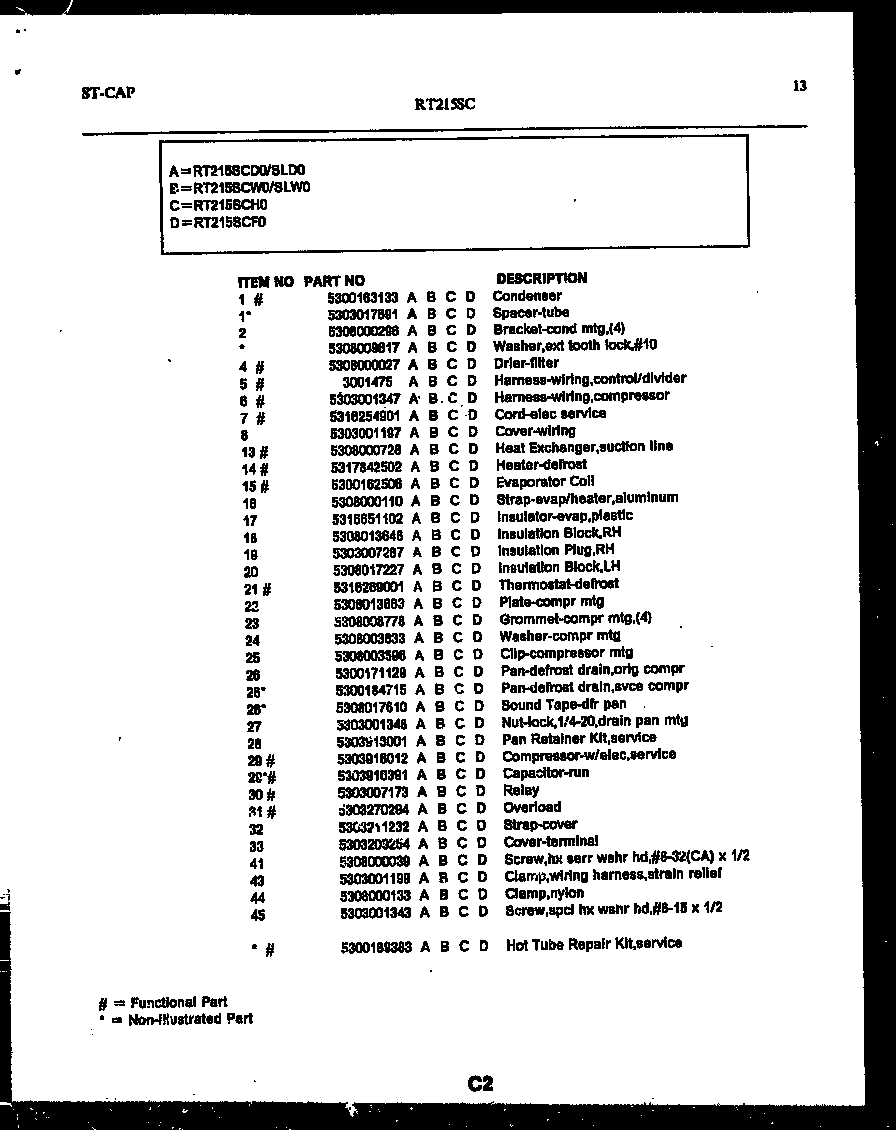

System and automatic defrost parts diagram

Filter

Part #5308000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
BEST SELLER
$10.30
37% OFF MSRP : $16.34
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

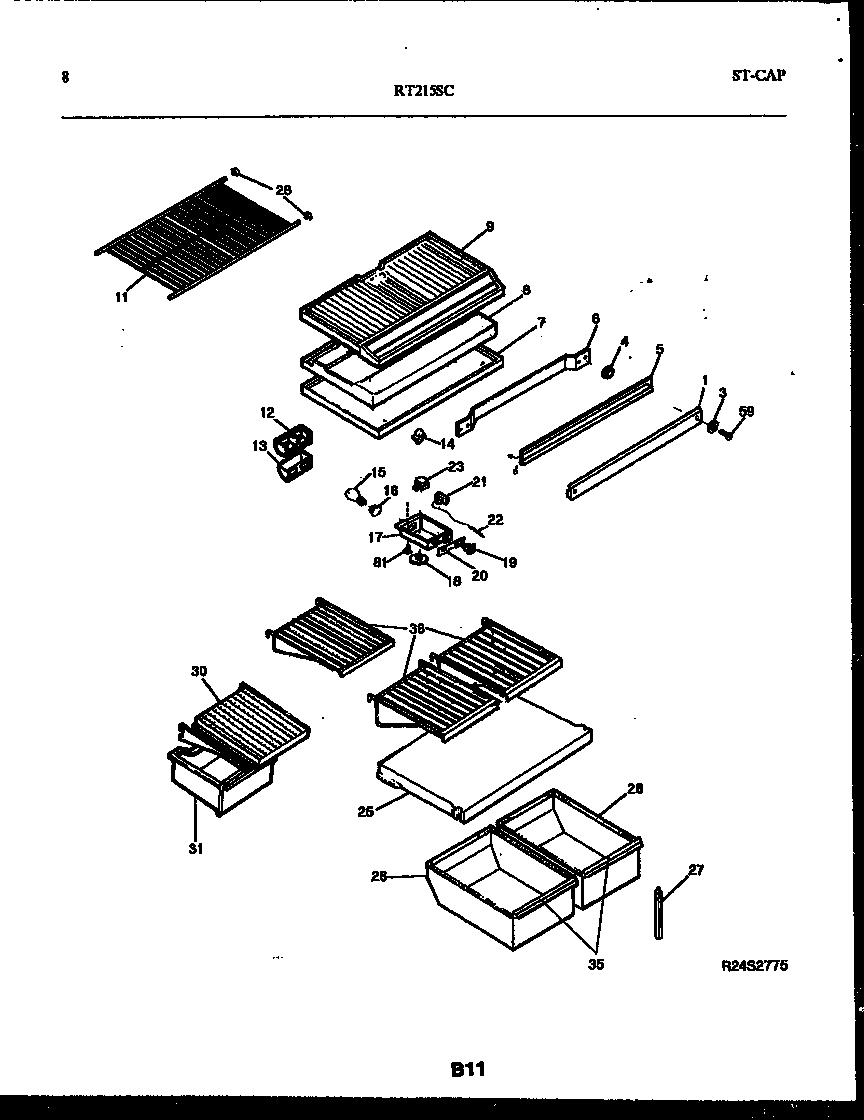

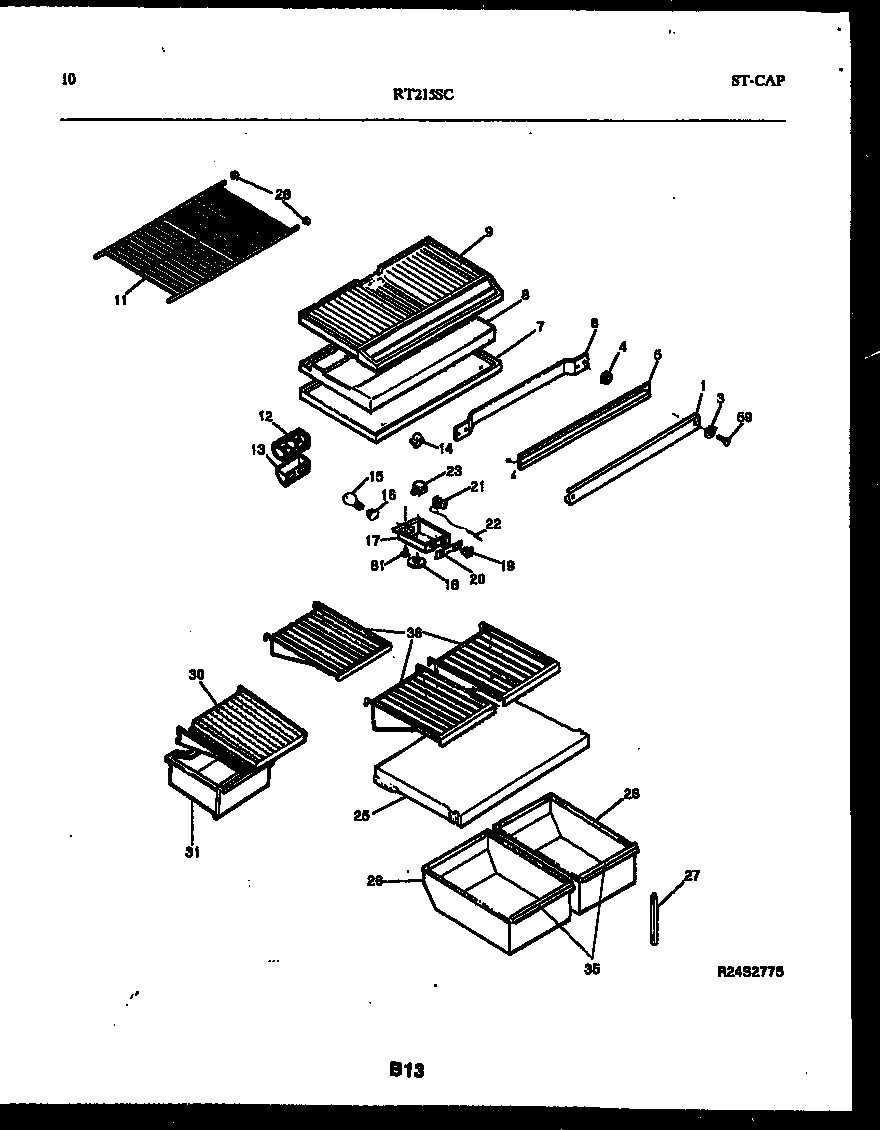

Shelves and supports diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$15.31
12% OFF Phone Price : $17.31
In Stock
Refrigerator Thermostat 5316269001
#21

System and automatic defrost parts diagram

Refrigerator thermostat

Part #5316269001

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 5316269001. Substitute parts can look different from the original.
BEST SELLER
$23.79
17% OFF Phone Price : $28.79
In Stock
Refrigerator Ice Maker Assembly 3206306
#7

Ice maker and installation parts diagram

Refrigerator ice maker assembly

Part #3206306

Replaced by #5303918277

?
Manufacturer substitution
This part replaces 3206306. Substitute parts can look different from the original.
BEST SELLER
$160.17
6% OFF Phone Price : $170.17
In Stock
Refrigerator Evaporator Fan Motor 5300158289
#13

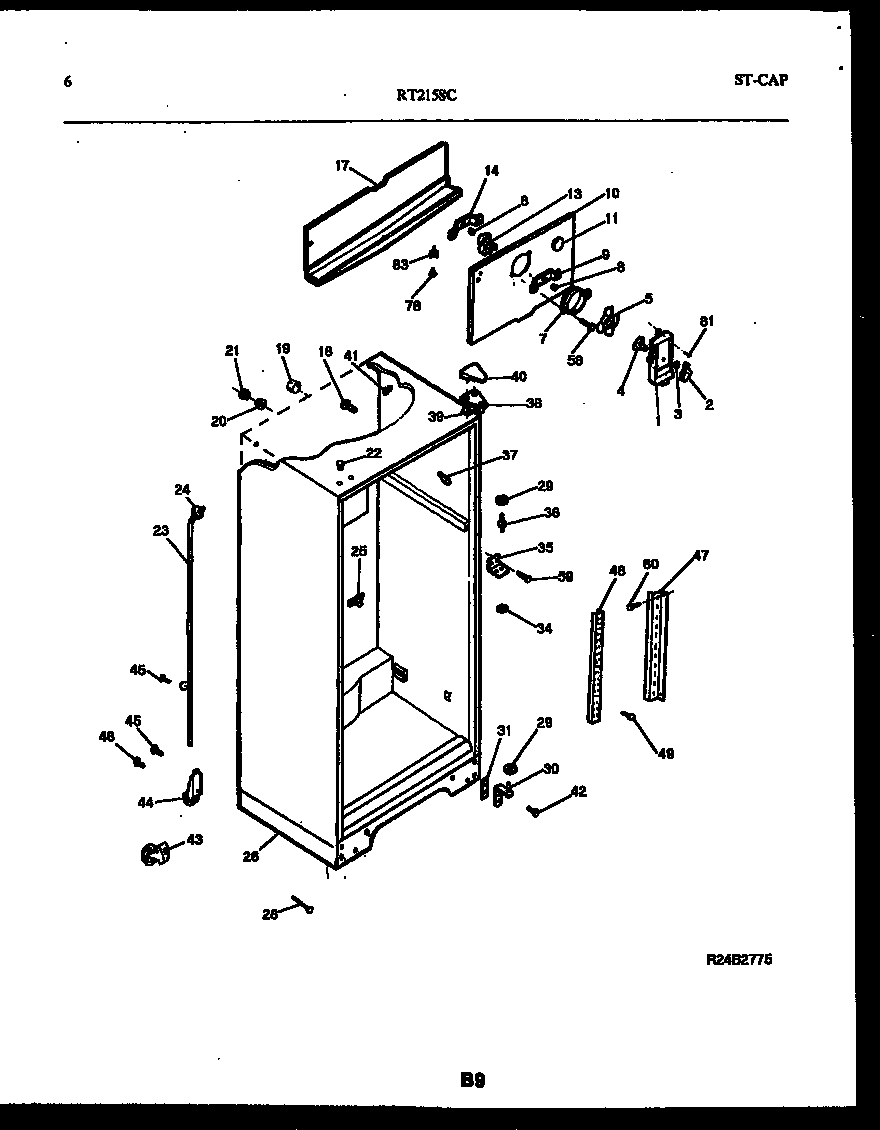

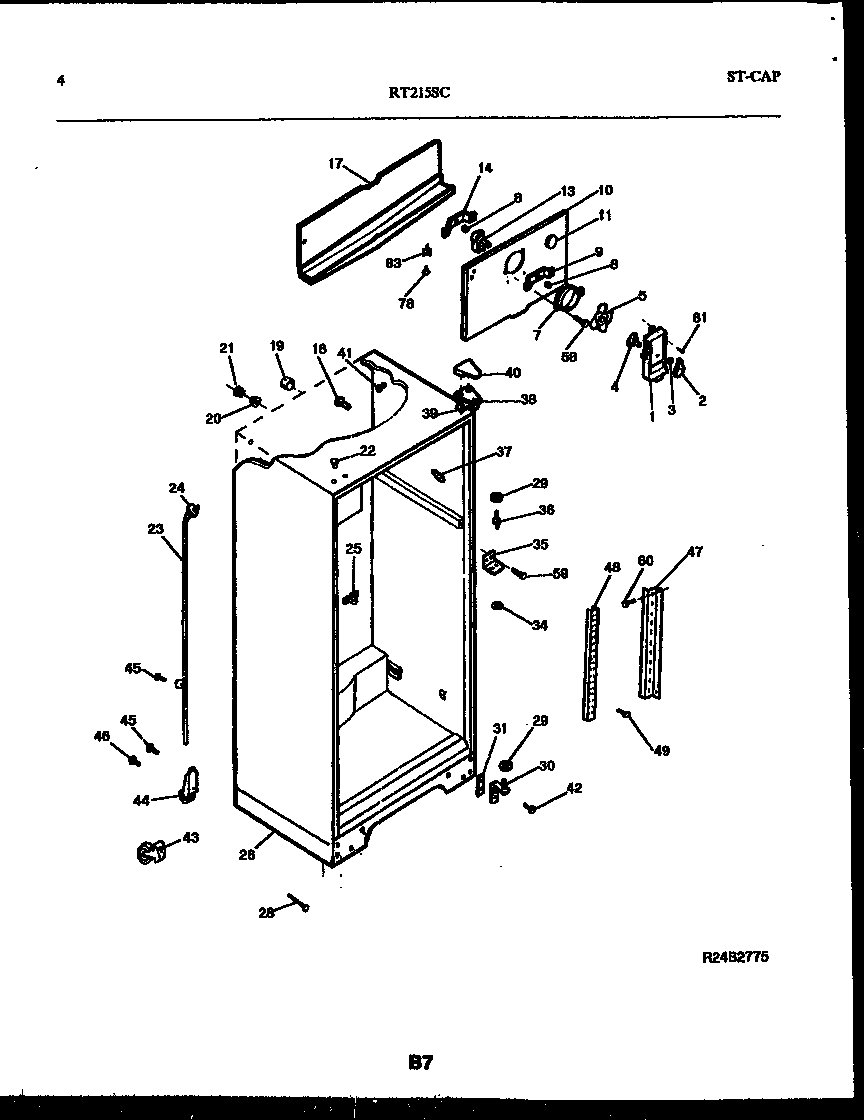

Cabinet parts diagram

Refrigerator evaporator fan motor

Part #5300158289

$88.69
5% OFF Phone Price : $93.69
In Stock
Refrigerator Evaporator Fan Mounting Bracket Screw 5308016566
Refrigerator evaporator fan mounting bracket screw

Part #5308016566

Replaced by #5304455650

?
Manufacturer substitution
This part replaces 5308016566. Substitute parts can look different from the original.
This item is not returnable
$14.79
12% OFF Phone Price : $16.79
In Stock
Refrigerator Gasket 5303018792
#2

Door parts diagram

Refrigerator gasket

Part #5303018792

Replaced by #218730609

?
Manufacturer substitution
This part replaces 5303018792. Substitute parts can look different from the original.
$107.82
8% OFF Phone Price : $117.82
In Stock
Refrigerator Permagum Sealer 5305877995
#40

Ice maker and installation parts diagram

Refrigerator permagum sealer

Part #5305877995

$42.79
10% OFF Phone Price : $47.79
In Stock
Refrigerator Light Switch 5309918806
#14

Shelves and supports diagram

Refrigerator light switch

Part #5309918806

This item is not returnable
$22.76
18% OFF Phone Price : $27.76
In Stock
