Jenn-Air JMW8530DAQ electric wall oven

Jenn-Air JMW8530DAQ electric wall oven Parts

Here are the diagrams and repair parts for Jenn-Air JMW8530DAQ electric wall oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

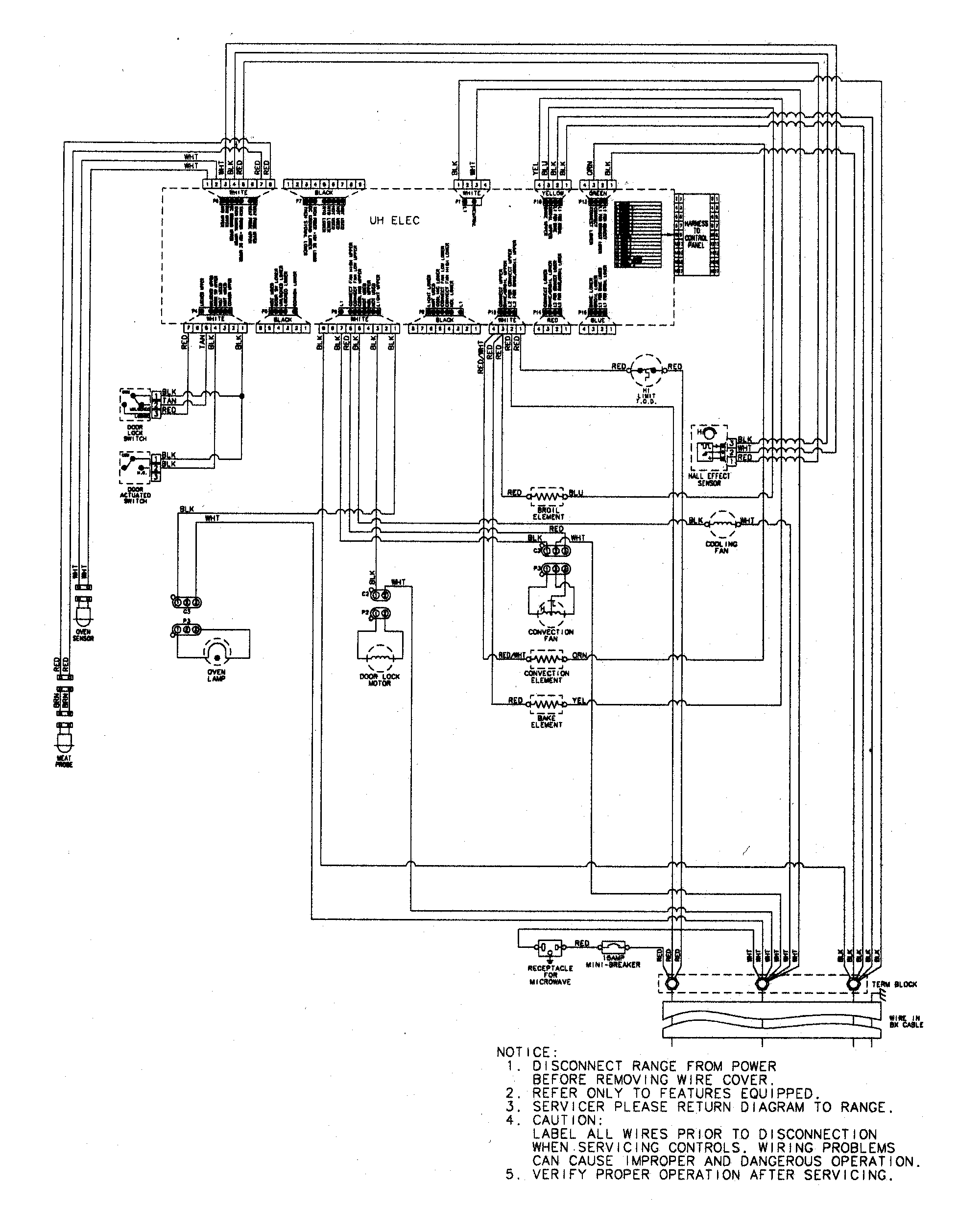

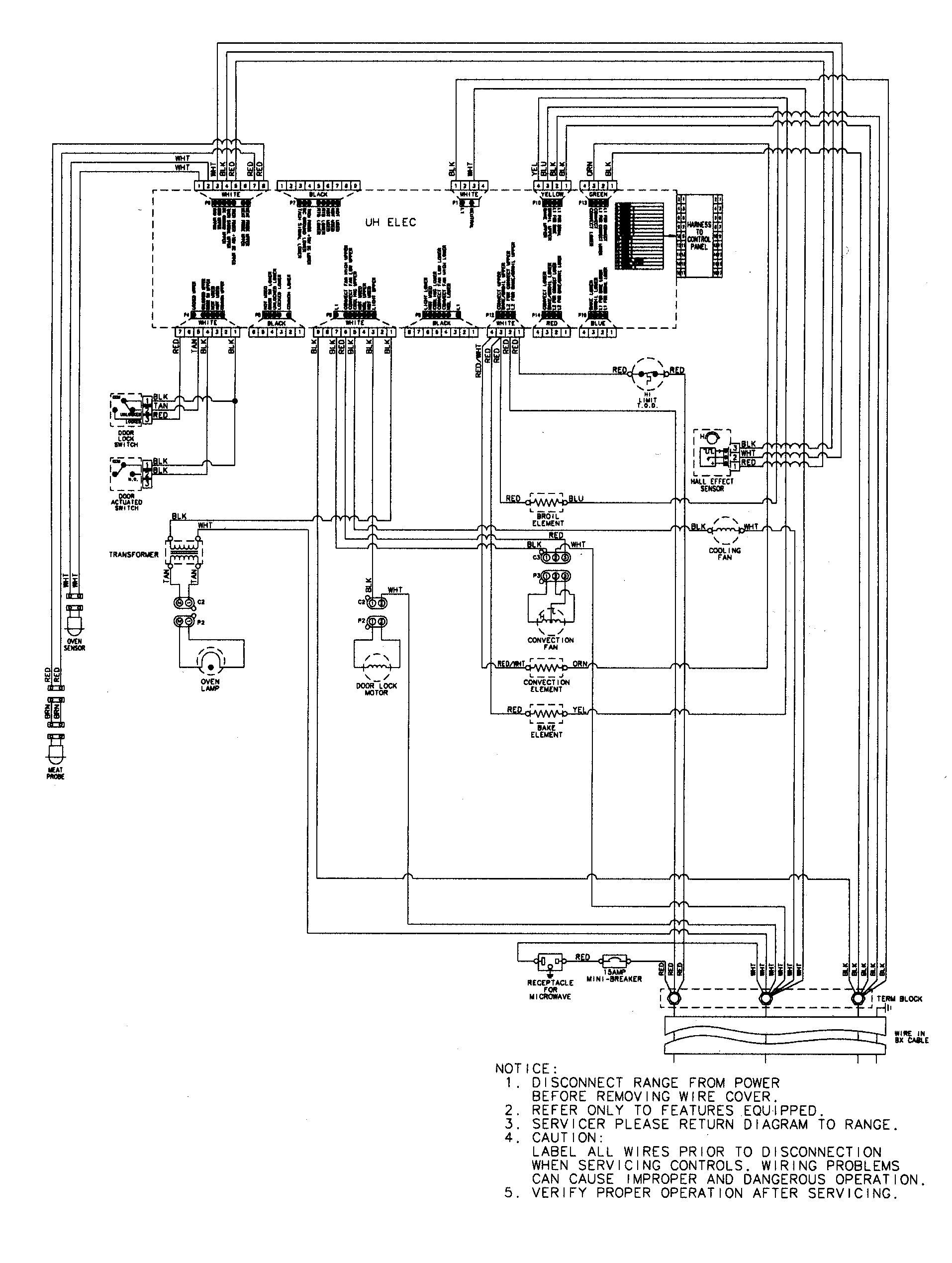

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JMW8530DAQ Wall Ovens

  • Appliance Nut for Jenn-Air JMW8530DAQ - Part WP3400029

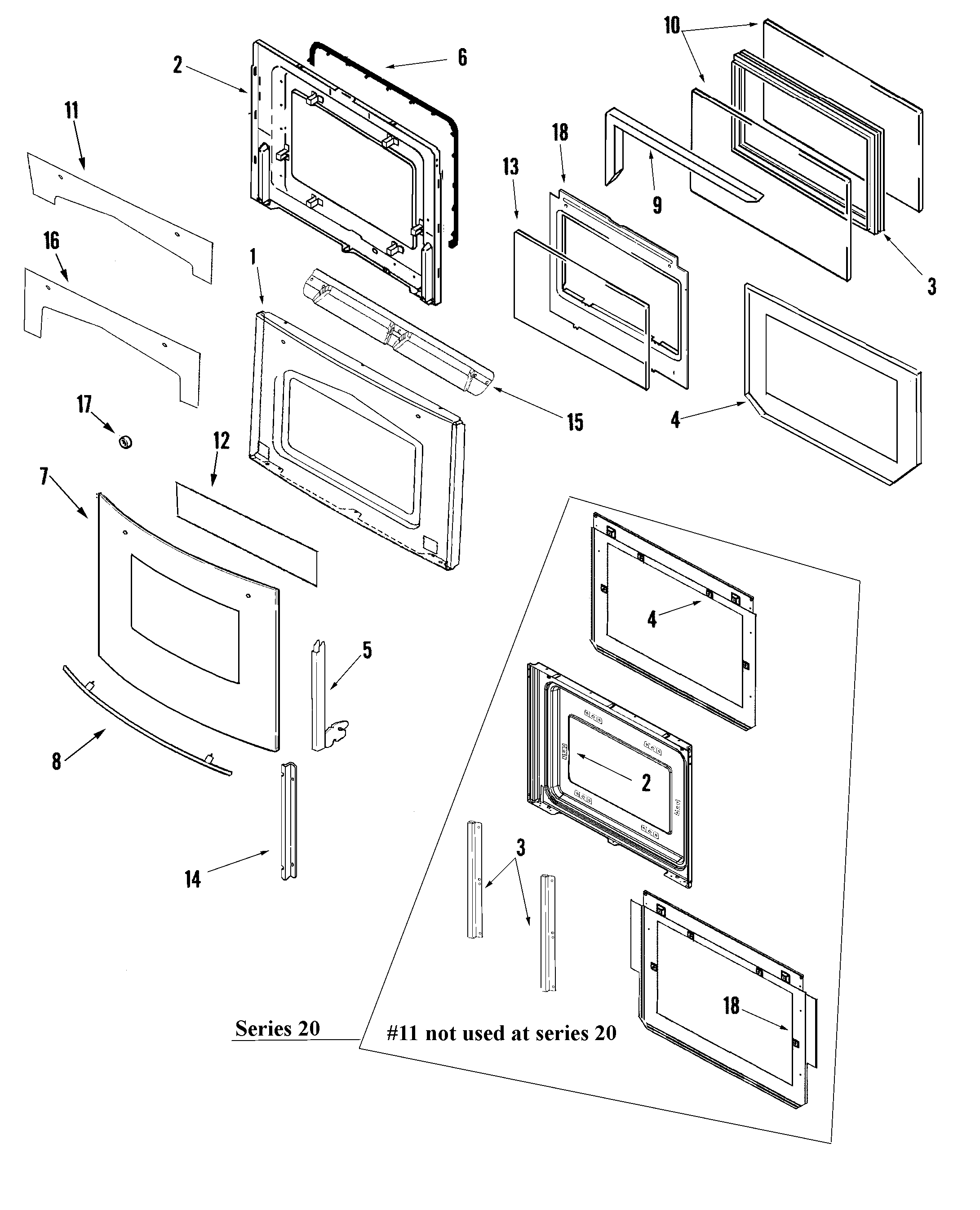

    Door diagram

    Nut

    Part #715634

    Replaced by #WP3400029

    Info Icon
    Manufacturer substitution
    This part replaces 715634. Substitute parts can look different from the original.
    In Stock
    $7.21
    12% OFF Phone Price : $8.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Inner Glass for Jenn-Air JMW8530DAQ - Part 74003645

    Door diagram

    Range Oven Door Inner Glass

    Part #74003645
    In Stock
    $126.69
    9% OFF Phone Price : $138.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Wall Oven Control Board for Jenn-Air JMW8530DAQ - Part WP74009714

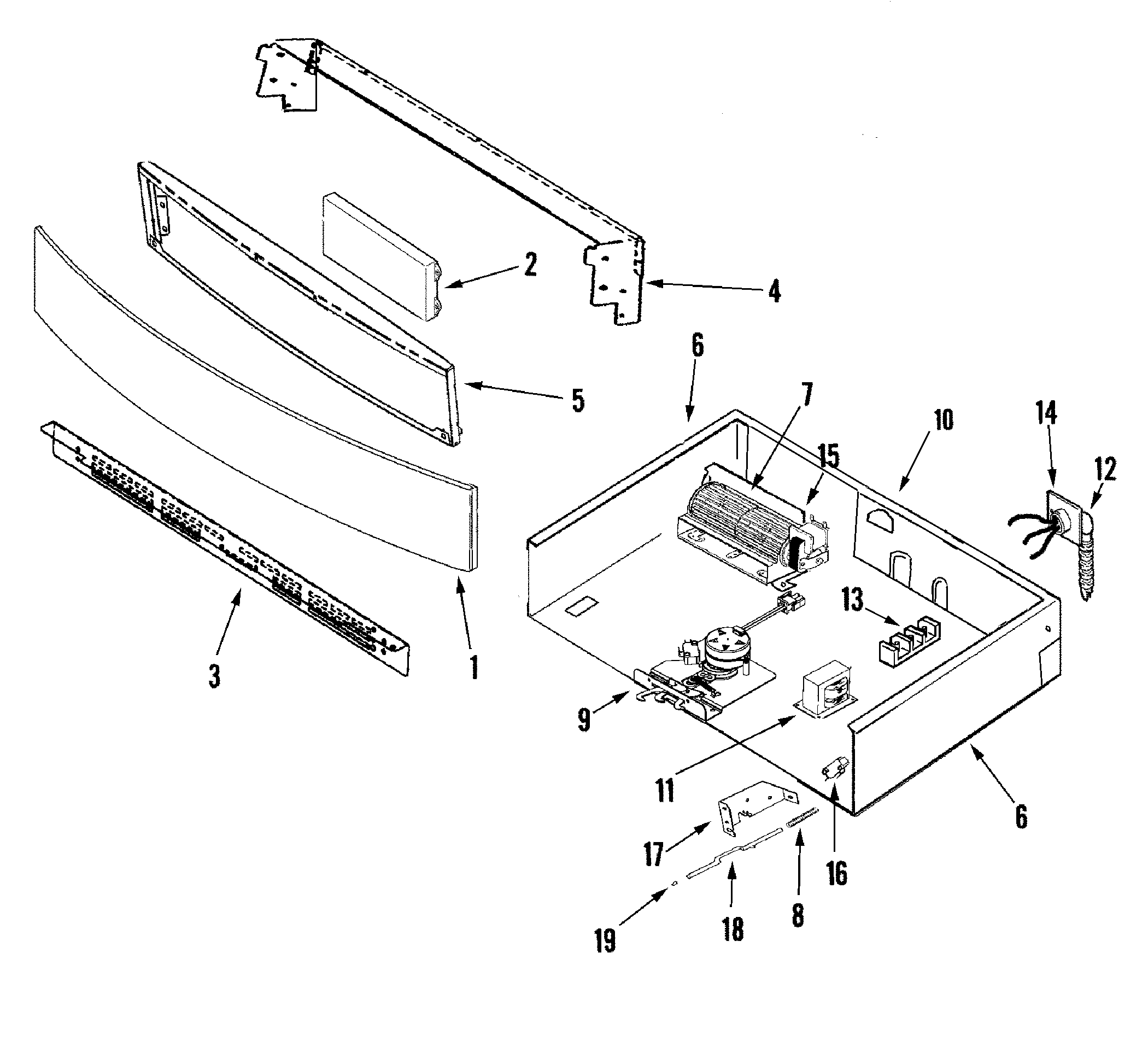

    Control panel and internal controls diagram

    Control, Sin

    Part #74008341

    Replaced by #WP74009714

    Info Icon
    Manufacturer substitution
    This part replaces 74008341. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $462.03
    $12.00 OFF Phone Price : $474.03Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Control Board for Jenn-Air JMW8530DAQ - Part 74009714

    Control panel and internal controls diagram

    Wall Oven Control Board

    Part #74009714

    The manufacturer no longer makes this part, and there's no substitute part

  • Range Broil Pan for Jenn-Air JMW8530DAQ - Part 4396923

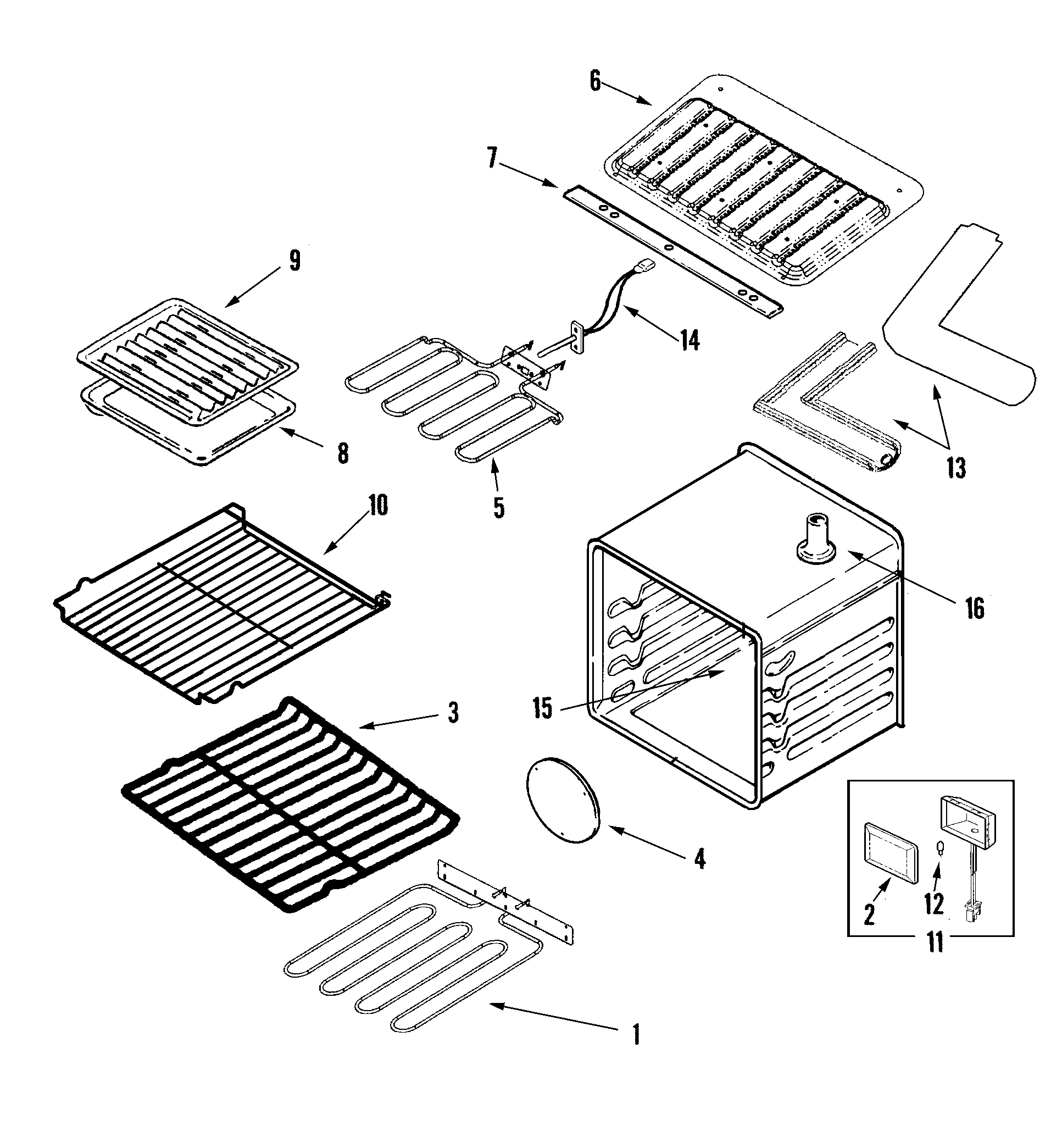

    Oven diagram

    Broiler Pan

    Part #3401F020-19

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 3401F020-19. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Jenn-Air JMW8530DAQ - Part 4396923

    Oven diagram

    Broiler Insert

    Part #3413F016-19

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 3413F016-19. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air JMW8530DAQ - Part WPY706189

    Screw

    Part #706189

    Replaced by #WPY706189

    Info Icon
    Manufacturer substitution
    This part replaces 706189. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.21
    16% OFF Phone Price : $6.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Connector for Jenn-Air JMW8530DAQ - Part WPW10281322

    Control panel and internal controls diagram

    Kit, Hardwar

    Part #74008298

    Replaced by #WPW10281322

    Info Icon
    Manufacturer substitution
    This part replaces 74008298. Substitute parts can look different from the original.
    In Stock
    $10.53
    16% OFF Phone Price : $12.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Panel, Top R for Jenn-Air JMW8530DAQ - Part 74008428

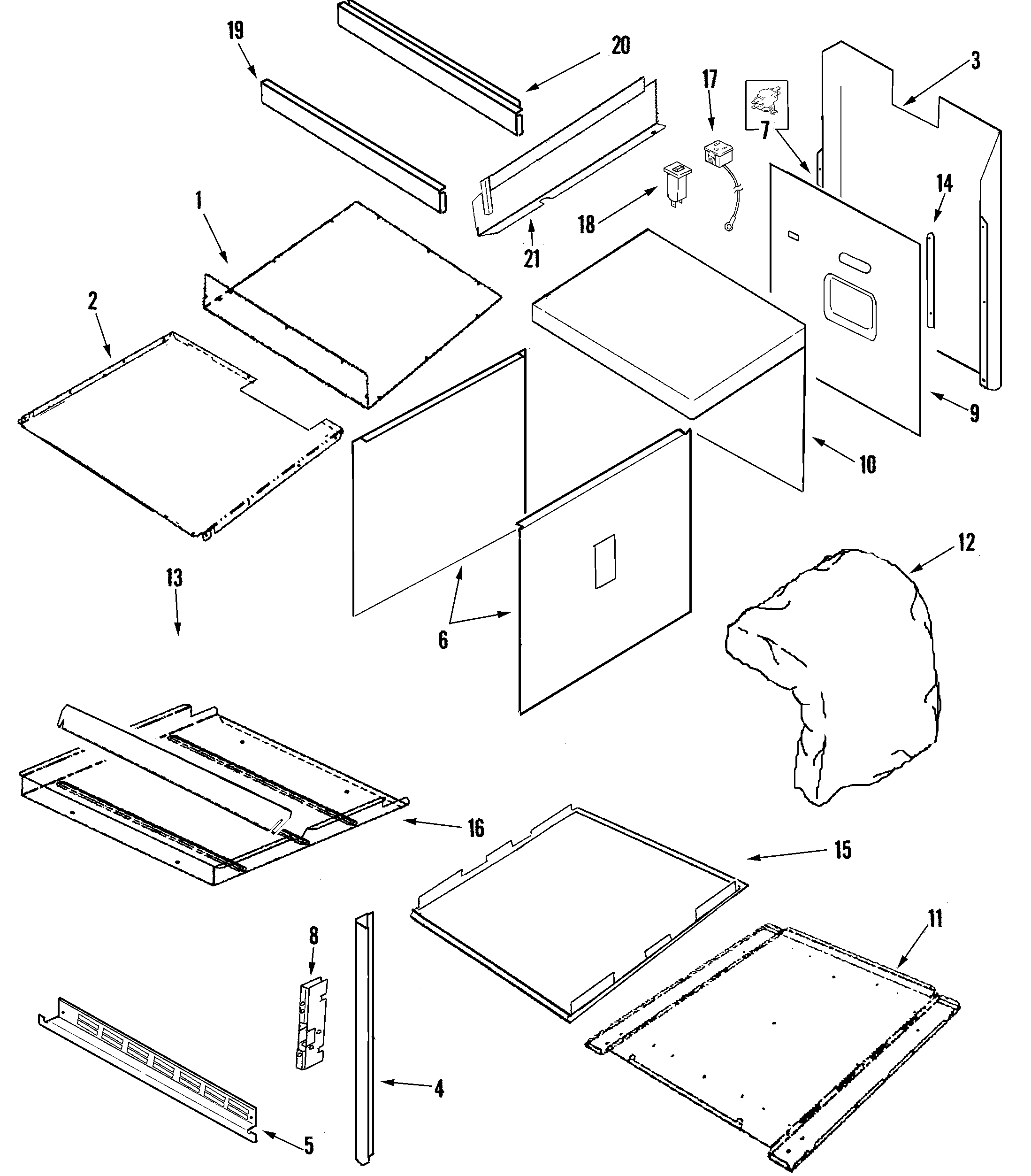

    Body diagram

    Panel, Top R

    Part #74008428
    In Stock
    $45.47
    Minus Item
    Qty
    Plus Item
  • Retainer for Jenn-Air JMW8530DAQ - Part 74008584

    Body diagram

    Retainer

    Part #74008584
    In Stock
    $45.47
    Minus Item
    Qty
    Plus Item
