GE MSK22GAZBAD refrigerator - z series Parts
Here are the diagrams and repair parts for GE MSK22GAZBAD refrigerator - z series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

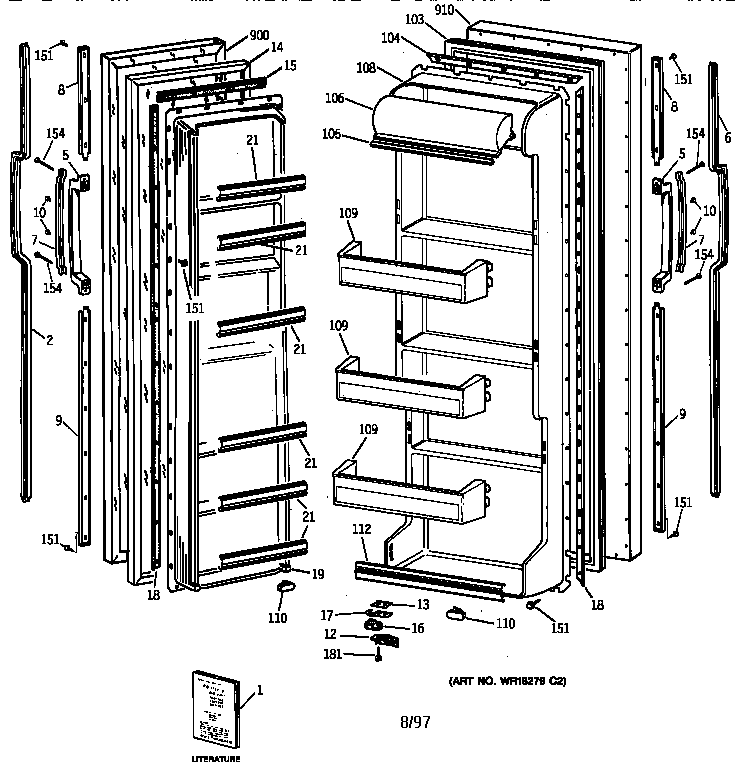

SELECT DIAGRAM
Browse Parts for MSK22GAZBAD Refrigerators

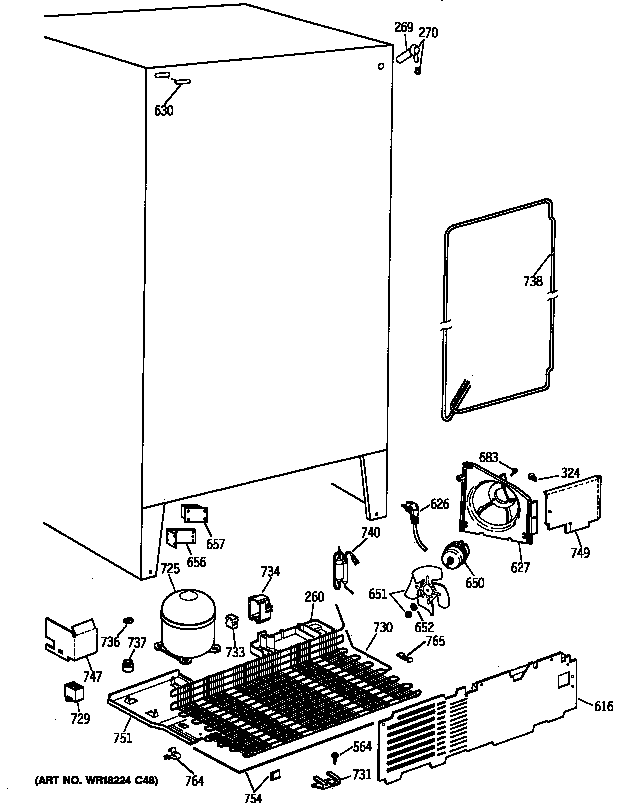

Unit parts diagram
Clip Condenser
Part #WR02X9000Replaced by #WR2X9000
Manufacturer substitutionThis part replaces WR02X9000. Substitute parts can look different from the original.In Stock$9.0110% OFF Phone Price : $10.01
Qty

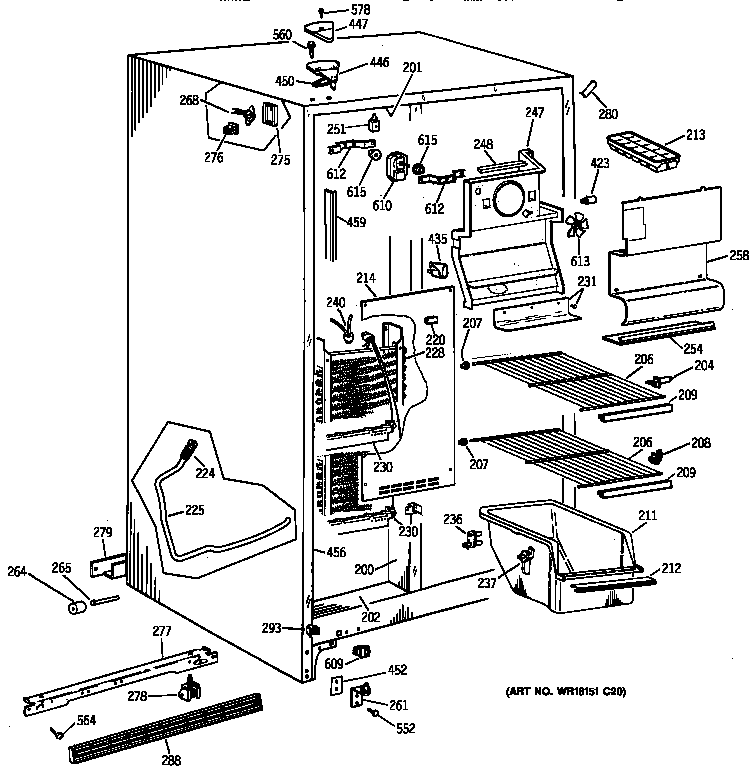

Freezer section diagram
Lo Side Asm
Part #WR85X0282Replaced by #WR87X28949
Manufacturer substitutionThis part replaces WR85X0282. Substitute parts can look different from the original.In Stock$466.04Qty#NI
All parts diagram
Refrigerator Crisper Pan Rail Slide Bearing
Part #WR01X2048Replaced by #WR1X2048

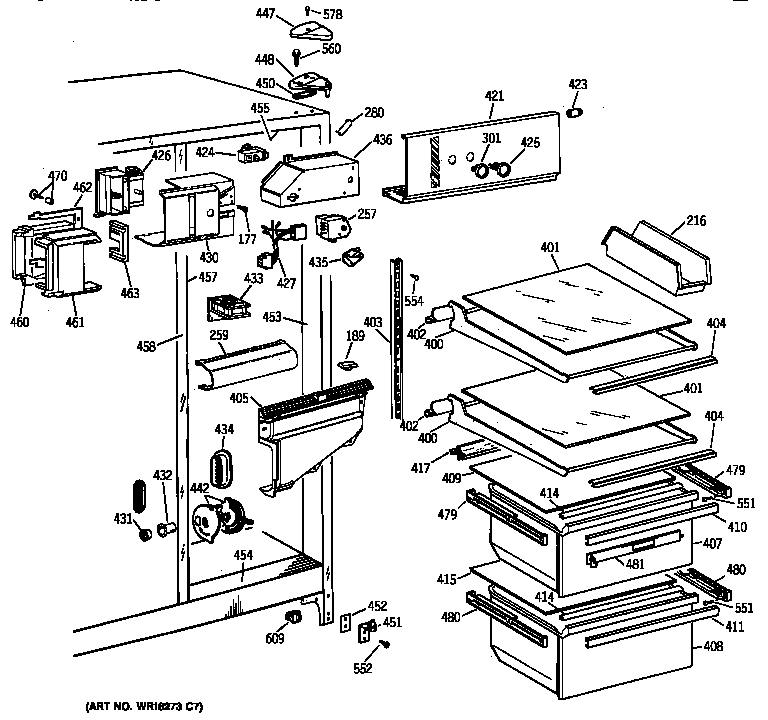

Manufacturer substitutionThis part replaces WR01X2048. Substitute parts can look different from the original.In Stock$11.0215% OFF Phone Price : $13.02QtyFresh food section diagram
Refrigerator Hinge
Part #WR13X0741Replaced by #WR13X10020
Manufacturer substitutionThis part replaces WR13X0741. Substitute parts can look different from the original.In Stock$45.7412% OFF Phone Price : $51.74Qty#NI
All parts diagram
Scr 8-36 T
Part #WR01K0001
The manufacturer no longer makes this part, and there's no substitute part
Fresh food section diagram
Refrigerator Crisper Drawer
Part #WR32X1493
The manufacturer no longer makes this part, and there's no substitute part
Freezer section diagram
Refrigerator Support
Part #WR02X4676
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Refrigerator Nut
Part #WR01X1515
The manufacturer no longer makes this part, and there's no substitute part
Freezer section diagram
Refrigerator Wheel
Part #WR02X4858
The manufacturer no longer makes this part, and there's no substitute part
Freezer section diagram
Refrigerator Freezer Shelf
Part #WR71X1888
The manufacturer no longer makes this part, and there's no substitute part
