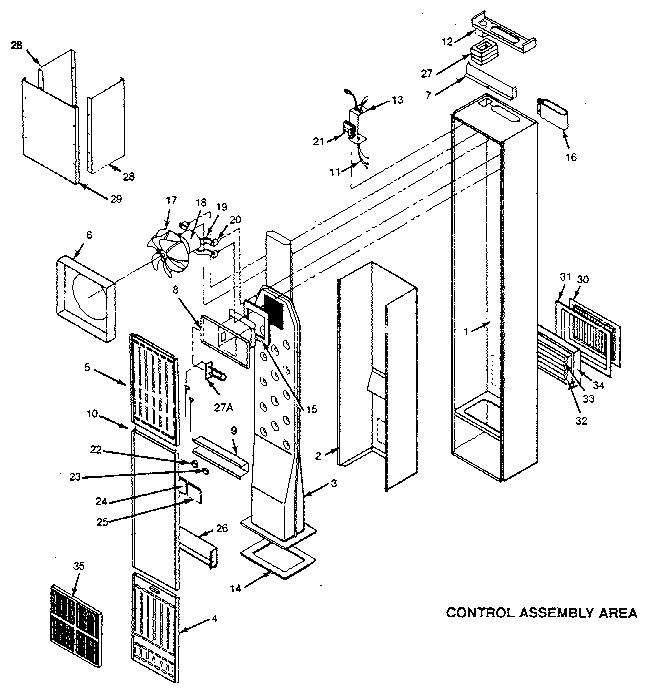

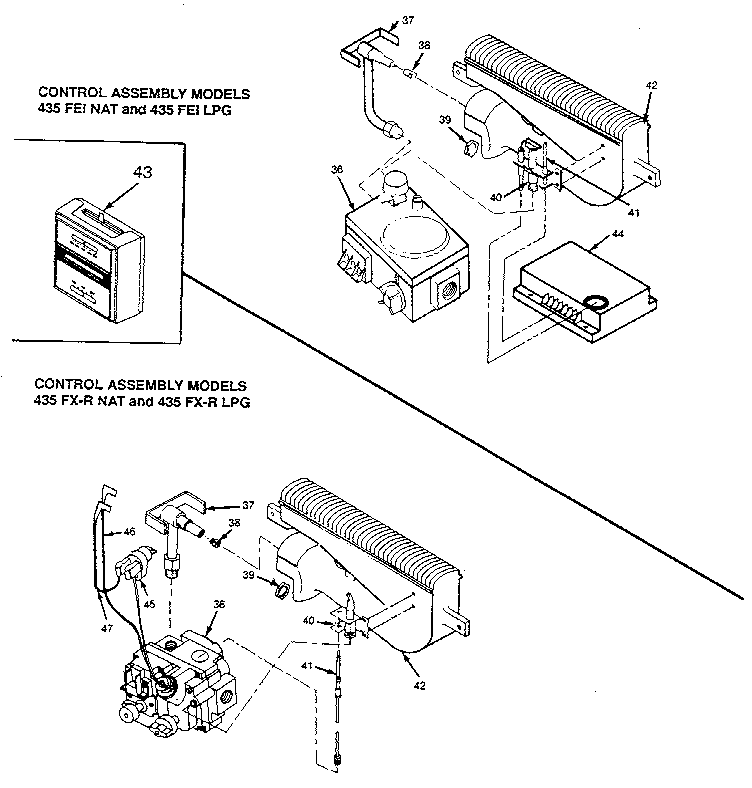

Williams 435 FX-R NAT wall furnace Parts

On a Williams wall furnace model 435, a pilot light that won’t stay lit is usually caused by a weak or dirty flame signal (thermocouple/thermopile area), a pilot flame that is too small or misdirected, or a safety issue such as low gas pressure or poor combustion air. Fixing it typically starts with cleaning and verifying the pilot flame.

Most common causes (and what to check first)

• Dirty pilot orifice or pilot assembly: Dust, lint, or soot restricts the pilot flame so it can’t properly heat the sensor.
• Thermocouple or thermopile problem: If the sensor can’t generate a strong signal, the gas valve closes and the pilot drops out.
• Pilot flame not hitting the sensor: The flame should be steady and wrap the tip of the thermocouple (or heat the thermopile) consistently.
• Drafts or negative pressure: Exhaust fans, return air leaks, or a strong downdraft can pull the pilot flame off the sensor.
• Combustion air or venting issues: Restricted air openings or vent problems can cause unstable flame and nuisance shutdowns.

Safe troubleshooting steps we recommend

1. Turn the heater off and let it cool.
2. Inspect the pilot flame after relighting: it should be steady, mostly blue, and aimed at the sensor.
3. Clean the pilot area (light brushing and careful vacuuming around the pilot and burner area). Avoid enlarging the pilot orifice.
4. Check for drafts: close nearby doors, reduce fan use briefly, and see if the pilot becomes stable.
5. Test the sensor output if you have a meter and experience working around gas appliances.

Quick symptom guide

What you see	Most likely cause	Best next step
Pilot lights, then drops when you release the knob	Weak thermocouple/thermopile signal or misaligned flame	Clean pilot, confirm flame hits sensor, then test/replace sensor
Pilot is small/yellow and flickers	Dirty pilot orifice or low air	Clean pilot area, verify air openings are clear
Pilot stays lit until a fan turns on or door opens	Draft/negative pressure	Reduce drafts, check venting and air supply

Why it matters

The pilot flame is the safety “proof of flame” for your gas valve. If the sensor does not stay hot enough, the valve closes to prevent unburned gas from flowing.

For tools and testing basics (like checking continuity and electrical measurements), we recommend reviewing how to use a multimeter to test electrical parts video.

Last updated: February 2026

If your Williams wall furnace model 435 will not turn on, the most common causes are a power or thermostat issue, a safety shutoff condition, or an ignition or fuel-supply problem (on gas units). Start with the simple checks first, then move to safe visual inspections before testing any electrical components.

Quick checks (fastest fixes first)

• Make sure the thermostat is set to Heat and the set temperature is above room temperature.
• Confirm the heater has power (if your setup uses household power): check the breaker or fuse.
• Look for blocked airflow: clear dust, lint, or stored items from the front grille and any louvers.
• If the heater has a pilot, verify the pilot is lit (follow the lighting instructions on the unit label).
• If the heater has a wall switch or service switch, make sure it is ON.

Gas wall heater checks (common no-start causes)

Many Williams wall heaters use safety devices that prevent ignition when conditions are unsafe.

• Gas supply: confirm the gas shutoff valve is fully open.
• Pilot and thermocouple: a weak pilot flame or a failing thermocouple can prevent the gas valve from staying open.
• Safety shutoff: if the unit senses poor combustion air or overheating, it can shut down until the issue is corrected.

What to look for

Symptom	Most likely cause	What we recommend
No pilot flame	Gas off, clogged pilot, lighting procedure not completed	Verify gas valve open; clean visible dust; relight per unit label
Pilot lights but main burner will not	Thermocouple, gas valve, thermostat circuit	Inspect wiring connections; consider professional diagnosis
Starts then shuts off	Overheat limit, airflow restriction, weak pilot	Clean vents; remove obstructions; check pilot flame strength

Electric and control-circuit checks (safe, basic)

• Inspect for loose or burned wires at accessible connection points.
• If you have a multimeter and are comfortable using it, test for power through the control circuit.

Use these guides for safe testing basics:

• How to use a multimeter to test electrical parts video
• How to tell if a fuse is blown

Why it matters

A wall heater that will not turn on is often being blocked by a safety control (overheat limit, combustion-air safety, or ignition lockout). Fixing the root cause (airflow restriction, weak pilot, wiring fault) restores heat and helps prevent nuisance shutdowns.

Last updated: February 2026

To relight the pilot on your Williams wall furnace model 435, we turn the gas control to OFF, wait for gas to clear, then switch to PILOT and hold the control in while lighting the pilot. Once it stays lit, turn the control to ON and set the thermostat.

Before you start (safety)

• Set the thermostat to the lowest setting.
• Open the control access panel and ventilate the area.
• If you smell gas: do not light the heater; stop and contact a qualified technician.
• Use a flashlight for visibility (not an open flame).
• Keep hands and combustibles away from the burner compartment.

Step-by-step: relight the pilot

1. Turn the gas control knob to OFF.
2. Wait 5 minutes.
3. Turn the knob to PILOT.
4. Press and hold the knob (or pilot button, depending on the control).
5. Light the pilot using the built-in igniter (if equipped) or a long match.
6. Keep holding 30 to 60 seconds, then release.
7. If the pilot stays lit, turn the knob to ON.
8. Close the access panel and set the thermostat to call for heat.

If the pilot will not stay lit

• Pilot flame is weak or not hitting the thermocouple tip.
• Pilot opening is dirty (dust, lint) and needs careful cleaning.
• Drafts are blowing the flame off the sensor.
• Thermocouple or gas valve is failing.

Symptom	What it points to	What to do
Pilot drops when you release the knob	Thermocouple not heating or bad	Reposition sensor; replace if needed
Small yellow flame	Dirty pilot area	Clean around pilot; improve airflow
Flame blows out	Draft or pressure issue	Reduce drafts; have gas supply checked

Why it matters

The pilot heats the safety sensor so the gas valve can stay open. If the pilot is unstable, the heater will shut down or fail to heat reliably.

For general DIY safety practices before working around gas and ignition systems, see are diy appliance repairs safe.

Last updated: February 2026

On a Williams wall furnace like model 435, the reset is on the manual-reset high-limit safety switch inside the heater cabinet, not on the thermostat or the outside of the front cover. You access it by removing the front grille or front panel and locating the small button on the limit switch.

Where to find it on a Williams 435 wall furnace

Look for a small button (often red) on a temperature limit switch mounted inside the cabinet. Common locations include:

• Behind the front grille/front panel on a limit switch bracket
• Near the top of the heat exchanger area where heated air exits
• On an interior side wall near the warm-air outlet path
• Near the burner compartment area on gas wall furnaces (close to safety controls)

How to reset it safely

If the heater shut down from overheating, reset only after it cools.

• Turn the thermostat to OFF.
• Shut off electrical power to the heater at the breaker (and let the unit cool).
• Remove the front grille or front panel.
• Press the limit switch reset button firmly once.
• Reinstall the cover, restore power, then call for heat.

If the reset keeps tripping

A high-limit reset trips because the furnace is overheating; correcting the cause prevents repeat shutdowns.

• Clear blocked louvers and keep furniture, rugs, and drapes away from the front
• Vacuum dust and lint from the grille and internal airflow path
• Check for a weak/failed fan on fan-assisted models
• Have a technician inspect burner flame and combustion air (gas models)

What you notice	Most common cause	What to do
Trips shortly after starting	Airflow restriction	Clean and clear intake/outlet areas
Trips after longer run times	Dust buildup or weak airflow	Deep clean; verify fan operation
Strong heat then shutdown	Burner/combustion issue	Schedule a professional inspection

Why it matters

The manual-reset high-limit is a critical safety device. Frequent resets mean overheating that can damage wiring and safety controls, and it signals an airflow or combustion problem that needs correction.

For help confirming the exact model identification before selecting parts, use how to find your appliance model number (and what it means for parts).

Last updated: February 2026
