Kenmore 6284537891 electric range Parts
Here are the diagrams and repair parts for Kenmore 6284537891 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

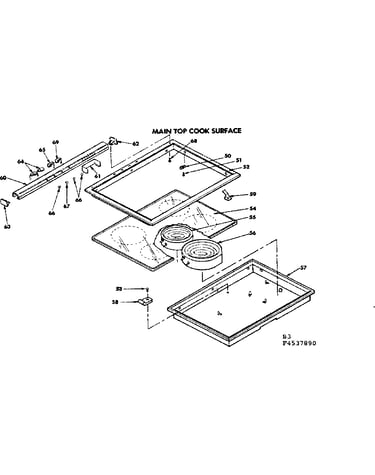

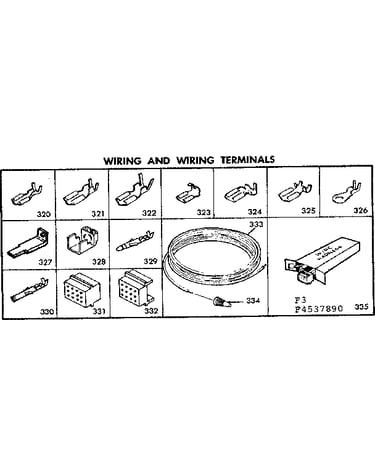

Browse Parts for 6284537891 Ranges

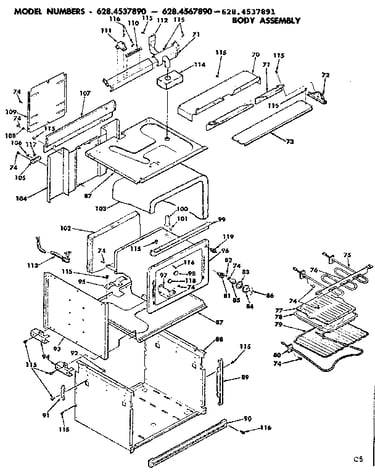

Body assembly diagram
Terminal Block
Part #1189558Replaced by #5304409888
Manufacturer substitutionThis part replaces 1189558. Substitute parts can look different from the original.In Stock$25.3019% OFF Phone Price : $31.30
Qty
Body assembly diagram
Bake Unit
Part #1312853Replaced by #5303051519
Manufacturer substitutionThis part replaces 1312853. Substitute parts can look different from the original.In Stock$31.9316% OFF Phone Price : $37.93QtyBody assembly diagram
Oven Lamp
Part #STD372401Replaced by #8009
Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.In Stock$35.61QtyRange Screw
Part #1164479This item is not returnableIn Stock$3.3023% OFF Phone Price : $4.30QtyBody assembly diagram
Broil Unit
Part #1311770
The manufacturer no longer makes this part, and there's no substitute part

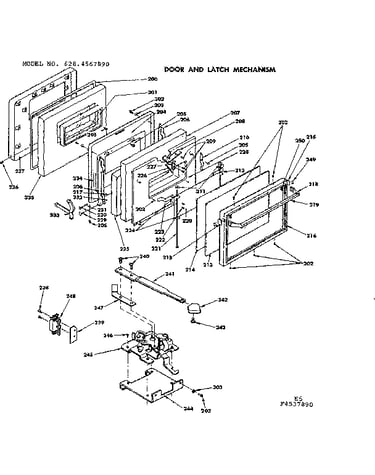

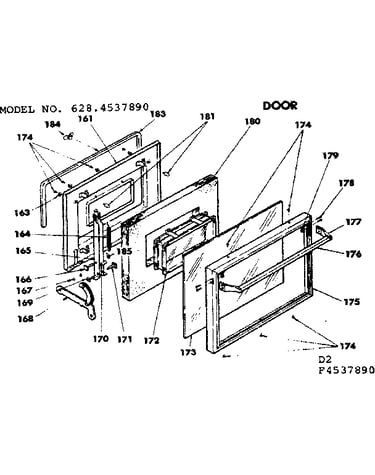

Door and latch mechanism diagram
Insulation
Part #1313340Replaced by #3008673
Manufacturer substitutionThis part replaces 1313340. Substitute parts can look different from the original.In Stock$53.06QtyBody assembly diagram
Support
Part #1316725Replaced by #3051528
Manufacturer substitutionThis part replaces 1316725. Substitute parts can look different from the original.In Stock$27.22QtyBody assembly diagram
Insulation
Part #1314863Replaced by #3008673
Manufacturer substitutionThis part replaces 1314863. Substitute parts can look different from the original.In Stock$53.06QtyBody assembly diagram
Washer
Part #STD551025Replaced by #STD551025

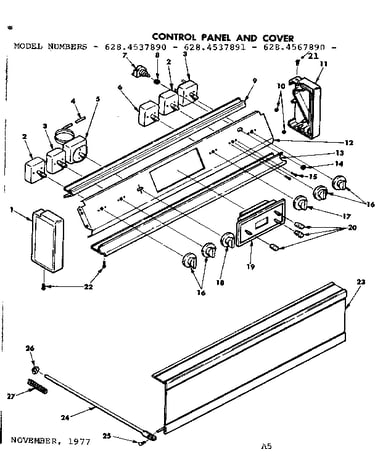

Manufacturer substitutionThis part replaces STD551025. Substitute parts can look different from the original.In Stock$36.61QtyControl panel and cover diagram
Nut
Part #GM274796Replaced by #08015925
Manufacturer substitutionThis part replaces GM274796. Substitute parts can look different from the original.In Stock$25.22Qty
