Model # SGCS365RS Official Thermador gas cooktop

Here are the diagrams and repair parts for Official Thermador SGCS365RS gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

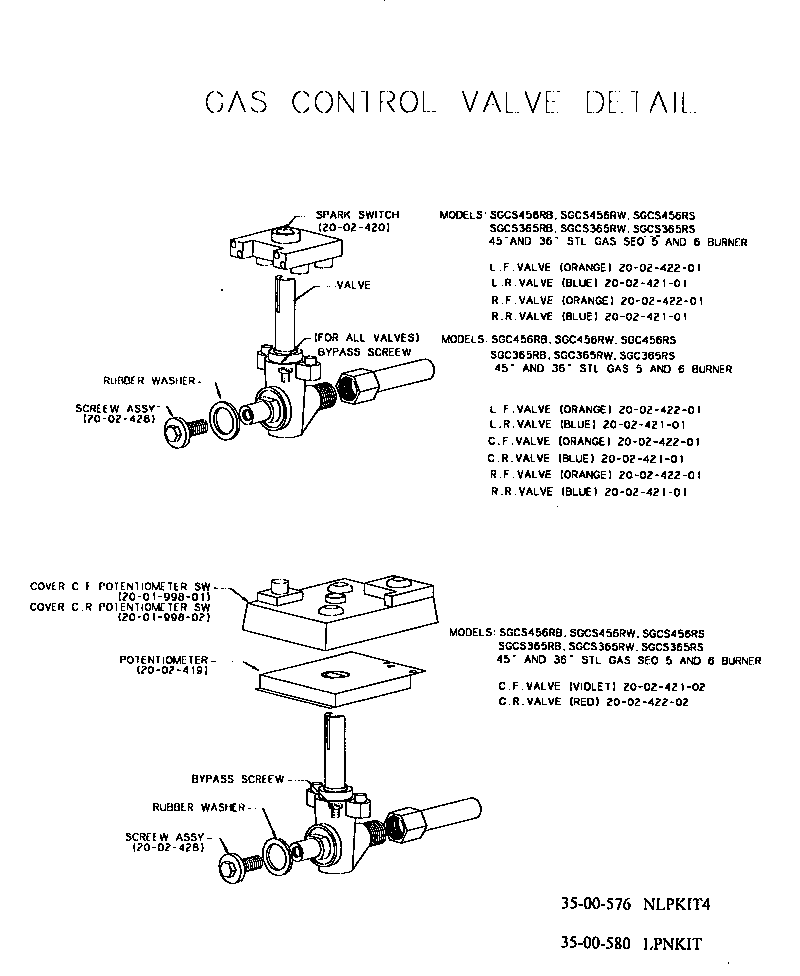

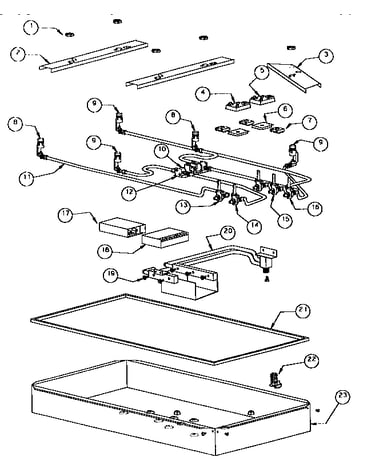

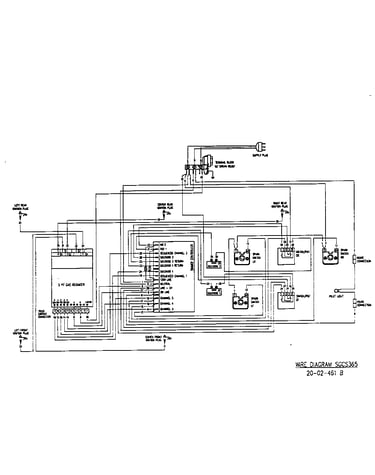

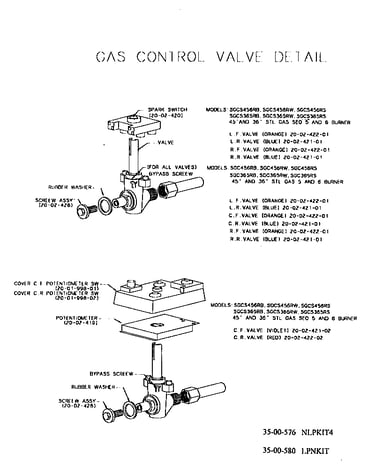

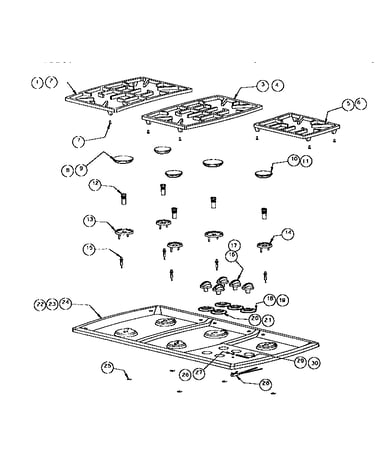

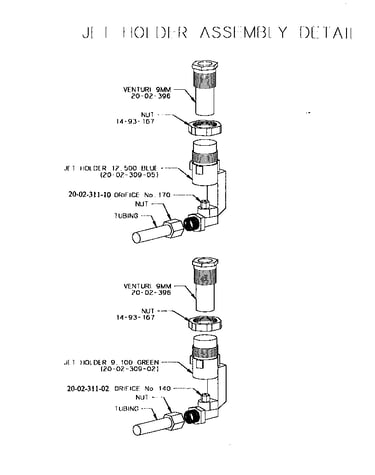

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Grate Kit 15-11-039
Grate kit

Part #15-11-039

Replaced by #00413552

?
Manufacturer substitution
This part replaces 15-11-039. Substitute parts can look different from the original.
This item is not returnable
$22.79
18% OFF Phone Price : $27.79
In Stock
Solenoid 20-02-500
Solenoid

Part #20-02-500

Replaced by #00411253

?
Manufacturer substitution
This part replaces 20-02-500. Substitute parts can look different from the original.
$153.84
6% OFF Phone Price : $163.84
In Stock
Ring 20-02-042
Ring

Part #20-02-042

This item is not returnable
In Stock
Module 20-01-924-03
Module

Part #20-01-924-03

Replaced by #00753257

?
Manufacturer substitution
This part replaces 20-01-924-03. Substitute parts can look different from the original.
$187.17
5% OFF Phone Price : $197.17
In Stock
Nut 14-93-167
Nut

Part #14-93-167

Replaced by #00188978

?
Manufacturer substitution
This part replaces 14-93-167. Substitute parts can look different from the original.
$20.59
20% OFF Phone Price : $25.59
In Stock
Range Surface Burner Cap (gloss Gray) 20-02-020-03
Range surface burner cap (gloss gray)

Part #20-02-020-03

In Stock
Cover 20-01-998-01
Cover

Part #20-01-998-01

This item is not returnable
In Stock
Plug 20-02-377
Plug

Part #20-02-377

Replaced by #00189324

?
Manufacturer substitution
This part replaces 20-02-377. Substitute parts can look different from the original.
$35.49
12% OFF Phone Price : $40.49
In Stock
Cooktop Burner Cap 20-02-021-04
Cooktop burner cap

Part #20-02-021-04

Replaced by #00189336

?
Manufacturer substitution
This part replaces 20-02-021-04. Substitute parts can look different from the original.
$77.49
6% OFF Phone Price : $82.49
In Stock
Venturi 20-02-396
Venturi

Part #20-02-396

Replaced by #00189321

?
Manufacturer substitution
This part replaces 20-02-396. Substitute parts can look different from the original.
In Stock

Most common symptoms to help you fix your cooktops

Choose a symptom to see related cooktop repairs.

Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…

Repair guides for gas cooktops

How to replace a spark module on a gas cooktop

How to replace a spark module on a gas cooktop

No flame on your gas cooktop? Installing a new spark module could be the fix you need.…

Repair difficulty
Time required
 30 minutes or less
How to replace a spark igniter switch on a gas cooktop

How to replace a spark igniter switch on a gas cooktop

Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the sp…

Repair difficulty
Time required
 45 minutes or less

Effective articles & videos to help repair your cooktops

Use the advice and tips in these articles and videos to get the most out of your cooktop.

Wiring schematic symbols explained video

Wiring schematic symbols explained video

Learn some of the most common symbols found in a wiring diagram and what they mean.…

How to repair broken or damaged wires video

How to repair broken or damaged wires video

Learn how to repair broken, frayed or damaged wires in your appliances.…

How to use a multimeter to test electrical parts video

How to use a multimeter to test electrical parts video

Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
