Frigidaire FSC23LR5JM1 refrigerator Parts

Yes. For your Frigidaire FSC23LR5JM1 side-by-side refrigerator, looking up parts by the full model number is the most reliable way to match the correct replacement part (water filter, ice maker parts, controls, and more) to your exact configuration.

How to find the model number on the refrigerator

We recommend using the complete model number exactly as shown on the data tag (including all letters and numbers). Common locations include:

• Inside the fresh food compartment on a side wall
• Along the door frame when the refrigerator door is open
• On a label near the crisper drawers or lower hinge area
• In the owner documentation for the unit

For model-specific diagrams and part identification, use the FSC23LR5JM1 owner's manual.

How to search parts by model number (best practice)

When you search by model number, you narrow results to parts that fit your refrigerator’s design, wiring, and dispenser setup.

• Enter FSC23LR5JM1 exactly (no extra spaces)
• Use the parts list to locate the correct section (ice maker, dispenser, lighting, cooling)
• Match the part by description and identifier before ordering
• If multiple similar parts appear, compare how your original part mounts and connects
• Keep your refrigerator’s serial number handy in case a part has revisions

Common FSC23LR5JM1 parts customers replace

These are examples of parts available for this model that are often searched by model number:

What you need	Example part on this model	What it affects
Water filtration	Frigidaire puresource plus refrigerator water filter WFCB	Water taste, flow, ice quality

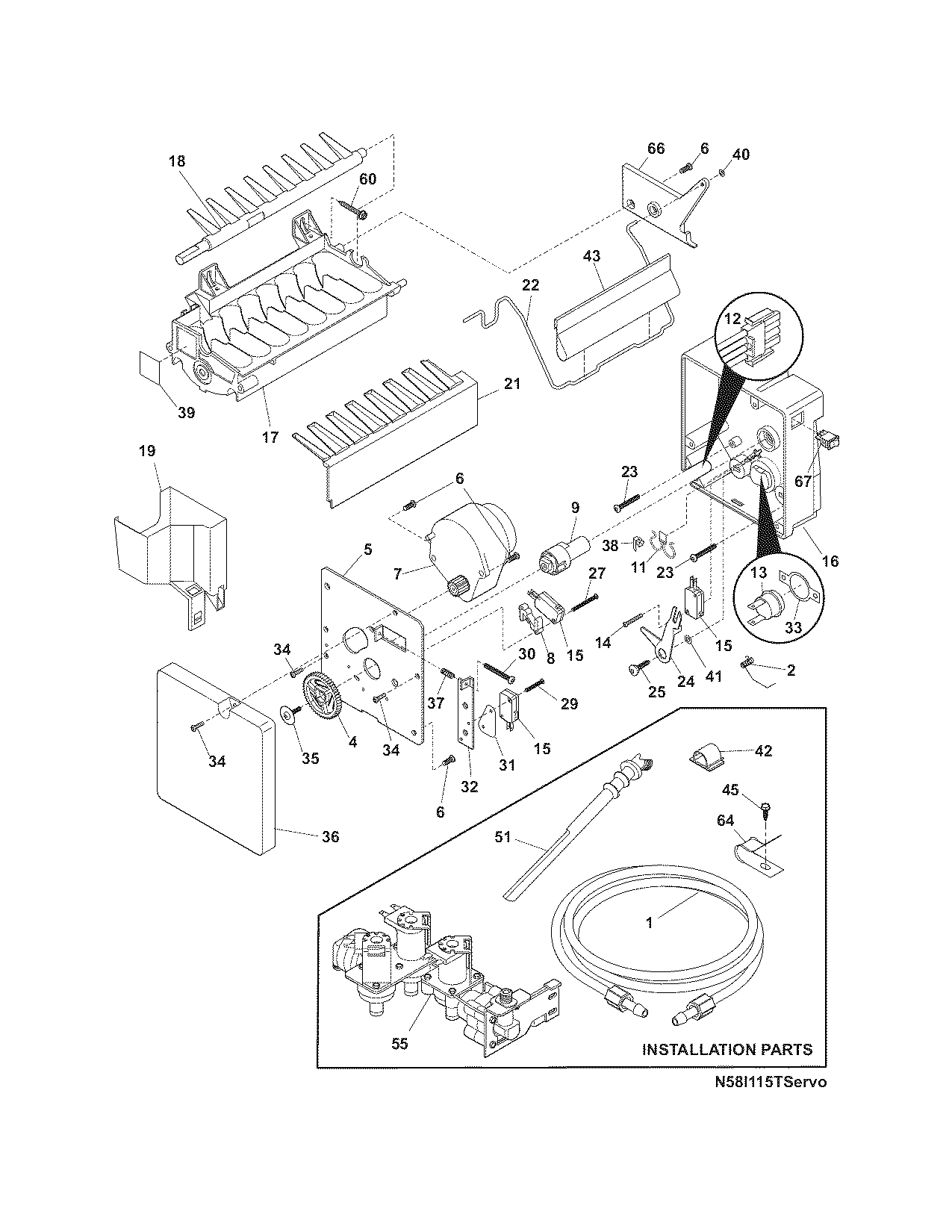

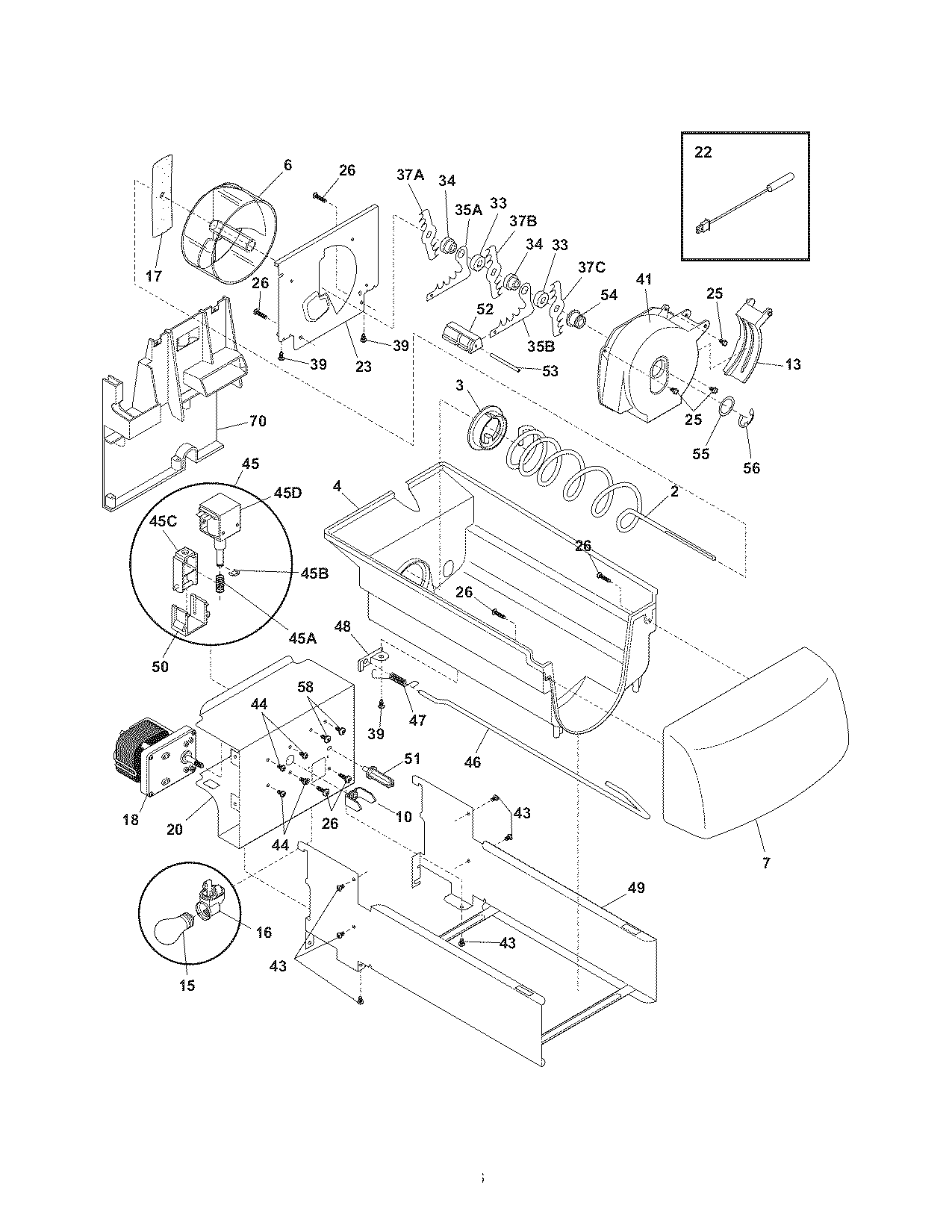

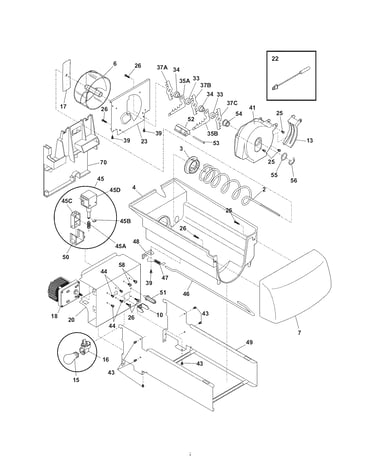

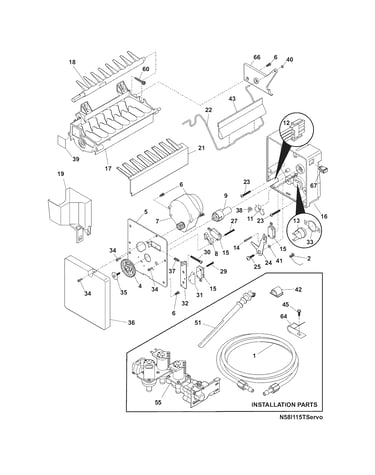

Ice production components	Ice maker mold 241798231	Ice formation and harvest
Interior lighting	Refrigerator light bulb 316538904	Lights not working or dim
Cooling airflow	Refrigerator evaporator fan blade 5308000010	Warm fridge, uneven temps

Why it matters

Model-number lookup prevents ordering a “close match” that does not fit. On a side-by-side like the FSC23LR5JM1, dispenser and ice maker parts can vary by revision, so model-based filtering saves time and avoids returns.

To order, use the parts list for FSC23LR5JM1 first; for broader model searches across appliances, use Sears PartsDirect.

Last updated: February 2026

The most common Frigidaire refrigerator complaint is a cooling issue: temperatures run too warm, the unit runs too long, or the fresh food side warms up because airflow is restricted or heat is not removed efficiently. For model FSC23LR5JM1, the FSC23LR5JM1 owner's manual points first to door openings, dirty condenser coils, and control settings.

Most common symptoms

• Fresh food temperature is too warm while the freezer seems OK
• Refrigerator runs “too much” or seems to never shut off
• Frost or moisture buildup from doors not sealing or being left ajar
• Weak ice production or dispenser issues (often tied to water flow and filter condition)
• Door ajar alarm beeps after the door is left open about 5 minutes

Quick checks that fix many cooling complaints

• Confirm freezer and fresh food controls are at a normal mid-range; allow 24 hours to stabilize
• Clean the condenser area so the refrigerator can shed heat properly
• Open doors less often; make sure packages are not preventing a full close
• Wipe and inspect door gaskets for dirt, gaps, or damage
• After a power loss or unplugging, allow 8 to 12 hours to cool completely

Common causes and what to do

What you notice	Likely cause	What we recommend
Runs too long	Dirty condenser, frequent door openings	Clean condenser; limit door openings
Fresh food too warm	Warm air entering, settings too warm	Adjust controls; wait 24 hours
Door ajar beeps	Door left open	Close fully; clear obstructions
Water/ice issues	Restricted flow, filter overdue	Replace filter; purge air

Parts that often relate

• Refrigerator evaporator fan blade 5308000010 (supports airflow across the evaporator)
• Refrigerator temperature sensor 240597220 (feeds temperature info to the control)
• Frigidaire puresource plus refrigerator water filter WFCB (helps maintain water flow to dispenser and ice maker)

Why it matters

Cooling problems usually trace back to airflow, heat removal, or door sealing. Fixing those basics first protects food, reduces compressor run time, and stabilizes temperatures.

Replacement parts for FSC23LR5JM1 can be ordered from the parts list for this model, or you can search by model number on Sears PartsDirect.

Last updated: February 2026

Most Frigidaire refrigerators average 10 to 15 years of service life. With steady upkeep on your Frigidaire FSC23LR5JM1 (especially keeping airflow clear and staying on top of filter and seal maintenance), it’s common to reach the high end of that range.

Typical lifespan and what affects it

A refrigerator’s lifespan is driven less by the brand name and more by heat load, airflow, and how hard the sealed system and fans have to work.

• Condenser cleanliness: dirty coils make the compressor run longer and hotter.
• Door seal condition: air leaks force longer run times to hold temperature.
• Room temperature and ventilation: hot kitchens and tight enclosures shorten life.
• Ice maker and dispenser use: heavier use increases run time and wear.
• Filter maintenance: clogged filters can reduce water flow and strain dispenser components.

For model-specific operating and care guidance, follow the maintenance and troubleshooting sections in the FSC23LR5JM1 owner's manual.

Maintenance checklist that helps you reach 10 to 15 years

Use this as a simple routine for a side-by-side refrigerator like the FSC23LR5JM1:

• Vacuum and brush condenser coils regularly (more often with pets).
• Keep door gaskets clean; wipe with mild soap and water, then dry.
• Confirm doors close fully and are not blocked by bins or food packages.
• Replace the water filter on schedule; use the correct filter for this model such as the Frigidaire puresource plus refrigerator water filter WFCB.
• Keep vents inside the fresh food and freezer sections unobstructed.
• If run time seems excessive, check temperature settings and airflow first.

Quick reference: what “normal” looks like

Item	Typical expectation	Why it matters
Service life	10 to 15 years	Baseline planning for repair vs. replace decisions
Compressor run time	Cycles on and off throughout the day	Longer run times often point to airflow, seals, or dirty coils
Ice production (rear ice maker)	About 3 to 4 lb per 24 hours	Helps confirm ice maker performance is in range

Why it matters

When a refrigerator runs too long (often from dirty coils, warm air leaks, or frequent door openings), the compressor and fans work harder. Reducing that workload is the most reliable way to extend lifespan and prevent cooling complaints.

If you’re planning repairs or stocking common maintenance items for this model, we list compatible parts on this page, and you can also search by model number at Sears PartsDirect.

Last updated: February 2026

A flashing H or HI on your Frigidaire FSC23LR5JM1 side-by-side refrigerator indicates a high-temperature condition in the fresh food section or freezer, typically after the temperature has been too warm for about an hour. The most common cause is a door left ajar or not sealing.

What to check first (fast fixes)

• Make sure both doors fully close and nothing is holding them open (bins, shelves, food packages).
• Check the door gaskets for gaps, tears, or heavy soil; wipe them clean with warm, soapy water and dry.
• Confirm the temperature settings were not accidentally raised; adjust in 1-degree steps and allow time to stabilize.
• Avoid blocking air vents with food; airflow is required to keep temperatures even.
• If you recently loaded a lot of warm groceries, allow several hours for recovery.

What the display behavior can mean

Your control panel can show different “attention” behaviors. Use this as a quick guide:

What you see on the display	What it usually means	What to do
H or HI flashing	Compartment temperature is too warm	Check doors, airflow, settings; give it time to recover
Door-ajar beeps (repeating)	Door left open for several minutes	Close door fully; check gasket seal
Both temperature displays continuously flashing	Control detected a performance problem	Follow the troubleshooting steps in the manual; service may be needed

Why it matters

High temperatures can lead to food spoilage and can also cause the refrigerator to run longer than normal. Fixing door sealing and airflow issues quickly helps the cooling system recover and keeps the compressor from overworking.

Helpful resources and parts

• Use the FSC23LR5JM1 owner's manual to confirm alarm behavior, temperature adjustment steps, and recommended settings.

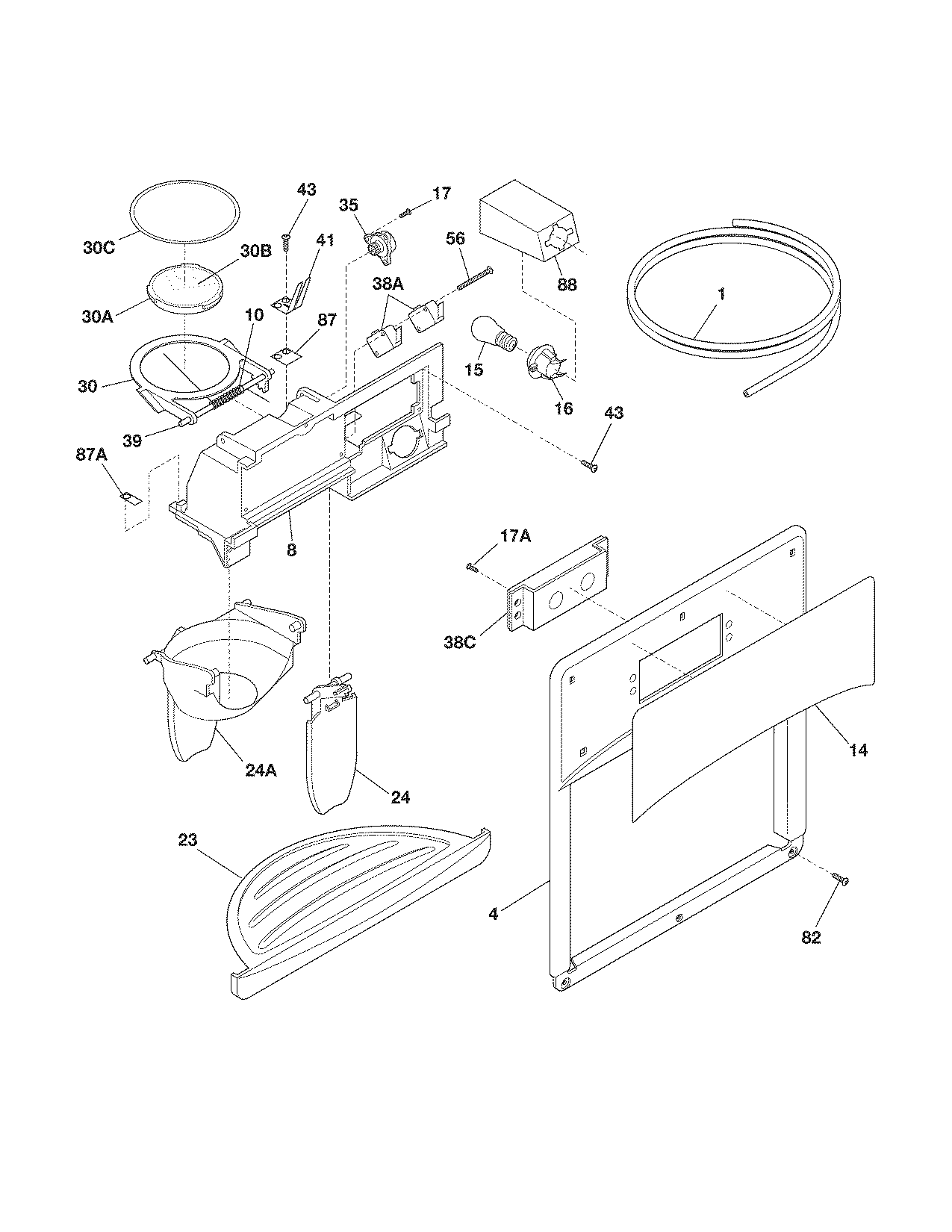

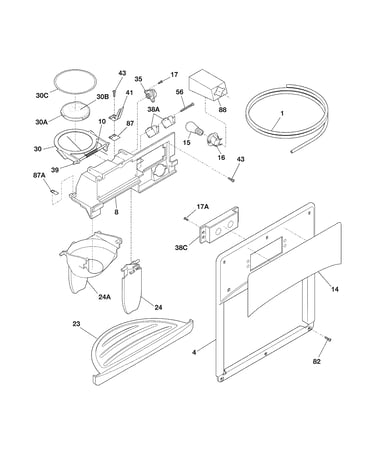

• If the issue is related to the dispenser area not sealing well (warm air entering through the chute), the refrigerator dispenser ice chute door seal 241688701 is a common wear item to inspect.
• For ordering model-correct replacement parts, use the parts list for FSC23LR5JM1 or search by model on Sears PartsDirect.
