Kenmore 9114698612 30" electric downdraft range Parts
Here are the diagrams and repair parts for Kenmore 9114698612 30" electric downdraft range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 9114698612 Ranges

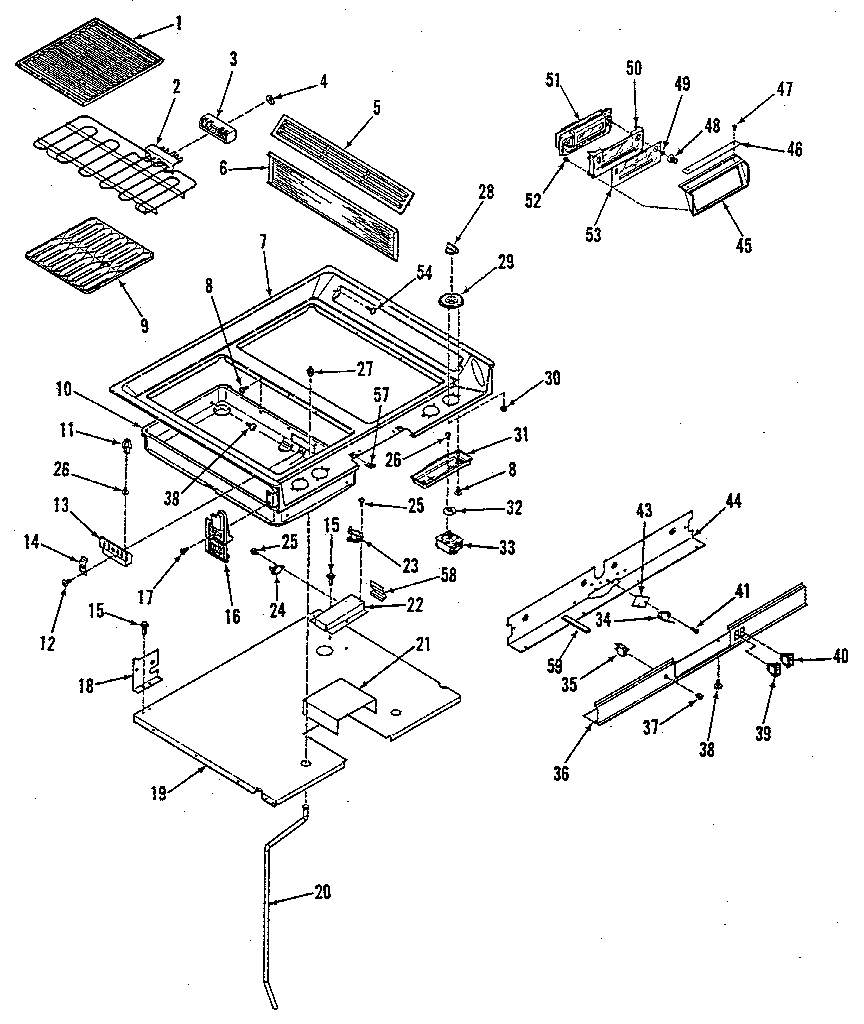

Main top section diagram
Insulator
Part #329171Replaced by #WB2X9129
Manufacturer substitutionThis part replaces 329171. Substitute parts can look different from the original.In Stock$54.21
Qty

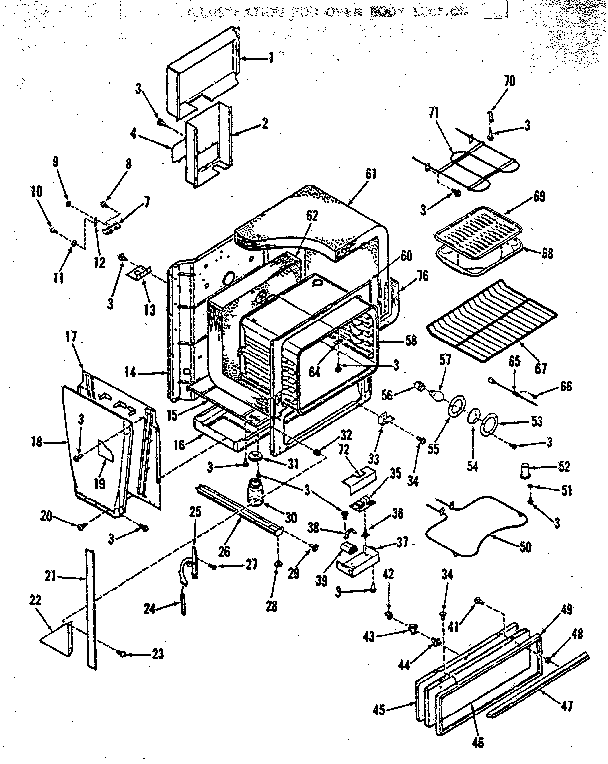

Oven body section diagram
Screw (white)
Part #331704Replaced by #WB1K5191
Manufacturer substitutionThis part replaces 331704. Substitute parts can look different from the original.In Stock$32.52QtyMain top section diagram
Switch
Part #329017Replaced by #WB24M8
Manufacturer substitutionThis part replaces 329017. Substitute parts can look different from the original.In Stock$34.79QtyMain top section diagram
Grease Well
Part #333613Replaced by #WB64M12
Manufacturer substitutionThis part replaces 333613. Substitute parts can look different from the original.In Stock$97.97QtyOven body section diagram
Sensor
Part #334300Replaced by #WB21X5301
Manufacturer substitutionThis part replaces 334300. Substitute parts can look different from the original.In Stock$132.368% OFF Phone Price : $144.36
QtyMain top section diagram
Ctr Pnl Spcr
Part #334838Replaced by #WB2M51
Manufacturer substitutionThis part replaces 334838. Substitute parts can look different from the original.In Stock$30.57QtyMain top section diagram
End Cap
Part #332439Replaced by #WB36M33

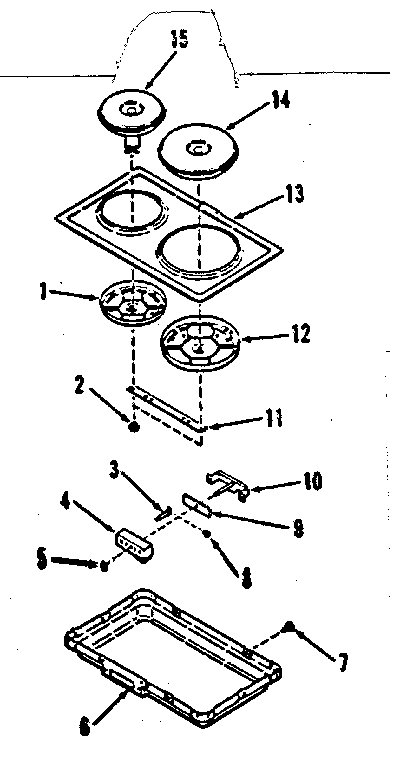

Manufacturer substitutionThis part replaces 332439. Substitute parts can look different from the original.In Stock$112.16QtyOptional electric hob element module kit diagram
Terminal Pin
Part #310709
The manufacturer no longer makes this part, and there's no substitute part
Oven body section diagram
Right
Part #332291
The manufacturer no longer makes this part, and there's no substitute part
Main top section diagram
Limit Switch
Part #333574
The manufacturer no longer makes this part, and there's no substitute part
