Yes, replacing the engine on your Craftsman lawn tractor model 917274752 is worth it when the tractor’s deck, chassis, and driveline are still solid and the total engine swap cost stays well below the cost of a comparable new rider. Use the 917274752 owner's manual to confirm safe service steps before you start.

When engine replacement makes sense

We recommend an engine swap when the rest of the tractor is in good condition and you want more years out of the machine.

• The mower deck is structurally sound (no major rust-through or cracks)
• Steering and transaxle operation are still reliable
• You can do basic maintenance safely (fuel, oil, blade service)
• You already have good wear parts on hand (belts, blades, hardware)
• The engine failure is major (thrown rod, low compression, seized crank) and not a simple tune-up issue

When it is usually better to replace the tractor

If multiple big systems are worn out, putting a new engine on an aging platform rarely pays off.

• The transaxle is slipping or noisy under load
• The deck spindles/mandrels are worn and the cut quality is poor
• The frame or deck has significant corrosion damage
• You need several high-cost repairs at the same time (engine plus driveline plus deck)

Quick cost comparison (typical guideline)

Use this as a practical decision rule for a riding mower or lawn tractor.

Scenario	What we recommend	Why
Engine cost is under ~50% of a comparable new rider	Replace the engine	Best value if the tractor is otherwise strong
Engine cost is over ~50% of a comparable new rider	Consider replacing the tractor	Money is going into an older platform
Engine issue is maintenance-related	Repair instead of replace	Tune-up parts are far cheaper than an engine

Related parts that affect the decision

If your deck and drive system are healthy, an engine swap becomes more attractive. These model-matched parts are common wear items to evaluate at the same time:

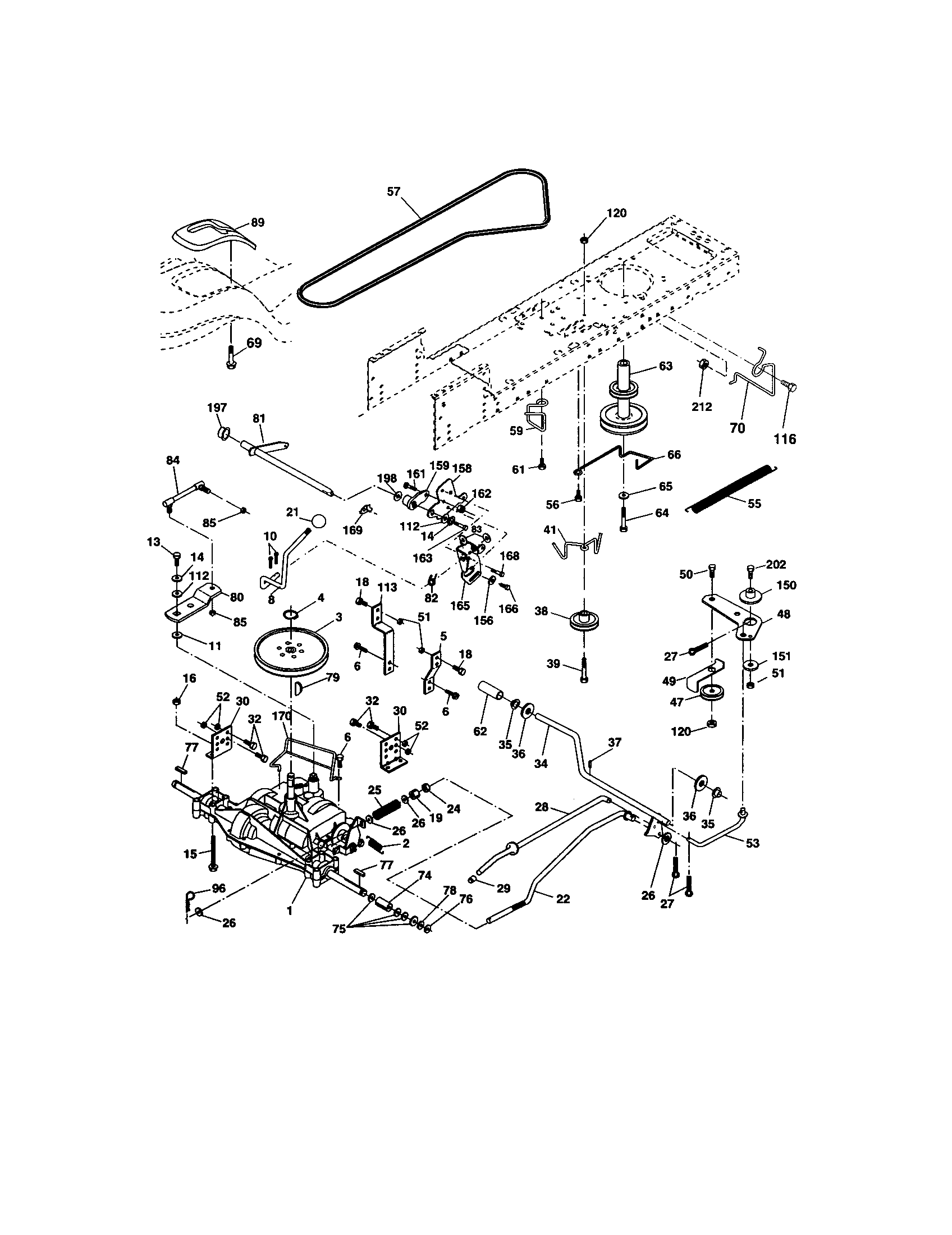

• V-belt 532138255 (ground drive belt condition and cracking)
• Husqvarna lawn tractor mandrel assembly 532130794 (spindle play, noise, vibration)
• Lawn tractor 42-in deck high-lift blade 532138971 (bent blade, poor cut, vibration)

Why it matters

A new engine can restore reliability, but the tractor still depends on safe operation and maintenance. The manual emphasizes keeping hardware tight, avoiding fuel spills, and using extra caution around sharp blades; those basics protect your investment and help prevent repeat failures.

Last updated: February 2026

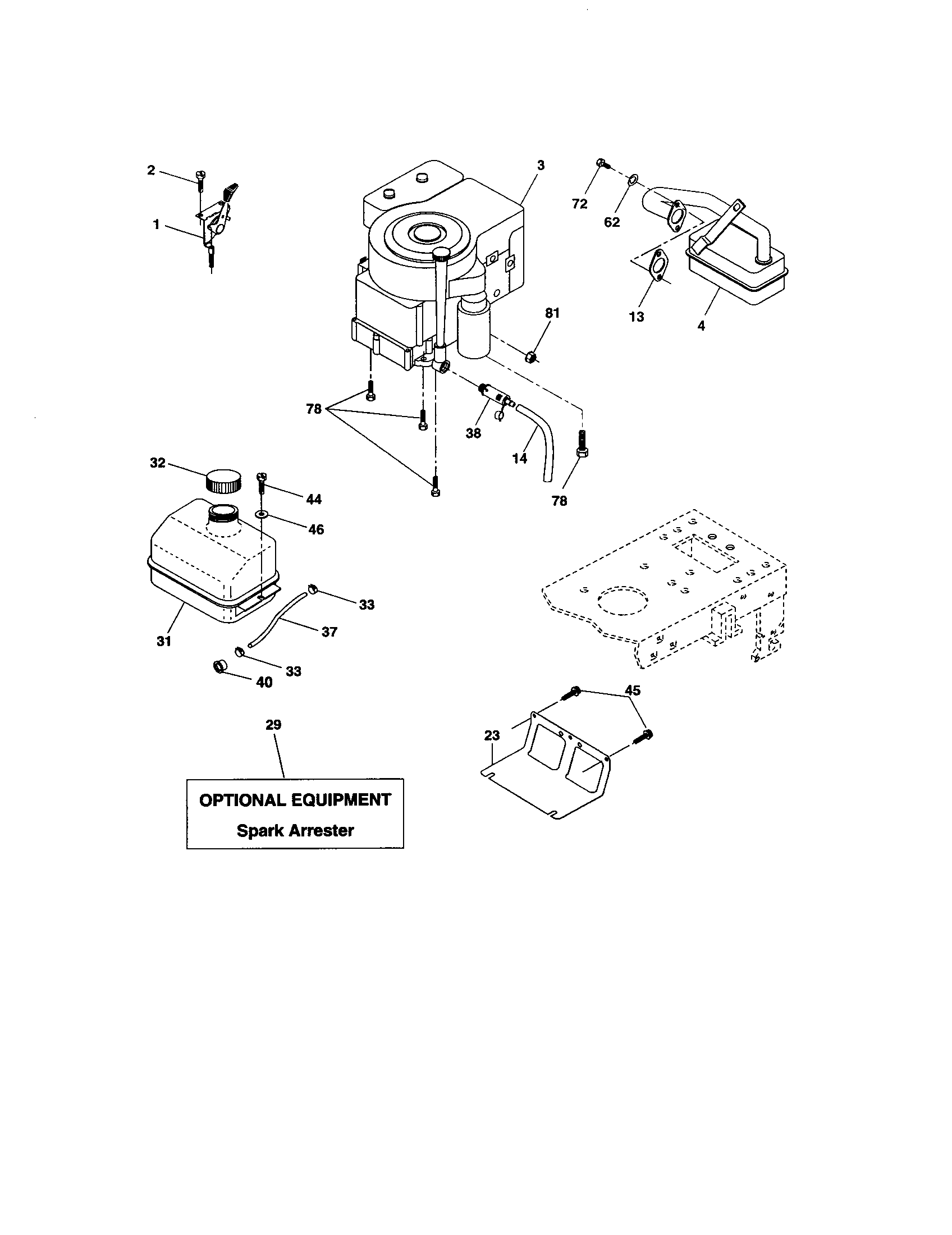

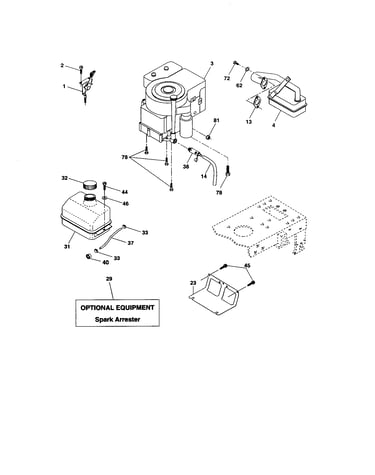

The Craftsman lawn tractor model 917274752 is an 18.5 HP, 42-inch front-engine rider with electric start. To identify the exact engine manufacturer and engine model used on your specific tractor, match the engine’s ID label information to the specifications in the 917274752 owner's manual.

How to identify the exact engine on model 917274752

Use the engine’s identification label; that is the reliable way to get the correct tune-up and repair parts.

• Find the engine ID label on the blower housing, valve cover area, or near the starter
• Write down the engine model, type, and code exactly as shown
• Compare those numbers to the engine information and service references in the 917274752 owner's manual
• Use the engine ID when ordering maintenance items (spark plug, air filter, fuel filter, oil filter)
• If the label is dirty, clean it gently and take a clear photo before recording the numbers

What the manual confirms about this tractor

The owner’s manual identifies the tractor’s power class and configuration, which helps narrow engine families and ensures you follow the correct operating procedures.

Spec from the manual	Value for 917274752	Why it matters
Horsepower class	18.5 HP	Sets expectations for load and mowing performance
Deck size	42-inch	Determines blade and deck belt fit
Starting system	Electric start	Points to battery and starter circuit checks
Transmission	6-speed transaxle	Affects drive belt routing and shifting operation

Why it matters

Using the engine ID label prevents ordering the wrong parts and helps you follow the correct starting, throttle, and troubleshooting steps. The manual also notes that best mowing and battery charging performance comes from operating at full throttle.

Parts commonly replaced for mowing performance

If you are asking because the tractor is cutting poorly (rather than an engine issue), these deck parts are common wear items for a 42-inch setup:

• Lawn tractor 42-in deck high-lift blade 532138971
• Husqvarna lawn tractor mulching blade, 21-in 532134149
• V-belt 532138255

Last updated: February 2026

For the Craftsman 917274752 lawn tractor (Briggs engine model 31P777), we use a detergent 4-cycle engine oil; SAE 30 is the standard choice for warm-weather mowing, and 10W-30 is a common option when you expect cooler starts. For the exact capacity and service interval, follow the 917274752 owner's manual.

Recommended oil types (what to buy)

• SAE 30: best for typical summer mowing temperatures
• SAE 10W-30: better for wider temperature swings and cooler mornings
• Synthetic 5W-30: good for cold-weather starting and year-round use
• Use 4-cycle detergent oil (do not use 2-cycle oil)
• Choose an oil that meets common small-engine specs (API SJ or higher is typical)

Quick oil selection guide

Outdoor temperature	Best choice	Why
Above ~40°F	SAE 30	Stable viscosity in heat
Mixed temps	10W-30	Better across a range
Cold starts	Synthetic 5W-30	Easiest cranking

How to check and change oil correctly

• Park on level ground; set parking brake and let the engine cool
• Check oil at the dipstick; the manual lists the correct fill/check method
• Drain oil into an approved pan; reinstall drain plug securely
• Refill slowly, then recheck level; do not overfill
• Replace oil more often in dusty mowing conditions

Why it matters

Using the right viscosity helps the engine lubricate properly at startup and under load; that reduces wear, improves starting, and helps prevent overheating during long mowing sessions.

Last updated: February 2026

For the Craftsman 42-inch riding mower shown in our documentation, the model number is 917.274752 (commonly written without the dot as 917274752). You can confirm it on the identification label and in the 917274752 owner's manual.

Where to find the model number on the tractor

Check these common locations on Craftsman riding mowers:

• Under the seat on the frame or seat pan
• On the rear fender pan near the seat
• On the left or right side of the frame near the engine
• Near the steering column support
• Inside the hood area on the chassis rail

Model number formats you might see

The same model is often printed in two formats.

How it may appear	What it means
917.274752	Standard manual and parts diagram format
917274752	Same model number without punctuation

Why it matters

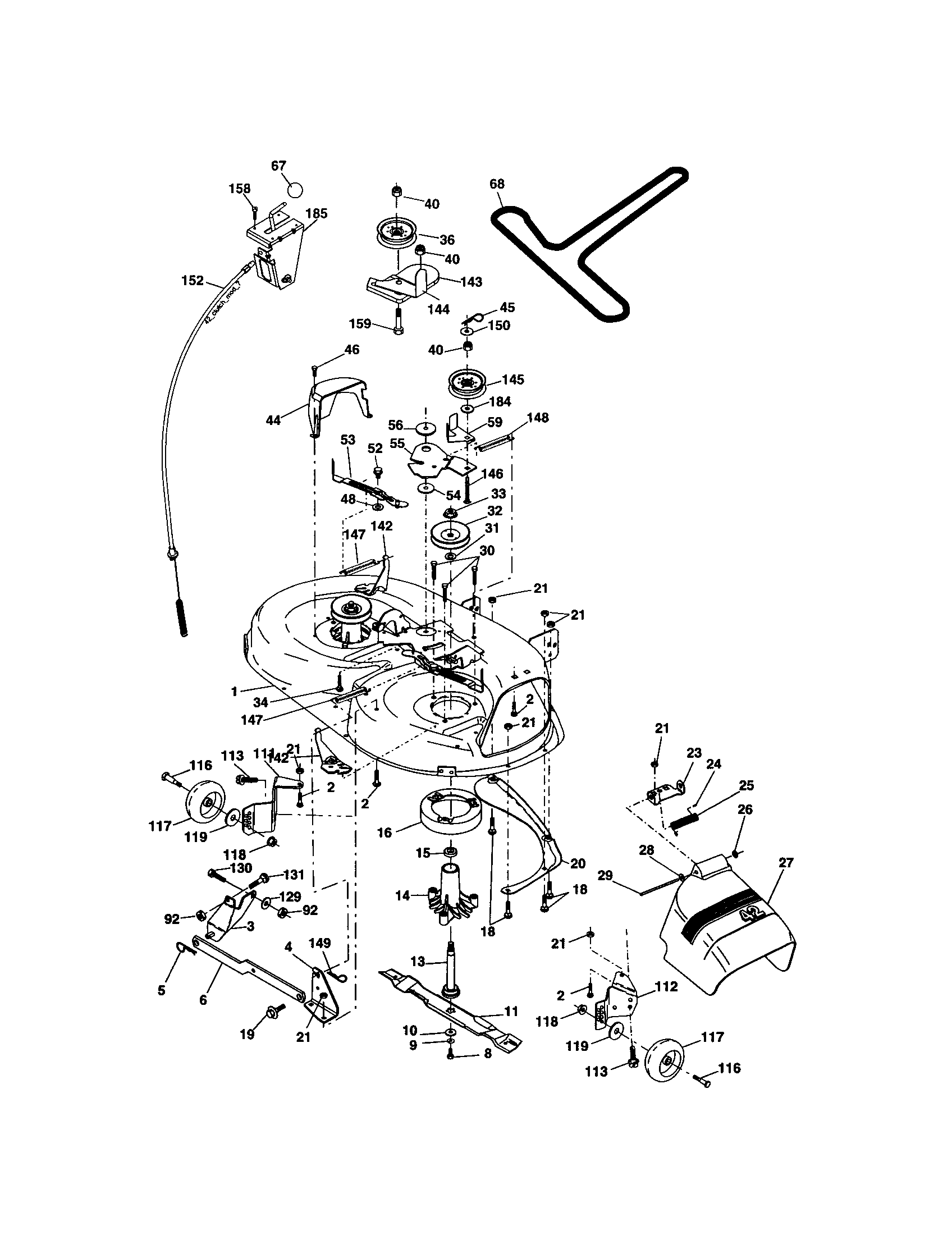

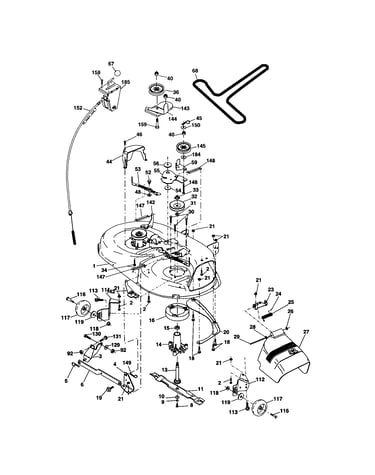

Using the exact model number ensures you get the right parts for your 42-inch mower deck and tractor systems (blades, mandrel parts, belts, steering, and tires). For example, the deck parts list for this model includes blades such as the lawn tractor 42-in deck high-lift blade 532138971.

Quick tips when ordering parts

• Match the full model number exactly (all digits)
• Use the mower deck size (42-inch) only as a secondary check
• If a part has multiple blade styles (mulching vs. high-lift), choose based on how you mow
• Confirm the part ID on the diagram before ordering

Last updated: February 2026

The Craftsman lawn tractor model 917274752 is identified by its model number, but the exact build year is determined by the product identification label and serial information on the tractor. We use the model and serial details shown in the 917274752 owner's manual to match the correct production date range.

How to find the build year on your tractor

Check these common locations for the model and serial label (often a sticker or metal tag):

• Under the seat pan or on the seat support
• On the rear fender pan near the seat
• On the frame rail near the engine compartment
• Near the transaxle area on the frame
• Under the hood on the chassis (less common)

Once you have the serial number, compare it to the identification guidance in the 917274752 owner's manual.

What the model number tells you (and what it does not)

The model number 917274752 confirms you have the correct parts breakdown for this Craftsman tractor, including the 42-inch mower deck components shown in the manual parts lists. It does not, by itself, provide a single definitive calendar year.

Quick reference

Item	What it helps with	Where to use it
Model number (917274752)	Confirms the correct parts diagrams and assemblies	Parts lookup and compatibility
Serial number	Identifies the production date range	Dating the tractor
Engine model/type code	Dates the engine (not always the tractor)	Engine-specific service

Why it matters

Knowing the correct build year helps us match the right version of wear items and assemblies (deck parts, steering parts, belts) so you avoid ordering a part that fits a different production run.
