GE JAP02SN1SS electric range Parts
Here are the diagrams and repair parts for GE JAP02SN1SS electric range, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JAP02SN1SS Ranges

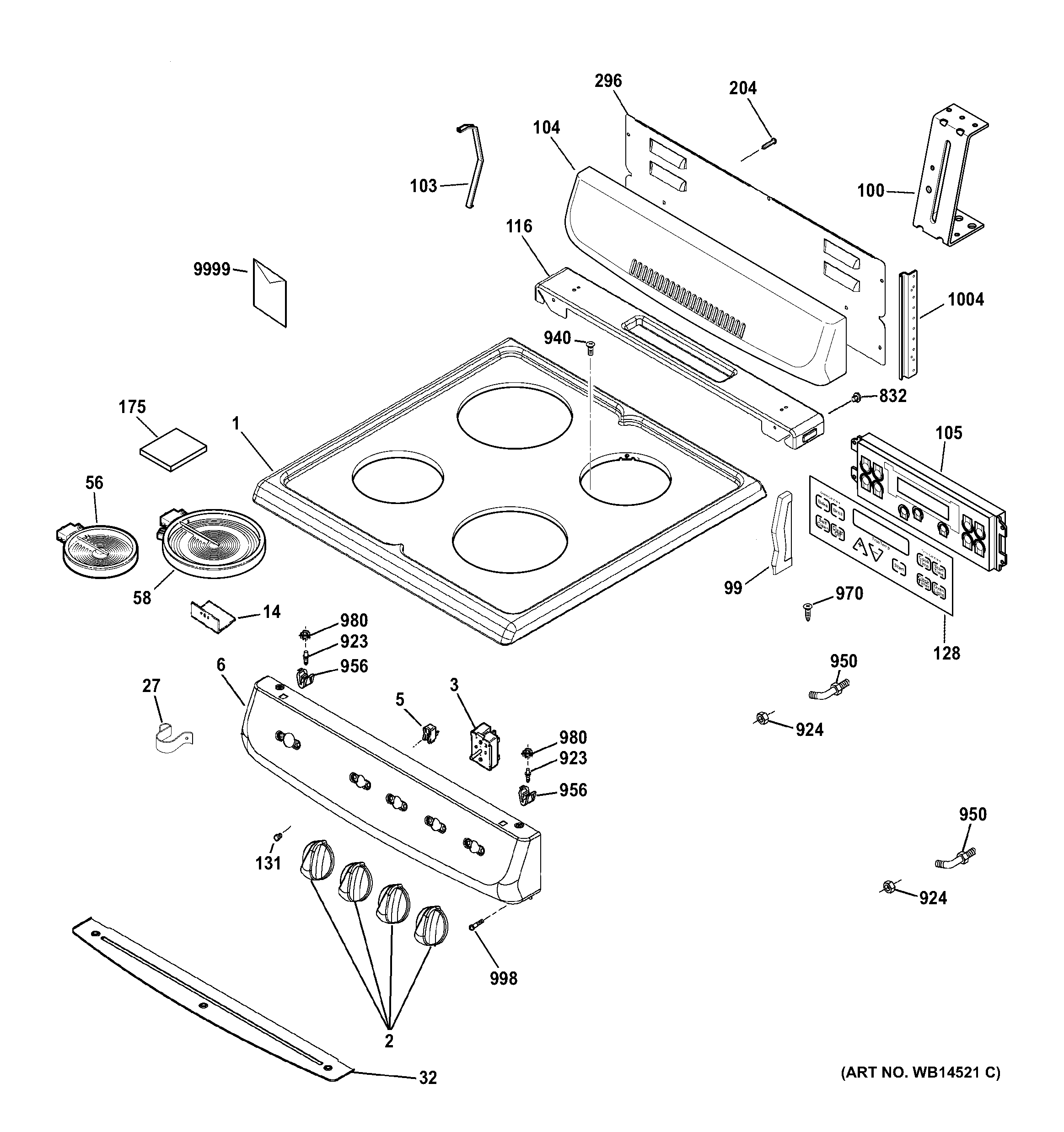

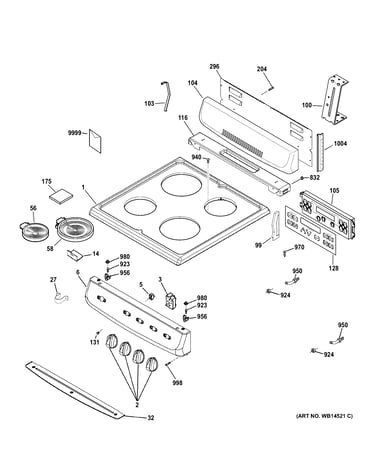

Control panel & cooktop diagram
Range Surface Element Control Switch, 1,500-watt
In Stock$46.7711% OFF Phone Price : $52.77
Qty

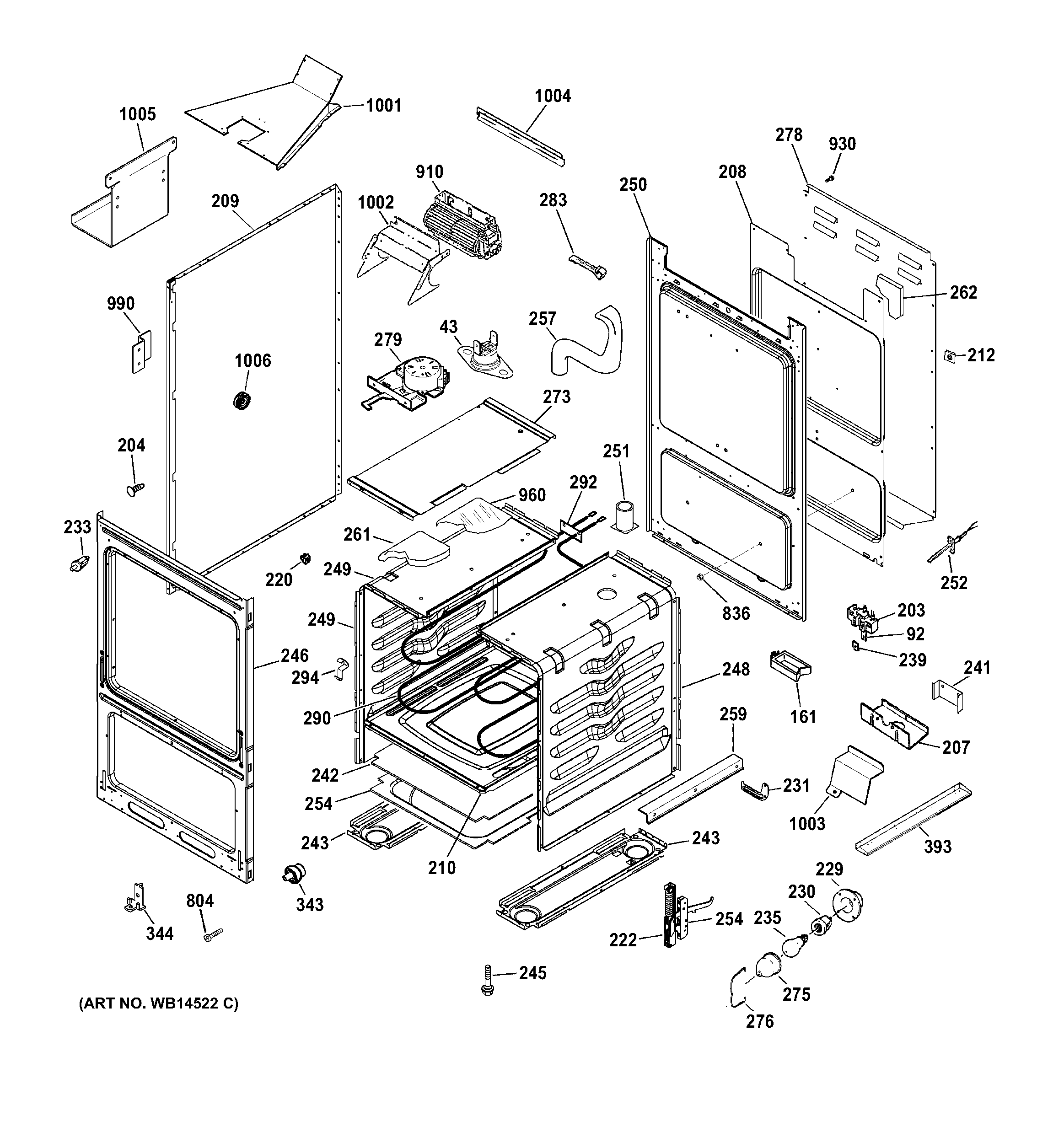

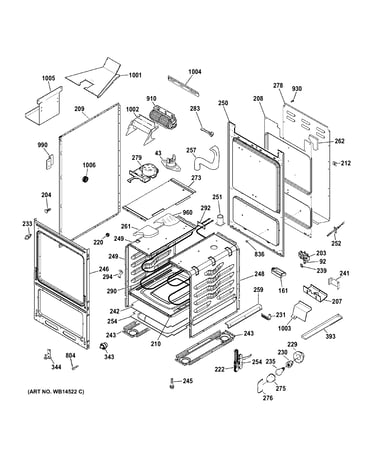

Body parts diagram
40a15bulb
Part #STD372401Replaced by #40A15
Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.In Stock$14.9512% OFF Phone Price : $16.95QtyBody parts diagram
Sensor
Part #WB21X5347Replaced by #WB21X5301
Manufacturer substitutionThis part replaces WB21X5347. Substitute parts can look different from the original.In Stock$124.769% OFF Phone Price : $136.76QtyBody parts diagram
Pushin Receptacle
Part #WB08K0002Replaced by #WB08T10026
Manufacturer substitutionThis part replaces WB08K0002. Substitute parts can look different from the original.This item is not returnableIn Stock$10.1516% OFF Phone Price : $12.15QtyBody parts diagram
Wb36x389
Part #WB08K0005Replaced by #WB36X192
Manufacturer substitutionThis part replaces WB08K0005. Substitute parts can look different from the original.This item is not returnableIn Stock$15.3912% OFF Phone Price : $17.39QtyControl panel & cooktop diagram
Lens
Part #WB25K0002Replaced by #WB25T10041
Manufacturer substitutionThis part replaces WB25K0002. Substitute parts can look different from the original.This item is not returnableIn Stock$9.869% OFF Phone Price : $10.86QtyControl panel & cooktop diagram
Range Radiant Surface Element, 8-in
Part #WB30K10013Replaced by #WB30X26465
Manufacturer substitutionThis part replaces WB30K10013. Substitute parts can look different from the original.In Stock$90.636% OFF Phone Price : $96.63QtyRange Drawer Glide
In Stock$9.0110% OFF Phone Price : $10.01QtyBody parts diagram
Bail
Part #WB02K0027Replaced by #WB2K27

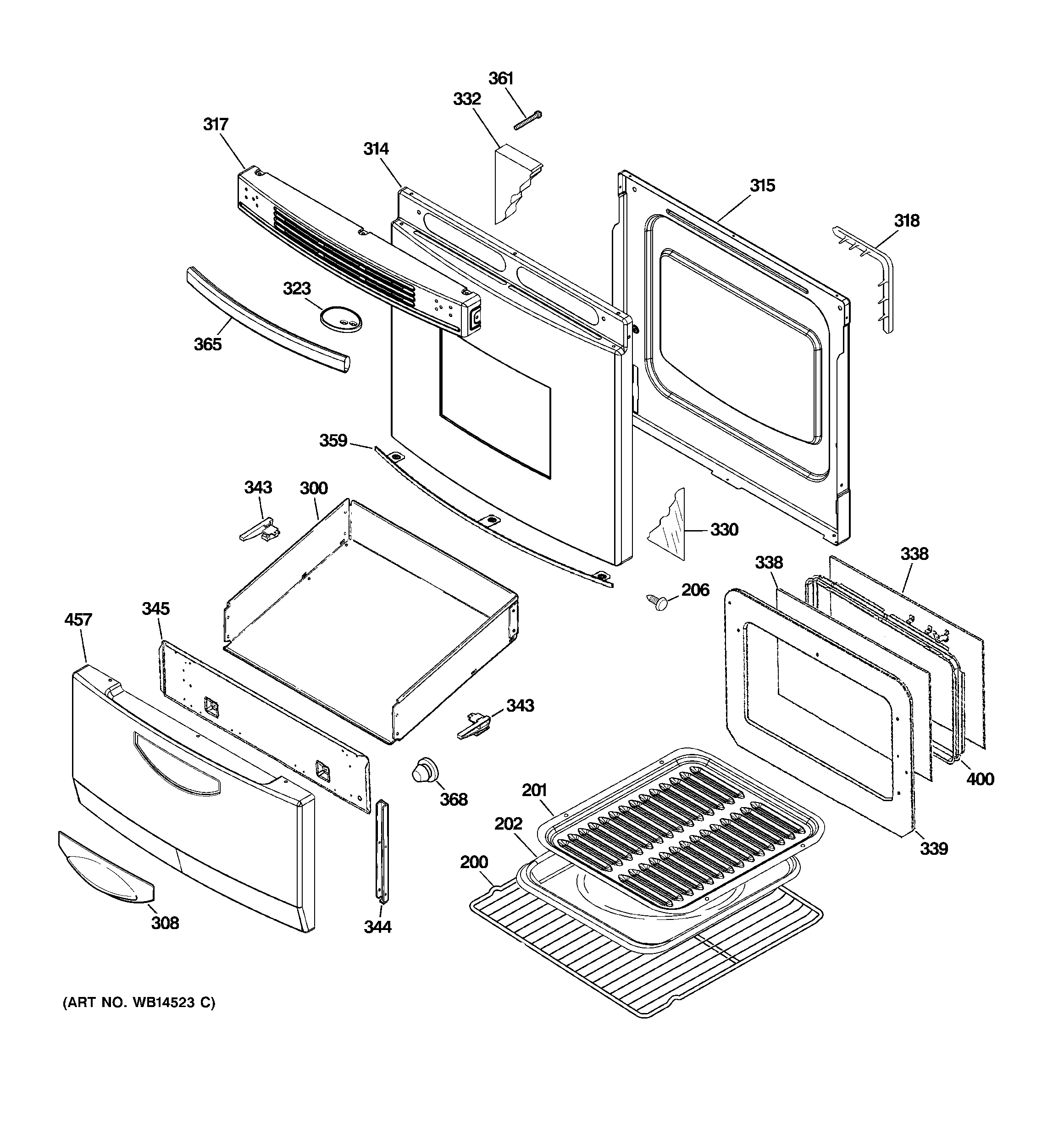

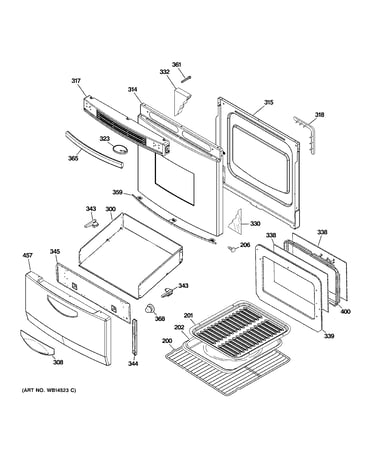

Manufacturer substitutionThis part replaces WB02K0027. Substitute parts can look different from the original.In Stock$53.0310% OFF Phone Price : $59.03QtyDoor & drawer parts diagram
Bumper
Part #WB02K0015Replaced by #WB2K15
Manufacturer substitutionThis part replaces WB02K0015. Substitute parts can look different from the original.In Stock$10.9016% OFF Phone Price : $12.90Qty
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair time and Difficulty
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
You might be surprised by these 4 tips for using your oven better.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer.…
