Whirlpool WGD5605MW0 gas dryer Parts

For a Whirlpool WGD5605MW0 gas dryer, replacing the drive motor typically runs about $200 to $600 total (parts plus labor). The motor itself is usually $150 to $350, and professional labor commonly adds $150 to $300 depending on access, diagnosis time, and local rates.

What affects the total cost

• Diagnosis vs. confirmed failure: A “won’t start” symptom can be power, door switch, belt, or control related.
• Labor time: Motor replacement often requires cabinet access and drum removal.
• Extra wear parts: If the drum rollers or idler pulley are worn, we recommend replacing them while the dryer is open.
• Service call fees: Many companies charge a trip/diagnostic fee even if you decline the repair.
• DIY vs. pro: DIY saves labor but requires safe disassembly and reassembly.

Smart add-ons while the dryer is open

If your WGD5605MW0 is squealing, thumping, or the drum feels rough, these parts are commonly replaced with a motor job:

• Motor, split W11511154
• Dryer drum support roller WPW10314173
• Dryer idler pulley W10837240
• Dryer repair kit 4392067

Quick cost comparison

Repair path	Typical out-of-pocket	Best when
DIY motor replacement	$150 to $350	You have tools and basic repair experience
Pro motor replacement	$200 to $600	You want warranty on labor and faster turnaround
Replace dryer	$500+	Repair cost is near half the price of a comparable new unit

Why it matters

A failing motor can mimic other problems (no start, humming, intermittent stopping). Before spending on a motor, we follow the basic “won’t start” checks in the WGD5605MW0 owner’s manual, including verifying power, door closure, and control settings.

Last updated: February 2026

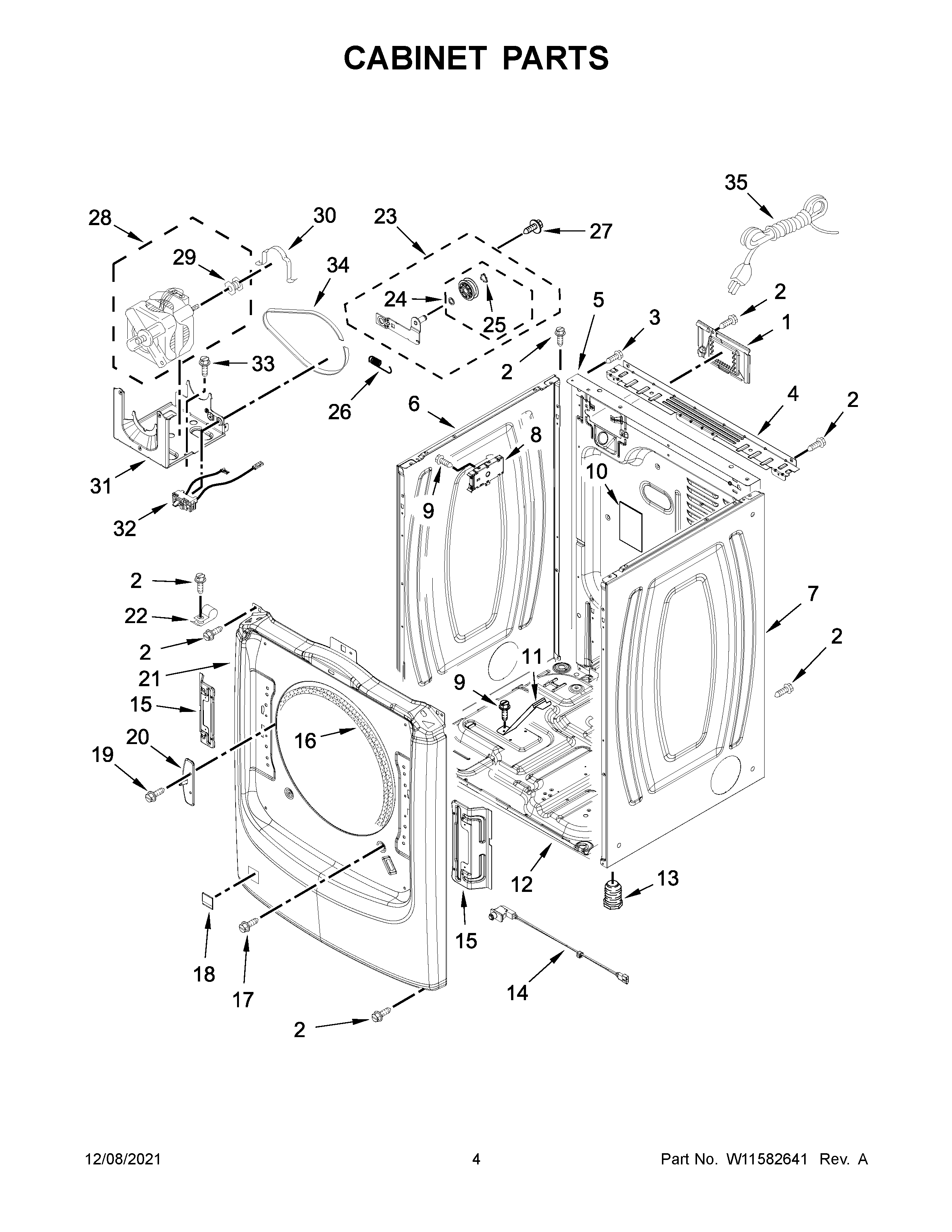

For the Whirlpool WGD5605MW0 gas dryer, we remove panels by making the machine safe first (power off, gas off), then opening the cabinet in the service order used for this Whirlpool platform: lift the top, then remove the front panel after disconnecting the door switch wiring. Use the WGD5605MW0 owner's manual to match the exact screw and clip locations on your build.

Safety steps (required on a gas dryer)

• Unplug the dryer or switch off the breaker.
• Close the gas shutoff valve in the supply line.
• Let the dryer cool completely.
• Pull the dryer forward carefully; avoid crushing or kinking the vent.
• Wear gloves; cabinet edges are sharp.

Typical cabinet access steps (top, then front)

1. Remove the lint screen (location varies by configuration).

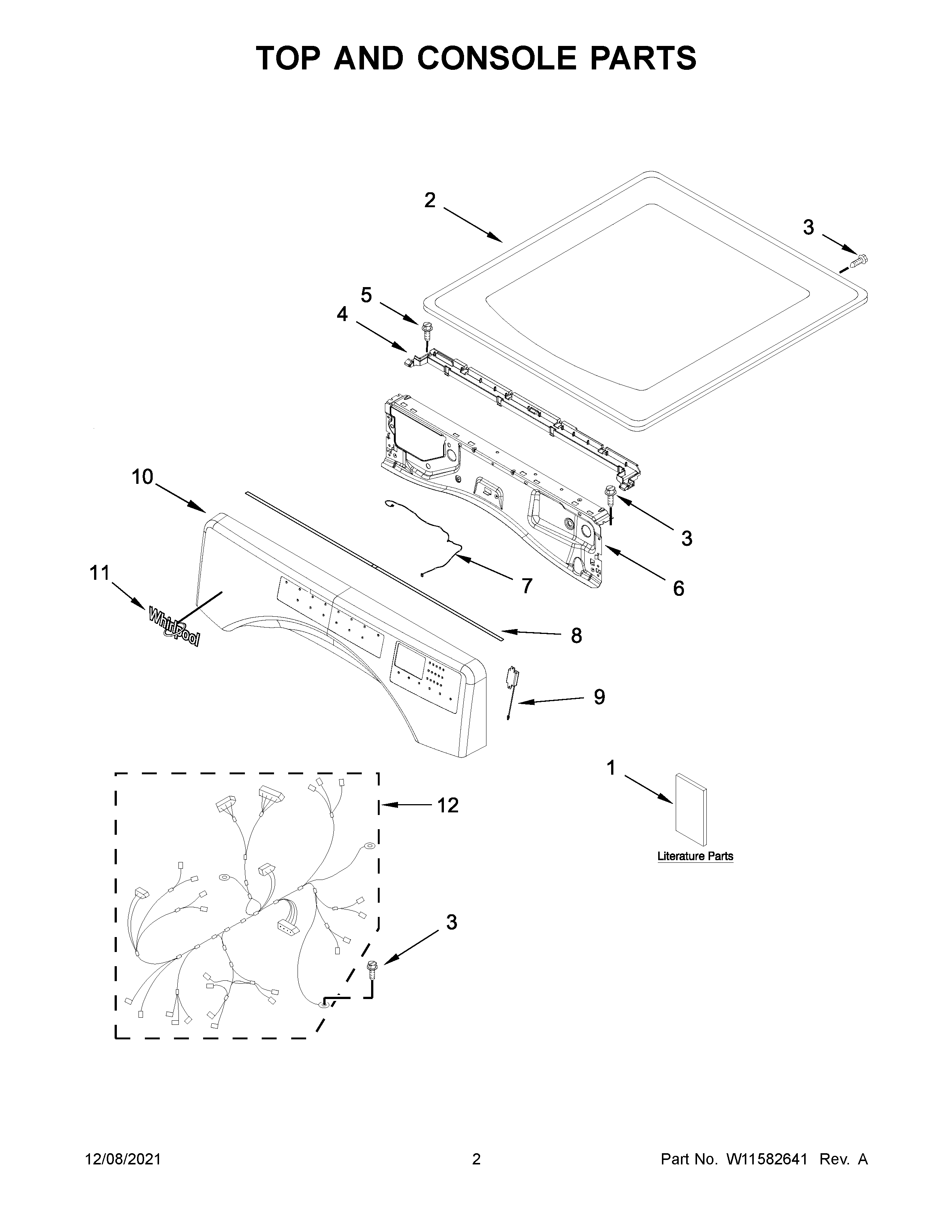

2. Release the main top:
   • Remove any screws at the back edge if present, or
   • Use a flat-blade screwdriver to release spring clips near the front seam.
3. Lift the top and support it.
4. Remove the front panel mounting screws (commonly at the upper inside corners with the top raised).
5. Disconnect the door switch harness from the front panel.
6. Lift the front panel up to clear the lower retaining tabs, then pull it forward and off.

Tools we use most often

Tool	What it’s for
1/4-in nut driver	Common Whirlpool cabinet screws
Flat-blade screwdriver	Releasing top clips at the seam
Phillips screwdriver	Console or door screws on some versions
Small container	Keeping screws sorted for reassembly

Why it matters

Removing the top and front panels correctly keeps the cabinet aligned, prevents wiring damage, and helps avoid vibration, drum rub, and airflow leaks that increase drying time.

Last updated: February 2026

Common problems on a Whirlpool gas dryer like model WGD5605MW0 include no-start issues, no-heat complaints, long dry times from restricted venting, and drum noise or no-tumble from worn drive components. We recommend checking airflow and power first, then inspecting the most likely wear parts.

Most common symptoms and what they usually mean

• Dryer will not start: power supply issue, door switch, or control problem
• Runs but will not heat: gas ignition system issue (igniter, radiant sensor, valve coils)
• Takes too long to dry: blocked or crushed venting, lint buildup, poor airflow
• Loud thumping/squealing: worn drum support rollers or idler pulley
• Drum will not spin: belt or idler pulley problem, or motor issue
• Stops mid-cycle or overheats: airflow restriction, thermal fuse or thermal cut-off opening

Quick checks we recommend first (fast, high-impact)

1. Confirm safe, correct venting: use heavy metal venting; avoid plastic or foil vent. Clean lint from the full vent run regularly. See the venting and safety guidance in the WGD5605MW0 owner’s manual.
2. Check airflow at the exhaust hood: weak airflow points to a restriction (crushed duct, lint clog, too many elbows).
3. Verify power: this gas dryer needs a grounded 3-prong outlet and a dedicated 120V circuit (15A or 20A). A tripped breaker can mimic a “dead” dryer.
4. Clean the lint screen before every load: it is the simplest way to prevent long dry times.

Parts that commonly fix these problems on WGD5605MW0

Symptom	Common suspect part	Example part for this model
Squeal/thump, drum support noise	Drum support roller	Dryer drum support roller WPW10314173
No tumble, belt slack/noise	Idler pulley	Dryer idler pulley W10837240
No heat after it starts, intermittent heat	Gas valve coils	Dryer valve coil kit 279834
Overheats or won’t run (safety opens)	Thermal fuse	Thermal fuse W10909685

Why it matters

Most “dryer problems” trace back to airflow. Restricted venting increases drying time, wastes gas, and can overheat the dryer, which can trip safety devices like a thermal fuse.

Last updated: February 2026
